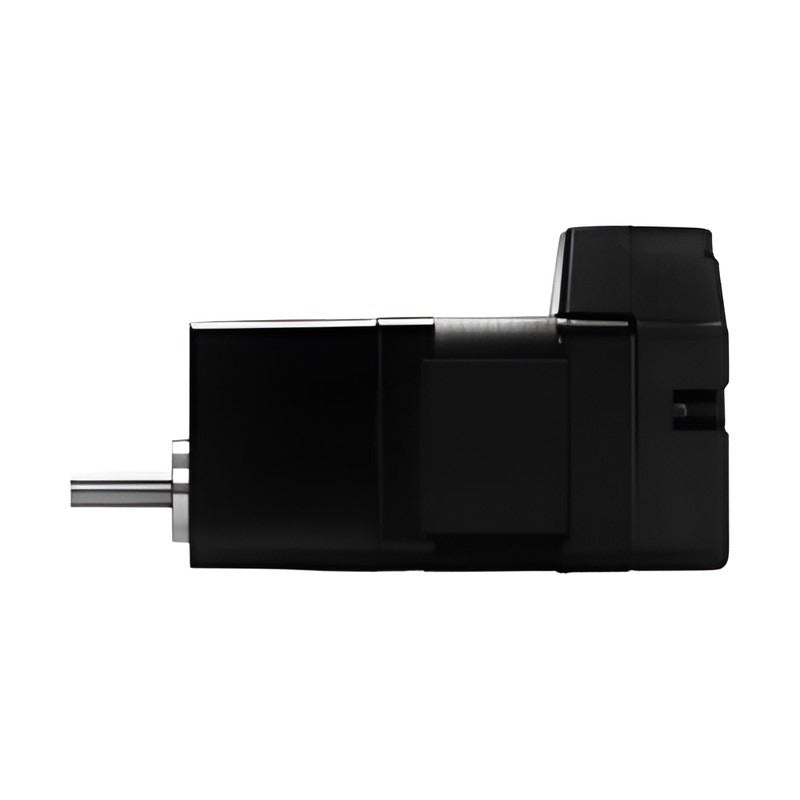

Sanyo Denki SANMOTION F5 Stepping Motor (Encoder-Mounted, AC Input)

Sanyo Denki SANMOTION F5 Stepping Motor (Encoder-Mounted, AC Input)

SANMOTION F5 5-phase stepping motors with a 4000 P/R 3-channel encoder for monitoring position and speed, in 42, 60 and 86 mm sq.

Key features

  • Encoder 4000 P/R, 3 channels, line driver (CMOS) output
  • Monitors position and speed to find causes of vibration and step-out
  • Maximum slewing frequency 220 kHz
  • Single-shaft design, lead type with connectors
  • Uses FC5E00x0A encoder cable to the AC input driver

Specifications

Phase 5-phase
Shaft Single
Encoder resolution 4000 P/R
Channels 3
Output circuit Line driver (CMOS)
Encoder supply 5 V ±5%, 100 mA max.
Source Sanyo Denki SANMOTION F5 5-Phase Stepping Systems S0834B023, p. 12-13, 24-25, 35-36, 40-41
SM5421-32XE40 Size: 42 mm sq. | Length: 51.3 mm | Holding torque: 0.13 N·m min. | Rated current: 0.35 A/phase | Driver: F5PAA035P100 / F5PAB035P100
SM5422-32XE40 Size: 42 mm sq. | Length: 57.6 mm | Holding torque: 0.185 N·m min. | Rated current: 0.35 A/phase | Driver: F5PAA035P100 / F5PAB035P100
SM5423-32XE40 Size: 42 mm sq. | Length: 65.3 mm | Holding torque: 0.245 N·m min. | Rated current: 0.35 A/phase | Driver: F5PAA035P100 / F5PAB035P100
SM5601-72XE40 Size: 60 mm sq. | Length: 65.6 mm | Holding torque: 0.57 N·m min. | Rated current: 0.75 A/phase | Driver: F5PAA075P100 / F5PAB075P100
SM5602-72XE40 Size: 60 mm sq. | Length: 76.8 mm | Holding torque: 0.9 N·m min. | Rated current: 0.75 A/phase | Driver: F5PAA075P100 / F5PAB075P100
SM5603-72XE40 Size: 60 mm sq. | Length: 105.5 mm | Holding torque: 1.7 N·m min. | Rated current: 0.75 A/phase | Driver: F5PAA075P100 / F5PAB075P100
SM5861-72XE40 Size: 86 mm sq. | Length: 79.5 mm | Holding torque: 2.3 N·m min. | Rated current: 0.75 A/phase | Driver: F5PAA075P100 / F5PAB075P100
SM5862-72XE40 Size: 86 mm sq. | Length: 110 mm | Holding torque: 4.4 N·m min. | Rated current: 0.75 A/phase | Driver: F5PAA075P100 / F5PAB075P100
SM5863-72XE40 Size: 86 mm sq. | Length: 140.5 mm | Holding torque: 6.8 N·m min. | Rated current: 0.75 A/phase | Driver: F5PAA075P100 / F5PAB075P100
Stepping MotorsSanyo Denki
9 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki SANMOTION F5 Stepping Motor (Encoder-Mounted, AC Input)

Brand Sanyo Denki·Stepping Motors

Available part numbers (9)

SM5421-32XE40, SM5422-32XE40, SM5423-32XE40, SM5601-72XE40, SM5602-72XE40, SM5603-72XE40, SM5861-72XE40, SM5862-72XE40, SM5863-72XE40
