Sanyo Denki SANMOTION F5 F5M Stepping Motor 28/42/60 mm (24 VDC)

Sanyo Denki SANMOTION F5 F5M Stepping Motor 28/42/60 mm (24 VDC)

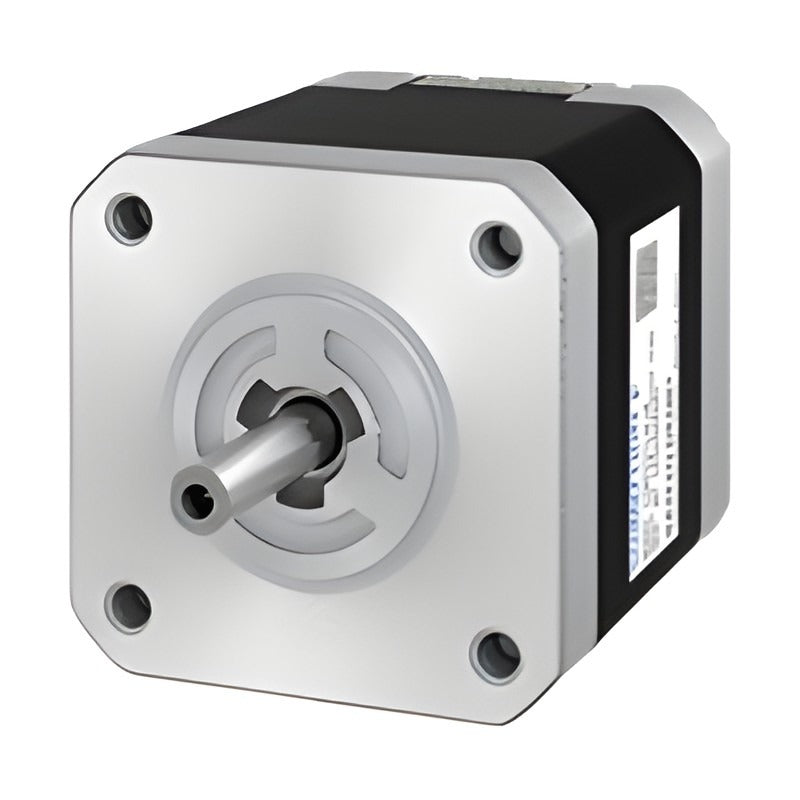

SANMOTION F5 F5M high-torque, low-vibration 5-phase stepping motors in 28, 42 and 60 mm sq. for 24 VDC systems.

Key features

  • Up to 70% higher torque than conventional F5 motors (SH528, SM542, SM560)
  • Over 10% lower vibration and about 44% lower stop position error
  • Up to 10% shorter and 8% lighter than conventional products
  • Connector type; single-shaft (P4) and dual-shaft (P1) versions
  • Custom shaft, gear, encoder and brake options on request

Specifications

Phase 5-phase
Step angle 0.72 deg/step
Connection Connector type
Wiring Pentagon, 5 leads
Supply 24 VDC stepping systems
RoHS Compliant
Custom options Shaft, gear, encoder, brake
Source Sanyo Denki SANMOTION F5 24 VDC Stepping Motors S1074B001, p. 1-4
F5M281C075P4 Size: 28 mm sq. | Length: 32.0 mm | Shaft: Single | Holding torque: 0.062 N·m min. | Rated current: 0.75 A/phase
F5M281C075P1 Size: 28 mm sq. | Length: 32.0 mm | Shaft: Dual | Holding torque: 0.062 N·m min. | Rated current: 0.75 A/phase
F5M285C075P4 Size: 28 mm sq. | Length: 51.5 mm | Shaft: Single | Holding torque: 0.095 N·m min. | Rated current: 0.75 A/phase
F5M285C075P1 Size: 28 mm sq. | Length: 51.5 mm | Shaft: Dual | Holding torque: 0.095 N·m min. | Rated current: 0.75 A/phase
F5M421C14P4M Size: 42 mm sq. | Length: 33.0 mm | Shaft: Single | Holding torque: 0.21 N·m min. | Rated current: 1.4 A/phase
F5M421C14P1M Size: 42 mm sq. | Length: 33.0 mm | Shaft: Dual | Holding torque: 0.21 N·m min. | Rated current: 1.4 A/phase
F5M422C14P4M Size: 42 mm sq. | Length: 39.0 mm | Shaft: Single | Holding torque: 0.3 N·m min. | Rated current: 1.4 A/phase
F5M422C14P1M Size: 42 mm sq. | Length: 39.0 mm | Shaft: Dual | Holding torque: 0.3 N·m min. | Rated current: 1.4 A/phase
F5M423C14P4M Size: 42 mm sq. | Length: 47.0 mm | Shaft: Single | Holding torque: 0.39 N·m min. | Rated current: 1.4 A/phase
F5M423C14P1M Size: 42 mm sq. | Length: 47.0 mm | Shaft: Dual | Holding torque: 0.39 N·m min. | Rated current: 1.4 A/phase
F5M424C14P4M Size: 42 mm sq. | Length: 59.0 mm | Shaft: Single | Holding torque: 0.54 N·m min. | Rated current: 1.4 A/phase
F5M424C14P1M Size: 42 mm sq. | Length: 59.0 mm | Shaft: Dual | Holding torque: 0.54 N·m min. | Rated current: 1.4 A/phase
F5M601C14P4M Size: 60 mm sq. | Length: 44.0 mm | Shaft: Single | Holding torque: 0.65 N·m min. | Rated current: 1.4 A/phase
F5M601C14P1M Size: 60 mm sq. | Length: 44.0 mm | Shaft: Dual | Holding torque: 0.65 N·m min. | Rated current: 1.4 A/phase
F5M602C14P4M Size: 60 mm sq. | Length: 55.0 mm | Shaft: Single | Holding torque: 1.05 N·m min. | Rated current: 1.4 A/phase
F5M602C14P1M Size: 60 mm sq. | Length: 55.0 mm | Shaft: Dual | Holding torque: 1.05 N·m min. | Rated current: 1.4 A/phase
F5M603C14P4M Size: 60 mm sq. | Length: 84.5 mm | Shaft: Single | Holding torque: 2 N·m min. | Rated current: 1.4 A/phase
F5M603C14P1M Size: 60 mm sq. | Length: 84.5 mm | Shaft: Dual | Holding torque: 2 N·m min. | Rated current: 1.4 A/phase
F5M601C28P4M Size: 60 mm sq. | Length: 44.0 mm | Shaft: Single | Holding torque: 0.65 N·m min. | Rated current: 2.8 A/phase
F5M601C28P1M Size: 60 mm sq. | Length: 44.0 mm | Shaft: Dual | Holding torque: 0.65 N·m min. | Rated current: 2.8 A/phase
F5M602C28P4M Size: 60 mm sq. | Length: 55.0 mm | Shaft: Single | Holding torque: 1.05 N·m min. | Rated current: 2.8 A/phase
F5M602C28P1M Size: 60 mm sq. | Length: 55.0 mm | Shaft: Dual | Holding torque: 1.05 N·m min. | Rated current: 2.8 A/phase
F5M603C28P4M Size: 60 mm sq. | Length: 84.5 mm | Shaft: Single | Holding torque: 2 N·m min. | Rated current: 2.8 A/phase
F5M603C28P1M Size: 60 mm sq. | Length: 84.5 mm | Shaft: Dual | Holding torque: 2 N·m min. | Rated current: 2.8 A/phase
