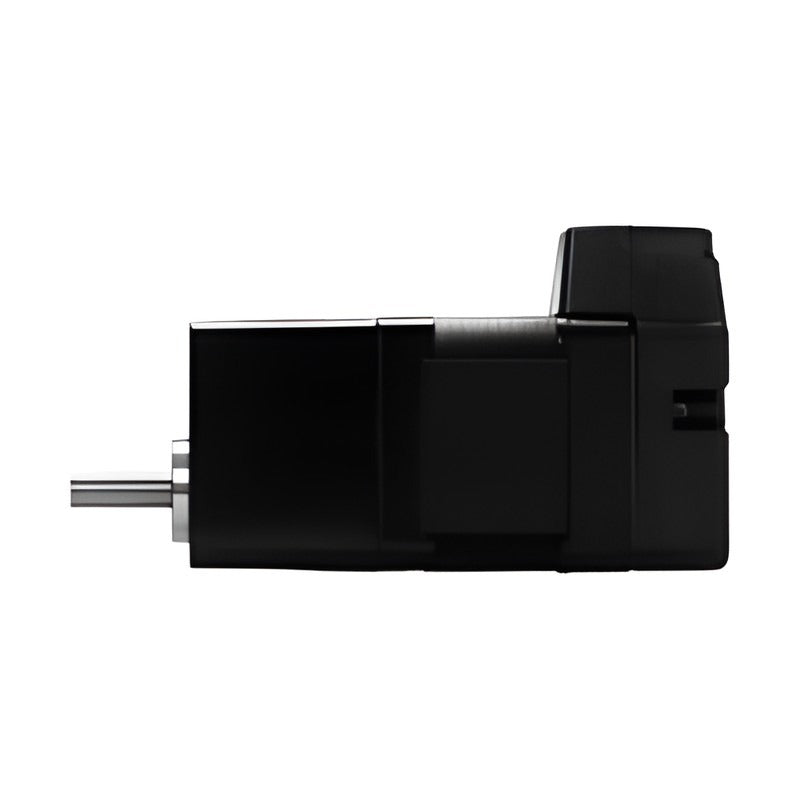

Sanyo Denki SANMOTION F5 Stepping Motor (Harmonic Gear, AC Input)

Sanyo Denki SANMOTION F5 Stepping Motor (Harmonic Gear, AC Input)

SANMOTION F5 5-phase stepping motors with harmonic gears for up to 1:100 resolution, in 42, 60 and 86 mm sq. frames.

Key features

  • Harmonic gear ratios 1:30 (42 mm only), 1:50 and 1:100
  • Full step angle down to 0.0072 deg at 1:100
  • Very low hysteresis loss / lost motion for precise positioning
  • Single-shaft and dual-shaft versions
  • Combined with F5PAA / F5PAB AC input drivers

Specifications

Phase 5-phase
Gear type Harmonic gear
Wiring New pentagon configuration
Rotation Gear output opposite to motor shaft
Motor + gear length 42: 74.4 / 60: 116.3 / 86: 148 mm
Source Sanyo Denki SANMOTION F5 5-Phase Stepping Systems S0834B023, p. 12-13, 20-21, 31-32, 38-39
SM5421-32HXJ40 Size: 42 mm sq. | Gear ratio: 1:30 | Shaft: Single | Allowable torque: 2.2 N·m | Peak torque: 4.5 N·m | Driver: F5PAA035P100 / F5PAB035P100
SM5421-32HXJ10 Size: 42 mm sq. | Gear ratio: 1:30 | Shaft: Dual | Allowable torque: 2.2 N·m | Peak torque: 4.5 N·m | Driver: F5PAA035P100 / F5PAB035P100
SM5421-32HXL40 Size: 42 mm sq. | Gear ratio: 1:50 | Shaft: Single | Allowable torque: 3.5 N·m | Peak torque: 8.3 N·m | Driver: F5PAA035P100 / F5PAB035P100
SM5421-32HXL10 Size: 42 mm sq. | Gear ratio: 1:50 | Shaft: Dual | Allowable torque: 3.5 N·m | Peak torque: 8.3 N·m | Driver: F5PAA035P100 / F5PAB035P100
SM5421-32HXM40 Size: 42 mm sq. | Gear ratio: 1:100 | Shaft: Single | Allowable torque: 5 N·m | Peak torque: 11 N·m | Driver: F5PAA035P100 / F5PAB035P100
SM5421-32HXM10 Size: 42 mm sq. | Gear ratio: 1:100 | Shaft: Dual | Allowable torque: 5 N·m | Peak torque: 11 N·m | Driver: F5PAA035P100 / F5PAB035P100
SM5601-72HXL40 Size: 60 mm sq. | Gear ratio: 1:50 | Shaft: Single | Allowable torque: 5.5 N·m | Peak torque: 14 N·m | Driver: F5PAA075P100 / F5PAB075P100
SM5601-72HXL10 Size: 60 mm sq. | Gear ratio: 1:50 | Shaft: Dual | Allowable torque: 5.5 N·m | Peak torque: 14 N·m | Driver: F5PAA075P100 / F5PAB075P100
SM5601-72HXM40 Size: 60 mm sq. | Gear ratio: 1:100 | Shaft: Single | Allowable torque: 8 N·m | Peak torque: 20 N·m | Driver: F5PAA075P100 / F5PAB075P100
SM5601-72HXM10 Size: 60 mm sq. | Gear ratio: 1:100 | Shaft: Dual | Allowable torque: 8 N·m | Peak torque: 20 N·m | Driver: F5PAA075P100 / F5PAB075P100
SM5861-72HXL40 Size: 86 mm sq. | Gear ratio: 1:50 | Shaft: Single | Allowable torque: 25 N·m | Peak torque: 34 N·m | Driver: F5PAA075P100 / F5PAB075P100
SM5861-72HXL10 Size: 86 mm sq. | Gear ratio: 1:50 | Shaft: Dual | Allowable torque: 25 N·m | Peak torque: 34 N·m | Driver: F5PAA075P100 / F5PAB075P100
SM5861-72HXM40 Size: 86 mm sq. | Gear ratio: 1:100 | Shaft: Single | Allowable torque: 40 N·m | Peak torque: 59 N·m | Driver: F5PAA075P100 / F5PAB075P100
SM5861-72HXM10 Size: 86 mm sq. | Gear ratio: 1:100 | Shaft: Dual | Allowable torque: 40 N·m | Peak torque: 59 N·m | Driver: F5PAA075P100 / F5PAB075P100
Stepping MotorsSanyo Denki
14 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki SANMOTION F5 Stepping Motor (Harmonic Gear, AC Input)

Brand Sanyo Denki·Stepping Motors

Available part numbers (14)

SM5421-32HXJ40, SM5421-32HXJ10, SM5421-32HXL40, SM5421-32HXL10, SM5421-32HXM40, SM5421-32HXM10, SM5601-72HXL40, SM5601-72HXL10, SM5601-72HXM40, SM5601-72HXM10 + 4 more — see full table ↓

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SM5421-32HXJ40Size: 42 mm sq. | Gear ratio: 1:30 | Shaft: Single | Allowable torque: 2.2 N·m | Peak torque: 4.5 N·m | Driver: F5PAA035P100 / F5PAB035P100
SM5421-32HXJ10Size: 42 mm sq. | Gear ratio: 1:30 | Shaft: Dual | Allowable torque: 2.2 N·m | Peak torque: 4.5 N·m | Driver: F5PAA035P100 / F5PAB035P100
SM5421-32HXL40Size: 42 mm sq. | Gear ratio: 1:50 | Shaft: Single | Allowable torque: 3.5 N·m | Peak torque: 8.3 N·m | Driver: F5PAA035P100 / F5PAB035P100
SM5421-32HXL10Size: 42 mm sq. | Gear ratio: 1:50 | Shaft: Dual | Allowable torque: 3.5 N·m | Peak torque: 8.3 N·m | Driver: F5PAA035P100 / F5PAB035P100
SM5421-32HXM40Size: 42 mm sq. | Gear ratio: 1:100 | Shaft: Single | Allowable torque: 5 N·m | Peak torque: 11 N·m | Driver: F5PAA035P100 / F5PAB035P100
SM5421-32HXM10Size: 42 mm sq. | Gear ratio: 1:100 | Shaft: Dual | Allowable torque: 5 N·m | Peak torque: 11 N·m | Driver: F5PAA035P100 / F5PAB035P100
SM5601-72HXL40Size: 60 mm sq. | Gear ratio: 1:50 | Shaft: Single | Allowable torque: 5.5 N·m | Peak torque: 14 N·m | Driver: F5PAA075P100 / F5PAB075P100
SM5601-72HXL10Size: 60 mm sq. | Gear ratio: 1:50 | Shaft: Dual | Allowable torque: 5.5 N·m | Peak torque: 14 N·m | Driver: F5PAA075P100 / F5PAB075P100
SM5601-72HXM40Size: 60 mm sq. | Gear ratio: 1:100 | Shaft: Single | Allowable torque: 8 N·m | Peak torque: 20 N·m | Driver: F5PAA075P100 / F5PAB075P100
SM5601-72HXM10Size: 60 mm sq. | Gear ratio: 1:100 | Shaft: Dual | Allowable torque: 8 N·m | Peak torque: 20 N·m | Driver: F5PAA075P100 / F5PAB075P100
SM5861-72HXL40Size: 86 mm sq. | Gear ratio: 1:50 | Shaft: Single | Allowable torque: 25 N·m | Peak torque: 34 N·m | Driver: F5PAA075P100 / F5PAB075P100
SM5861-72HXL10Size: 86 mm sq. | Gear ratio: 1:50 | Shaft: Dual | Allowable torque: 25 N·m | Peak torque: 34 N·m | Driver: F5PAA075P100 / F5PAB075P100
SM5861-72HXM40Size: 86 mm sq. | Gear ratio: 1:100 | Shaft: Single | Allowable torque: 40 N·m | Peak torque: 59 N·m | Driver: F5PAA075P100 / F5PAB075P100
SM5861-72HXM10Size: 86 mm sq. | Gear ratio: 1:100 | Shaft: Dual | Allowable torque: 40 N·m | Peak torque: 59 N·m | Driver: F5PAA075P100 / F5PAB075P100
