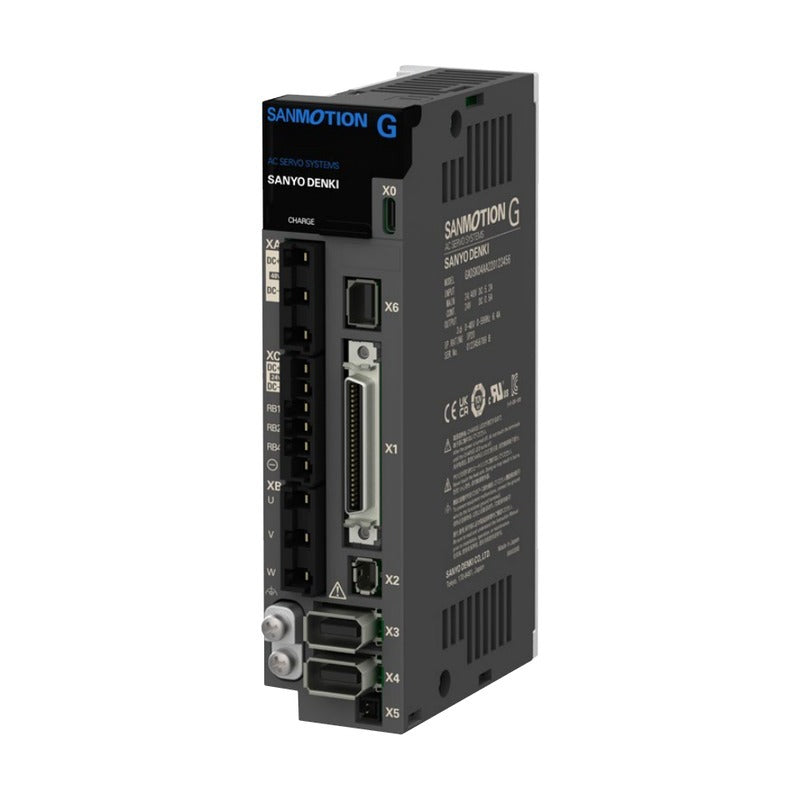

Sanyo Denki SANMOTION G 48 VDC Servo Amplifier (Analog/Pulse)

Sanyo Denki SANMOTION G 48 VDC Servo Amplifier (Analog/Pulse)

48 VDC servo amplifiers with analog voltage and pulse command interface for SANMOTION G motors up to 400 W.

Key features

  • Position, speed and torque control switched by parameters
  • Safe Torque Off (STO) function, without delay circuit
  • Sinking or sourcing general-purpose outputs
  • Built-in or external regenerative resistor versions, dynamic brake built in
  • Speed frequency response 1500 Hz (2.2 times the conventional product)
  • Replaces SANMOTION R RF2G21A0A00 (GADSK04LA22)

Specifications

Series SANMOTION G 48 VDC (GADSK)
Interface Analog/Pulse
Main circuit 43.2 to 52.8 VDC
Control circuit 21.6 to 26.4 VDC
STO Yes, without delay circuit (0-20 ms)
Control system FET-based sinusoidal PWM
Operating temperature 0 to +55 C (+60 C derated)
Mass 0.5 kg (40 A), 0.7 kg (80 A)
Standards UL, cUL, CE, UKCA, KC
Source Sanyo Denki SANMOTION G 48 VDC catalog S1071B001 '26.3, p. 11, 23-30
GADSK04AA22 Capacity: 40 A | GPO: Sinking | Regenerative resistor: Built-in | Max motor output: 200 W
GADSK08AA22 Capacity: 80 A | GPO: Sinking | Regenerative resistor: Built-in | Max motor output: 400 W
GADSK04LA22 Capacity: 40 A | GPO: Sinking | Regenerative resistor: External | Max motor output: 200 W
GADSK08LA22 Capacity: 80 A | GPO: Sinking | Regenerative resistor: External | Max motor output: 400 W
GADSK04AB22 Capacity: 40 A | GPO: Sourcing | Regenerative resistor: Built-in | Max motor output: 200 W
GADSK08AB22 Capacity: 80 A | GPO: Sourcing | Regenerative resistor: Built-in | Max motor output: 400 W
GADSK04LB22 Capacity: 40 A | GPO: Sourcing | Regenerative resistor: External | Max motor output: 200 W
GADSK08LB22 Capacity: 80 A | GPO: Sourcing | Regenerative resistor: External | Max motor output: 400 W
Servo AmplifiersSanyo Denki
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki SANMOTION G 48 VDC Servo Amplifier (Analog/Pulse)

Brand Sanyo Denki·Servo Amplifiers

Available part numbers (8)

GADSK04AA22, GADSK08AA22, GADSK04LA22, GADSK08LA22, GADSK04AB22, GADSK08AB22, GADSK04LB22, GADSK08LB22

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
GADSK04AA22Capacity: 40 A | GPO: Sinking | Regenerative resistor: Built-in | Max motor output: 200 W
GADSK08AA22Capacity: 80 A | GPO: Sinking | Regenerative resistor: Built-in | Max motor output: 400 W
GADSK04LA22Capacity: 40 A | GPO: Sinking | Regenerative resistor: External | Max motor output: 200 W
GADSK08LA22Capacity: 80 A | GPO: Sinking | Regenerative resistor: External | Max motor output: 400 W
GADSK04AB22Capacity: 40 A | GPO: Sourcing | Regenerative resistor: Built-in | Max motor output: 200 W
GADSK08AB22Capacity: 80 A | GPO: Sourcing | Regenerative resistor: Built-in | Max motor output: 400 W
GADSK04LB22Capacity: 40 A | GPO: Sourcing | Regenerative resistor: External | Max motor output: 200 W
GADSK08LB22Capacity: 80 A | GPO: Sourcing | Regenerative resistor: External | Max motor output: 400 W
