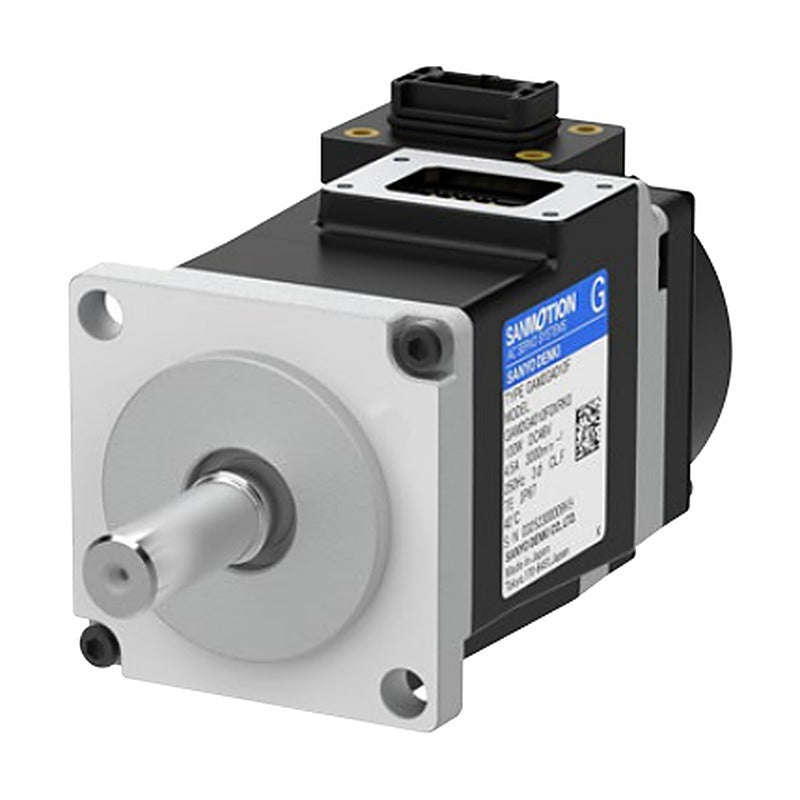

Sanyo Denki SANMOTION G 48 VDC Servo Motor 40 mm sq. (30-100 W)

Sanyo Denki SANMOTION G 48 VDC Servo Motor 40 mm sq. (30-100 W)

Medium-inertia 48 VDC rotary servo motors with 40 mm square flange, 30-100 W rated output and 23-bit absolute encoder for compact low-voltage machines.

Key features

  • Low-voltage 48 VDC drive, suitable for AGVs, AMRs and medical equipment near people
  • 23-bit battery-less absolute or single-turn absolute encoder as standard
  • IP67 protection rating (excluding shaft seal, with connectors mounted)
  • Optional 24 VDC holding brake
  • Flange, shaft and mounting compatible with SANMOTION R R2GA motors
  • Motor length up to 19% shorter than the conventional product

Specifications

Series SANMOTION G 48 VDC (GAM2G)
Motor type Medium inertia
Flange size 40 mm sq.
Power supply 48 VDC
Rated speed 3000 min-1
Encoder resolution 23-bit (8,388,608 P/R)
Shaft (code 0) Circular, no key, no oil seal
Protection IP67
Thermal class F
Standards UL, cUL, CE, UKCA
Source Sanyo Denki SANMOTION G 48 VDC catalog S1071B001 '26.3, p. 10, 13-15
GAM2G4003F0XRK0 Output: 30 W | Rated torque: 0.098 N·m | Max speed: 6500 min-1 | Encoder: Battery-less absolute 23-bit | Brake: None | Amplifier: GADSK04 (40 A)
GAM2G4003F0CRK0 Output: 30 W | Rated torque: 0.098 N·m | Max speed: 6500 min-1 | Encoder: Battery-less absolute 23-bit | Brake: 24 VDC holding brake | Amplifier: GADSK04 (40 A)
GAM2G4003F0XNK0 Output: 30 W | Rated torque: 0.098 N·m | Max speed: 6500 min-1 | Encoder: Single-turn absolute 23-bit | Brake: None | Amplifier: GADSK04 (40 A)
GAM2G4003F0CNK0 Output: 30 W | Rated torque: 0.098 N·m | Max speed: 6500 min-1 | Encoder: Single-turn absolute 23-bit | Brake: 24 VDC holding brake | Amplifier: GADSK04 (40 A)
GAM2G4005F0XRK0 Output: 50 W | Rated torque: 0.159 N·m | Max speed: 6500 min-1 | Encoder: Battery-less absolute 23-bit | Brake: None | Amplifier: GADSK04 (40 A)
GAM2G4005F0CRK0 Output: 50 W | Rated torque: 0.159 N·m | Max speed: 6500 min-1 | Encoder: Battery-less absolute 23-bit | Brake: 24 VDC holding brake | Amplifier: GADSK04 (40 A)
GAM2G4005F0XNK0 Output: 50 W | Rated torque: 0.159 N·m | Max speed: 6500 min-1 | Encoder: Single-turn absolute 23-bit | Brake: None | Amplifier: GADSK04 (40 A)
GAM2G4005F0CNK0 Output: 50 W | Rated torque: 0.159 N·m | Max speed: 6500 min-1 | Encoder: Single-turn absolute 23-bit | Brake: 24 VDC holding brake | Amplifier: GADSK04 (40 A)
GAM2G4010F0XRK0 Output: 100 W | Rated torque: 0.318 N·m | Max speed: 6500 min-1 | Encoder: Battery-less absolute 23-bit | Brake: None | Amplifier: GADSK04 (40 A)
GAM2G4010F0CRK0 Output: 100 W | Rated torque: 0.318 N·m | Max speed: 6500 min-1 | Encoder: Battery-less absolute 23-bit | Brake: 24 VDC holding brake | Amplifier: GADSK04 (40 A)
GAM2G4010F0XNK0 Output: 100 W | Rated torque: 0.318 N·m | Max speed: 6500 min-1 | Encoder: Single-turn absolute 23-bit | Brake: None | Amplifier: GADSK04 (40 A)
GAM2G4010F0CNK0 Output: 100 W | Rated torque: 0.318 N·m | Max speed: 6500 min-1 | Encoder: Single-turn absolute 23-bit | Brake: 24 VDC holding brake | Amplifier: GADSK04 (40 A)
Servo MotorsSanyo Denki
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki SANMOTION G 48 VDC Servo Motor 40 mm sq. (30-100 W)

Brand Sanyo Denki·Servo Motors

Available part numbers (12)

GAM2G4003F0XRK0, GAM2G4003F0CRK0, GAM2G4003F0XNK0, GAM2G4003F0CNK0, GAM2G4005F0XRK0, GAM2G4005F0CRK0, GAM2G4005F0XNK0, GAM2G4005F0CNK0, GAM2G4010F0XRK0, GAM2G4010F0CRK0 + 2 more — see full table ↓

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
GAM2G4003F0XRK0Output: 30 W | Rated torque: 0.098 N·m | Max speed: 6500 min-1 | Encoder: Battery-less absolute 23-bit | Brake: None | Amplifier: GADSK04 (40 A)
GAM2G4003F0CRK0Output: 30 W | Rated torque: 0.098 N·m | Max speed: 6500 min-1 | Encoder: Battery-less absolute 23-bit | Brake: 24 VDC holding brake | Amplifier: GADSK04 (40 A)
GAM2G4003F0XNK0Output: 30 W | Rated torque: 0.098 N·m | Max speed: 6500 min-1 | Encoder: Single-turn absolute 23-bit | Brake: None | Amplifier: GADSK04 (40 A)
GAM2G4003F0CNK0Output: 30 W | Rated torque: 0.098 N·m | Max speed: 6500 min-1 | Encoder: Single-turn absolute 23-bit | Brake: 24 VDC holding brake | Amplifier: GADSK04 (40 A)
GAM2G4005F0XRK0Output: 50 W | Rated torque: 0.159 N·m | Max speed: 6500 min-1 | Encoder: Battery-less absolute 23-bit | Brake: None | Amplifier: GADSK04 (40 A)
GAM2G4005F0CRK0Output: 50 W | Rated torque: 0.159 N·m | Max speed: 6500 min-1 | Encoder: Battery-less absolute 23-bit | Brake: 24 VDC holding brake | Amplifier: GADSK04 (40 A)
GAM2G4005F0XNK0Output: 50 W | Rated torque: 0.159 N·m | Max speed: 6500 min-1 | Encoder: Single-turn absolute 23-bit | Brake: None | Amplifier: GADSK04 (40 A)
GAM2G4005F0CNK0Output: 50 W | Rated torque: 0.159 N·m | Max speed: 6500 min-1 | Encoder: Single-turn absolute 23-bit | Brake: 24 VDC holding brake | Amplifier: GADSK04 (40 A)
GAM2G4010F0XRK0Output: 100 W | Rated torque: 0.318 N·m | Max speed: 6500 min-1 | Encoder: Battery-less absolute 23-bit | Brake: None | Amplifier: GADSK04 (40 A)
GAM2G4010F0CRK0Output: 100 W | Rated torque: 0.318 N·m | Max speed: 6500 min-1 | Encoder: Battery-less absolute 23-bit | Brake: 24 VDC holding brake | Amplifier: GADSK04 (40 A)
GAM2G4010F0XNK0Output: 100 W | Rated torque: 0.318 N·m | Max speed: 6500 min-1 | Encoder: Single-turn absolute 23-bit | Brake: None | Amplifier: GADSK04 (40 A)
GAM2G4010F0CNK0Output: 100 W | Rated torque: 0.318 N·m | Max speed: 6500 min-1 | Encoder: Single-turn absolute 23-bit | Brake: 24 VDC holding brake | Amplifier: GADSK04 (40 A)
