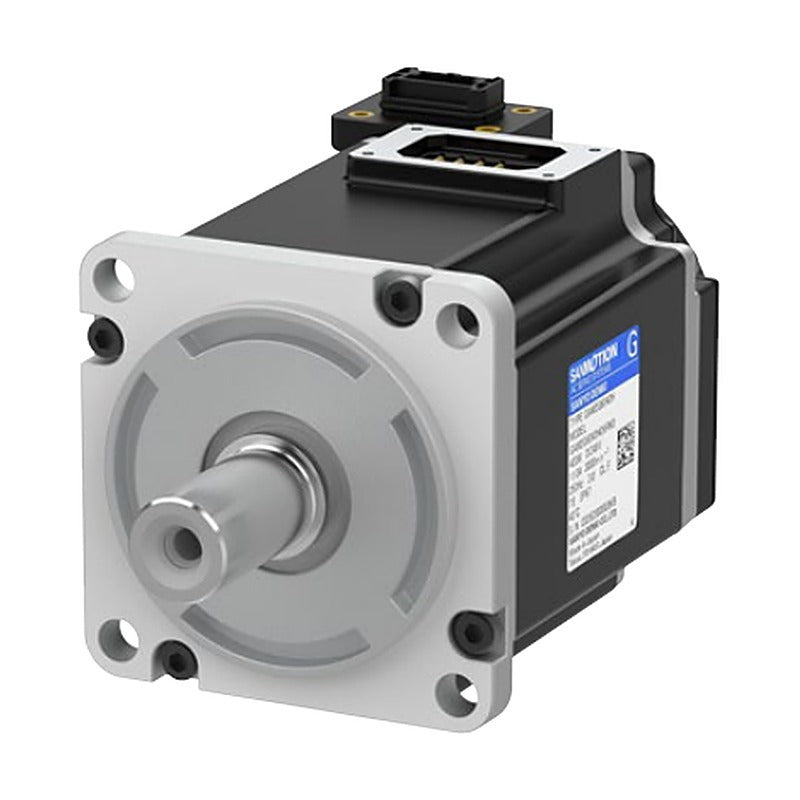

Sanyo Denki SANMOTION G 48 VDC Servo Motor 60 mm sq. (100-400 W)

Sanyo Denki SANMOTION G 48 VDC Servo Motor 60 mm sq. (100-400 W)

Medium-inertia 48 VDC rotary servo motors with 60 mm square flange, 100-400 W rated output and 23-bit absolute encoder for compact low-voltage machines.

Key features

  • Low-voltage 48 VDC drive, suitable for AGVs, AMRs and medical equipment near people
  • 23-bit battery-less absolute or single-turn absolute encoder as standard
  • IP67 protection rating (excluding shaft seal, with connectors mounted)
  • Optional 24 VDC holding brake
  • Flange, shaft and mounting compatible with SANMOTION R R2GA motors
  • Motor length up to 19% shorter than the conventional product

Specifications

Series SANMOTION G 48 VDC (GAM2G)
Motor type Medium inertia
Flange size 60 mm sq.
Power supply 48 VDC
Rated speed 3000 min-1
Encoder resolution 23-bit (8,388,608 P/R)
Shaft (code 0) Circular, no key, no oil seal
Protection IP67
Thermal class F
Standards UL, cUL, CE, UKCA
Source Sanyo Denki SANMOTION G 48 VDC catalog S1071B001 '26.3, p. 10, 13-17
GAM2G6010F0XRK0 Output: 100 W | Rated torque: 0.318 N·m | Max speed: 6500 min-1 | Encoder: Battery-less absolute 23-bit | Brake: None | Amplifier: GADSK04 (40 A)
GAM2G6010F0CRK0 Output: 100 W | Rated torque: 0.318 N·m | Max speed: 6500 min-1 | Encoder: Battery-less absolute 23-bit | Brake: 24 VDC holding brake | Amplifier: GADSK04 (40 A)
GAM2G6010F0XNK0 Output: 100 W | Rated torque: 0.318 N·m | Max speed: 6500 min-1 | Encoder: Single-turn absolute 23-bit | Brake: None | Amplifier: GADSK04 (40 A)
GAM2G6010F0CNK0 Output: 100 W | Rated torque: 0.318 N·m | Max speed: 6500 min-1 | Encoder: Single-turn absolute 23-bit | Brake: 24 VDC holding brake | Amplifier: GADSK04 (40 A)
GAM2G6020D0XRK0 Output: 200 W | Rated torque: 0.637 N·m | Max speed: 5000 min-1 | Encoder: Battery-less absolute 23-bit | Brake: None | Amplifier: GADSK04 (40 A)
GAM2G6020D0CRK0 Output: 200 W | Rated torque: 0.637 N·m | Max speed: 5000 min-1 | Encoder: Battery-less absolute 23-bit | Brake: 24 VDC holding brake | Amplifier: GADSK04 (40 A)
GAM2G6020D0XNK0 Output: 200 W | Rated torque: 0.637 N·m | Max speed: 5000 min-1 | Encoder: Single-turn absolute 23-bit | Brake: None | Amplifier: GADSK04 (40 A)
GAM2G6020D0CNK0 Output: 200 W | Rated torque: 0.637 N·m | Max speed: 5000 min-1 | Encoder: Single-turn absolute 23-bit | Brake: 24 VDC holding brake | Amplifier: GADSK04 (40 A)
GAM2G6020F0XRK0 Output: 200 W | Rated torque: 0.637 N·m | Max speed: 6500 min-1 | Encoder: Battery-less absolute 23-bit | Brake: None | Amplifier: GADSK08 (80 A)
GAM2G6020F0CRK0 Output: 200 W | Rated torque: 0.637 N·m | Max speed: 6500 min-1 | Encoder: Battery-less absolute 23-bit | Brake: 24 VDC holding brake | Amplifier: GADSK08 (80 A)
GAM2G6020F0XNK0 Output: 200 W | Rated torque: 0.637 N·m | Max speed: 6500 min-1 | Encoder: Single-turn absolute 23-bit | Brake: None | Amplifier: GADSK08 (80 A)
GAM2G6020F0CNK0 Output: 200 W | Rated torque: 0.637 N·m | Max speed: 6500 min-1 | Encoder: Single-turn absolute 23-bit | Brake: 24 VDC holding brake | Amplifier: GADSK08 (80 A)
GAM2G6040H0XRK0 Output: 400 W | Rated torque: 1.27 N·m | Max speed: 4000 min-1 | Encoder: Battery-less absolute 23-bit | Brake: None | Amplifier: GADSK08 (80 A)
GAM2G6040H0CRK0 Output: 400 W | Rated torque: 1.27 N·m | Max speed: 4000 min-1 | Encoder: Battery-less absolute 23-bit | Brake: 24 VDC holding brake | Amplifier: GADSK08 (80 A)
GAM2G6040H0XNK0 Output: 400 W | Rated torque: 1.27 N·m | Max speed: 4000 min-1 | Encoder: Single-turn absolute 23-bit | Brake: None | Amplifier: GADSK08 (80 A)
GAM2G6040H0CNK0 Output: 400 W | Rated torque: 1.27 N·m | Max speed: 4000 min-1 | Encoder: Single-turn absolute 23-bit | Brake: 24 VDC holding brake | Amplifier: GADSK08 (80 A)
Servo MotorsSanyo Denki
16 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki SANMOTION G 48 VDC Servo Motor 60 mm sq. (100-400 W)

Brand Sanyo Denki·Servo Motors

Available part numbers (16)

GAM2G6010F0XRK0, GAM2G6010F0CRK0, GAM2G6010F0XNK0, GAM2G6010F0CNK0, GAM2G6020D0XRK0, GAM2G6020D0CRK0, GAM2G6020D0XNK0, GAM2G6020D0CNK0, GAM2G6020F0XRK0, GAM2G6020F0CRK0 + 6 more — see full table ↓

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
GAM2G6010F0XRK0Output: 100 W | Rated torque: 0.318 N·m | Max speed: 6500 min-1 | Encoder: Battery-less absolute 23-bit | Brake: None | Amplifier: GADSK04 (40 A)
GAM2G6010F0CRK0Output: 100 W | Rated torque: 0.318 N·m | Max speed: 6500 min-1 | Encoder: Battery-less absolute 23-bit | Brake: 24 VDC holding brake | Amplifier: GADSK04 (40 A)
GAM2G6010F0XNK0Output: 100 W | Rated torque: 0.318 N·m | Max speed: 6500 min-1 | Encoder: Single-turn absolute 23-bit | Brake: None | Amplifier: GADSK04 (40 A)
GAM2G6010F0CNK0Output: 100 W | Rated torque: 0.318 N·m | Max speed: 6500 min-1 | Encoder: Single-turn absolute 23-bit | Brake: 24 VDC holding brake | Amplifier: GADSK04 (40 A)
GAM2G6020D0XRK0Output: 200 W | Rated torque: 0.637 N·m | Max speed: 5000 min-1 | Encoder: Battery-less absolute 23-bit | Brake: None | Amplifier: GADSK04 (40 A)
GAM2G6020D0CRK0Output: 200 W | Rated torque: 0.637 N·m | Max speed: 5000 min-1 | Encoder: Battery-less absolute 23-bit | Brake: 24 VDC holding brake | Amplifier: GADSK04 (40 A)
GAM2G6020D0XNK0Output: 200 W | Rated torque: 0.637 N·m | Max speed: 5000 min-1 | Encoder: Single-turn absolute 23-bit | Brake: None | Amplifier: GADSK04 (40 A)
GAM2G6020D0CNK0Output: 200 W | Rated torque: 0.637 N·m | Max speed: 5000 min-1 | Encoder: Single-turn absolute 23-bit | Brake: 24 VDC holding brake | Amplifier: GADSK04 (40 A)
GAM2G6020F0XRK0Output: 200 W | Rated torque: 0.637 N·m | Max speed: 6500 min-1 | Encoder: Battery-less absolute 23-bit | Brake: None | Amplifier: GADSK08 (80 A)
GAM2G6020F0CRK0Output: 200 W | Rated torque: 0.637 N·m | Max speed: 6500 min-1 | Encoder: Battery-less absolute 23-bit | Brake: 24 VDC holding brake | Amplifier: GADSK08 (80 A)
GAM2G6020F0XNK0Output: 200 W | Rated torque: 0.637 N·m | Max speed: 6500 min-1 | Encoder: Single-turn absolute 23-bit | Brake: None | Amplifier: GADSK08 (80 A)
GAM2G6020F0CNK0Output: 200 W | Rated torque: 0.637 N·m | Max speed: 6500 min-1 | Encoder: Single-turn absolute 23-bit | Brake: 24 VDC holding brake | Amplifier: GADSK08 (80 A)
GAM2G6040H0XRK0Output: 400 W | Rated torque: 1.27 N·m | Max speed: 4000 min-1 | Encoder: Battery-less absolute 23-bit | Brake: None | Amplifier: GADSK08 (80 A)
GAM2G6040H0CRK0Output: 400 W | Rated torque: 1.27 N·m | Max speed: 4000 min-1 | Encoder: Battery-less absolute 23-bit | Brake: 24 VDC holding brake | Amplifier: GADSK08 (80 A)
GAM2G6040H0XNK0Output: 400 W | Rated torque: 1.27 N·m | Max speed: 4000 min-1 | Encoder: Single-turn absolute 23-bit | Brake: None | Amplifier: GADSK08 (80 A)
GAM2G6040H0CNK0Output: 400 W | Rated torque: 1.27 N·m | Max speed: 4000 min-1 | Encoder: Single-turn absolute 23-bit | Brake: 24 VDC holding brake | Amplifier: GADSK08 (80 A)
