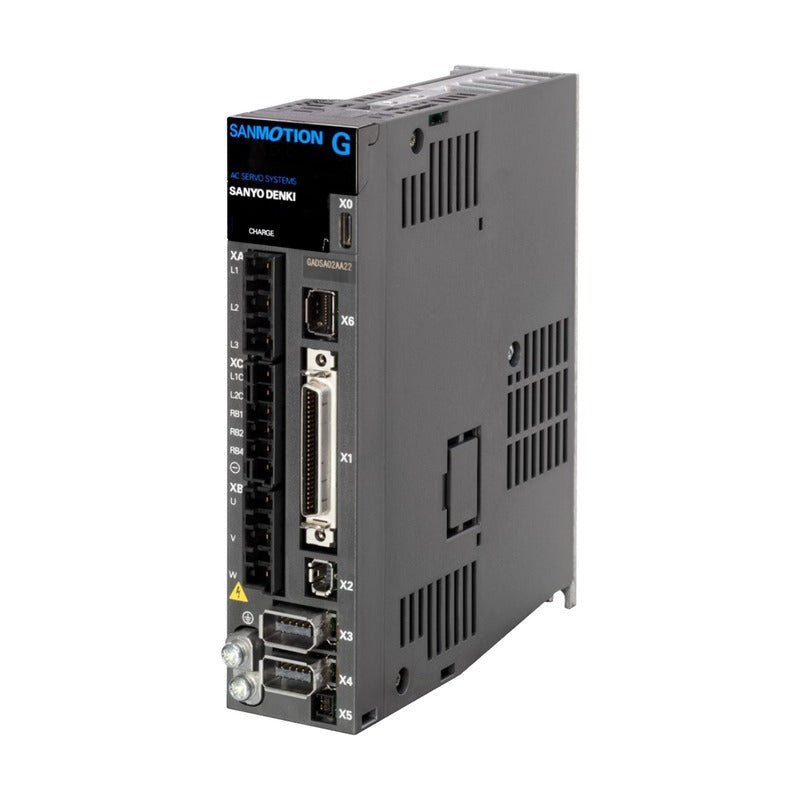

Sanyo Denki SANMOTION G Servo Amplifier (Analog/Pulse)

Sanyo Denki SANMOTION G Servo Amplifier (Analog/Pulse)

SANMOTION G Analog/Pulse servo amplifiers for 200 VAC and 100 VAC supply, standard models per the catalogue Standard Model Number List.

Key features

  • Analog voltage and pulse train command input
  • Position, speed and torque control switched by parameter
  • Safe Torque Off (STO) built in, without delay circuit (option code 2)
  • Sinking or sourcing general-purpose outputs
  • Built-in or external regenerative resistor versions
  • Supports rotary and linear servo motors, fully closed-loop encoder input

Specifications

Series SANMOTION G
Interface Analog/Pulse
Capacity range 10-150 A (200 V), 10-30 A (100 V)
Control Position/speed/torque (switched by parameter)
Control system IGBT sinusoidal PWM
STO Built-in, without delay circuit (0-20 ms)
Standards UL, cUL, CE, UKCA, KC
Operating temperature 0 to +60 C
Source Sanyo Denki SANMOTION G catalogue S1062B004 '25.10, p. 20-21, 65-72
GADSA01AA22 Voltage: 200 VAC (3-/1-phase) | Capacity: 10 A | Current (cont./peak): 1.2/4.3 Arms | Regen resistor: Built-in | GPO: Sinking
GADSA02AA22 Voltage: 200 VAC (3-/1-phase) | Capacity: 20 A | Current (cont./peak): 3.1/12.0 Arms | Regen resistor: Built-in | GPO: Sinking
GADSA03AA22 Voltage: 200 VAC (3-/1-phase) | Capacity: 30 A | Current (cont./peak): 5.2/16.3 Arms | Regen resistor: Built-in | GPO: Sinking
GADSA05AA22 Voltage: 200 VAC (3-/1-phase) | Capacity: 50 A | Current (cont./peak): 12.0/26.5 Arms | Regen resistor: Built-in | GPO: Sinking
GADSA07AA22 Voltage: 200 VAC (3-/1-phase) | Capacity: 75 A | Current (cont./peak): 18.0/45.5 Arms | Regen resistor: Built-in | GPO: Sinking
GADSA10AA22 Voltage: 200 VAC (3-/1-phase) | Capacity: 100 A | Current (cont./peak): 24.0/55.0 Arms | Regen resistor: Built-in | GPO: Sinking
GADSA15AA22 Voltage: 200 VAC (3-/1-phase) | Capacity: 150 A | Current (cont./peak): 34.0/83.0 Arms | Regen resistor: Built-in | GPO: Sinking
GADSA01LA22 Voltage: 200 VAC (3-/1-phase) | Capacity: 10 A | Current (cont./peak): 1.2/4.3 Arms | Regen resistor: External (not built-in) | GPO: Sinking
GADSA02LA22 Voltage: 200 VAC (3-/1-phase) | Capacity: 20 A | Current (cont./peak): 3.1/12.0 Arms | Regen resistor: External (not built-in) | GPO: Sinking
GADSA03LA22 Voltage: 200 VAC (3-/1-phase) | Capacity: 30 A | Current (cont./peak): 5.2/16.3 Arms | Regen resistor: External (not built-in) | GPO: Sinking
GADSA05LA22 Voltage: 200 VAC (3-/1-phase) | Capacity: 50 A | Current (cont./peak): 12.0/26.5 Arms | Regen resistor: External (not built-in) | GPO: Sinking
GADSA01AB22 Voltage: 200 VAC (3-/1-phase) | Capacity: 10 A | Current (cont./peak): 1.2/4.3 Arms | Regen resistor: Built-in | GPO: Sourcing
GADSA02AB22 Voltage: 200 VAC (3-/1-phase) | Capacity: 20 A | Current (cont./peak): 3.1/12.0 Arms | Regen resistor: Built-in | GPO: Sourcing
GADSA03AB22 Voltage: 200 VAC (3-/1-phase) | Capacity: 30 A | Current (cont./peak): 5.2/16.3 Arms | Regen resistor: Built-in | GPO: Sourcing
GADSA05AB22 Voltage: 200 VAC (3-/1-phase) | Capacity: 50 A | Current (cont./peak): 12.0/26.5 Arms | Regen resistor: Built-in | GPO: Sourcing
GADSA07AB22 Voltage: 200 VAC (3-/1-phase) | Capacity: 75 A | Current (cont./peak): 18.0/45.5 Arms | Regen resistor: Built-in | GPO: Sourcing
GADSA10AB22 Voltage: 200 VAC (3-/1-phase) | Capacity: 100 A | Current (cont./peak): 24.0/55.0 Arms | Regen resistor: Built-in | GPO: Sourcing
GADSA15AB22 Voltage: 200 VAC (3-/1-phase) | Capacity: 150 A | Current (cont./peak): 34.0/83.0 Arms | Regen resistor: Built-in | GPO: Sourcing
GADSA01LB22 Voltage: 200 VAC (3-/1-phase) | Capacity: 10 A | Current (cont./peak): 1.2/4.3 Arms | Regen resistor: External (not built-in) | GPO: Sourcing
GADSA02LB22 Voltage: 200 VAC (3-/1-phase) | Capacity: 20 A | Current (cont./peak): 3.1/12.0 Arms | Regen resistor: External (not built-in) | GPO: Sourcing
GADSA03LB22 Voltage: 200 VAC (3-/1-phase) | Capacity: 30 A | Current (cont./peak): 5.2/16.3 Arms | Regen resistor: External (not built-in) | GPO: Sourcing
GADSA05LB22 Voltage: 200 VAC (3-/1-phase) | Capacity: 50 A | Current (cont./peak): 12.0/26.5 Arms | Regen resistor: External (not built-in) | GPO: Sourcing
GADSE01AA22 Voltage: 100 VAC (1-phase) | Capacity: 10 A | Current (cont./peak): 1.2/4.3 Arms | Regen resistor: Built-in | GPO: Sinking
GADSE02AA22 Voltage: 100 VAC (1-phase) | Capacity: 20 A | Current (cont./peak): 3.1/12.0 Arms | Regen resistor: Built-in | GPO: Sinking
GADSE03AA22 Voltage: 100 VAC (1-phase) | Capacity: 30 A | Current (cont./peak): 5.2/16.3 Arms | Regen resistor: Built-in | GPO: Sinking
GADSE01LA22 Voltage: 100 VAC (1-phase) | Capacity: 10 A | Current (cont./peak): 1.2/4.3 Arms | Regen resistor: External (not built-in) | GPO: Sinking
GADSE02LA22 Voltage: 100 VAC (1-phase) | Capacity: 20 A | Current (cont./peak): 3.1/12.0 Arms | Regen resistor: External (not built-in) | GPO: Sinking
GADSE03LA22 Voltage: 100 VAC (1-phase) | Capacity: 30 A | Current (cont./peak): 5.2/16.3 Arms | Regen resistor: External (not built-in) | GPO: Sinking
GADSE01AB22 Voltage: 100 VAC (1-phase) | Capacity: 10 A | Current (cont./peak): 1.2/4.3 Arms | Regen resistor: Built-in | GPO: Sourcing
GADSE02AB22 Voltage: 100 VAC (1-phase) | Capacity: 20 A | Current (cont./peak): 3.1/12.0 Arms | Regen resistor: Built-in | GPO: Sourcing
GADSE03AB22 Voltage: 100 VAC (1-phase) | Capacity: 30 A | Current (cont./peak): 5.2/16.3 Arms | Regen resistor: Built-in | GPO: Sourcing
GADSE01LB22 Voltage: 100 VAC (1-phase) | Capacity: 10 A | Current (cont./peak): 1.2/4.3 Arms | Regen resistor: External (not built-in) | GPO: Sourcing
GADSE02LB22 Voltage: 100 VAC (1-phase) | Capacity: 20 A | Current (cont./peak): 3.1/12.0 Arms | Regen resistor: External (not built-in) | GPO: Sourcing
GADSE03LB22 Voltage: 100 VAC (1-phase) | Capacity: 30 A | Current (cont./peak): 5.2/16.3 Arms | Regen resistor: External (not built-in) | GPO: Sourcing
Servo AmplifiersSanyo Denki
34 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki SANMOTION G Servo Amplifier (Analog/Pulse)

Brand Sanyo Denki·Servo Amplifiers

Available part numbers (34)

GADSA01AA22, GADSA02AA22, GADSA03AA22, GADSA05AA22, GADSA07AA22, GADSA10AA22, GADSA15AA22, GADSA01LA22, GADSA02LA22, GADSA03LA22 + 24 more — see full table ↓

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
GADSA01AA22Voltage: 200 VAC (3-/1-phase) | Capacity: 10 A | Current (cont./peak): 1.2/4.3 Arms | Regen resistor: Built-in | GPO: Sinking
GADSA02AA22Voltage: 200 VAC (3-/1-phase) | Capacity: 20 A | Current (cont./peak): 3.1/12.0 Arms | Regen resistor: Built-in | GPO: Sinking
GADSA03AA22Voltage: 200 VAC (3-/1-phase) | Capacity: 30 A | Current (cont./peak): 5.2/16.3 Arms | Regen resistor: Built-in | GPO: Sinking
GADSA05AA22Voltage: 200 VAC (3-/1-phase) | Capacity: 50 A | Current (cont./peak): 12.0/26.5 Arms | Regen resistor: Built-in | GPO: Sinking
GADSA07AA22Voltage: 200 VAC (3-/1-phase) | Capacity: 75 A | Current (cont./peak): 18.0/45.5 Arms | Regen resistor: Built-in | GPO: Sinking
GADSA10AA22Voltage: 200 VAC (3-/1-phase) | Capacity: 100 A | Current (cont./peak): 24.0/55.0 Arms | Regen resistor: Built-in | GPO: Sinking
GADSA15AA22Voltage: 200 VAC (3-/1-phase) | Capacity: 150 A | Current (cont./peak): 34.0/83.0 Arms | Regen resistor: Built-in | GPO: Sinking
GADSA01LA22Voltage: 200 VAC (3-/1-phase) | Capacity: 10 A | Current (cont./peak): 1.2/4.3 Arms | Regen resistor: External (not built-in) | GPO: Sinking
GADSA02LA22Voltage: 200 VAC (3-/1-phase) | Capacity: 20 A | Current (cont./peak): 3.1/12.0 Arms | Regen resistor: External (not built-in) | GPO: Sinking
GADSA03LA22Voltage: 200 VAC (3-/1-phase) | Capacity: 30 A | Current (cont./peak): 5.2/16.3 Arms | Regen resistor: External (not built-in) | GPO: Sinking
GADSA05LA22Voltage: 200 VAC (3-/1-phase) | Capacity: 50 A | Current (cont./peak): 12.0/26.5 Arms | Regen resistor: External (not built-in) | GPO: Sinking
GADSA01AB22Voltage: 200 VAC (3-/1-phase) | Capacity: 10 A | Current (cont./peak): 1.2/4.3 Arms | Regen resistor: Built-in | GPO: Sourcing
GADSA02AB22Voltage: 200 VAC (3-/1-phase) | Capacity: 20 A | Current (cont./peak): 3.1/12.0 Arms | Regen resistor: Built-in | GPO: Sourcing
GADSA03AB22Voltage: 200 VAC (3-/1-phase) | Capacity: 30 A | Current (cont./peak): 5.2/16.3 Arms | Regen resistor: Built-in | GPO: Sourcing
GADSA05AB22Voltage: 200 VAC (3-/1-phase) | Capacity: 50 A | Current (cont./peak): 12.0/26.5 Arms | Regen resistor: Built-in | GPO: Sourcing
GADSA07AB22Voltage: 200 VAC (3-/1-phase) | Capacity: 75 A | Current (cont./peak): 18.0/45.5 Arms | Regen resistor: Built-in | GPO: Sourcing
GADSA10AB22Voltage: 200 VAC (3-/1-phase) | Capacity: 100 A | Current (cont./peak): 24.0/55.0 Arms | Regen resistor: Built-in | GPO: Sourcing
GADSA15AB22Voltage: 200 VAC (3-/1-phase) | Capacity: 150 A | Current (cont./peak): 34.0/83.0 Arms | Regen resistor: Built-in | GPO: Sourcing
GADSA01LB22Voltage: 200 VAC (3-/1-phase) | Capacity: 10 A | Current (cont./peak): 1.2/4.3 Arms | Regen resistor: External (not built-in) | GPO: Sourcing
GADSA02LB22Voltage: 200 VAC (3-/1-phase) | Capacity: 20 A | Current (cont./peak): 3.1/12.0 Arms | Regen resistor: External (not built-in) | GPO: Sourcing
GADSA03LB22Voltage: 200 VAC (3-/1-phase) | Capacity: 30 A | Current (cont./peak): 5.2/16.3 Arms | Regen resistor: External (not built-in) | GPO: Sourcing
GADSA05LB22Voltage: 200 VAC (3-/1-phase) | Capacity: 50 A | Current (cont./peak): 12.0/26.5 Arms | Regen resistor: External (not built-in) | GPO: Sourcing
GADSE01AA22Voltage: 100 VAC (1-phase) | Capacity: 10 A | Current (cont./peak): 1.2/4.3 Arms | Regen resistor: Built-in | GPO: Sinking
GADSE02AA22Voltage: 100 VAC (1-phase) | Capacity: 20 A | Current (cont./peak): 3.1/12.0 Arms | Regen resistor: Built-in | GPO: Sinking
GADSE03AA22Voltage: 100 VAC (1-phase) | Capacity: 30 A | Current (cont./peak): 5.2/16.3 Arms | Regen resistor: Built-in | GPO: Sinking
GADSE01LA22Voltage: 100 VAC (1-phase) | Capacity: 10 A | Current (cont./peak): 1.2/4.3 Arms | Regen resistor: External (not built-in) | GPO: Sinking
GADSE02LA22Voltage: 100 VAC (1-phase) | Capacity: 20 A | Current (cont./peak): 3.1/12.0 Arms | Regen resistor: External (not built-in) | GPO: Sinking
GADSE03LA22Voltage: 100 VAC (1-phase) | Capacity: 30 A | Current (cont./peak): 5.2/16.3 Arms | Regen resistor: External (not built-in) | GPO: Sinking
GADSE01AB22Voltage: 100 VAC (1-phase) | Capacity: 10 A | Current (cont./peak): 1.2/4.3 Arms | Regen resistor: Built-in | GPO: Sourcing
GADSE02AB22Voltage: 100 VAC (1-phase) | Capacity: 20 A | Current (cont./peak): 3.1/12.0 Arms | Regen resistor: Built-in | GPO: Sourcing
GADSE03AB22Voltage: 100 VAC (1-phase) | Capacity: 30 A | Current (cont./peak): 5.2/16.3 Arms | Regen resistor: Built-in | GPO: Sourcing
GADSE01LB22Voltage: 100 VAC (1-phase) | Capacity: 10 A | Current (cont./peak): 1.2/4.3 Arms | Regen resistor: External (not built-in) | GPO: Sourcing
GADSE02LB22Voltage: 100 VAC (1-phase) | Capacity: 20 A | Current (cont./peak): 3.1/12.0 Arms | Regen resistor: External (not built-in) | GPO: Sourcing
GADSE03LB22Voltage: 100 VAC (1-phase) | Capacity: 30 A | Current (cont./peak): 5.2/16.3 Arms | Regen resistor: External (not built-in) | GPO: Sourcing
