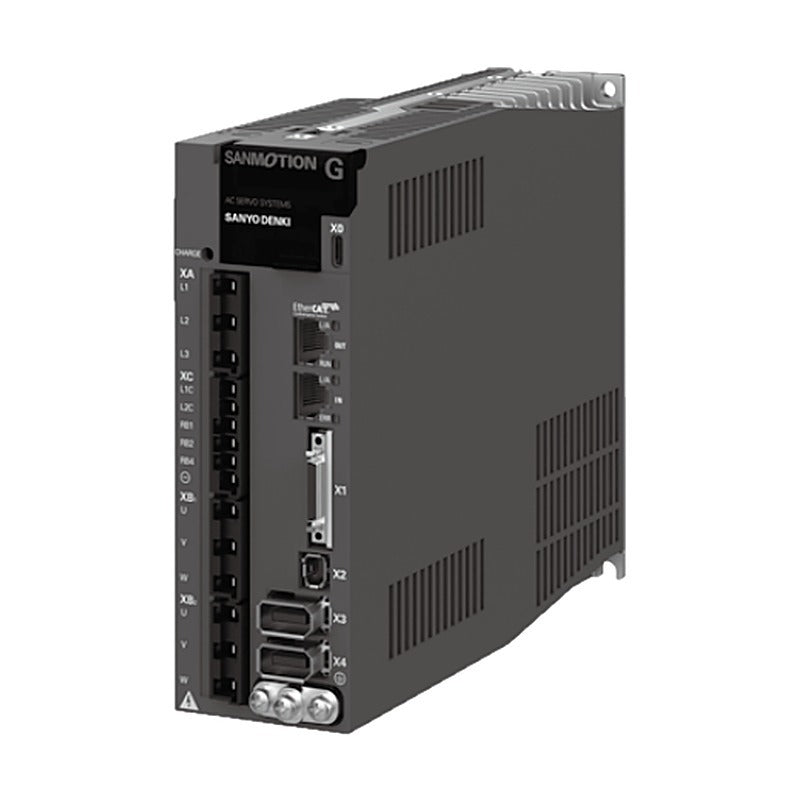

Sanyo Denki SANMOTION G Servo Amplifier (EtherCAT 2-Axis)

Sanyo Denki SANMOTION G Servo Amplifier (EtherCAT 2-Axis)

SANMOTION G EtherCAT 2-Axis servo amplifiers for 200 VAC and 100 VAC supply, standard models per the catalogue Standard Model Number List.

Key features

  • EtherCAT interface, two axes in one unit
  • Reduces wiring by 35% compared with two single-axis amplifiers
  • Safe Torque Off (STO) with delay circuit (200-700 ms)
  • Sinking/sourcing general-purpose I/O
  • Built-in or external regenerative resistor versions
  • Max. compatible motor output 400 W (20 A) / 750 W (30 A) per axis

Specifications

Series SANMOTION G
Interface EtherCAT 2-axis integrated
Capacity range 20 A x 2 axes, 30 A x 2 axes
Control Position/speed/torque (switched by parameter)
Control system IGBT sinusoidal PWM
GPO Sinking/sourcing type
STO Built-in, with delay circuit (200-700 ms)
Standards UL, cUL, CE, UKCA, KC
Operating temperature 0 to +60 C
Source Sanyo Denki SANMOTION G catalogue S1062B004 '25.10, p. 20-21, 87-91
GADWA22AH14 Voltage: 200 VAC (3-/1-phase) | Capacity: 20 A x 2 axes | Current (cont./peak): 3.1/12.0 Arms | Regen resistor: Built-in
GADWA33AH14 Voltage: 200 VAC (3-/1-phase) | Capacity: 30 A x 2 axes | Current (cont./peak): 5.2/16.3 Arms | Regen resistor: Built-in
GADWA22LH14 Voltage: 200 VAC (3-/1-phase) | Capacity: 20 A x 2 axes | Current (cont./peak): 3.1/12.0 Arms | Regen resistor: External (not built-in)
GADWA33LH14 Voltage: 200 VAC (3-/1-phase) | Capacity: 30 A x 2 axes | Current (cont./peak): 5.2/16.3 Arms | Regen resistor: External (not built-in)
GADWE22AH14 Voltage: 100 VAC (1-phase) | Capacity: 20 A x 2 axes | Current (cont./peak): 3.1/12.0 Arms | Regen resistor: Built-in
GADWE33AH14 Voltage: 100 VAC (1-phase) | Capacity: 30 A x 2 axes | Current (cont./peak): 5.2/16.3 Arms | Regen resistor: Built-in
GADWE22LH14 Voltage: 100 VAC (1-phase) | Capacity: 20 A x 2 axes | Current (cont./peak): 3.1/12.0 Arms | Regen resistor: External (not built-in)
GADWE33LH14 Voltage: 100 VAC (1-phase) | Capacity: 30 A x 2 axes | Current (cont./peak): 5.2/16.3 Arms | Regen resistor: External (not built-in)
Servo AmplifiersSanyo Denki
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki SANMOTION G Servo Amplifier (EtherCAT 2-Axis)

Brand Sanyo Denki·Servo Amplifiers

Available part numbers (8)

GADWA22AH14, GADWA33AH14, GADWA22LH14, GADWA33LH14, GADWE22AH14, GADWE33AH14, GADWE22LH14, GADWE33LH14

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
GADWA22AH14Voltage: 200 VAC (3-/1-phase) | Capacity: 20 A x 2 axes | Current (cont./peak): 3.1/12.0 Arms | Regen resistor: Built-in
GADWA33AH14Voltage: 200 VAC (3-/1-phase) | Capacity: 30 A x 2 axes | Current (cont./peak): 5.2/16.3 Arms | Regen resistor: Built-in
GADWA22LH14Voltage: 200 VAC (3-/1-phase) | Capacity: 20 A x 2 axes | Current (cont./peak): 3.1/12.0 Arms | Regen resistor: External (not built-in)
GADWA33LH14Voltage: 200 VAC (3-/1-phase) | Capacity: 30 A x 2 axes | Current (cont./peak): 5.2/16.3 Arms | Regen resistor: External (not built-in)
GADWE22AH14Voltage: 100 VAC (1-phase) | Capacity: 20 A x 2 axes | Current (cont./peak): 3.1/12.0 Arms | Regen resistor: Built-in
GADWE33AH14Voltage: 100 VAC (1-phase) | Capacity: 30 A x 2 axes | Current (cont./peak): 5.2/16.3 Arms | Regen resistor: Built-in
GADWE22LH14Voltage: 100 VAC (1-phase) | Capacity: 20 A x 2 axes | Current (cont./peak): 3.1/12.0 Arms | Regen resistor: External (not built-in)
GADWE33LH14Voltage: 100 VAC (1-phase) | Capacity: 30 A x 2 axes | Current (cont./peak): 5.2/16.3 Arms | Regen resistor: External (not built-in)
