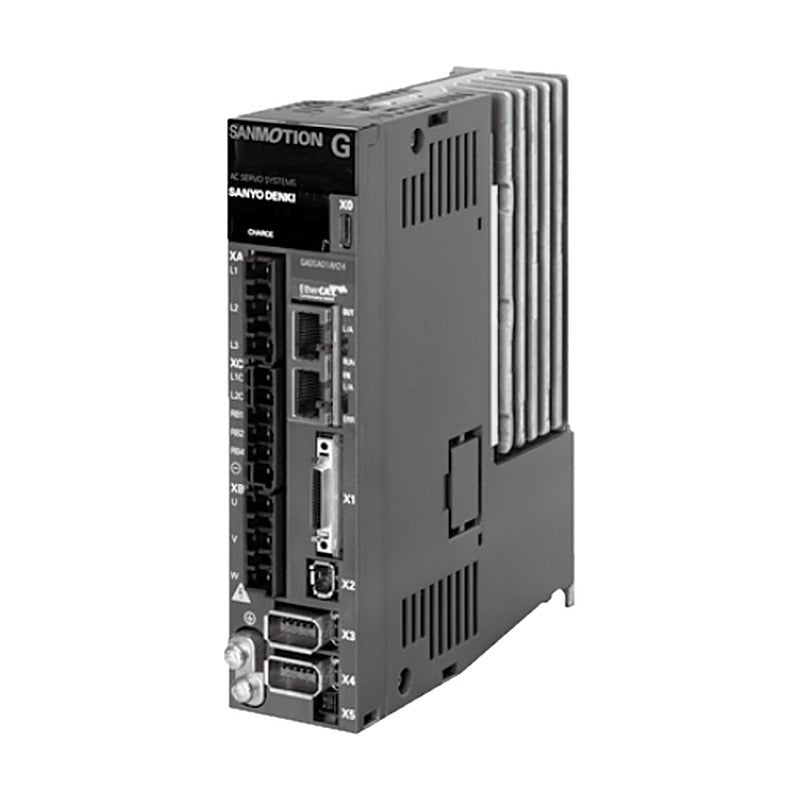

Sanyo Denki SANMOTION G Servo Amplifier (EtherCAT Single-Axis)

Sanyo Denki SANMOTION G Servo Amplifier (EtherCAT Single-Axis)

SANMOTION G EtherCAT Single-Axis servo amplifiers for 200 VAC and 100 VAC supply, standard models per the catalogue Standard Model Number List.

Key features

  • EtherCAT interface for single-axis control
  • Position, speed and torque control switched by parameter
  • Safe Torque Off (STO) with delay circuit (200-700 ms) for vertical axes
  • Sinking/sourcing general-purpose I/O
  • Built-in or external regenerative resistor versions
  • Supports rotary and linear servo motors

Specifications

Series SANMOTION G
Interface EtherCAT Single-Axis
Capacity range 10-150 A (200 V), 10-30 A (100 V)
Control Position/speed/torque (switched by parameter)
Control system IGBT sinusoidal PWM
GPO Sinking/sourcing type
STO Built-in, with delay circuit (200-700 ms)
Standards UL, cUL, CE, UKCA, KC
Operating temperature 0 to +60 C
Source Sanyo Denki SANMOTION G catalogue S1062B004 '25.10, p. 20-21, 77-84
GADSA01AH24 Voltage: 200 VAC (3-/1-phase) | Capacity: 10 A | Current (cont./peak): 1.2/4.3 Arms | Regen resistor: Built-in
GADSA02AH24 Voltage: 200 VAC (3-/1-phase) | Capacity: 20 A | Current (cont./peak): 3.1/12.0 Arms | Regen resistor: Built-in
GADSA03AH24 Voltage: 200 VAC (3-/1-phase) | Capacity: 30 A | Current (cont./peak): 5.2/16.3 Arms | Regen resistor: Built-in
GADSA05AH24 Voltage: 200 VAC (3-/1-phase) | Capacity: 50 A | Current (cont./peak): 12.0/26.5 Arms | Regen resistor: Built-in
GADSA07AH24 Voltage: 200 VAC (3-/1-phase) | Capacity: 75 A | Current (cont./peak): 18.0/45.5 Arms | Regen resistor: Built-in
GADSA10AH24 Voltage: 200 VAC (3-/1-phase) | Capacity: 100 A | Current (cont./peak): 24.0/55.0 Arms | Regen resistor: Built-in
GADSA15AH24 Voltage: 200 VAC (3-/1-phase) | Capacity: 150 A | Current (cont./peak): 34.0/83.0 Arms | Regen resistor: Built-in
GADSA01LH24 Voltage: 200 VAC (3-/1-phase) | Capacity: 10 A | Current (cont./peak): 1.2/4.3 Arms | Regen resistor: External (not built-in)
GADSA02LH24 Voltage: 200 VAC (3-/1-phase) | Capacity: 20 A | Current (cont./peak): 3.1/12.0 Arms | Regen resistor: External (not built-in)
GADSA03LH24 Voltage: 200 VAC (3-/1-phase) | Capacity: 30 A | Current (cont./peak): 5.2/16.3 Arms | Regen resistor: External (not built-in)
GADSA05LH24 Voltage: 200 VAC (3-/1-phase) | Capacity: 50 A | Current (cont./peak): 12.0/26.5 Arms | Regen resistor: External (not built-in)
GADSE01AH24 Voltage: 100 VAC (1-phase) | Capacity: 10 A | Current (cont./peak): 1.2/4.3 Arms | Regen resistor: Built-in
GADSE02AH24 Voltage: 100 VAC (1-phase) | Capacity: 20 A | Current (cont./peak): 3.1/12.0 Arms | Regen resistor: Built-in
GADSE03AH24 Voltage: 100 VAC (1-phase) | Capacity: 30 A | Current (cont./peak): 5.2/16.3 Arms | Regen resistor: Built-in
GADSE01LH24 Voltage: 100 VAC (1-phase) | Capacity: 10 A | Current (cont./peak): 1.2/4.3 Arms | Regen resistor: External (not built-in)
GADSE02LH24 Voltage: 100 VAC (1-phase) | Capacity: 20 A | Current (cont./peak): 3.1/12.0 Arms | Regen resistor: External (not built-in)
GADSE03LH24 Voltage: 100 VAC (1-phase) | Capacity: 30 A | Current (cont./peak): 5.2/16.3 Arms | Regen resistor: External (not built-in)
Servo AmplifiersSanyo Denki
17 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki SANMOTION G Servo Amplifier (EtherCAT Single-Axis)

Brand Sanyo Denki·Servo Amplifiers

Available part numbers (17)

GADSA01AH24, GADSA02AH24, GADSA03AH24, GADSA05AH24, GADSA07AH24, GADSA10AH24, GADSA15AH24, GADSA01LH24, GADSA02LH24, GADSA03LH24 + 7 more — see full table ↓

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
GADSA01AH24Voltage: 200 VAC (3-/1-phase) | Capacity: 10 A | Current (cont./peak): 1.2/4.3 Arms | Regen resistor: Built-in
GADSA02AH24Voltage: 200 VAC (3-/1-phase) | Capacity: 20 A | Current (cont./peak): 3.1/12.0 Arms | Regen resistor: Built-in
GADSA03AH24Voltage: 200 VAC (3-/1-phase) | Capacity: 30 A | Current (cont./peak): 5.2/16.3 Arms | Regen resistor: Built-in
GADSA05AH24Voltage: 200 VAC (3-/1-phase) | Capacity: 50 A | Current (cont./peak): 12.0/26.5 Arms | Regen resistor: Built-in
GADSA07AH24Voltage: 200 VAC (3-/1-phase) | Capacity: 75 A | Current (cont./peak): 18.0/45.5 Arms | Regen resistor: Built-in
GADSA10AH24Voltage: 200 VAC (3-/1-phase) | Capacity: 100 A | Current (cont./peak): 24.0/55.0 Arms | Regen resistor: Built-in
GADSA15AH24Voltage: 200 VAC (3-/1-phase) | Capacity: 150 A | Current (cont./peak): 34.0/83.0 Arms | Regen resistor: Built-in
GADSA01LH24Voltage: 200 VAC (3-/1-phase) | Capacity: 10 A | Current (cont./peak): 1.2/4.3 Arms | Regen resistor: External (not built-in)
GADSA02LH24Voltage: 200 VAC (3-/1-phase) | Capacity: 20 A | Current (cont./peak): 3.1/12.0 Arms | Regen resistor: External (not built-in)
GADSA03LH24Voltage: 200 VAC (3-/1-phase) | Capacity: 30 A | Current (cont./peak): 5.2/16.3 Arms | Regen resistor: External (not built-in)
GADSA05LH24Voltage: 200 VAC (3-/1-phase) | Capacity: 50 A | Current (cont./peak): 12.0/26.5 Arms | Regen resistor: External (not built-in)
GADSE01AH24Voltage: 100 VAC (1-phase) | Capacity: 10 A | Current (cont./peak): 1.2/4.3 Arms | Regen resistor: Built-in
GADSE02AH24Voltage: 100 VAC (1-phase) | Capacity: 20 A | Current (cont./peak): 3.1/12.0 Arms | Regen resistor: Built-in
GADSE03AH24Voltage: 100 VAC (1-phase) | Capacity: 30 A | Current (cont./peak): 5.2/16.3 Arms | Regen resistor: Built-in
GADSE01LH24Voltage: 100 VAC (1-phase) | Capacity: 10 A | Current (cont./peak): 1.2/4.3 Arms | Regen resistor: External (not built-in)
GADSE02LH24Voltage: 100 VAC (1-phase) | Capacity: 20 A | Current (cont./peak): 3.1/12.0 Arms | Regen resistor: External (not built-in)
GADSE03LH24Voltage: 100 VAC (1-phase) | Capacity: 30 A | Current (cont./peak): 5.2/16.3 Arms | Regen resistor: External (not built-in)
