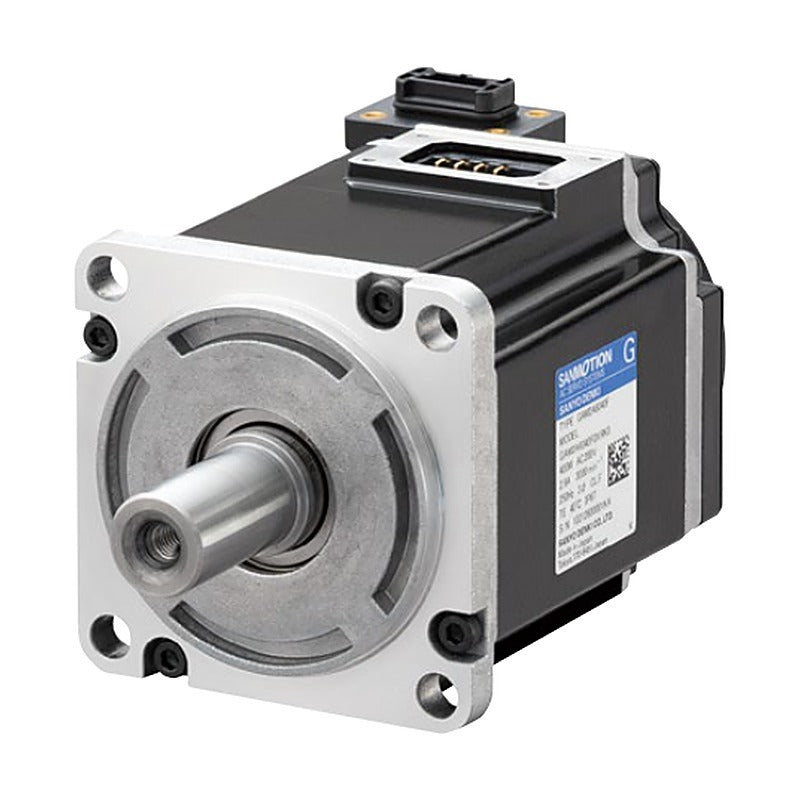

Sanyo Denki SANMOTION G Servo Motor 40 mm sq. (100 V Low Inertia)

Sanyo Denki SANMOTION G Servo Motor 40 mm sq. (100 V Low Inertia)

SANMOTION G low inertia AC servo motors with 40 mm square flange for 100 V AC supply, rated output 50 W to 100 W, with 23-bit battery-less or single-turn absolute encoder.

Key features

  • 23-bit absolute encoder (8,388,608 P/R), battery-less or single-turn type
  • Optional 24 VDC holding brake (non-excited operation)
  • IP67 ingress protection with connectors mounted (shaft seal excluded)
  • Flange, shaft and mounting compatible with conventional SANMOTION R motors
  • Speed-torque values given after thermal equilibrium
  • Conforms to UL, cUL, CE and UKCA

Specifications

Series SANMOTION G
Motor type low inertia rotary AC servo motor
Power supply 100 V AC class
Flange size 40 mm sq.
Encoder resolution 23 bit (8,388,608 P/R)
Protection / standards IP67; UL, cUL, CE, UKCA
Shaft code (last digit) 0 = circular without key, no oil seal; 1-3 (oil seal / keyway) on request
Speed (rated/max) 3000/6500 min-1
Amplifier 20 A / 20 A x 2 axes
Source Sanyo Denki SANMOTION G catalogue S1062B004 '25.10, p. 17, 38
GAM1E4005F0XRK0 Output: 50 W | Rated torque: 0.159 N.m | Brake: None | Encoder: Battery-less absolute
GAM1E4005F0CRK0 Output: 50 W | Rated torque: 0.159 N.m | Brake: 24 VDC | Encoder: Battery-less absolute
GAM1E4005F0XNK0 Output: 50 W | Rated torque: 0.159 N.m | Brake: None | Encoder: Single-turn absolute
GAM1E4005F0CNK0 Output: 50 W | Rated torque: 0.159 N.m | Brake: 24 VDC | Encoder: Single-turn absolute
GAM1E4010F0XRK0 Output: 100 W | Rated torque: 0.318 N.m | Brake: None | Encoder: Battery-less absolute
GAM1E4010F0CRK0 Output: 100 W | Rated torque: 0.318 N.m | Brake: 24 VDC | Encoder: Battery-less absolute
GAM1E4010F0XNK0 Output: 100 W | Rated torque: 0.318 N.m | Brake: None | Encoder: Single-turn absolute
GAM1E4010F0CNK0 Output: 100 W | Rated torque: 0.318 N.m | Brake: 24 VDC | Encoder: Single-turn absolute
Servo MotorsSanyo Denki
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki SANMOTION G Servo Motor 40 mm sq. (100 V Low Inertia)

Brand Sanyo Denki·Servo Motors

Available part numbers (8)

GAM1E4005F0XRK0, GAM1E4005F0CRK0, GAM1E4005F0XNK0, GAM1E4005F0CNK0, GAM1E4010F0XRK0, GAM1E4010F0CRK0, GAM1E4010F0XNK0, GAM1E4010F0CNK0

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
GAM1E4005F0XRK0Output: 50 W | Rated torque: 0.159 N.m | Brake: None | Encoder: Battery-less absolute
GAM1E4005F0CRK0Output: 50 W | Rated torque: 0.159 N.m | Brake: 24 VDC | Encoder: Battery-less absolute
GAM1E4005F0XNK0Output: 50 W | Rated torque: 0.159 N.m | Brake: None | Encoder: Single-turn absolute
GAM1E4005F0CNK0Output: 50 W | Rated torque: 0.159 N.m | Brake: 24 VDC | Encoder: Single-turn absolute
GAM1E4010F0XRK0Output: 100 W | Rated torque: 0.318 N.m | Brake: None | Encoder: Battery-less absolute
GAM1E4010F0CRK0Output: 100 W | Rated torque: 0.318 N.m | Brake: 24 VDC | Encoder: Battery-less absolute
GAM1E4010F0XNK0Output: 100 W | Rated torque: 0.318 N.m | Brake: None | Encoder: Single-turn absolute
GAM1E4010F0CNK0Output: 100 W | Rated torque: 0.318 N.m | Brake: 24 VDC | Encoder: Single-turn absolute
