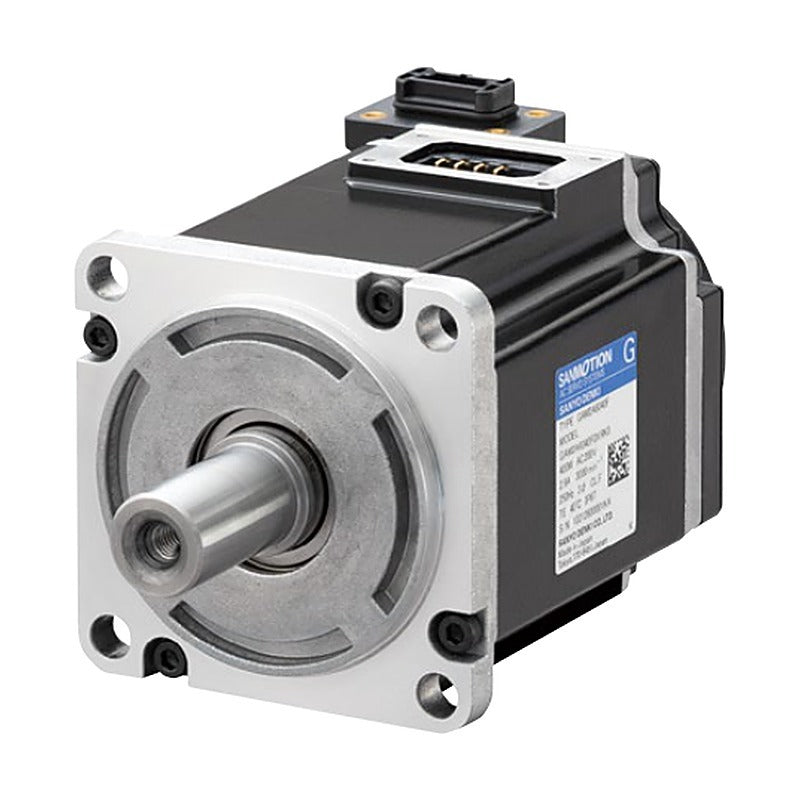

Sanyo Denki SANMOTION G Servo Motor 100 mm sq. (200 V Low Inertia)

Sanyo Denki SANMOTION G Servo Motor 100 mm sq. (200 V Low Inertia)

SANMOTION G low inertia AC servo motors with 100 mm square flange for 200 V AC supply, rated output 1 kW to 2.5 kW, with 23-bit battery-less or single-turn absolute encoder.

Key features

  • 23-bit absolute encoder (8,388,608 P/R), battery-less or single-turn type
  • Optional 24 VDC holding brake (non-excited operation)
  • IP67 ingress protection with connectors mounted (shaft seal excluded)
  • Flange, shaft and mounting compatible with conventional SANMOTION R motors
  • Speed-torque values given after thermal equilibrium
  • Conforms to UL, cUL, CE and UKCA

Specifications

Series SANMOTION G
Motor type low inertia rotary AC servo motor
Power supply 200 V AC class
Flange size 100 mm sq.
Encoder resolution 23 bit (8,388,608 P/R)
Protection / standards IP67; UL, cUL, CE, UKCA
Shaft code (last digit) 0 = circular without key, no oil seal; 1-3 (oil seal / keyway) on request
Source Sanyo Denki SANMOTION G catalogue S1062B004 '25.10, p. 17, 30-32
GAM1AA100H0XRK0 Output: 1 kW | Rated torque: 3.2 N.m | Speed (rated/max): 3000/3000 min-1 | Brake: None | Encoder: Battery-less absolute | Amplifier: 30 A
GAM1AA100H0CRK0 Output: 1 kW | Rated torque: 3.2 N.m | Speed (rated/max): 3000/3000 min-1 | Brake: 24 VDC | Encoder: Battery-less absolute | Amplifier: 30 A
GAM1AA100H0XNK0 Output: 1 kW | Rated torque: 3.2 N.m | Speed (rated/max): 3000/3000 min-1 | Brake: None | Encoder: Single-turn absolute | Amplifier: 30 A
GAM1AA100H0CNK0 Output: 1 kW | Rated torque: 3.2 N.m | Speed (rated/max): 3000/3000 min-1 | Brake: 24 VDC | Encoder: Single-turn absolute | Amplifier: 30 A
GAM1AA100F0XRK0 Output: 1 kW | Rated torque: 3.2 N.m | Speed (rated/max): 3000/6000 min-1 | Brake: None | Encoder: Battery-less absolute | Amplifier: 50 A
GAM1AA100F0CRK0 Output: 1 kW | Rated torque: 3.2 N.m | Speed (rated/max): 3000/6000 min-1 | Brake: 24 VDC | Encoder: Battery-less absolute | Amplifier: 50 A
GAM1AA100F0XNK0 Output: 1 kW | Rated torque: 3.2 N.m | Speed (rated/max): 3000/6000 min-1 | Brake: None | Encoder: Single-turn absolute | Amplifier: 50 A
GAM1AA100F0CNK0 Output: 1 kW | Rated torque: 3.2 N.m | Speed (rated/max): 3000/6000 min-1 | Brake: 24 VDC | Encoder: Single-turn absolute | Amplifier: 50 A
GAM1AA150H0XRK0 Output: 1.5 kW | Rated torque: 4.8 N.m | Speed (rated/max): 3000/3000 min-1 | Brake: None | Encoder: Battery-less absolute | Amplifier: 30 A
GAM1AA150H0CRK0 Output: 1.5 kW | Rated torque: 4.8 N.m | Speed (rated/max): 3000/3000 min-1 | Brake: 24 VDC | Encoder: Battery-less absolute | Amplifier: 30 A
GAM1AA150H0XNK0 Output: 1.5 kW | Rated torque: 4.8 N.m | Speed (rated/max): 3000/3000 min-1 | Brake: None | Encoder: Single-turn absolute | Amplifier: 30 A
GAM1AA150H0CNK0 Output: 1.5 kW | Rated torque: 4.8 N.m | Speed (rated/max): 3000/3000 min-1 | Brake: 24 VDC | Encoder: Single-turn absolute | Amplifier: 30 A
GAM1AA150F0XRK0 Output: 1.5 kW | Rated torque: 4.8 N.m | Speed (rated/max): 3000/6000 min-1 | Brake: None | Encoder: Battery-less absolute | Amplifier: 50 A
GAM1AA150F0CRK0 Output: 1.5 kW | Rated torque: 4.8 N.m | Speed (rated/max): 3000/6000 min-1 | Brake: 24 VDC | Encoder: Battery-less absolute | Amplifier: 50 A
GAM1AA150F0XNK0 Output: 1.5 kW | Rated torque: 4.8 N.m | Speed (rated/max): 3000/6000 min-1 | Brake: None | Encoder: Single-turn absolute | Amplifier: 50 A
GAM1AA150F0CNK0 Output: 1.5 kW | Rated torque: 4.8 N.m | Speed (rated/max): 3000/6000 min-1 | Brake: 24 VDC | Encoder: Single-turn absolute | Amplifier: 50 A
GAM1AA200H0XRK0 Output: 2 kW | Rated torque: 6.37 N.m | Speed (rated/max): 3000/3000 min-1 | Brake: None | Encoder: Battery-less absolute | Amplifier: 50 A
GAM1AA200H0CRK0 Output: 2 kW | Rated torque: 6.37 N.m | Speed (rated/max): 3000/3000 min-1 | Brake: 24 VDC | Encoder: Battery-less absolute | Amplifier: 50 A
GAM1AA200H0XNK0 Output: 2 kW | Rated torque: 6.37 N.m | Speed (rated/max): 3000/3000 min-1 | Brake: None | Encoder: Single-turn absolute | Amplifier: 50 A
GAM1AA200H0CNK0 Output: 2 kW | Rated torque: 6.37 N.m | Speed (rated/max): 3000/3000 min-1 | Brake: 24 VDC | Encoder: Single-turn absolute | Amplifier: 50 A
GAM1AA200F0XRK0 Output: 2 kW | Rated torque: 6.37 N.m | Speed (rated/max): 3000/6500 min-1 | Brake: None | Encoder: Battery-less absolute | Amplifier: 75 A
GAM1AA200F0CRK0 Output: 2 kW | Rated torque: 6.37 N.m | Speed (rated/max): 3000/6500 min-1 | Brake: 24 VDC | Encoder: Battery-less absolute | Amplifier: 75 A
GAM1AA200F0XNK0 Output: 2 kW | Rated torque: 6.37 N.m | Speed (rated/max): 3000/6500 min-1 | Brake: None | Encoder: Single-turn absolute | Amplifier: 75 A
GAM1AA200F0CNK0 Output: 2 kW | Rated torque: 6.37 N.m | Speed (rated/max): 3000/6500 min-1 | Brake: 24 VDC | Encoder: Single-turn absolute | Amplifier: 75 A
GAM1AA250H0XRK0 Output: 2.5 kW | Rated torque: 7.97 N.m | Speed (rated/max): 3000/3000 min-1 | Brake: None | Encoder: Battery-less absolute | Amplifier: 50 A
GAM1AA250H0CRK0 Output: 2.5 kW | Rated torque: 7.97 N.m | Speed (rated/max): 3000/3000 min-1 | Brake: 24 VDC | Encoder: Battery-less absolute | Amplifier: 50 A
GAM1AA250H0XNK0 Output: 2.5 kW | Rated torque: 7.97 N.m | Speed (rated/max): 3000/3000 min-1 | Brake: None | Encoder: Single-turn absolute | Amplifier: 50 A
GAM1AA250H0CNK0 Output: 2.5 kW | Rated torque: 7.97 N.m | Speed (rated/max): 3000/3000 min-1 | Brake: 24 VDC | Encoder: Single-turn absolute | Amplifier: 50 A
GAM1AA250F0XRK0 Output: 2.5 kW | Rated torque: 7.97 N.m | Speed (rated/max): 3000/6500 min-1 | Brake: None | Encoder: Battery-less absolute | Amplifier: 75 A
GAM1AA250F0CRK0 Output: 2.5 kW | Rated torque: 7.97 N.m | Speed (rated/max): 3000/6500 min-1 | Brake: 24 VDC | Encoder: Battery-less absolute | Amplifier: 75 A
GAM1AA250F0XNK0 Output: 2.5 kW | Rated torque: 7.97 N.m | Speed (rated/max): 3000/6500 min-1 | Brake: None | Encoder: Single-turn absolute | Amplifier: 75 A
GAM1AA250F0CNK0 Output: 2.5 kW | Rated torque: 7.97 N.m | Speed (rated/max): 3000/6500 min-1 | Brake: 24 VDC | Encoder: Single-turn absolute | Amplifier: 75 A
Servo MotorsSanyo Denki
32 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki SANMOTION G Servo Motor 100 mm sq. (200 V Low Inertia)

Brand Sanyo Denki·Servo Motors

Available part numbers (32)

GAM1AA100H0XRK0, GAM1AA100H0CRK0, GAM1AA100H0XNK0, GAM1AA100H0CNK0, GAM1AA100F0XRK0, GAM1AA100F0CRK0, GAM1AA100F0XNK0, GAM1AA100F0CNK0, GAM1AA150H0XRK0, GAM1AA150H0CRK0 + 22 more — see full table ↓

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
GAM1AA100H0XRK0Output: 1 kW | Rated torque: 3.2 N.m | Speed (rated/max): 3000/3000 min-1 | Brake: None | Encoder: Battery-less absolute | Amplifier: 30 A
GAM1AA100H0CRK0Output: 1 kW | Rated torque: 3.2 N.m | Speed (rated/max): 3000/3000 min-1 | Brake: 24 VDC | Encoder: Battery-less absolute | Amplifier: 30 A
GAM1AA100H0XNK0Output: 1 kW | Rated torque: 3.2 N.m | Speed (rated/max): 3000/3000 min-1 | Brake: None | Encoder: Single-turn absolute | Amplifier: 30 A
GAM1AA100H0CNK0Output: 1 kW | Rated torque: 3.2 N.m | Speed (rated/max): 3000/3000 min-1 | Brake: 24 VDC | Encoder: Single-turn absolute | Amplifier: 30 A
GAM1AA100F0XRK0Output: 1 kW | Rated torque: 3.2 N.m | Speed (rated/max): 3000/6000 min-1 | Brake: None | Encoder: Battery-less absolute | Amplifier: 50 A
GAM1AA100F0CRK0Output: 1 kW | Rated torque: 3.2 N.m | Speed (rated/max): 3000/6000 min-1 | Brake: 24 VDC | Encoder: Battery-less absolute | Amplifier: 50 A
GAM1AA100F0XNK0Output: 1 kW | Rated torque: 3.2 N.m | Speed (rated/max): 3000/6000 min-1 | Brake: None | Encoder: Single-turn absolute | Amplifier: 50 A
GAM1AA100F0CNK0Output: 1 kW | Rated torque: 3.2 N.m | Speed (rated/max): 3000/6000 min-1 | Brake: 24 VDC | Encoder: Single-turn absolute | Amplifier: 50 A
GAM1AA150H0XRK0Output: 1.5 kW | Rated torque: 4.8 N.m | Speed (rated/max): 3000/3000 min-1 | Brake: None | Encoder: Battery-less absolute | Amplifier: 30 A
GAM1AA150H0CRK0Output: 1.5 kW | Rated torque: 4.8 N.m | Speed (rated/max): 3000/3000 min-1 | Brake: 24 VDC | Encoder: Battery-less absolute | Amplifier: 30 A
GAM1AA150H0XNK0Output: 1.5 kW | Rated torque: 4.8 N.m | Speed (rated/max): 3000/3000 min-1 | Brake: None | Encoder: Single-turn absolute | Amplifier: 30 A
GAM1AA150H0CNK0Output: 1.5 kW | Rated torque: 4.8 N.m | Speed (rated/max): 3000/3000 min-1 | Brake: 24 VDC | Encoder: Single-turn absolute | Amplifier: 30 A
GAM1AA150F0XRK0Output: 1.5 kW | Rated torque: 4.8 N.m | Speed (rated/max): 3000/6000 min-1 | Brake: None | Encoder: Battery-less absolute | Amplifier: 50 A
GAM1AA150F0CRK0Output: 1.5 kW | Rated torque: 4.8 N.m | Speed (rated/max): 3000/6000 min-1 | Brake: 24 VDC | Encoder: Battery-less absolute | Amplifier: 50 A
GAM1AA150F0XNK0Output: 1.5 kW | Rated torque: 4.8 N.m | Speed (rated/max): 3000/6000 min-1 | Brake: None | Encoder: Single-turn absolute | Amplifier: 50 A
GAM1AA150F0CNK0Output: 1.5 kW | Rated torque: 4.8 N.m | Speed (rated/max): 3000/6000 min-1 | Brake: 24 VDC | Encoder: Single-turn absolute | Amplifier: 50 A
GAM1AA200H0XRK0Output: 2 kW | Rated torque: 6.37 N.m | Speed (rated/max): 3000/3000 min-1 | Brake: None | Encoder: Battery-less absolute | Amplifier: 50 A
GAM1AA200H0CRK0Output: 2 kW | Rated torque: 6.37 N.m | Speed (rated/max): 3000/3000 min-1 | Brake: 24 VDC | Encoder: Battery-less absolute | Amplifier: 50 A
GAM1AA200H0XNK0Output: 2 kW | Rated torque: 6.37 N.m | Speed (rated/max): 3000/3000 min-1 | Brake: None | Encoder: Single-turn absolute | Amplifier: 50 A
GAM1AA200H0CNK0Output: 2 kW | Rated torque: 6.37 N.m | Speed (rated/max): 3000/3000 min-1 | Brake: 24 VDC | Encoder: Single-turn absolute | Amplifier: 50 A
GAM1AA200F0XRK0Output: 2 kW | Rated torque: 6.37 N.m | Speed (rated/max): 3000/6500 min-1 | Brake: None | Encoder: Battery-less absolute | Amplifier: 75 A
GAM1AA200F0CRK0Output: 2 kW | Rated torque: 6.37 N.m | Speed (rated/max): 3000/6500 min-1 | Brake: 24 VDC | Encoder: Battery-less absolute | Amplifier: 75 A
GAM1AA200F0XNK0Output: 2 kW | Rated torque: 6.37 N.m | Speed (rated/max): 3000/6500 min-1 | Brake: None | Encoder: Single-turn absolute | Amplifier: 75 A
GAM1AA200F0CNK0Output: 2 kW | Rated torque: 6.37 N.m | Speed (rated/max): 3000/6500 min-1 | Brake: 24 VDC | Encoder: Single-turn absolute | Amplifier: 75 A
GAM1AA250H0XRK0Output: 2.5 kW | Rated torque: 7.97 N.m | Speed (rated/max): 3000/3000 min-1 | Brake: None | Encoder: Battery-less absolute | Amplifier: 50 A
GAM1AA250H0CRK0Output: 2.5 kW | Rated torque: 7.97 N.m | Speed (rated/max): 3000/3000 min-1 | Brake: 24 VDC | Encoder: Battery-less absolute | Amplifier: 50 A
GAM1AA250H0XNK0Output: 2.5 kW | Rated torque: 7.97 N.m | Speed (rated/max): 3000/3000 min-1 | Brake: None | Encoder: Single-turn absolute | Amplifier: 50 A
GAM1AA250H0CNK0Output: 2.5 kW | Rated torque: 7.97 N.m | Speed (rated/max): 3000/3000 min-1 | Brake: 24 VDC | Encoder: Single-turn absolute | Amplifier: 50 A
GAM1AA250F0XRK0Output: 2.5 kW | Rated torque: 7.97 N.m | Speed (rated/max): 3000/6500 min-1 | Brake: None | Encoder: Battery-less absolute | Amplifier: 75 A
GAM1AA250F0CRK0Output: 2.5 kW | Rated torque: 7.97 N.m | Speed (rated/max): 3000/6500 min-1 | Brake: 24 VDC | Encoder: Battery-less absolute | Amplifier: 75 A
GAM1AA250F0XNK0Output: 2.5 kW | Rated torque: 7.97 N.m | Speed (rated/max): 3000/6500 min-1 | Brake: None | Encoder: Single-turn absolute | Amplifier: 75 A
GAM1AA250F0CNK0Output: 2.5 kW | Rated torque: 7.97 N.m | Speed (rated/max): 3000/6500 min-1 | Brake: 24 VDC | Encoder: Single-turn absolute | Amplifier: 75 A
