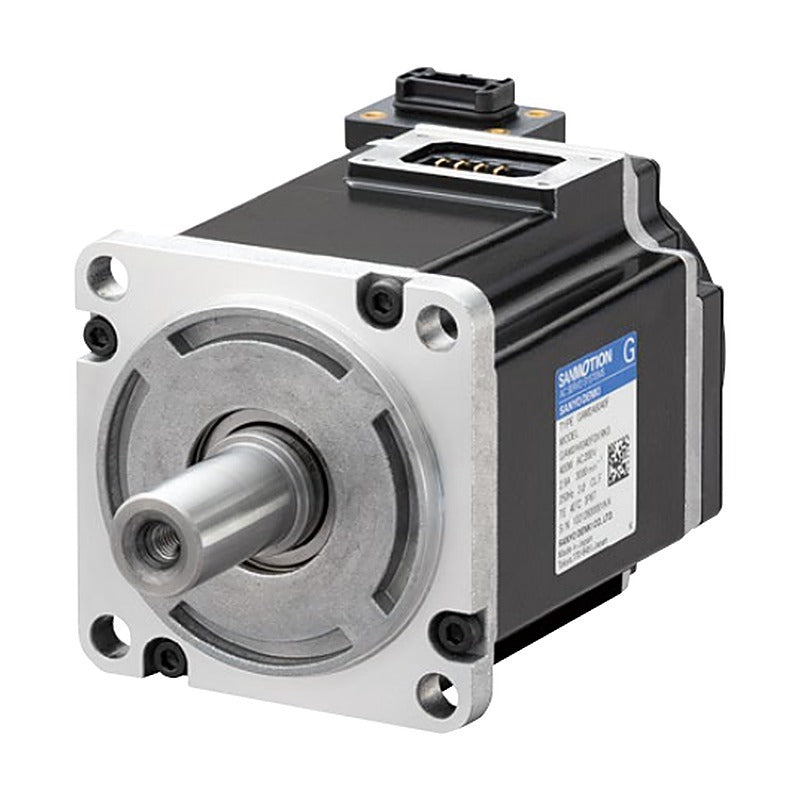

Sanyo Denki SANMOTION G Servo Motor 60 mm sq. (100 V Medium Inertia)

Sanyo Denki SANMOTION G Servo Motor 60 mm sq. (100 V Medium Inertia)

SANMOTION G medium inertia AC servo motors with 60 mm square flange for 100 V AC supply, rated output 100 W to 200 W, with 23-bit battery-less or single-turn absolute encoder.

Key features

  • 23-bit absolute encoder (8,388,608 P/R), battery-less or single-turn type
  • Optional 24 VDC holding brake (non-excited operation)
  • IP67 ingress protection with connectors mounted (shaft seal excluded)
  • Flange, shaft and mounting compatible with conventional SANMOTION R motors
  • Speed-torque values given after thermal equilibrium
  • Conforms to UL, cUL, CE and UKCA

Specifications

Series SANMOTION G
Motor type medium inertia rotary AC servo motor
Power supply 100 V AC class
Flange size 60 mm sq.
Encoder resolution 23 bit (8,388,608 P/R)
Protection / standards IP67; UL, cUL, CE, UKCA
Shaft code (last digit) 0 = circular without key, no oil seal; 1-3 (oil seal / keyway) on request
Speed (rated/max) 3000/6500 min-1
Source Sanyo Denki SANMOTION G catalogue S1062B004 '25.10, p. 19, 55-56
GAM2E6010F0XRK0 Output: 100 W | Rated torque: 0.318 N.m | Brake: None | Encoder: Battery-less absolute | Amplifier: 20 A / 20 A x 2 axes
GAM2E6010F0CRK0 Output: 100 W | Rated torque: 0.318 N.m | Brake: 24 VDC | Encoder: Battery-less absolute | Amplifier: 20 A / 20 A x 2 axes
GAM2E6010F0XNK0 Output: 100 W | Rated torque: 0.318 N.m | Brake: None | Encoder: Single-turn absolute | Amplifier: 20 A / 20 A x 2 axes
GAM2E6010F0CNK0 Output: 100 W | Rated torque: 0.318 N.m | Brake: 24 VDC | Encoder: Single-turn absolute | Amplifier: 20 A / 20 A x 2 axes
GAM2E6020F0XRK0 Output: 200 W | Rated torque: 0.637 N.m | Brake: None | Encoder: Battery-less absolute | Amplifier: 30 A / 30 A x 2 axes
GAM2E6020F0CRK0 Output: 200 W | Rated torque: 0.637 N.m | Brake: 24 VDC | Encoder: Battery-less absolute | Amplifier: 30 A / 30 A x 2 axes
GAM2E6020F0XNK0 Output: 200 W | Rated torque: 0.637 N.m | Brake: None | Encoder: Single-turn absolute | Amplifier: 30 A / 30 A x 2 axes
GAM2E6020F0CNK0 Output: 200 W | Rated torque: 0.637 N.m | Brake: 24 VDC | Encoder: Single-turn absolute | Amplifier: 30 A / 30 A x 2 axes
Servo MotorsSanyo Denki
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki SANMOTION G Servo Motor 60 mm sq. (100 V Medium Inertia)

Brand Sanyo Denki·Servo Motors

Available part numbers (8)

GAM2E6010F0XRK0, GAM2E6010F0CRK0, GAM2E6010F0XNK0, GAM2E6010F0CNK0, GAM2E6020F0XRK0, GAM2E6020F0CRK0, GAM2E6020F0XNK0, GAM2E6020F0CNK0

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
GAM2E6010F0XRK0Output: 100 W | Rated torque: 0.318 N.m | Brake: None | Encoder: Battery-less absolute | Amplifier: 20 A / 20 A x 2 axes
GAM2E6010F0CRK0Output: 100 W | Rated torque: 0.318 N.m | Brake: 24 VDC | Encoder: Battery-less absolute | Amplifier: 20 A / 20 A x 2 axes
GAM2E6010F0XNK0Output: 100 W | Rated torque: 0.318 N.m | Brake: None | Encoder: Single-turn absolute | Amplifier: 20 A / 20 A x 2 axes
GAM2E6010F0CNK0Output: 100 W | Rated torque: 0.318 N.m | Brake: 24 VDC | Encoder: Single-turn absolute | Amplifier: 20 A / 20 A x 2 axes
GAM2E6020F0XRK0Output: 200 W | Rated torque: 0.637 N.m | Brake: None | Encoder: Battery-less absolute | Amplifier: 30 A / 30 A x 2 axes
GAM2E6020F0CRK0Output: 200 W | Rated torque: 0.637 N.m | Brake: 24 VDC | Encoder: Battery-less absolute | Amplifier: 30 A / 30 A x 2 axes
GAM2E6020F0XNK0Output: 200 W | Rated torque: 0.637 N.m | Brake: None | Encoder: Single-turn absolute | Amplifier: 30 A / 30 A x 2 axes
GAM2E6020F0CNK0Output: 200 W | Rated torque: 0.637 N.m | Brake: 24 VDC | Encoder: Single-turn absolute | Amplifier: 30 A / 30 A x 2 axes
