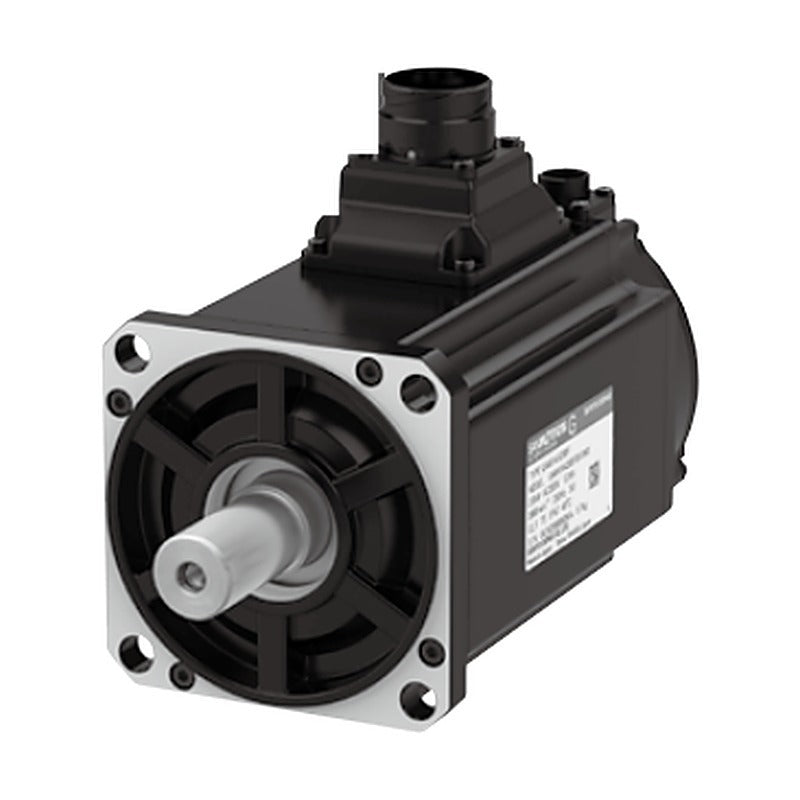

Sanyo Denki SANMOTION G Servo Motor 130 mm sq. (200 V Medium Inertia)

Sanyo Denki SANMOTION G Servo Motor 130 mm sq. (200 V Medium Inertia)

SANMOTION G medium inertia AC servo motors with 130 mm square flange for 200 V AC supply, rated output 550 W to 3 kW, with 23-bit battery-less or single-turn absolute encoder.

Key features

  • 23-bit absolute encoder (8,388,608 P/R), battery-less or single-turn type
  • Optional 24 VDC holding brake (non-excited operation)
  • IP67 ingress protection with connectors mounted (shaft seal excluded)
  • Flange, shaft and mounting compatible with conventional SANMOTION R motors
  • Speed-torque values given after thermal equilibrium
  • Conforms to UL, cUL, CE and UKCA

Specifications

Series SANMOTION G
Motor type medium inertia rotary AC servo motor
Power supply 200 V AC class
Flange size 130 mm sq.
Encoder resolution 23 bit (8,388,608 P/R)
Protection / standards IP67; UL, cUL, CE, UKCA
Shaft code (last digit) 0 = circular without key, no oil seal; 1-3 (oil seal / keyway) on request
Source Sanyo Denki SANMOTION G catalogue S1062B004 '25.10, p. 18, 50-52
GAM2AB055D0XRK0 Output: 550 W | Rated torque: 2.6 N.m | Speed (rated/max): 2000/5000 min-1 | Brake: None | Encoder: Battery-less absolute | Amplifier: 30 A / 30 A x 2 axes
GAM2AB055D0CRK0 Output: 550 W | Rated torque: 2.6 N.m | Speed (rated/max): 2000/5000 min-1 | Brake: 24 VDC | Encoder: Battery-less absolute | Amplifier: 30 A / 30 A x 2 axes
GAM2AB055D0XNK0 Output: 550 W | Rated torque: 2.6 N.m | Speed (rated/max): 2000/5000 min-1 | Brake: None | Encoder: Single-turn absolute | Amplifier: 30 A / 30 A x 2 axes
GAM2AB055D0CNK0 Output: 550 W | Rated torque: 2.6 N.m | Speed (rated/max): 2000/5000 min-1 | Brake: 24 VDC | Encoder: Single-turn absolute | Amplifier: 30 A / 30 A x 2 axes
GAM2AB120B0XRK0 Output: 1.2 kW | Rated torque: 5.8 N.m | Speed (rated/max): 2000/3000 min-1 | Brake: None | Encoder: Battery-less absolute | Amplifier: 30 A
GAM2AB120B0CRK0 Output: 1.2 kW | Rated torque: 5.8 N.m | Speed (rated/max): 2000/3000 min-1 | Brake: 24 VDC | Encoder: Battery-less absolute | Amplifier: 30 A
GAM2AB120B0XNK0 Output: 1.2 kW | Rated torque: 5.8 N.m | Speed (rated/max): 2000/3000 min-1 | Brake: None | Encoder: Single-turn absolute | Amplifier: 30 A
GAM2AB120B0CNK0 Output: 1.2 kW | Rated torque: 5.8 N.m | Speed (rated/max): 2000/3000 min-1 | Brake: 24 VDC | Encoder: Single-turn absolute | Amplifier: 30 A
GAM2AB120H0XRK0 Output: 1.2 kW | Rated torque: 5.8 N.m | Speed (rated/max): 2000/4000 min-1 | Brake: None | Encoder: Battery-less absolute | Amplifier: 50 A
GAM2AB120H0CRK0 Output: 1.2 kW | Rated torque: 5.8 N.m | Speed (rated/max): 2000/4000 min-1 | Brake: 24 VDC | Encoder: Battery-less absolute | Amplifier: 50 A
GAM2AB120H0XNK0 Output: 1.2 kW | Rated torque: 5.8 N.m | Speed (rated/max): 2000/4000 min-1 | Brake: None | Encoder: Single-turn absolute | Amplifier: 50 A
GAM2AB120H0CNK0 Output: 1.2 kW | Rated torque: 5.8 N.m | Speed (rated/max): 2000/4000 min-1 | Brake: 24 VDC | Encoder: Single-turn absolute | Amplifier: 50 A
GAM2AB120D0XRK0 Output: 1.2 kW | Rated torque: 5.8 N.m | Speed (rated/max): 2000/5000 min-1 | Brake: None | Encoder: Battery-less absolute | Amplifier: 50 A
GAM2AB120D0CRK0 Output: 1.2 kW | Rated torque: 5.8 N.m | Speed (rated/max): 2000/5000 min-1 | Brake: 24 VDC | Encoder: Battery-less absolute | Amplifier: 50 A
GAM2AB120D0XNK0 Output: 1.2 kW | Rated torque: 5.8 N.m | Speed (rated/max): 2000/5000 min-1 | Brake: None | Encoder: Single-turn absolute | Amplifier: 50 A
GAM2AB120D0CNK0 Output: 1.2 kW | Rated torque: 5.8 N.m | Speed (rated/max): 2000/5000 min-1 | Brake: 24 VDC | Encoder: Single-turn absolute | Amplifier: 50 A
GAM2AB180H0XRK0 Output: 1.8 kW | Rated torque: 8.6 N.m | Speed (rated/max): 2000/4000 min-1 | Brake: None | Encoder: Battery-less absolute | Amplifier: 50 A
GAM2AB180H0CRK0 Output: 1.8 kW | Rated torque: 8.6 N.m | Speed (rated/max): 2000/4000 min-1 | Brake: 24 VDC | Encoder: Battery-less absolute | Amplifier: 50 A
GAM2AB180H0XNK0 Output: 1.8 kW | Rated torque: 8.6 N.m | Speed (rated/max): 2000/4000 min-1 | Brake: None | Encoder: Single-turn absolute | Amplifier: 50 A
GAM2AB180H0CNK0 Output: 1.8 kW | Rated torque: 8.6 N.m | Speed (rated/max): 2000/4000 min-1 | Brake: 24 VDC | Encoder: Single-turn absolute | Amplifier: 50 A
GAM2AB180D0XRK0 Output: 1.8 kW | Rated torque: 8.6 N.m | Speed (rated/max): 2000/5000 min-1 | Brake: None | Encoder: Battery-less absolute | Amplifier: 75 A
GAM2AB180D0CRK0 Output: 1.8 kW | Rated torque: 8.6 N.m | Speed (rated/max): 2000/5000 min-1 | Brake: 24 VDC | Encoder: Battery-less absolute | Amplifier: 75 A
GAM2AB180D0XNK0 Output: 1.8 kW | Rated torque: 8.6 N.m | Speed (rated/max): 2000/5000 min-1 | Brake: None | Encoder: Single-turn absolute | Amplifier: 75 A
GAM2AB180D0CNK0 Output: 1.8 kW | Rated torque: 8.6 N.m | Speed (rated/max): 2000/5000 min-1 | Brake: 24 VDC | Encoder: Single-turn absolute | Amplifier: 75 A
GAM2AB200H0XRK0 Output: 2 kW | Rated torque: 9.5 N.m | Speed (rated/max): 2000/4000 min-1 | Brake: None | Encoder: Battery-less absolute | Amplifier: 50 A
GAM2AB200H0CRK0 Output: 2 kW | Rated torque: 9.5 N.m | Speed (rated/max): 2000/4000 min-1 | Brake: 24 VDC | Encoder: Battery-less absolute | Amplifier: 50 A
GAM2AB200H0XNK0 Output: 2 kW | Rated torque: 9.5 N.m | Speed (rated/max): 2000/4000 min-1 | Brake: None | Encoder: Single-turn absolute | Amplifier: 50 A
GAM2AB200H0CNK0 Output: 2 kW | Rated torque: 9.5 N.m | Speed (rated/max): 2000/4000 min-1 | Brake: 24 VDC | Encoder: Single-turn absolute | Amplifier: 50 A
GAM2AB200D0XRK0 Output: 2 kW | Rated torque: 9.5 N.m | Speed (rated/max): 2000/5000 min-1 | Brake: None | Encoder: Battery-less absolute | Amplifier: 75 A
GAM2AB200D0CRK0 Output: 2 kW | Rated torque: 9.5 N.m | Speed (rated/max): 2000/5000 min-1 | Brake: 24 VDC | Encoder: Battery-less absolute | Amplifier: 75 A
GAM2AB200D0XNK0 Output: 2 kW | Rated torque: 9.5 N.m | Speed (rated/max): 2000/5000 min-1 | Brake: None | Encoder: Single-turn absolute | Amplifier: 75 A
GAM2AB200D0CNK0 Output: 2 kW | Rated torque: 9.5 N.m | Speed (rated/max): 2000/5000 min-1 | Brake: 24 VDC | Encoder: Single-turn absolute | Amplifier: 75 A
GAM2AB300B0XRK0 Output: 3 kW | Rated torque: 14.4 N.m | Speed (rated/max): 2000/3000 min-1 | Brake: None | Encoder: Battery-less absolute | Amplifier: 100 A
GAM2AB300B0CRK0 Output: 3 kW | Rated torque: 14.4 N.m | Speed (rated/max): 2000/3000 min-1 | Brake: 24 VDC | Encoder: Battery-less absolute | Amplifier: 100 A
GAM2AB300B0XNK0 Output: 3 kW | Rated torque: 14.4 N.m | Speed (rated/max): 2000/3000 min-1 | Brake: None | Encoder: Single-turn absolute | Amplifier: 100 A
GAM2AB300B0CNK0 Output: 3 kW | Rated torque: 14.4 N.m | Speed (rated/max): 2000/3000 min-1 | Brake: 24 VDC | Encoder: Single-turn absolute | Amplifier: 100 A
Servo MotorsSanyo Denki
36 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki SANMOTION G Servo Motor 130 mm sq. (200 V Medium Inertia)

Brand Sanyo Denki·Servo Motors

Available part numbers (36)

GAM2AB055D0XRK0, GAM2AB055D0CRK0, GAM2AB055D0XNK0, GAM2AB055D0CNK0, GAM2AB120B0XRK0, GAM2AB120B0CRK0, GAM2AB120B0XNK0, GAM2AB120B0CNK0, GAM2AB120H0XRK0, GAM2AB120H0CRK0 + 26 more — see full table ↓

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
GAM2AB055D0XRK0Output: 550 W | Rated torque: 2.6 N.m | Speed (rated/max): 2000/5000 min-1 | Brake: None | Encoder: Battery-less absolute | Amplifier: 30 A / 30 A x 2 axes
GAM2AB055D0CRK0Output: 550 W | Rated torque: 2.6 N.m | Speed (rated/max): 2000/5000 min-1 | Brake: 24 VDC | Encoder: Battery-less absolute | Amplifier: 30 A / 30 A x 2 axes
GAM2AB055D0XNK0Output: 550 W | Rated torque: 2.6 N.m | Speed (rated/max): 2000/5000 min-1 | Brake: None | Encoder: Single-turn absolute | Amplifier: 30 A / 30 A x 2 axes
GAM2AB055D0CNK0Output: 550 W | Rated torque: 2.6 N.m | Speed (rated/max): 2000/5000 min-1 | Brake: 24 VDC | Encoder: Single-turn absolute | Amplifier: 30 A / 30 A x 2 axes
GAM2AB120B0XRK0Output: 1.2 kW | Rated torque: 5.8 N.m | Speed (rated/max): 2000/3000 min-1 | Brake: None | Encoder: Battery-less absolute | Amplifier: 30 A
GAM2AB120B0CRK0Output: 1.2 kW | Rated torque: 5.8 N.m | Speed (rated/max): 2000/3000 min-1 | Brake: 24 VDC | Encoder: Battery-less absolute | Amplifier: 30 A
GAM2AB120B0XNK0Output: 1.2 kW | Rated torque: 5.8 N.m | Speed (rated/max): 2000/3000 min-1 | Brake: None | Encoder: Single-turn absolute | Amplifier: 30 A
GAM2AB120B0CNK0Output: 1.2 kW | Rated torque: 5.8 N.m | Speed (rated/max): 2000/3000 min-1 | Brake: 24 VDC | Encoder: Single-turn absolute | Amplifier: 30 A
GAM2AB120H0XRK0Output: 1.2 kW | Rated torque: 5.8 N.m | Speed (rated/max): 2000/4000 min-1 | Brake: None | Encoder: Battery-less absolute | Amplifier: 50 A
GAM2AB120H0CRK0Output: 1.2 kW | Rated torque: 5.8 N.m | Speed (rated/max): 2000/4000 min-1 | Brake: 24 VDC | Encoder: Battery-less absolute | Amplifier: 50 A
GAM2AB120H0XNK0Output: 1.2 kW | Rated torque: 5.8 N.m | Speed (rated/max): 2000/4000 min-1 | Brake: None | Encoder: Single-turn absolute | Amplifier: 50 A
GAM2AB120H0CNK0Output: 1.2 kW | Rated torque: 5.8 N.m | Speed (rated/max): 2000/4000 min-1 | Brake: 24 VDC | Encoder: Single-turn absolute | Amplifier: 50 A
GAM2AB120D0XRK0Output: 1.2 kW | Rated torque: 5.8 N.m | Speed (rated/max): 2000/5000 min-1 | Brake: None | Encoder: Battery-less absolute | Amplifier: 50 A
GAM2AB120D0CRK0Output: 1.2 kW | Rated torque: 5.8 N.m | Speed (rated/max): 2000/5000 min-1 | Brake: 24 VDC | Encoder: Battery-less absolute | Amplifier: 50 A
GAM2AB120D0XNK0Output: 1.2 kW | Rated torque: 5.8 N.m | Speed (rated/max): 2000/5000 min-1 | Brake: None | Encoder: Single-turn absolute | Amplifier: 50 A
GAM2AB120D0CNK0Output: 1.2 kW | Rated torque: 5.8 N.m | Speed (rated/max): 2000/5000 min-1 | Brake: 24 VDC | Encoder: Single-turn absolute | Amplifier: 50 A
GAM2AB180H0XRK0Output: 1.8 kW | Rated torque: 8.6 N.m | Speed (rated/max): 2000/4000 min-1 | Brake: None | Encoder: Battery-less absolute | Amplifier: 50 A
GAM2AB180H0CRK0Output: 1.8 kW | Rated torque: 8.6 N.m | Speed (rated/max): 2000/4000 min-1 | Brake: 24 VDC | Encoder: Battery-less absolute | Amplifier: 50 A
GAM2AB180H0XNK0Output: 1.8 kW | Rated torque: 8.6 N.m | Speed (rated/max): 2000/4000 min-1 | Brake: None | Encoder: Single-turn absolute | Amplifier: 50 A
GAM2AB180H0CNK0Output: 1.8 kW | Rated torque: 8.6 N.m | Speed (rated/max): 2000/4000 min-1 | Brake: 24 VDC | Encoder: Single-turn absolute | Amplifier: 50 A
GAM2AB180D0XRK0Output: 1.8 kW | Rated torque: 8.6 N.m | Speed (rated/max): 2000/5000 min-1 | Brake: None | Encoder: Battery-less absolute | Amplifier: 75 A
GAM2AB180D0CRK0Output: 1.8 kW | Rated torque: 8.6 N.m | Speed (rated/max): 2000/5000 min-1 | Brake: 24 VDC | Encoder: Battery-less absolute | Amplifier: 75 A
GAM2AB180D0XNK0Output: 1.8 kW | Rated torque: 8.6 N.m | Speed (rated/max): 2000/5000 min-1 | Brake: None | Encoder: Single-turn absolute | Amplifier: 75 A
GAM2AB180D0CNK0Output: 1.8 kW | Rated torque: 8.6 N.m | Speed (rated/max): 2000/5000 min-1 | Brake: 24 VDC | Encoder: Single-turn absolute | Amplifier: 75 A
GAM2AB200H0XRK0Output: 2 kW | Rated torque: 9.5 N.m | Speed (rated/max): 2000/4000 min-1 | Brake: None | Encoder: Battery-less absolute | Amplifier: 50 A
GAM2AB200H0CRK0Output: 2 kW | Rated torque: 9.5 N.m | Speed (rated/max): 2000/4000 min-1 | Brake: 24 VDC | Encoder: Battery-less absolute | Amplifier: 50 A
GAM2AB200H0XNK0Output: 2 kW | Rated torque: 9.5 N.m | Speed (rated/max): 2000/4000 min-1 | Brake: None | Encoder: Single-turn absolute | Amplifier: 50 A
GAM2AB200H0CNK0Output: 2 kW | Rated torque: 9.5 N.m | Speed (rated/max): 2000/4000 min-1 | Brake: 24 VDC | Encoder: Single-turn absolute | Amplifier: 50 A
GAM2AB200D0XRK0Output: 2 kW | Rated torque: 9.5 N.m | Speed (rated/max): 2000/5000 min-1 | Brake: None | Encoder: Battery-less absolute | Amplifier: 75 A
GAM2AB200D0CRK0Output: 2 kW | Rated torque: 9.5 N.m | Speed (rated/max): 2000/5000 min-1 | Brake: 24 VDC | Encoder: Battery-less absolute | Amplifier: 75 A
GAM2AB200D0XNK0Output: 2 kW | Rated torque: 9.5 N.m | Speed (rated/max): 2000/5000 min-1 | Brake: None | Encoder: Single-turn absolute | Amplifier: 75 A
GAM2AB200D0CNK0Output: 2 kW | Rated torque: 9.5 N.m | Speed (rated/max): 2000/5000 min-1 | Brake: 24 VDC | Encoder: Single-turn absolute | Amplifier: 75 A
GAM2AB300B0XRK0Output: 3 kW | Rated torque: 14.4 N.m | Speed (rated/max): 2000/3000 min-1 | Brake: None | Encoder: Battery-less absolute | Amplifier: 100 A
GAM2AB300B0CRK0Output: 3 kW | Rated torque: 14.4 N.m | Speed (rated/max): 2000/3000 min-1 | Brake: 24 VDC | Encoder: Battery-less absolute | Amplifier: 100 A
GAM2AB300B0XNK0Output: 3 kW | Rated torque: 14.4 N.m | Speed (rated/max): 2000/3000 min-1 | Brake: None | Encoder: Single-turn absolute | Amplifier: 100 A
GAM2AB300B0CNK0Output: 3 kW | Rated torque: 14.4 N.m | Speed (rated/max): 2000/3000 min-1 | Brake: 24 VDC | Encoder: Single-turn absolute | Amplifier: 100 A
