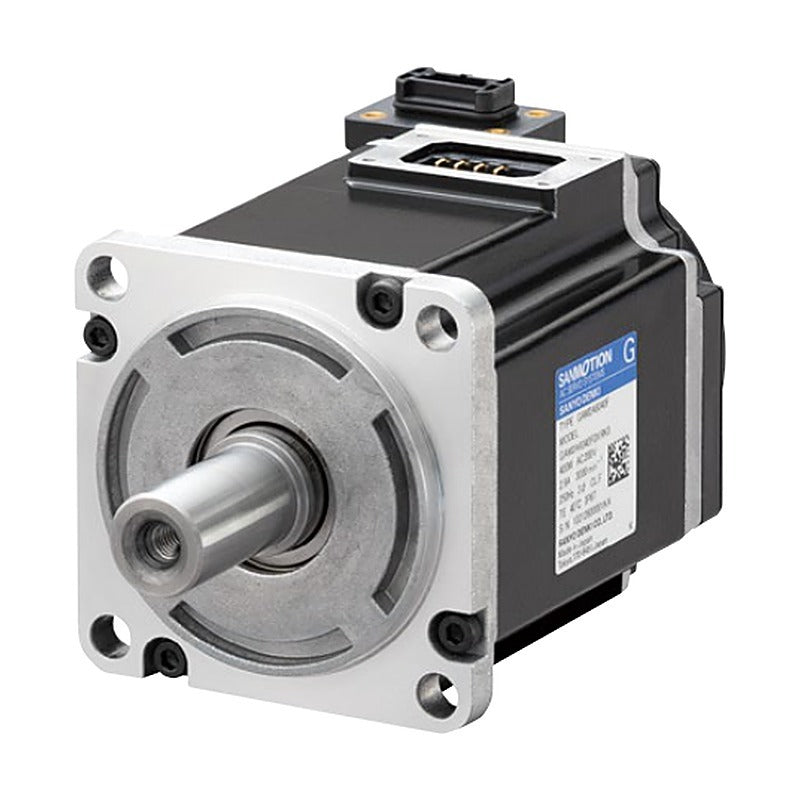

Sanyo Denki SANMOTION G Servo Motor 60 mm sq. (200 V Medium Inertia)

Sanyo Denki SANMOTION G Servo Motor 60 mm sq. (200 V Medium Inertia)

SANMOTION G medium inertia AC servo motors with 60 mm square flange for 200 V AC supply, rated output 100 W to 600 W, with 23-bit battery-less or single-turn absolute encoder.

Key features

  • 23-bit absolute encoder (8,388,608 P/R), battery-less or single-turn type
  • Optional 24 VDC holding brake (non-excited operation)
  • IP67 ingress protection with connectors mounted (shaft seal excluded)
  • Flange, shaft and mounting compatible with conventional SANMOTION R motors
  • Speed-torque values given after thermal equilibrium
  • Conforms to UL, cUL, CE and UKCA

Specifications

Series SANMOTION G
Motor type medium inertia rotary AC servo motor
Power supply 200 V AC class
Flange size 60 mm sq.
Encoder resolution 23 bit (8,388,608 P/R)
Protection / standards IP67; UL, cUL, CE, UKCA
Shaft code (last digit) 0 = circular without key, no oil seal; 1-3 (oil seal / keyway) on request
Speed (rated/max) 3000/6500 min-1
Source Sanyo Denki SANMOTION G catalogue S1062B004 '25.10, p. 18, 42-43
GAM2A6010F0XRK0 Output: 100 W | Rated torque: 0.318 N.m | Brake: None | Encoder: Battery-less absolute | Amplifier: 10 A / 20 A x 2 axes
GAM2A6010F0CRK0 Output: 100 W | Rated torque: 0.318 N.m | Brake: 24 VDC | Encoder: Battery-less absolute | Amplifier: 10 A / 20 A x 2 axes
GAM2A6010F0XNK0 Output: 100 W | Rated torque: 0.318 N.m | Brake: None | Encoder: Single-turn absolute | Amplifier: 10 A / 20 A x 2 axes
GAM2A6010F0CNK0 Output: 100 W | Rated torque: 0.318 N.m | Brake: 24 VDC | Encoder: Single-turn absolute | Amplifier: 10 A / 20 A x 2 axes
GAM2A6020F0XRK0 Output: 200 W | Rated torque: 0.637 N.m | Brake: None | Encoder: Battery-less absolute | Amplifier: 20 A / 20 A x 2 axes
GAM2A6020F0CRK0 Output: 200 W | Rated torque: 0.637 N.m | Brake: 24 VDC | Encoder: Battery-less absolute | Amplifier: 20 A / 20 A x 2 axes
GAM2A6020F0XNK0 Output: 200 W | Rated torque: 0.637 N.m | Brake: None | Encoder: Single-turn absolute | Amplifier: 20 A / 20 A x 2 axes
GAM2A6020F0CNK0 Output: 200 W | Rated torque: 0.637 N.m | Brake: 24 VDC | Encoder: Single-turn absolute | Amplifier: 20 A / 20 A x 2 axes
GAM2A6040F0XRK0 Output: 400 W | Rated torque: 1.27 N.m | Brake: None | Encoder: Battery-less absolute | Amplifier: 20 A / 20 A x 2 axes
GAM2A6040F0CRK0 Output: 400 W | Rated torque: 1.27 N.m | Brake: 24 VDC | Encoder: Battery-less absolute | Amplifier: 20 A / 20 A x 2 axes
GAM2A6040F0XNK0 Output: 400 W | Rated torque: 1.27 N.m | Brake: None | Encoder: Single-turn absolute | Amplifier: 20 A / 20 A x 2 axes
GAM2A6040F0CNK0 Output: 400 W | Rated torque: 1.27 N.m | Brake: 24 VDC | Encoder: Single-turn absolute | Amplifier: 20 A / 20 A x 2 axes
GAM2A6060V0XRK0 Output: 600 W | Rated torque: 1.91 N.m | Brake: None | Encoder: Battery-less absolute | Amplifier: 30 A / 30 A x 2 axes
GAM2A6060V0CRK0 Output: 600 W | Rated torque: 1.91 N.m | Brake: 24 VDC | Encoder: Battery-less absolute | Amplifier: 30 A / 30 A x 2 axes
GAM2A6060V0XNK0 Output: 600 W | Rated torque: 1.91 N.m | Brake: None | Encoder: Single-turn absolute | Amplifier: 30 A / 30 A x 2 axes
GAM2A6060V0CNK0 Output: 600 W | Rated torque: 1.91 N.m | Brake: 24 VDC | Encoder: Single-turn absolute | Amplifier: 30 A / 30 A x 2 axes
GAM2A6060F0XRK0 Output: 600 W | Rated torque: 1.91 N.m | Brake: None | Encoder: Battery-less absolute | Amplifier: 50 A
GAM2A6060F0CRK0 Output: 600 W | Rated torque: 1.91 N.m | Brake: 24 VDC | Encoder: Battery-less absolute | Amplifier: 50 A
GAM2A6060F0XNK0 Output: 600 W | Rated torque: 1.91 N.m | Brake: None | Encoder: Single-turn absolute | Amplifier: 50 A
GAM2A6060F0CNK0 Output: 600 W | Rated torque: 1.91 N.m | Brake: 24 VDC | Encoder: Single-turn absolute | Amplifier: 50 A
Servo MotorsSanyo Denki
20 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki SANMOTION G Servo Motor 60 mm sq. (200 V Medium Inertia)

Brand Sanyo Denki·Servo Motors

Available part numbers (20)

GAM2A6010F0XRK0, GAM2A6010F0CRK0, GAM2A6010F0XNK0, GAM2A6010F0CNK0, GAM2A6020F0XRK0, GAM2A6020F0CRK0, GAM2A6020F0XNK0, GAM2A6020F0CNK0, GAM2A6040F0XRK0, GAM2A6040F0CRK0 + 10 more — see full table ↓

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
GAM2A6010F0XRK0Output: 100 W | Rated torque: 0.318 N.m | Brake: None | Encoder: Battery-less absolute | Amplifier: 10 A / 20 A x 2 axes
GAM2A6010F0CRK0Output: 100 W | Rated torque: 0.318 N.m | Brake: 24 VDC | Encoder: Battery-less absolute | Amplifier: 10 A / 20 A x 2 axes
GAM2A6010F0XNK0Output: 100 W | Rated torque: 0.318 N.m | Brake: None | Encoder: Single-turn absolute | Amplifier: 10 A / 20 A x 2 axes
GAM2A6010F0CNK0Output: 100 W | Rated torque: 0.318 N.m | Brake: 24 VDC | Encoder: Single-turn absolute | Amplifier: 10 A / 20 A x 2 axes
GAM2A6020F0XRK0Output: 200 W | Rated torque: 0.637 N.m | Brake: None | Encoder: Battery-less absolute | Amplifier: 20 A / 20 A x 2 axes
GAM2A6020F0CRK0Output: 200 W | Rated torque: 0.637 N.m | Brake: 24 VDC | Encoder: Battery-less absolute | Amplifier: 20 A / 20 A x 2 axes
GAM2A6020F0XNK0Output: 200 W | Rated torque: 0.637 N.m | Brake: None | Encoder: Single-turn absolute | Amplifier: 20 A / 20 A x 2 axes
GAM2A6020F0CNK0Output: 200 W | Rated torque: 0.637 N.m | Brake: 24 VDC | Encoder: Single-turn absolute | Amplifier: 20 A / 20 A x 2 axes
GAM2A6040F0XRK0Output: 400 W | Rated torque: 1.27 N.m | Brake: None | Encoder: Battery-less absolute | Amplifier: 20 A / 20 A x 2 axes
GAM2A6040F0CRK0Output: 400 W | Rated torque: 1.27 N.m | Brake: 24 VDC | Encoder: Battery-less absolute | Amplifier: 20 A / 20 A x 2 axes
GAM2A6040F0XNK0Output: 400 W | Rated torque: 1.27 N.m | Brake: None | Encoder: Single-turn absolute | Amplifier: 20 A / 20 A x 2 axes
GAM2A6040F0CNK0Output: 400 W | Rated torque: 1.27 N.m | Brake: 24 VDC | Encoder: Single-turn absolute | Amplifier: 20 A / 20 A x 2 axes
GAM2A6060V0XRK0Output: 600 W | Rated torque: 1.91 N.m | Brake: None | Encoder: Battery-less absolute | Amplifier: 30 A / 30 A x 2 axes
GAM2A6060V0CRK0Output: 600 W | Rated torque: 1.91 N.m | Brake: 24 VDC | Encoder: Battery-less absolute | Amplifier: 30 A / 30 A x 2 axes
GAM2A6060V0XNK0Output: 600 W | Rated torque: 1.91 N.m | Brake: None | Encoder: Single-turn absolute | Amplifier: 30 A / 30 A x 2 axes
GAM2A6060V0CNK0Output: 600 W | Rated torque: 1.91 N.m | Brake: 24 VDC | Encoder: Single-turn absolute | Amplifier: 30 A / 30 A x 2 axes
GAM2A6060F0XRK0Output: 600 W | Rated torque: 1.91 N.m | Brake: None | Encoder: Battery-less absolute | Amplifier: 50 A
GAM2A6060F0CRK0Output: 600 W | Rated torque: 1.91 N.m | Brake: 24 VDC | Encoder: Battery-less absolute | Amplifier: 50 A
GAM2A6060F0XNK0Output: 600 W | Rated torque: 1.91 N.m | Brake: None | Encoder: Single-turn absolute | Amplifier: 50 A
GAM2A6060F0CNK0Output: 600 W | Rated torque: 1.91 N.m | Brake: 24 VDC | Encoder: Single-turn absolute | Amplifier: 50 A
