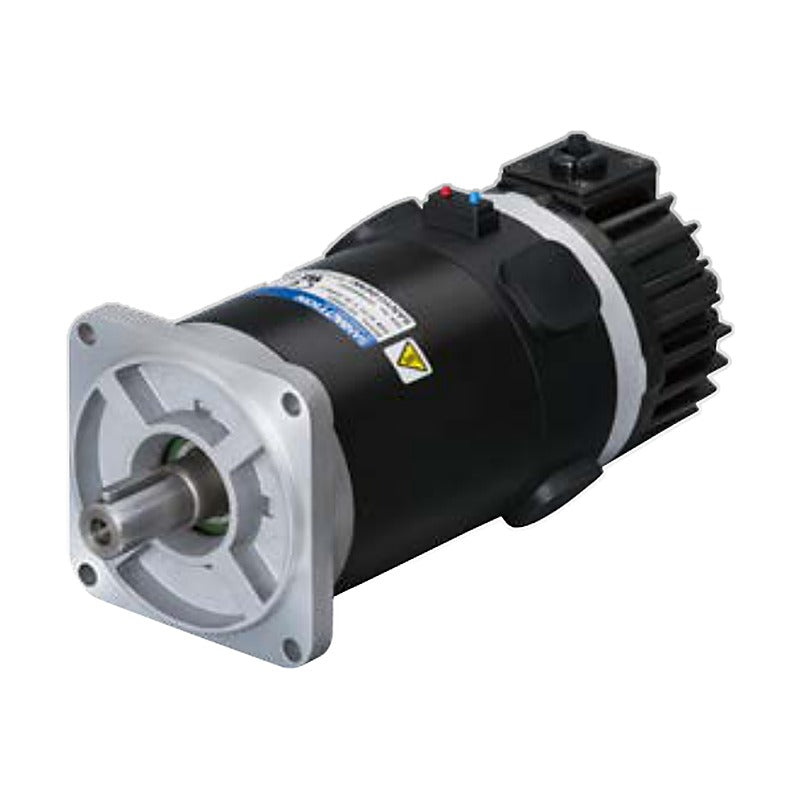

Sanyo Denki SANMOTION K DC Servo Motor 42 mm (24 VDC, 23-60 W)

Sanyo Denki SANMOTION K DC Servo Motor 42 mm (24 VDC, 23-60 W)

SANMOTION K 42 mm square DC servo motors for 24 VDC class input, offering low cogging torque, low loss and low noise for precision instruments and medical equipment.

Key features

  • 42 mm square flange DC servo motor, 24 VDC class input, rated output 23-60 W
  • Cogging torque reduced by up to half versus conventional SANMOTION T DC servo motors
  • Power loss reduced by up to approx. 30% and noise by up to 8 dB versus conventional models
  • IP43 protection rating on all motors
  • Optional incremental encoder (2000 P/R line driver standard) and DC tachogenerator
  • Low-voltage 24 VDC model suited to medical and near-human equipment

Specifications

Series SANMOTION K DC servo motor
Input voltage class 24 VDC (low-voltage model)
Flange size 42 mm sq.
Rated armature voltage 20/24 V
Maximum speed 5000 min-1
Protection rating IP43
Encoder output Line driver 2000 P/R std (200/500/1000 opt.)
Model list Standard Model Number List (catalogue)
Rated speed 3000 min-1
Holding brake None
Source Sanyo Denki SANMOTION K DC Servo Systems catalogue Ver.1.2, p. 7-10, 16-18
KB402XXX Rated output: 23 W | Rated torque: 0.074 N.m | Encoder: None | Tachogenerator: None
KB402XS0 Rated output: 23 W | Rated torque: 0.074 N.m | Encoder: 2000 P/R line driver | Tachogenerator: None
KB402TXX Rated output: 23 W | Rated torque: 0.074 N.m | Encoder: None | Tachogenerator: Yes
KB404XXX Rated output: 40 W | Rated torque: 0.13 N.m | Encoder: None | Tachogenerator: None
KB404XS0 Rated output: 40 W | Rated torque: 0.13 N.m | Encoder: 2000 P/R line driver | Tachogenerator: None
KB404TXX Rated output: 40 W | Rated torque: 0.13 N.m | Encoder: None | Tachogenerator: Yes
KB406XXX Rated output: 60 W | Rated torque: 0.19 N.m | Encoder: None | Tachogenerator: None
KB406XS0 Rated output: 60 W | Rated torque: 0.19 N.m | Encoder: 2000 P/R line driver | Tachogenerator: None
KB406TXX Rated output: 60 W | Rated torque: 0.19 N.m | Encoder: None | Tachogenerator: Yes
Servo MotorsSanyo Denki
9 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki SANMOTION K DC Servo Motor 42 mm (24 VDC, 23-60 W)

Brand Sanyo Denki·Servo Motors

Available part numbers (9)

KB402XXX, KB402XS0, KB402TXX, KB404XXX, KB404XS0, KB404TXX, KB406XXX, KB406XS0, KB406TXX

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
KB402XXXRated output: 23 W | Rated torque: 0.074 N.m | Encoder: None | Tachogenerator: None
KB402XS0Rated output: 23 W | Rated torque: 0.074 N.m | Encoder: 2000 P/R line driver | Tachogenerator: None
KB402TXXRated output: 23 W | Rated torque: 0.074 N.m | Encoder: None | Tachogenerator: Yes
KB404XXXRated output: 40 W | Rated torque: 0.13 N.m | Encoder: None | Tachogenerator: None
KB404XS0Rated output: 40 W | Rated torque: 0.13 N.m | Encoder: 2000 P/R line driver | Tachogenerator: None
KB404TXXRated output: 40 W | Rated torque: 0.13 N.m | Encoder: None | Tachogenerator: Yes
KB406XXXRated output: 60 W | Rated torque: 0.19 N.m | Encoder: None | Tachogenerator: None
KB406XS0Rated output: 60 W | Rated torque: 0.19 N.m | Encoder: 2000 P/R line driver | Tachogenerator: None
KB406TXXRated output: 60 W | Rated torque: 0.19 N.m | Encoder: None | Tachogenerator: Yes
