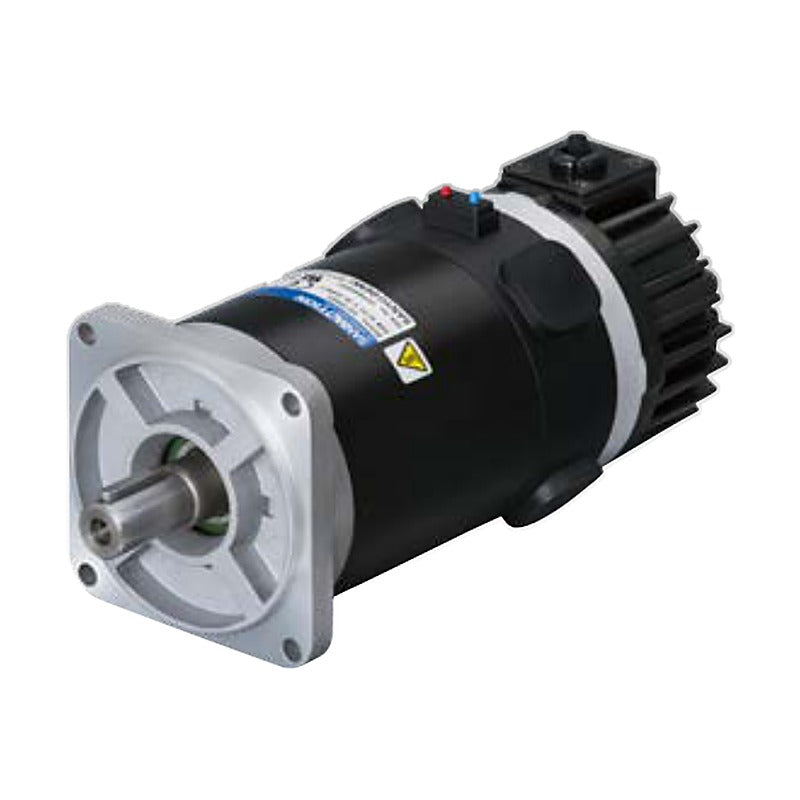

Sanyo Denki SANMOTION K DC Servo Motor 54 mm (24 VDC, 60-80 W)

Sanyo Denki SANMOTION K DC Servo Motor 54 mm (24 VDC, 60-80 W)

SANMOTION K 54 mm square DC servo motors for 24 VDC class input, offering low cogging torque, low loss and low noise for precision instruments and medical equipment.

Key features

  • 54 mm square flange DC servo motor, 24 VDC class input, rated output 60-80 W
  • Cogging torque reduced by up to half versus conventional SANMOTION T DC servo motors
  • Power loss reduced by up to approx. 30% and noise by up to 8 dB versus conventional models
  • IP43 protection rating on all motors
  • Optional incremental encoder (2000 P/R line driver standard) and DC tachogenerator, 90 VDC holding brake
  • Low-voltage 24 VDC model suited to medical and near-human equipment

Specifications

Series SANMOTION K DC servo motor
Input voltage class 24 VDC (low-voltage model)
Flange size 54 mm sq.
Rated armature voltage 24 V
Maximum speed 5000 min-1
Protection rating IP43
Encoder output Line driver 2000 P/R std (200/500/1000 opt.)
Model list Standard Model Number List (catalogue)
Rated speed 3000 min-1
Source Sanyo Denki SANMOTION K DC Servo Systems catalogue Ver.1.2, p. 7-8, 11, 16-23
KB506XXX Rated output: 60 W | Rated torque: 0.19 N.m | Encoder: None | Tachogenerator: None | Holding brake: None
KB506XS0 Rated output: 60 W | Rated torque: 0.19 N.m | Encoder: 2000 P/R line driver | Tachogenerator: None | Holding brake: None
KB506TXX Rated output: 60 W | Rated torque: 0.19 N.m | Encoder: None | Tachogenerator: Yes | Holding brake: None
KB506BXX Rated output: 60 W | Rated torque: 0.19 N.m | Encoder: None | Tachogenerator: None | Holding brake: 90 VDC
KB506BS0 Rated output: 60 W | Rated torque: 0.19 N.m | Encoder: 2000 P/R line driver | Tachogenerator: None | Holding brake: 90 VDC
KB506JXX Rated output: 60 W | Rated torque: 0.19 N.m | Encoder: None | Tachogenerator: Yes | Holding brake: 90 VDC
KB506TS0 Rated output: 60 W | Rated torque: 0.19 N.m | Encoder: 2000 P/R line driver | Tachogenerator: Yes | Holding brake: None
KB506JS0 Rated output: 60 W | Rated torque: 0.19 N.m | Encoder: 2000 P/R line driver | Tachogenerator: Yes | Holding brake: 90 VDC
KB511XXX Rated output: 80 W | Rated torque: 0.26 N.m | Encoder: None | Tachogenerator: None | Holding brake: None
KB511XS0 Rated output: 80 W | Rated torque: 0.26 N.m | Encoder: 2000 P/R line driver | Tachogenerator: None | Holding brake: None
KB511TXX Rated output: 80 W | Rated torque: 0.26 N.m | Encoder: None | Tachogenerator: Yes | Holding brake: None
KB511BXX Rated output: 80 W | Rated torque: 0.26 N.m | Encoder: None | Tachogenerator: None | Holding brake: 90 VDC
KB511BS0 Rated output: 80 W | Rated torque: 0.26 N.m | Encoder: 2000 P/R line driver | Tachogenerator: None | Holding brake: 90 VDC
KB511JXX Rated output: 80 W | Rated torque: 0.26 N.m | Encoder: None | Tachogenerator: Yes | Holding brake: 90 VDC
KB511TS0 Rated output: 80 W | Rated torque: 0.26 N.m | Encoder: 2000 P/R line driver | Tachogenerator: Yes | Holding brake: None
KB511JS0 Rated output: 80 W | Rated torque: 0.26 N.m | Encoder: 2000 P/R line driver | Tachogenerator: Yes | Holding brake: 90 VDC
Servo MotorsSanyo Denki
16 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki SANMOTION K DC Servo Motor 54 mm (24 VDC, 60-80 W)

Brand Sanyo Denki·Servo Motors

Available part numbers (16)

KB506XXX, KB506XS0, KB506TXX, KB506BXX, KB506BS0, KB506JXX, KB506TS0, KB506JS0, KB511XXX, KB511XS0 + 6 more — see full table ↓
