• Sanyo Denki SANMOTION K DC Servo Motor 54 mm (75 VDC, 60-110 W)
1 1

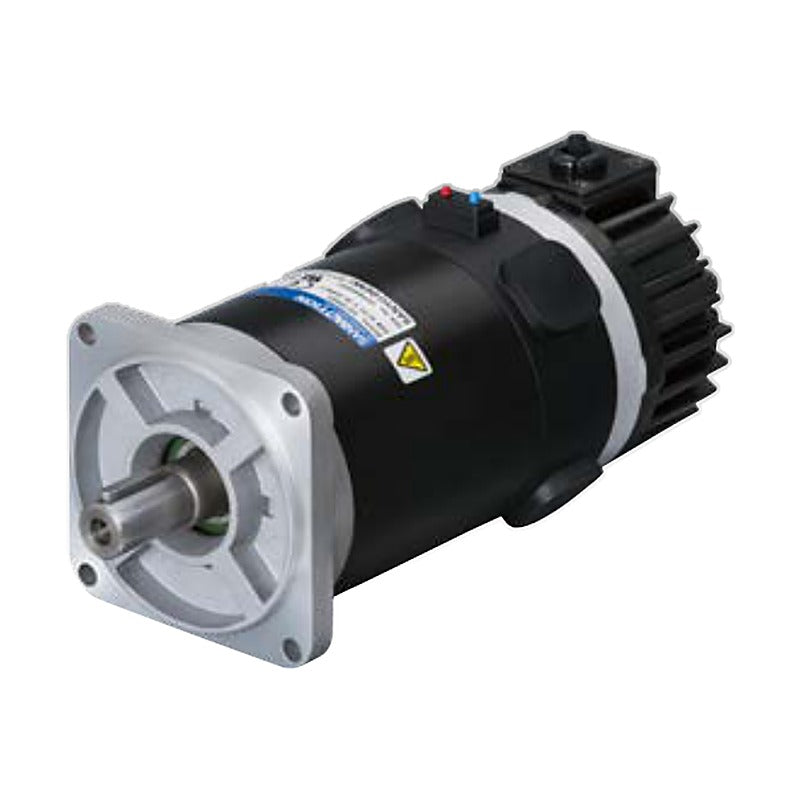

Sanyo Denki SANMOTION K DC Servo Motor 54 mm (75 VDC, 60-110 W)

Sanyo Denki SANMOTION K DC Servo Motor 54 mm (75 VDC, 60-110 W)

SANMOTION K 54 mm square DC servo motors for 75 VDC class input, offering low cogging torque, low loss and low noise for precision instruments and medical equipment.

Key features

  • 54 mm square flange DC servo motor, 75 VDC class input, rated output 60-110 W
  • Cogging torque reduced by up to half versus conventional SANMOTION T DC servo motors
  • Power loss reduced by up to approx. 30% and noise by up to 8 dB versus conventional models
  • IP43 protection rating on all motors
  • Optional incremental encoder (2000 P/R line driver standard) and DC tachogenerator, 90 VDC holding brake

Specifications

Series SANMOTION K DC servo motor
Input voltage class 75 VDC
Flange size 54 mm sq.
Rated armature voltage 75 V
Maximum speed 5000 min-1
Protection rating IP43
Encoder output Line driver 2000 P/R std (200/500/1000 opt.)
Model list Standard Model Number List (catalogue)
Rated speed 3000 min-1
Source Sanyo Denki SANMOTION K DC Servo Systems catalogue Ver.1.2, p. 7, 9, 12, 16-23
KA506XXX Rated output: 60 W | Rated torque: 0.19 N.m | Encoder: None | Tachogenerator: None | Holding brake: None
KA506XS0 Rated output: 60 W | Rated torque: 0.19 N.m | Encoder: 2000 P/R line driver | Tachogenerator: None | Holding brake: None
KA506TXX Rated output: 60 W | Rated torque: 0.19 N.m | Encoder: None | Tachogenerator: Yes | Holding brake: None
KA506BXX Rated output: 60 W | Rated torque: 0.19 N.m | Encoder: None | Tachogenerator: None | Holding brake: 90 VDC
KA506BS0 Rated output: 60 W | Rated torque: 0.19 N.m | Encoder: 2000 P/R line driver | Tachogenerator: None | Holding brake: 90 VDC
KA506JXX Rated output: 60 W | Rated torque: 0.19 N.m | Encoder: None | Tachogenerator: Yes | Holding brake: 90 VDC
KA506TS0 Rated output: 60 W | Rated torque: 0.19 N.m | Encoder: 2000 P/R line driver | Tachogenerator: Yes | Holding brake: None
KA506JS0 Rated output: 60 W | Rated torque: 0.19 N.m | Encoder: 2000 P/R line driver | Tachogenerator: Yes | Holding brake: 90 VDC
KA511XXX Rated output: 110 W | Rated torque: 0.35 N.m | Encoder: None | Tachogenerator: None | Holding brake: None
KA511XS0 Rated output: 110 W | Rated torque: 0.35 N.m | Encoder: 2000 P/R line driver | Tachogenerator: None | Holding brake: None
KA511TXX Rated output: 110 W | Rated torque: 0.35 N.m | Encoder: None | Tachogenerator: Yes | Holding brake: None
KA511BXX Rated output: 110 W | Rated torque: 0.35 N.m | Encoder: None | Tachogenerator: None | Holding brake: 90 VDC
KA511BS0 Rated output: 110 W | Rated torque: 0.35 N.m | Encoder: 2000 P/R line driver | Tachogenerator: None | Holding brake: 90 VDC
KA511JXX Rated output: 110 W | Rated torque: 0.35 N.m | Encoder: None | Tachogenerator: Yes | Holding brake: 90 VDC
KA511TS0 Rated output: 110 W | Rated torque: 0.35 N.m | Encoder: 2000 P/R line driver | Tachogenerator: Yes | Holding brake: None
KA511JS0 Rated output: 110 W | Rated torque: 0.35 N.m | Encoder: 2000 P/R line driver | Tachogenerator: Yes | Holding brake: 90 VDC
Servo MotorsSanyo Denki
16 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki SANMOTION K DC Servo Motor 54 mm (75 VDC, 60-110 W)

Brand Sanyo Denki·Servo Motors

Available part numbers (16)

KA506XXX, KA506XS0, KA506TXX, KA506BXX, KA506BS0, KA506JXX, KA506TS0, KA506JS0, KA511XXX, KA511XS0 + 6 more — see full table ↓

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
KA506XXXRated output: 60 W | Rated torque: 0.19 N.m | Encoder: None | Tachogenerator: None | Holding brake: None
KA506XS0Rated output: 60 W | Rated torque: 0.19 N.m | Encoder: 2000 P/R line driver | Tachogenerator: None | Holding brake: None
KA506TXXRated output: 60 W | Rated torque: 0.19 N.m | Encoder: None | Tachogenerator: Yes | Holding brake: None
KA506BXXRated output: 60 W | Rated torque: 0.19 N.m | Encoder: None | Tachogenerator: None | Holding brake: 90 VDC
KA506BS0Rated output: 60 W | Rated torque: 0.19 N.m | Encoder: 2000 P/R line driver | Tachogenerator: None | Holding brake: 90 VDC
KA506JXXRated output: 60 W | Rated torque: 0.19 N.m | Encoder: None | Tachogenerator: Yes | Holding brake: 90 VDC
KA506TS0Rated output: 60 W | Rated torque: 0.19 N.m | Encoder: 2000 P/R line driver | Tachogenerator: Yes | Holding brake: None
KA506JS0Rated output: 60 W | Rated torque: 0.19 N.m | Encoder: 2000 P/R line driver | Tachogenerator: Yes | Holding brake: 90 VDC
KA511XXXRated output: 110 W | Rated torque: 0.35 N.m | Encoder: None | Tachogenerator: None | Holding brake: None
KA511XS0Rated output: 110 W | Rated torque: 0.35 N.m | Encoder: 2000 P/R line driver | Tachogenerator: None | Holding brake: None
KA511TXXRated output: 110 W | Rated torque: 0.35 N.m | Encoder: None | Tachogenerator: Yes | Holding brake: None
KA511BXXRated output: 110 W | Rated torque: 0.35 N.m | Encoder: None | Tachogenerator: None | Holding brake: 90 VDC
KA511BS0Rated output: 110 W | Rated torque: 0.35 N.m | Encoder: 2000 P/R line driver | Tachogenerator: None | Holding brake: 90 VDC
KA511JXXRated output: 110 W | Rated torque: 0.35 N.m | Encoder: None | Tachogenerator: Yes | Holding brake: 90 VDC
KA511TS0Rated output: 110 W | Rated torque: 0.35 N.m | Encoder: 2000 P/R line driver | Tachogenerator: Yes | Holding brake: None
KA511JS0Rated output: 110 W | Rated torque: 0.35 N.m | Encoder: 2000 P/R line driver | Tachogenerator: Yes | Holding brake: 90 VDC
