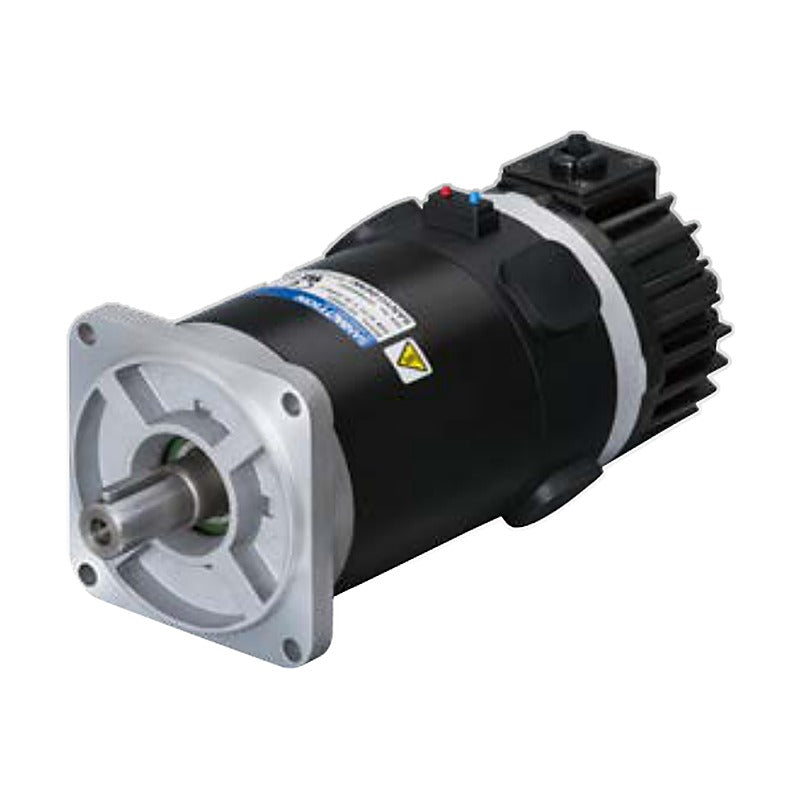

Sanyo Denki SANMOTION K DC Servo Motor 76 mm (75 VDC, 200-300 W)

Sanyo Denki SANMOTION K DC Servo Motor 76 mm (75 VDC, 200-300 W)

SANMOTION K 76 mm square DC servo motors for 75 VDC class input, offering low cogging torque, low loss and low noise for precision instruments and medical equipment.

Key features

  • 76 mm square flange DC servo motor, 75 VDC class input, rated output 200-300 W
  • Cogging torque reduced by up to half versus conventional SANMOTION T DC servo motors
  • Power loss reduced by up to approx. 30% and noise by up to 8 dB versus conventional models
  • IP43 protection rating on all motors
  • Optional incremental encoder (2000 P/R line driver standard) and DC tachogenerator, 90 VDC holding brake

Specifications

Series SANMOTION K DC servo motor
Input voltage class 75 VDC
Flange size 76 mm sq.
Rated armature voltage 75/80 V
Maximum speed 5000/4000 min-1
Protection rating IP43
Encoder output Line driver 2000 P/R std (200/500/1000 opt.)
Model list Standard Model Number List (catalogue)
Source Sanyo Denki SANMOTION K DC Servo Systems catalogue Ver.1.2, p. 7, 9, 13, 16-23
KA720XXX Rated output: 200 W | Rated torque: 0.64 N.m | Rated speed: 3000 min-1 | Encoder: None | Tachogenerator: None | Holding brake: None
KA720XS0 Rated output: 200 W | Rated torque: 0.64 N.m | Rated speed: 3000 min-1 | Encoder: 2000 P/R line driver | Tachogenerator: None | Holding brake: None
KA720TXX Rated output: 200 W | Rated torque: 0.64 N.m | Rated speed: 3000 min-1 | Encoder: None | Tachogenerator: Yes | Holding brake: None
KA720BXX Rated output: 200 W | Rated torque: 0.64 N.m | Rated speed: 3000 min-1 | Encoder: None | Tachogenerator: None | Holding brake: 90 VDC
KA720BS0 Rated output: 200 W | Rated torque: 0.64 N.m | Rated speed: 3000 min-1 | Encoder: 2000 P/R line driver | Tachogenerator: None | Holding brake: 90 VDC
KA720JXX Rated output: 200 W | Rated torque: 0.64 N.m | Rated speed: 3000 min-1 | Encoder: None | Tachogenerator: Yes | Holding brake: 90 VDC
KA720TS0 Rated output: 200 W | Rated torque: 0.64 N.m | Rated speed: 3000 min-1 | Encoder: 2000 P/R line driver | Tachogenerator: Yes | Holding brake: None
KA720JS0 Rated output: 200 W | Rated torque: 0.64 N.m | Rated speed: 3000 min-1 | Encoder: 2000 P/R line driver | Tachogenerator: Yes | Holding brake: 90 VDC
KA730XXX Rated output: 300 W | Rated torque: 1.15 N.m | Rated speed: 2500 min-1 | Encoder: None | Tachogenerator: None | Holding brake: None
KA730XS0 Rated output: 300 W | Rated torque: 1.15 N.m | Rated speed: 2500 min-1 | Encoder: 2000 P/R line driver | Tachogenerator: None | Holding brake: None
KA730TXX Rated output: 300 W | Rated torque: 1.15 N.m | Rated speed: 2500 min-1 | Encoder: None | Tachogenerator: Yes | Holding brake: None
KA730BXX Rated output: 300 W | Rated torque: 1.15 N.m | Rated speed: 2500 min-1 | Encoder: None | Tachogenerator: None | Holding brake: 90 VDC
KA730BS0 Rated output: 300 W | Rated torque: 1.15 N.m | Rated speed: 2500 min-1 | Encoder: 2000 P/R line driver | Tachogenerator: None | Holding brake: 90 VDC
KA730JXX Rated output: 300 W | Rated torque: 1.15 N.m | Rated speed: 2500 min-1 | Encoder: None | Tachogenerator: Yes | Holding brake: 90 VDC
KA730TS0 Rated output: 300 W | Rated torque: 1.15 N.m | Rated speed: 2500 min-1 | Encoder: 2000 P/R line driver | Tachogenerator: Yes | Holding brake: None
KA730JS0 Rated output: 300 W | Rated torque: 1.15 N.m | Rated speed: 2500 min-1 | Encoder: 2000 P/R line driver | Tachogenerator: Yes | Holding brake: 90 VDC
