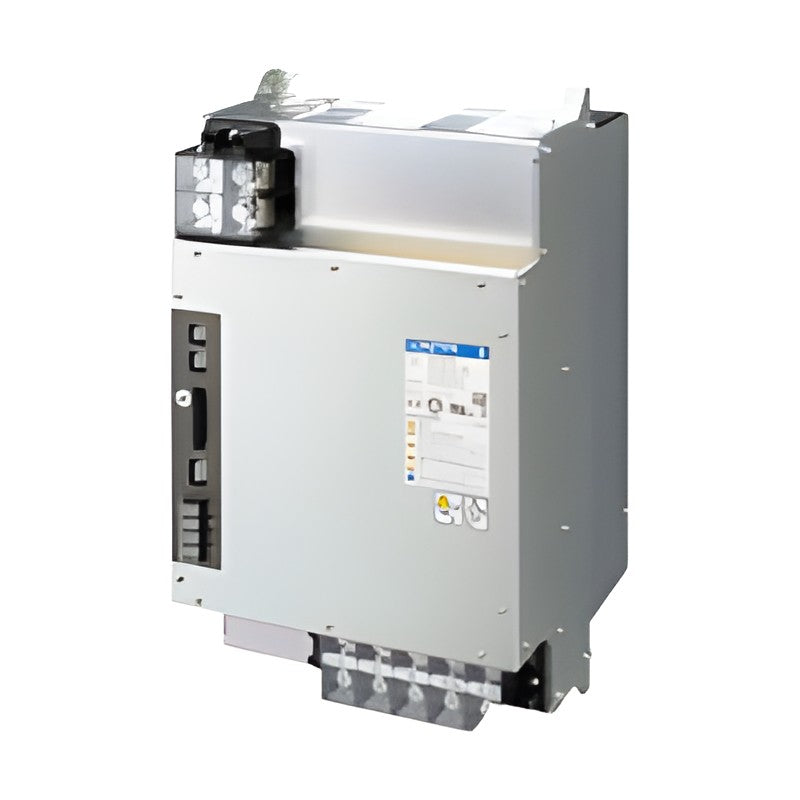

Sanyo Denki SANMOTION R 200 VAC Multi-Axis Amplifier Unit (50-900 A)

Sanyo Denki SANMOTION R 200 VAC Multi-Axis Amplifier Unit (50-900 A)

DC-bus-fed amplifier units for SANMOTION R 200 VAC multi-axis servo systems, driving motors up to 37 kW.

Key features

  • Amplifier capacity 50, 100, 150, 300, 600 and 900 A
  • Compatible motor output up to 2.5 kW through 37 kW
  • 240 to 358 VDC control and main circuit input from the power supply unit
  • Open frame (50-300 A) or enclosure (600-900 A)
  • For injection molding machines, conveying robots, bending machines and presses

Specifications

Brand Sanyo Denki
Max. motor output 37 kW
Series SANMOTION R multi-axis
Input 240 to 358 VDC
Height 460 mm
Source Sanyo Denki SANMOTION R 200 VAC multi-axis leaflet S1012B006 '23.11, p. 1, 4
RM3DAA050 Capacity: 50 A | Motor: Up to 2.5 kW | Frame: Open frame | Size: 124 x 460 x 173 mm
RM3DAA100 Capacity: 100 A | Motor: Up to 5.0 kW | Frame: Open frame | Size: 124 x 460 x 182 mm
RM3DAA150 Capacity: 150 A | Motor: Up to 7.0 kW | Frame: Open frame | Size: 124 x 460 x 182 mm
RM3DAA300 Capacity: 300 A | Motor: Up to 15 kW | Frame: Open frame | Size: 164 x 460 x 192 mm
RM3DAB600 Capacity: 600 A | Motor: Up to 30 kW | Frame: Enclosure | Size: 260 x 460 x 294 mm
RM3DAB900 Capacity: 900 A | Motor: Up to 37 kW | Frame: Enclosure | Size: 450 x 460 x 305 mm
Servo AmplifiersSanyo Denki
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki SANMOTION R 200 VAC Multi-Axis Amplifier Unit (50-900 A)

Brand Sanyo Denki·Servo Amplifiers

Available part numbers (6)

RM3DAA050, RM3DAA100, RM3DAA150, RM3DAA300, RM3DAB600, RM3DAB900

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
RM3DAA050Capacity: 50 A | Motor: Up to 2.5 kW | Frame: Open frame | Size: 124 x 460 x 173 mm
RM3DAA100Capacity: 100 A | Motor: Up to 5.0 kW | Frame: Open frame | Size: 124 x 460 x 182 mm
RM3DAA150Capacity: 150 A | Motor: Up to 7.0 kW | Frame: Open frame | Size: 124 x 460 x 182 mm
RM3DAA300Capacity: 300 A | Motor: Up to 15 kW | Frame: Open frame | Size: 164 x 460 x 192 mm
RM3DAB600Capacity: 600 A | Motor: Up to 30 kW | Frame: Enclosure | Size: 260 x 460 x 294 mm
RM3DAB900Capacity: 900 A | Motor: Up to 37 kW | Frame: Enclosure | Size: 450 x 460 x 305 mm
