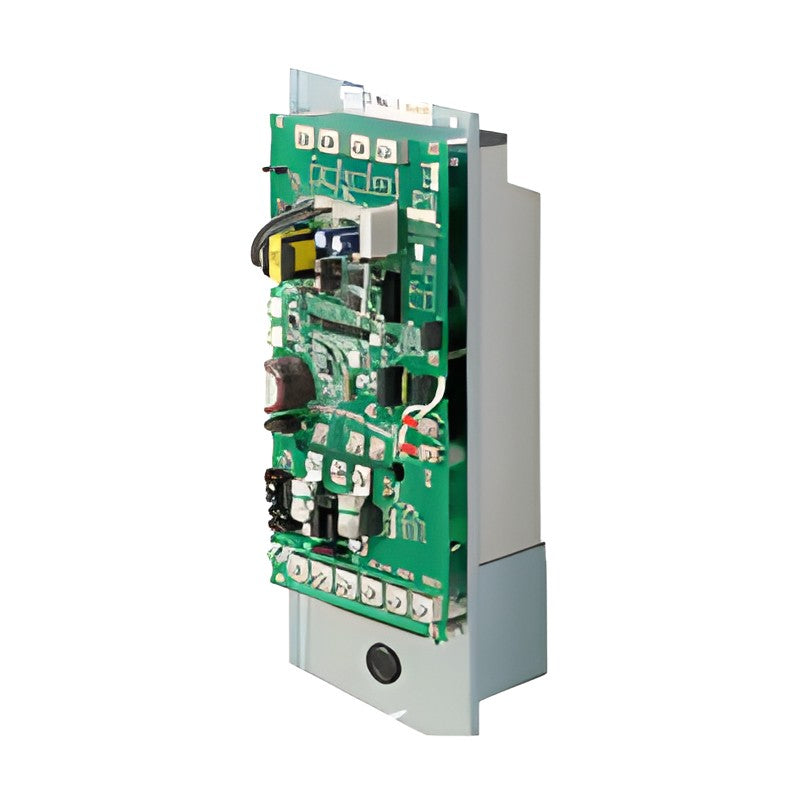

Sanyo Denki SANMOTION R 200 VAC Multi-Axis Power Supply (7.8-37 kW)

Sanyo Denki SANMOTION R 200 VAC Multi-Axis Power Supply (7.8-37 kW)

Regenerative-resistor-type power supply units feeding the DC bus of SANMOTION R 200 VAC multi-axis servo amplifier systems.

Key features

  • Rated output power 7.8, 12, 16, 30 and 37 kW
  • 3-phase 200 to 230 VAC main circuit input
  • Compatible with analog and EtherCAT control units
  • Open frame (7.8-16 kW) or enclosure (30-37 kW) construction
  • Shared supply sized for non-simultaneous axes reduces cabinet size

Specifications

Series SANMOTION R multi-axis
Type Regenerative resistor model
Main circuit 3-phase 200-230 VAC, 50/60 Hz
Control circuit 1-phase 200-230 VAC
Compatible control unit Analog, EtherCAT
Source Sanyo Denki SANMOTION R 200 VAC multi-axis leaflet S1012B006 '23.11, p. 1, 3
RM3PAA7R8 Output: 7.8 kW | Input: 13 kVA | Amp units: 50 to 150 A | Frame: Open frame
RM3PAA120 Output: 12 kW | Input: 20 kVA | Amp units: 50 to 300 A | Frame: Open frame
RM3PAA160 Output: 16 kW | Input: 27 kVA | Amp units: 50 to 300 A | Frame: Open frame
RM3PAA270 Output: 30 kW | Input: 46 kVA | Amp units: 50 to 600 A | Frame: Enclosure
RM3PAA370 Output: 37 kW | Input: 64 kVA | Amp units: 50 to 900 A | Frame: Enclosure
Servo AmplifiersSanyo Denki
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki SANMOTION R 200 VAC Multi-Axis Power Supply (7.8-37 kW)

Brand Sanyo Denki·Servo Amplifiers

Available part numbers (5)

RM3PAA7R8, RM3PAA120, RM3PAA160, RM3PAA270, RM3PAA370

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
RM3PAA7R8Output: 7.8 kW | Input: 13 kVA | Amp units: 50 to 150 A | Frame: Open frame
RM3PAA120Output: 12 kW | Input: 20 kVA | Amp units: 50 to 300 A | Frame: Open frame
RM3PAA160Output: 16 kW | Input: 27 kVA | Amp units: 50 to 300 A | Frame: Open frame
RM3PAA270Output: 30 kW | Input: 46 kVA | Amp units: 50 to 600 A | Frame: Enclosure
RM3PAA370Output: 37 kW | Input: 64 kVA | Amp units: 50 to 900 A | Frame: Enclosure
