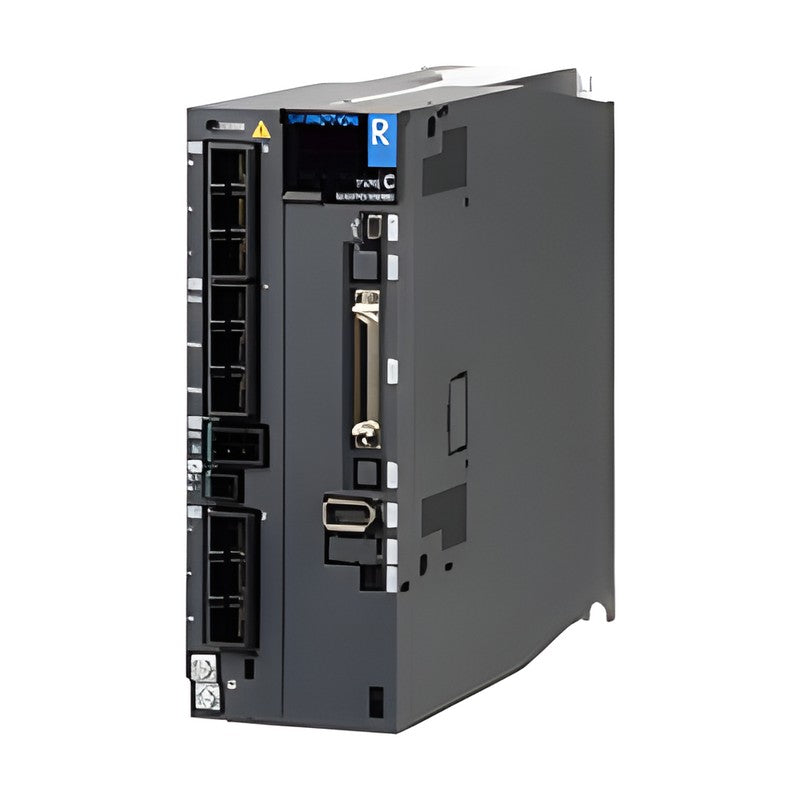

Sanyo Denki SANMOTION R 3E Positioning Servo Amp 400 V (Parallel)

Sanyo Denki SANMOTION R 3E Positioning Servo Amp 400 V (Parallel)

SANMOTION R 3E Model 400 VAC servo amplifier with built-in positioning function and parallel I/O interface, 25 to 800 A.

Key features

  • Built-in positioning removes the need for a separate positioning unit
  • Up to 254 positioning points (P000 to P253), command unit mm/pulse/deg
  • Frequency characteristics 1000 Hz, speed control range 1:5000
  • STO with delay circuit as standard; Functional Safety versions available
  • Wired to a host via parallel I/O

Specifications

Main circuit power 3-phase 380 to 480 VAC, 50/60 Hz
Control circuit power 24 VDC (+/-10%)
Ambient temperature 0 to +55 C
Speed control range 1:5000
Control function Position control (built-in positioning)
Interface Parallel I/O
Motor encoder (EN1) Absolute encoder
Output Sink (NPN) / Source (PNP)
Source Sanyo Denki SANMOTION R 3E Model 400 VAC catalogue Ver.4.1, p. 15-74
RS3C02A0CA4 Capacity: 25 A | Safety: STO (with delay circuit) | Regenerative resistor: Built-in | DB resistor: Built-in
RS3C05A0CA4 Capacity: 50 A | Safety: STO (with delay circuit) | Regenerative resistor: Built-in | DB resistor: Built-in
RS3C10A0CA4 Capacity: 100 A | Safety: STO (with delay circuit) | Regenerative resistor: Built-in | DB resistor: Built-in
RS3C15A0CL4 Capacity: 150 A | Safety: STO (with delay circuit) | Regenerative resistor: External (option) | DB resistor: Built-in
RS3C30A0CM4 Capacity: 300 A | Safety: STO (with delay circuit) | Regenerative resistor: External (option) | DB resistor: None
RS3D80A0CM4 Capacity: 800 A (with RS3PAC550 PSU) | Safety: STO (with delay circuit) | Regenerative resistor: External (option) | DB resistor: None
RS3C02A0CAE Capacity: 25 A | Safety: STO + Functional Safety | Regenerative resistor: Built-in | DB resistor: Built-in
RS3C05A0CAE Capacity: 50 A | Safety: STO + Functional Safety | Regenerative resistor: Built-in | DB resistor: Built-in
RS3C10A0CAE Capacity: 100 A | Safety: STO + Functional Safety | Regenerative resistor: Built-in | DB resistor: Built-in
RS3C15A0CLE Capacity: 150 A | Safety: STO + Functional Safety | Regenerative resistor: External (option) | DB resistor: Built-in
RS3C30A0CME Capacity: 300 A | Safety: STO + Functional Safety | Regenerative resistor: External (option) | DB resistor: None
RS3D80A0CME Capacity: 800 A (with RS3PAC550 PSU) | Safety: STO + Functional Safety | Regenerative resistor: External (option) | DB resistor: None
Servo AmplifiersSanyo Denki
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki SANMOTION R 3E Positioning Servo Amp 400 V (Parallel)

Brand Sanyo Denki·Servo Amplifiers

Available part numbers (12)

RS3C02A0CA4, RS3C05A0CA4, RS3C10A0CA4, RS3C15A0CL4, RS3C30A0CM4, RS3D80A0CM4, RS3C02A0CAE, RS3C05A0CAE, RS3C10A0CAE, RS3C15A0CLE + 2 more — see full table ↓

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
RS3C02A0CA4Capacity: 25 A | Safety: STO (with delay circuit) | Regenerative resistor: Built-in | DB resistor: Built-in
RS3C05A0CA4Capacity: 50 A | Safety: STO (with delay circuit) | Regenerative resistor: Built-in | DB resistor: Built-in
RS3C10A0CA4Capacity: 100 A | Safety: STO (with delay circuit) | Regenerative resistor: Built-in | DB resistor: Built-in
RS3C15A0CL4Capacity: 150 A | Safety: STO (with delay circuit) | Regenerative resistor: External (option) | DB resistor: Built-in
RS3C30A0CM4Capacity: 300 A | Safety: STO (with delay circuit) | Regenerative resistor: External (option) | DB resistor: None
RS3D80A0CM4Capacity: 800 A (with RS3PAC550 PSU) | Safety: STO (with delay circuit) | Regenerative resistor: External (option) | DB resistor: None
RS3C02A0CAECapacity: 25 A | Safety: STO + Functional Safety | Regenerative resistor: Built-in | DB resistor: Built-in
RS3C05A0CAECapacity: 50 A | Safety: STO + Functional Safety | Regenerative resistor: Built-in | DB resistor: Built-in
RS3C10A0CAECapacity: 100 A | Safety: STO + Functional Safety | Regenerative resistor: Built-in | DB resistor: Built-in
RS3C15A0CLECapacity: 150 A | Safety: STO + Functional Safety | Regenerative resistor: External (option) | DB resistor: Built-in
RS3C30A0CMECapacity: 300 A | Safety: STO + Functional Safety | Regenerative resistor: External (option) | DB resistor: None
RS3D80A0CMECapacity: 800 A (with RS3PAC550 PSU) | Safety: STO + Functional Safety | Regenerative resistor: External (option) | DB resistor: None
