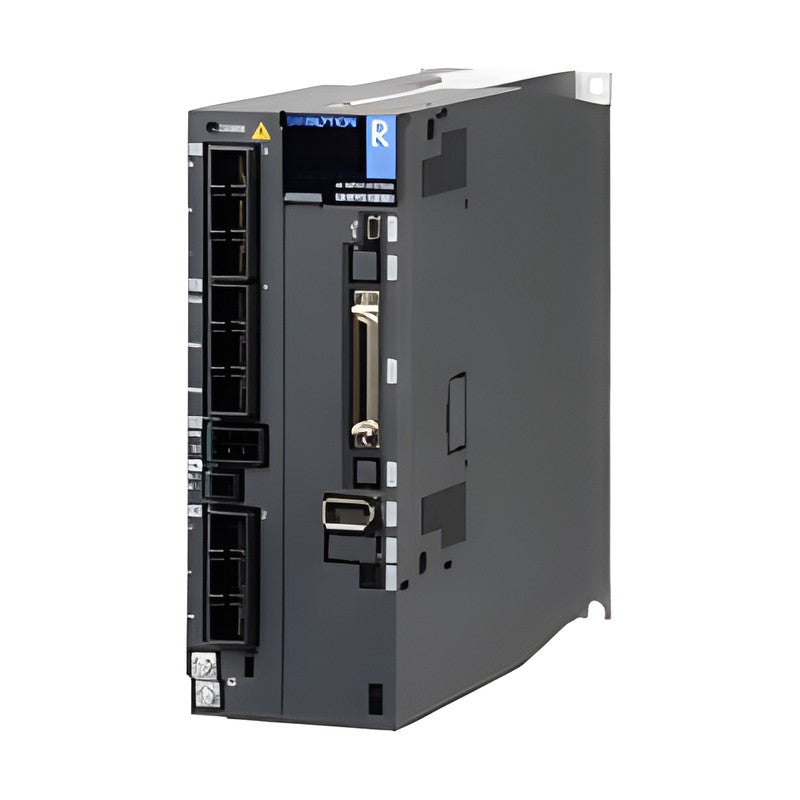

Sanyo Denki SANMOTION R 3E Servo Amplifier 400 V (Analog/Pulse)

Sanyo Denki SANMOTION R 3E Servo Amplifier 400 V (Analog/Pulse)

High-responsiveness 400 VAC SANMOTION R 3E Model servo amplifier with analog/pulse command input, 25 to 800 A.

Key features

  • Position, speed and torque control switched by parameter
  • Speed frequency response 2200 Hz (high-speed sampling mode)
  • Sink (NPN) or source (PNP) general-purpose outputs
  • Standard, Safe Torque Off (STO) and Functional Safety (SS1, SS2, SOS, SLS, SBC, SSM) versions
  • Holding brake control built in; drives R2/R1 400 V motors 550 W to 55 kW
  • 800 A unit is combined with power supply unit RS3PAC550

Specifications

Main circuit power 3-phase 380 to 480 VAC, 50/60 Hz
Control circuit power 24 VDC (+/-10%)
Ambient temperature 0 to +55 C
Speed control range 1:5000
Command interface Analog / pulse train
Motor encoder (EN1) Absolute encoder
Source Sanyo Denki SANMOTION R 3E Model 400 VAC catalogue Ver.4.1, p. 14-36
RS3C02A0AA0 Capacity: 25 A | Output: Sink (NPN) | Safety: None | Regenerative resistor: Built-in | DB resistor: Built-in
RS3C05A0AA0 Capacity: 50 A | Output: Sink (NPN) | Safety: None | Regenerative resistor: Built-in | DB resistor: Built-in
RS3C10A0AA0 Capacity: 100 A | Output: Sink (NPN) | Safety: None | Regenerative resistor: Built-in | DB resistor: Built-in
RS3C15A0AL0 Capacity: 150 A | Output: Sink (NPN) | Safety: None | Regenerative resistor: External (option) | DB resistor: Built-in
RS3C30A0AM0 Capacity: 300 A | Output: Sink (NPN) | Safety: None | Regenerative resistor: External (option) | DB resistor: None
RS3D80A0AM0 Capacity: 800 A (with RS3PAC550 PSU) | Output: Sink (NPN) | Safety: None | Regenerative resistor: External (option) | DB resistor: None
RS3C02A0AA2 Capacity: 25 A | Output: Sink (NPN) | Safety: STO (without delay circuit) | Regenerative resistor: Built-in | DB resistor: Built-in
RS3C05A0AA2 Capacity: 50 A | Output: Sink (NPN) | Safety: STO (without delay circuit) | Regenerative resistor: Built-in | DB resistor: Built-in
RS3C10A0AA2 Capacity: 100 A | Output: Sink (NPN) | Safety: STO (without delay circuit) | Regenerative resistor: Built-in | DB resistor: Built-in
RS3C15A0AL2 Capacity: 150 A | Output: Sink (NPN) | Safety: STO (without delay circuit) | Regenerative resistor: External (option) | DB resistor: Built-in
RS3C30A0AM2 Capacity: 300 A | Output: Sink (NPN) | Safety: STO (without delay circuit) | Regenerative resistor: External (option) | DB resistor: None
RS3D80A0AM2 Capacity: 800 A (with RS3PAC550 PSU) | Output: Sink (NPN) | Safety: STO (without delay circuit) | Regenerative resistor: External (option) | DB resistor: None
RS3C02A0AAC Capacity: 25 A | Output: Sink (NPN) | Safety: STO + Functional Safety | Regenerative resistor: Built-in | DB resistor: Built-in
RS3C05A0AAC Capacity: 50 A | Output: Sink (NPN) | Safety: STO + Functional Safety | Regenerative resistor: Built-in | DB resistor: Built-in
RS3C10A0AAC Capacity: 100 A | Output: Sink (NPN) | Safety: STO + Functional Safety | Regenerative resistor: Built-in | DB resistor: Built-in
RS3C15A0ALC Capacity: 150 A | Output: Sink (NPN) | Safety: STO + Functional Safety | Regenerative resistor: External (option) | DB resistor: Built-in
RS3C30A0AMC Capacity: 300 A | Output: Sink (NPN) | Safety: STO + Functional Safety | Regenerative resistor: External (option) | DB resistor: None
RS3D80A0AMC Capacity: 800 A (with RS3PAC550 PSU) | Output: Sink (NPN) | Safety: STO + Functional Safety | Regenerative resistor: External (option) | DB resistor: None
RS3C02A0BA0 Capacity: 25 A | Output: Source (PNP) | Safety: None | Regenerative resistor: Built-in | DB resistor: Built-in
RS3C05A0BA0 Capacity: 50 A | Output: Source (PNP) | Safety: None | Regenerative resistor: Built-in | DB resistor: Built-in
RS3C10A0BA0 Capacity: 100 A | Output: Source (PNP) | Safety: None | Regenerative resistor: Built-in | DB resistor: Built-in
RS3C15A0BL0 Capacity: 150 A | Output: Source (PNP) | Safety: None | Regenerative resistor: External (option) | DB resistor: Built-in
RS3C30A0BM0 Capacity: 300 A | Output: Source (PNP) | Safety: None | Regenerative resistor: External (option) | DB resistor: None
RS3D80A0BM0 Capacity: 800 A (with RS3PAC550 PSU) | Output: Source (PNP) | Safety: None | Regenerative resistor: External (option) | DB resistor: None
RS3C02A0BA2 Capacity: 25 A | Output: Source (PNP) | Safety: STO (without delay circuit) | Regenerative resistor: Built-in | DB resistor: Built-in
RS3C05A0BA2 Capacity: 50 A | Output: Source (PNP) | Safety: STO (without delay circuit) | Regenerative resistor: Built-in | DB resistor: Built-in
RS3C10A0BA2 Capacity: 100 A | Output: Source (PNP) | Safety: STO (without delay circuit) | Regenerative resistor: Built-in | DB resistor: Built-in
RS3C15A0BL2 Capacity: 150 A | Output: Source (PNP) | Safety: STO (without delay circuit) | Regenerative resistor: External (option) | DB resistor: Built-in
RS3C30A0BM2 Capacity: 300 A | Output: Source (PNP) | Safety: STO (without delay circuit) | Regenerative resistor: External (option) | DB resistor: None
RS3D80A0BM2 Capacity: 800 A (with RS3PAC550 PSU) | Output: Source (PNP) | Safety: STO (without delay circuit) | Regenerative resistor: External (option) | DB resistor: None
RS3C02A0BAC Capacity: 25 A | Output: Source (PNP) | Safety: STO + Functional Safety | Regenerative resistor: Built-in | DB resistor: Built-in
RS3C05A0BAC Capacity: 50 A | Output: Source (PNP) | Safety: STO + Functional Safety | Regenerative resistor: Built-in | DB resistor: Built-in
RS3C10A0BAC Capacity: 100 A | Output: Source (PNP) | Safety: STO + Functional Safety | Regenerative resistor: Built-in | DB resistor: Built-in
RS3C15A0BLC Capacity: 150 A | Output: Source (PNP) | Safety: STO + Functional Safety | Regenerative resistor: External (option) | DB resistor: Built-in
RS3C30A0BMC Capacity: 300 A | Output: Source (PNP) | Safety: STO + Functional Safety | Regenerative resistor: External (option) | DB resistor: None
RS3D80A0BMC Capacity: 800 A (with RS3PAC550 PSU) | Output: Source (PNP) | Safety: STO + Functional Safety | Regenerative resistor: External (option) | DB resistor: None
Servo AmplifiersSanyo Denki
36 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki SANMOTION R 3E Servo Amplifier 400 V (Analog/Pulse)

Brand Sanyo Denki·Servo Amplifiers

Available part numbers (36)

RS3C02A0AA0, RS3C05A0AA0, RS3C10A0AA0, RS3C15A0AL0, RS3C30A0AM0, RS3D80A0AM0, RS3C02A0AA2, RS3C05A0AA2, RS3C10A0AA2, RS3C15A0AL2 + 26 more — see full table ↓

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
