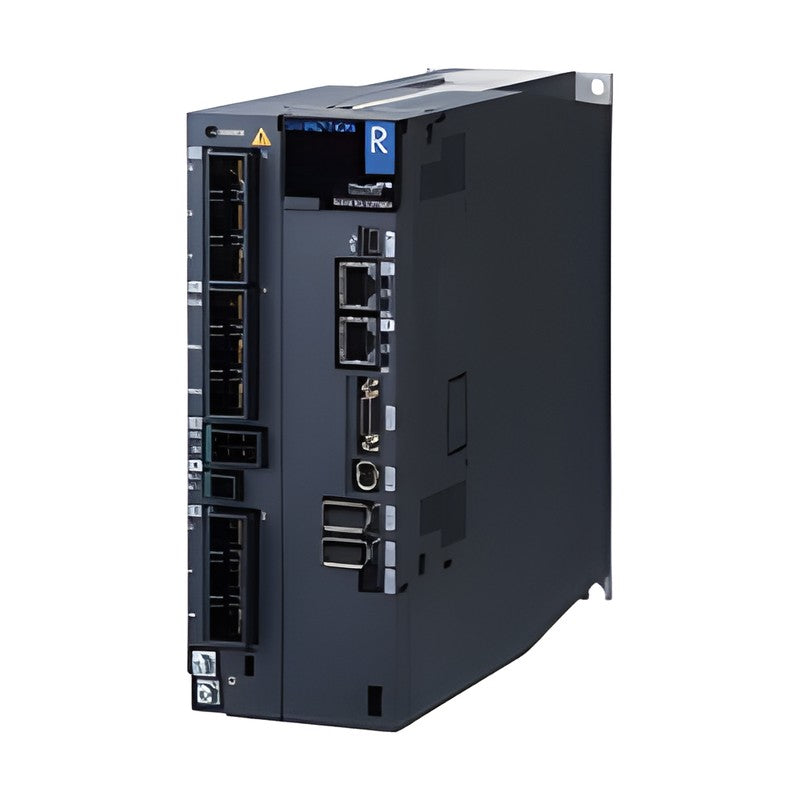

Sanyo Denki SANMOTION R 3E Servo Amplifier 400 V (EtherCAT)

Sanyo Denki SANMOTION R 3E Servo Amplifier 400 V (EtherCAT)

SANMOTION R 3E Model 400 VAC servo amplifier with EtherCAT interface (CoE, CiA 402), 25 to 800 A.

Key features

  • EtherCAT with 62.5 us minimum communication cycle
  • Position, speed and torque control; CiA 402 drive profile (CoE, FoE)
  • STO with delay circuit as standard; Functional Safety versions available
  • EN2 input for fully closed-loop control with an external encoder
  • Usable with SANMOTION C EtherCAT controllers

Specifications

Main circuit power 3-phase 380 to 480 VAC, 50/60 Hz
Control circuit power 24 VDC (+/-10%)
Ambient temperature 0 to +55 C
Speed control range 1:5000
Command interface EtherCAT (100BASE-TX, RJ45)
Encoder connection EN1 absolute + EN2 external encoder
Output Photo relay
Source Sanyo Denki SANMOTION R 3E Model 400 VAC catalogue Ver.4.1, p. 14-50
RS3C02A2HA4 Capacity: 25 A | Safety: STO (with delay circuit) | Regenerative resistor: Built-in | DB resistor: Built-in
RS3C05A2HA4 Capacity: 50 A | Safety: STO (with delay circuit) | Regenerative resistor: Built-in | DB resistor: Built-in
RS3C10A2HA4 Capacity: 100 A | Safety: STO (with delay circuit) | Regenerative resistor: Built-in | DB resistor: Built-in
RS3C15A2HL4 Capacity: 150 A | Safety: STO (with delay circuit) | Regenerative resistor: External (option) | DB resistor: Built-in
RS3C30A2HM4 Capacity: 300 A | Safety: STO (with delay circuit) | Regenerative resistor: External (option) | DB resistor: None
RS3D80A2HM4 Capacity: 800 A (with RS3PAC550 PSU) | Safety: STO (with delay circuit) | Regenerative resistor: External (option) | DB resistor: None
RS3C02A2HAE Capacity: 25 A | Safety: STO + Functional Safety | Regenerative resistor: Built-in | DB resistor: Built-in
RS3C05A2HAE Capacity: 50 A | Safety: STO + Functional Safety | Regenerative resistor: Built-in | DB resistor: Built-in
RS3C10A2HAE Capacity: 100 A | Safety: STO + Functional Safety | Regenerative resistor: Built-in | DB resistor: Built-in
RS3C15A2HLE Capacity: 150 A | Safety: STO + Functional Safety | Regenerative resistor: External (option) | DB resistor: Built-in
RS3C30A2HME Capacity: 300 A | Safety: STO + Functional Safety | Regenerative resistor: External (option) | DB resistor: None
RS3D80A2HME Capacity: 800 A (with RS3PAC550 PSU) | Safety: STO + Functional Safety | Regenerative resistor: External (option) | DB resistor: None
Servo AmplifiersSanyo Denki
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki SANMOTION R 3E Servo Amplifier 400 V (EtherCAT)

Brand Sanyo Denki·Servo Amplifiers

Available part numbers (12)

RS3C02A2HA4, RS3C05A2HA4, RS3C10A2HA4, RS3C15A2HL4, RS3C30A2HM4, RS3D80A2HM4, RS3C02A2HAE, RS3C05A2HAE, RS3C10A2HAE, RS3C15A2HLE + 2 more — see full table ↓

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
RS3C02A2HA4Capacity: 25 A | Safety: STO (with delay circuit) | Regenerative resistor: Built-in | DB resistor: Built-in
RS3C05A2HA4Capacity: 50 A | Safety: STO (with delay circuit) | Regenerative resistor: Built-in | DB resistor: Built-in
RS3C10A2HA4Capacity: 100 A | Safety: STO (with delay circuit) | Regenerative resistor: Built-in | DB resistor: Built-in
RS3C15A2HL4Capacity: 150 A | Safety: STO (with delay circuit) | Regenerative resistor: External (option) | DB resistor: Built-in
RS3C30A2HM4Capacity: 300 A | Safety: STO (with delay circuit) | Regenerative resistor: External (option) | DB resistor: None
RS3D80A2HM4Capacity: 800 A (with RS3PAC550 PSU) | Safety: STO (with delay circuit) | Regenerative resistor: External (option) | DB resistor: None
RS3C02A2HAECapacity: 25 A | Safety: STO + Functional Safety | Regenerative resistor: Built-in | DB resistor: Built-in
RS3C05A2HAECapacity: 50 A | Safety: STO + Functional Safety | Regenerative resistor: Built-in | DB resistor: Built-in
RS3C10A2HAECapacity: 100 A | Safety: STO + Functional Safety | Regenerative resistor: Built-in | DB resistor: Built-in
RS3C15A2HLECapacity: 150 A | Safety: STO + Functional Safety | Regenerative resistor: External (option) | DB resistor: Built-in
RS3C30A2HMECapacity: 300 A | Safety: STO + Functional Safety | Regenerative resistor: External (option) | DB resistor: None
RS3D80A2HMECapacity: 800 A (with RS3PAC550 PSU) | Safety: STO + Functional Safety | Regenerative resistor: External (option) | DB resistor: None
