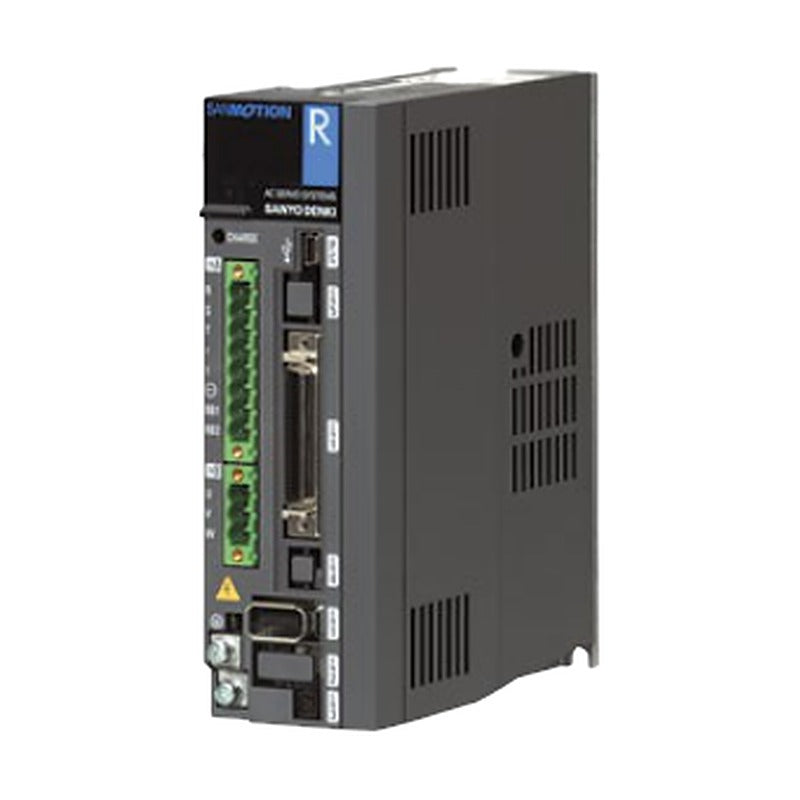

Sanyo Denki SANMOTION R 3E Servo Amplifier Analog/Pulse (10-600 A)

Sanyo Denki SANMOTION R 3E Servo Amplifier Analog/Pulse (10-600 A)

SANMOTION R 3E Model analog/pulse input servo amplifiers for R1/R2 rotary servo motors, 10 to 600 A, 100 and 200 VAC.

Key features

  • Position, speed and torque control switchable by parameter
  • Speed frequency response 2.2 kHz, about twice the previous model, with 1/3 the settling time
  • Safe Torque Off (STO) and Functional Safety (SS1, SS2, SOS, SLS, SBC, SSM) versions
  • Up to 10% lower power losses; fan speed controlled by internal temperature (10 A fanless)
  • Sinking (NPN) or sourcing (PNP) general-purpose outputs; 5-digit LED display and digital operator

Specifications

Series SANMOTION R 3E Model
Interface Analog/pulse command input
Control mode Position, speed, torque
Control system IGBT PWM, sinusoidal drive
Main circuit (200 V) 3-ph 200-240 VAC (1-ph to 50 A)
Main circuit (100 V) 1-ph 100-120 VAC
Encoder Absolute (standard models)
Ambient temperature 0 to +55 °C
Approvals UL, c-UL, EN, KC
Source Sanyo Denki SANMOTION R AC Servo Systems 100/200 VAC catalogue Ver.5.3, pp. 16-45
RS3E01A0AA0 Capacity: 10 A | Main input: 100 VAC | Interface: Analog/pulse, NPN output | Resistor: Built-in regen + DB resistor | Safety: None
RS3E02A0AA0 Capacity: 20 A | Main input: 100 VAC | Interface: Analog/pulse, NPN output | Resistor: Built-in regen + DB resistor | Safety: None
RS3E03A0AA0 Capacity: 30 A | Main input: 100 VAC | Interface: Analog/pulse, NPN output | Resistor: Built-in regen + DB resistor | Safety: None
RS3E01A0AL0 Capacity: 10 A | Main input: 100 VAC | Interface: Analog/pulse, NPN output | Resistor: No built-in regen, with DB | Safety: None
RS3E02A0AL0 Capacity: 20 A | Main input: 100 VAC | Interface: Analog/pulse, NPN output | Resistor: No built-in regen, with DB | Safety: None
RS3E03A0AL0 Capacity: 30 A | Main input: 100 VAC | Interface: Analog/pulse, NPN output | Resistor: No built-in regen, with DB | Safety: None
RS3E01A0AA2 Capacity: 10 A | Main input: 100 VAC | Interface: Analog/pulse, NPN output | Resistor: Built-in regen + DB resistor | Safety: STO (without delay circuit)
RS3E02A0AA2 Capacity: 20 A | Main input: 100 VAC | Interface: Analog/pulse, NPN output | Resistor: Built-in regen + DB resistor | Safety: STO (without delay circuit)
RS3E03A0AA2 Capacity: 30 A | Main input: 100 VAC | Interface: Analog/pulse, NPN output | Resistor: Built-in regen + DB resistor | Safety: STO (without delay circuit)
RS3E01A0AL2 Capacity: 10 A | Main input: 100 VAC | Interface: Analog/pulse, NPN output | Resistor: No built-in regen, with DB | Safety: STO (without delay circuit)
RS3E02A0AL2 Capacity: 20 A | Main input: 100 VAC | Interface: Analog/pulse, NPN output | Resistor: No built-in regen, with DB | Safety: STO (without delay circuit)
RS3E03A0AL2 Capacity: 30 A | Main input: 100 VAC | Interface: Analog/pulse, NPN output | Resistor: No built-in regen, with DB | Safety: STO (without delay circuit)
RS3E01A0AAC Capacity: 10 A | Main input: 100 VAC | Interface: Analog/pulse, NPN output | Resistor: Built-in regen + DB resistor | Safety: STO (no delay) + Functional Safety
RS3E02A0AAC Capacity: 20 A | Main input: 100 VAC | Interface: Analog/pulse, NPN output | Resistor: Built-in regen + DB resistor | Safety: STO (no delay) + Functional Safety
RS3E03A0AAC Capacity: 30 A | Main input: 100 VAC | Interface: Analog/pulse, NPN output | Resistor: Built-in regen + DB resistor | Safety: STO (no delay) + Functional Safety
RS3E01A0ALC Capacity: 10 A | Main input: 100 VAC | Interface: Analog/pulse, NPN output | Resistor: No built-in regen, with DB | Safety: STO (no delay) + Functional Safety
RS3E02A0ALC Capacity: 20 A | Main input: 100 VAC | Interface: Analog/pulse, NPN output | Resistor: No built-in regen, with DB | Safety: STO (no delay) + Functional Safety
RS3E03A0ALC Capacity: 30 A | Main input: 100 VAC | Interface: Analog/pulse, NPN output | Resistor: No built-in regen, with DB | Safety: STO (no delay) + Functional Safety
RS3E01A0BA0 Capacity: 10 A | Main input: 100 VAC | Interface: Analog/pulse, PNP output | Resistor: Built-in regen + DB resistor | Safety: None
RS3E02A0BA0 Capacity: 20 A | Main input: 100 VAC | Interface: Analog/pulse, PNP output | Resistor: Built-in regen + DB resistor | Safety: None
RS3E03A0BA0 Capacity: 30 A | Main input: 100 VAC | Interface: Analog/pulse, PNP output | Resistor: Built-in regen + DB resistor | Safety: None
RS3E01A0BL0 Capacity: 10 A | Main input: 100 VAC | Interface: Analog/pulse, PNP output | Resistor: No built-in regen, with DB | Safety: None
RS3E02A0BL0 Capacity: 20 A | Main input: 100 VAC | Interface: Analog/pulse, PNP output | Resistor: No built-in regen, with DB | Safety: None
RS3E03A0BL0 Capacity: 30 A | Main input: 100 VAC | Interface: Analog/pulse, PNP output | Resistor: No built-in regen, with DB | Safety: None
RS3E01A0BA2 Capacity: 10 A | Main input: 100 VAC | Interface: Analog/pulse, PNP output | Resistor: Built-in regen + DB resistor | Safety: STO (without delay circuit)
RS3E02A0BA2 Capacity: 20 A | Main input: 100 VAC | Interface: Analog/pulse, PNP output | Resistor: Built-in regen + DB resistor | Safety: STO (without delay circuit)
RS3E03A0BA2 Capacity: 30 A | Main input: 100 VAC | Interface: Analog/pulse, PNP output | Resistor: Built-in regen + DB resistor | Safety: STO (without delay circuit)
RS3E01A0BL2 Capacity: 10 A | Main input: 100 VAC | Interface: Analog/pulse, PNP output | Resistor: No built-in regen, with DB | Safety: STO (without delay circuit)
RS3E02A0BL2 Capacity: 20 A | Main input: 100 VAC | Interface: Analog/pulse, PNP output | Resistor: No built-in regen, with DB | Safety: STO (without delay circuit)
RS3E03A0BL2 Capacity: 30 A | Main input: 100 VAC | Interface: Analog/pulse, PNP output | Resistor: No built-in regen, with DB | Safety: STO (without delay circuit)
RS3E01A0BAC Capacity: 10 A | Main input: 100 VAC | Interface: Analog/pulse, PNP output | Resistor: Built-in regen + DB resistor | Safety: STO (no delay) + Functional Safety
RS3E02A0BAC Capacity: 20 A | Main input: 100 VAC | Interface: Analog/pulse, PNP output | Resistor: Built-in regen + DB resistor | Safety: STO (no delay) + Functional Safety
RS3E03A0BAC Capacity: 30 A | Main input: 100 VAC | Interface: Analog/pulse, PNP output | Resistor: Built-in regen + DB resistor | Safety: STO (no delay) + Functional Safety
RS3E01A0BLC Capacity: 10 A | Main input: 100 VAC | Interface: Analog/pulse, PNP output | Resistor: No built-in regen, with DB | Safety: STO (no delay) + Functional Safety
RS3E02A0BLC Capacity: 20 A | Main input: 100 VAC | Interface: Analog/pulse, PNP output | Resistor: No built-in regen, with DB | Safety: STO (no delay) + Functional Safety
RS3E03A0BLC Capacity: 30 A | Main input: 100 VAC | Interface: Analog/pulse, PNP output | Resistor: No built-in regen, with DB | Safety: STO (no delay) + Functional Safety
RS3A01A0AA0 Capacity: 10 A | Main input: 200 VAC | Interface: Analog/pulse, NPN output | Resistor: Built-in regen + DB resistor | Safety: None
RS3A02A0AA0 Capacity: 20 A | Main input: 200 VAC | Interface: Analog/pulse, NPN output | Resistor: Built-in regen + DB resistor | Safety: None
RS3A03A0AA0 Capacity: 30 A | Main input: 200 VAC | Interface: Analog/pulse, NPN output | Resistor: Built-in regen + DB resistor | Safety: None
RS3A05A0AA0 Capacity: 50 A | Main input: 200 VAC | Interface: Analog/pulse, NPN output | Resistor: Built-in regen + DB resistor | Safety: None
RS3A07A0AA0 Capacity: 75 A | Main input: 200 VAC | Interface: Analog/pulse, NPN output | Resistor: Built-in regen + DB resistor | Safety: None
RS3A10A0AA0 Capacity: 100 A | Main input: 200 VAC | Interface: Analog/pulse, NPN output | Resistor: Built-in regen + DB resistor | Safety: None
RS3A15A0AA0 Capacity: 150 A | Main input: 200 VAC | Interface: Analog/pulse, NPN output | Resistor: Built-in regen + DB resistor | Safety: None
RS3A01A0AL0 Capacity: 10 A | Main input: 200 VAC | Interface: Analog/pulse, NPN output | Resistor: No built-in regen, with DB | Safety: None
RS3A02A0AL0 Capacity: 20 A | Main input: 200 VAC | Interface: Analog/pulse, NPN output | Resistor: No built-in regen, with DB | Safety: None
RS3A03A0AL0 Capacity: 30 A | Main input: 200 VAC | Interface: Analog/pulse, NPN output | Resistor: No built-in regen, with DB | Safety: None
RS3A05A0AL0 Capacity: 50 A | Main input: 200 VAC | Interface: Analog/pulse, NPN output | Resistor: No built-in regen, with DB | Safety: None
RS3A07A0AL0 Capacity: 75 A | Main input: 200 VAC | Interface: Analog/pulse, NPN output | Resistor: No built-in regen, with DB | Safety: None
RS3A10A0AL0 Capacity: 100 A | Main input: 200 VAC | Interface: Analog/pulse, NPN output | Resistor: No built-in regen, with DB | Safety: None
RS3A15A0AL0 Capacity: 150 A | Main input: 200 VAC | Interface: Analog/pulse, NPN output | Resistor: No built-in regen, with DB | Safety: None
RS3A30A0AL0 Capacity: 300 A | Main input: 200 VAC | Interface: Analog/pulse, NPN output | Resistor: No built-in regen, with DB | Safety: None
RS3W60A0AM0 Capacity: 600 A | Main input: 280 VDC (with RS3PAA27000) | Interface: Analog/pulse, NPN output | Resistor: No regen, no DB resistor | Safety: None
RS3A01A0AA2 Capacity: 10 A | Main input: 200 VAC | Interface: Analog/pulse, NPN output | Resistor: Built-in regen + DB resistor | Safety: STO (without delay circuit)
RS3A02A0AA2 Capacity: 20 A | Main input: 200 VAC | Interface: Analog/pulse, NPN output | Resistor: Built-in regen + DB resistor | Safety: STO (without delay circuit)
RS3A03A0AA2 Capacity: 30 A | Main input: 200 VAC | Interface: Analog/pulse, NPN output | Resistor: Built-in regen + DB resistor | Safety: STO (without delay circuit)
RS3A05A0AA2 Capacity: 50 A | Main input: 200 VAC | Interface: Analog/pulse, NPN output | Resistor: Built-in regen + DB resistor | Safety: STO (without delay circuit)
RS3A07A0AA2 Capacity: 75 A | Main input: 200 VAC | Interface: Analog/pulse, NPN output | Resistor: Built-in regen + DB resistor | Safety: STO (without delay circuit)
RS3A10A0AA2 Capacity: 100 A | Main input: 200 VAC | Interface: Analog/pulse, NPN output | Resistor: Built-in regen + DB resistor | Safety: STO (without delay circuit)
RS3A15A0AA2 Capacity: 150 A | Main input: 200 VAC | Interface: Analog/pulse, NPN output | Resistor: Built-in regen + DB resistor | Safety: STO (without delay circuit)
RS3A01A0AL2 Capacity: 10 A | Main input: 200 VAC | Interface: Analog/pulse, NPN output | Resistor: No built-in regen, with DB | Safety: STO (without delay circuit)
RS3A02A0AL2 Capacity: 20 A | Main input: 200 VAC | Interface: Analog/pulse, NPN output | Resistor: No built-in regen, with DB | Safety: STO (without delay circuit)
RS3A03A0AL2 Capacity: 30 A | Main input: 200 VAC | Interface: Analog/pulse, NPN output | Resistor: No built-in regen, with DB | Safety: STO (without delay circuit)
RS3A05A0AL2 Capacity: 50 A | Main input: 200 VAC | Interface: Analog/pulse, NPN output | Resistor: No built-in regen, with DB | Safety: STO (without delay circuit)
RS3A07A0AL2 Capacity: 75 A | Main input: 200 VAC | Interface: Analog/pulse, NPN output | Resistor: No built-in regen, with DB | Safety: STO (without delay circuit)
RS3A10A0AL2 Capacity: 100 A | Main input: 200 VAC | Interface: Analog/pulse, NPN output | Resistor: No built-in regen, with DB | Safety: STO (without delay circuit)
RS3A15A0AL2 Capacity: 150 A | Main input: 200 VAC | Interface: Analog/pulse, NPN output | Resistor: No built-in regen, with DB | Safety: STO (without delay circuit)
RS3A30A0AL2 Capacity: 300 A | Main input: 200 VAC | Interface: Analog/pulse, NPN output | Resistor: No built-in regen, with DB | Safety: STO (without delay circuit)
RS3W60A0AM2 Capacity: 600 A | Main input: 280 VDC (with RS3PAA27000) | Interface: Analog/pulse, NPN output | Resistor: No regen, no DB resistor | Safety: STO (without delay circuit)
RS3A01A0AAC Capacity: 10 A | Main input: 200 VAC | Interface: Analog/pulse, NPN output | Resistor: Built-in regen + DB resistor | Safety: STO (no delay) + Functional Safety
RS3A02A0AAC Capacity: 20 A | Main input: 200 VAC | Interface: Analog/pulse, NPN output | Resistor: Built-in regen + DB resistor | Safety: STO (no delay) + Functional Safety
RS3A03A0AAC Capacity: 30 A | Main input: 200 VAC | Interface: Analog/pulse, NPN output | Resistor: Built-in regen + DB resistor | Safety: STO (no delay) + Functional Safety
RS3A05A0AAC Capacity: 50 A | Main input: 200 VAC | Interface: Analog/pulse, NPN output | Resistor: Built-in regen + DB resistor | Safety: STO (no delay) + Functional Safety
RS3A07A0AAC Capacity: 75 A | Main input: 200 VAC | Interface: Analog/pulse, NPN output | Resistor: Built-in regen + DB resistor | Safety: STO (no delay) + Functional Safety
RS3A10A0AAC Capacity: 100 A | Main input: 200 VAC | Interface: Analog/pulse, NPN output | Resistor: Built-in regen + DB resistor | Safety: STO (no delay) + Functional Safety
RS3A15A0AAC Capacity: 150 A | Main input: 200 VAC | Interface: Analog/pulse, NPN output | Resistor: Built-in regen + DB resistor | Safety: STO (no delay) + Functional Safety
RS3A01A0ALC Capacity: 10 A | Main input: 200 VAC | Interface: Analog/pulse, NPN output | Resistor: No built-in regen, with DB | Safety: STO (no delay) + Functional Safety
RS3A02A0ALC Capacity: 20 A | Main input: 200 VAC | Interface: Analog/pulse, NPN output | Resistor: No built-in regen, with DB | Safety: STO (no delay) + Functional Safety
RS3A03A0ALC Capacity: 30 A | Main input: 200 VAC | Interface: Analog/pulse, NPN output | Resistor: No built-in regen, with DB | Safety: STO (no delay) + Functional Safety
RS3A05A0ALC Capacity: 50 A | Main input: 200 VAC | Interface: Analog/pulse, NPN output | Resistor: No built-in regen, with DB | Safety: STO (no delay) + Functional Safety
RS3A07A0ALC Capacity: 75 A | Main input: 200 VAC | Interface: Analog/pulse, NPN output | Resistor: No built-in regen, with DB | Safety: STO (no delay) + Functional Safety
RS3A10A0ALC Capacity: 100 A | Main input: 200 VAC | Interface: Analog/pulse, NPN output | Resistor: No built-in regen, with DB | Safety: STO (no delay) + Functional Safety
RS3A15A0ALC Capacity: 150 A | Main input: 200 VAC | Interface: Analog/pulse, NPN output | Resistor: No built-in regen, with DB | Safety: STO (no delay) + Functional Safety
RS3A30A0ALC Capacity: 300 A | Main input: 200 VAC | Interface: Analog/pulse, NPN output | Resistor: No built-in regen, with DB | Safety: STO (no delay) + Functional Safety
RS3W60A0AMC Capacity: 600 A | Main input: 280 VDC (with RS3PAA27000) | Interface: Analog/pulse, NPN output | Resistor: No regen, no DB resistor | Safety: STO (no delay) + Functional Safety
RS3A01A0BA0 Capacity: 10 A | Main input: 200 VAC | Interface: Analog/pulse, PNP output | Resistor: Built-in regen + DB resistor | Safety: None
RS3A02A0BA0 Capacity: 20 A | Main input: 200 VAC | Interface: Analog/pulse, PNP output | Resistor: Built-in regen + DB resistor | Safety: None
RS3A03A0BA0 Capacity: 30 A | Main input: 200 VAC | Interface: Analog/pulse, PNP output | Resistor: Built-in regen + DB resistor | Safety: None
RS3A05A0BA0 Capacity: 50 A | Main input: 200 VAC | Interface: Analog/pulse, PNP output | Resistor: Built-in regen + DB resistor | Safety: None
RS3A07A0BA0 Capacity: 75 A | Main input: 200 VAC | Interface: Analog/pulse, PNP output | Resistor: Built-in regen + DB resistor | Safety: None
RS3A10A0BA0 Capacity: 100 A | Main input: 200 VAC | Interface: Analog/pulse, PNP output | Resistor: Built-in regen + DB resistor | Safety: None
RS3A15A0BA0 Capacity: 150 A | Main input: 200 VAC | Interface: Analog/pulse, PNP output | Resistor: Built-in regen + DB resistor | Safety: None
RS3A01A0BL0 Capacity: 10 A | Main input: 200 VAC | Interface: Analog/pulse, PNP output | Resistor: No built-in regen, with DB | Safety: None
RS3A02A0BL0 Capacity: 20 A | Main input: 200 VAC | Interface: Analog/pulse, PNP output | Resistor: No built-in regen, with DB | Safety: None
RS3A03A0BL0 Capacity: 30 A | Main input: 200 VAC | Interface: Analog/pulse, PNP output | Resistor: No built-in regen, with DB | Safety: None
RS3A05A0BL0 Capacity: 50 A | Main input: 200 VAC | Interface: Analog/pulse, PNP output | Resistor: No built-in regen, with DB | Safety: None
RS3A07A0BL0 Capacity: 75 A | Main input: 200 VAC | Interface: Analog/pulse, PNP output | Resistor: No built-in regen, with DB | Safety: None
RS3A10A0BL0 Capacity: 100 A | Main input: 200 VAC | Interface: Analog/pulse, PNP output | Resistor: No built-in regen, with DB | Safety: None
RS3A15A0BL0 Capacity: 150 A | Main input: 200 VAC | Interface: Analog/pulse, PNP output | Resistor: No built-in regen, with DB | Safety: None
RS3A30A0BL0 Capacity: 300 A | Main input: 200 VAC | Interface: Analog/pulse, PNP output | Resistor: No built-in regen, with DB | Safety: None
RS3W60A0BM0 Capacity: 600 A | Main input: 280 VDC (with RS3PAA27000) | Interface: Analog/pulse, PNP output | Resistor: No regen, no DB resistor | Safety: None
RS3A01A0BA2 Capacity: 10 A | Main input: 200 VAC | Interface: Analog/pulse, PNP output | Resistor: Built-in regen + DB resistor | Safety: STO (without delay circuit)
RS3A02A0BA2 Capacity: 20 A | Main input: 200 VAC | Interface: Analog/pulse, PNP output | Resistor: Built-in regen + DB resistor | Safety: STO (without delay circuit)
RS3A03A0BA2 Capacity: 30 A | Main input: 200 VAC | Interface: Analog/pulse, PNP output | Resistor: Built-in regen + DB resistor | Safety: STO (without delay circuit)
RS3A05A0BA2 Capacity: 50 A | Main input: 200 VAC | Interface: Analog/pulse, PNP output | Resistor: Built-in regen + DB resistor | Safety: STO (without delay circuit)
RS3A07A0BA2 Capacity: 75 A | Main input: 200 VAC | Interface: Analog/pulse, PNP output | Resistor: Built-in regen + DB resistor | Safety: STO (without delay circuit)
RS3A10A0BA2 Capacity: 100 A | Main input: 200 VAC | Interface: Analog/pulse, PNP output | Resistor: Built-in regen + DB resistor | Safety: STO (without delay circuit)
RS3A15A0BA2 Capacity: 150 A | Main input: 200 VAC | Interface: Analog/pulse, PNP output | Resistor: Built-in regen + DB resistor | Safety: STO (without delay circuit)
RS3A01A0BL2 Capacity: 10 A | Main input: 200 VAC | Interface: Analog/pulse, PNP output | Resistor: No built-in regen, with DB | Safety: STO (without delay circuit)
RS3A02A0BL2 Capacity: 20 A | Main input: 200 VAC | Interface: Analog/pulse, PNP output | Resistor: No built-in regen, with DB | Safety: STO (without delay circuit)
RS3A03A0BL2 Capacity: 30 A | Main input: 200 VAC | Interface: Analog/pulse, PNP output | Resistor: No built-in regen, with DB | Safety: STO (without delay circuit)
RS3A05A0BL2 Capacity: 50 A | Main input: 200 VAC | Interface: Analog/pulse, PNP output | Resistor: No built-in regen, with DB | Safety: STO (without delay circuit)
RS3A07A0BL2 Capacity: 75 A | Main input: 200 VAC | Interface: Analog/pulse, PNP output | Resistor: No built-in regen, with DB | Safety: STO (without delay circuit)
RS3A10A0BL2 Capacity: 100 A | Main input: 200 VAC | Interface: Analog/pulse, PNP output | Resistor: No built-in regen, with DB | Safety: STO (without delay circuit)
RS3A15A0BL2 Capacity: 150 A | Main input: 200 VAC | Interface: Analog/pulse, PNP output | Resistor: No built-in regen, with DB | Safety: STO (without delay circuit)
RS3A30A0BL2 Capacity: 300 A | Main input: 200 VAC | Interface: Analog/pulse, PNP output | Resistor: No built-in regen, with DB | Safety: STO (without delay circuit)
RS3W60A0BM2 Capacity: 600 A | Main input: 280 VDC (with RS3PAA27000) | Interface: Analog/pulse, PNP output | Resistor: No regen, no DB resistor | Safety: STO (without delay circuit)
RS3A01A0BAC Capacity: 10 A | Main input: 200 VAC | Interface: Analog/pulse, PNP output | Resistor: Built-in regen + DB resistor | Safety: STO (no delay) + Functional Safety
RS3A02A0BAC Capacity: 20 A | Main input: 200 VAC | Interface: Analog/pulse, PNP output | Resistor: Built-in regen + DB resistor | Safety: STO (no delay) + Functional Safety
RS3A03A0BAC Capacity: 30 A | Main input: 200 VAC | Interface: Analog/pulse, PNP output | Resistor: Built-in regen + DB resistor | Safety: STO (no delay) + Functional Safety
RS3A05A0BAC Capacity: 50 A | Main input: 200 VAC | Interface: Analog/pulse, PNP output | Resistor: Built-in regen + DB resistor | Safety: STO (no delay) + Functional Safety
RS3A07A0BAC Capacity: 75 A | Main input: 200 VAC | Interface: Analog/pulse, PNP output | Resistor: Built-in regen + DB resistor | Safety: STO (no delay) + Functional Safety
RS3A10A0BAC Capacity: 100 A | Main input: 200 VAC | Interface: Analog/pulse, PNP output | Resistor: Built-in regen + DB resistor | Safety: STO (no delay) + Functional Safety
RS3A15A0BAC Capacity: 150 A | Main input: 200 VAC | Interface: Analog/pulse, PNP output | Resistor: Built-in regen + DB resistor | Safety: STO (no delay) + Functional Safety
RS3A01A0BLC Capacity: 10 A | Main input: 200 VAC | Interface: Analog/pulse, PNP output | Resistor: No built-in regen, with DB | Safety: STO (no delay) + Functional Safety
RS3A02A0BLC Capacity: 20 A | Main input: 200 VAC | Interface: Analog/pulse, PNP output | Resistor: No built-in regen, with DB | Safety: STO (no delay) + Functional Safety
RS3A03A0BLC Capacity: 30 A | Main input: 200 VAC | Interface: Analog/pulse, PNP output | Resistor: No built-in regen, with DB | Safety: STO (no delay) + Functional Safety
RS3A05A0BLC Capacity: 50 A | Main input: 200 VAC | Interface: Analog/pulse, PNP output | Resistor: No built-in regen, with DB | Safety: STO (no delay) + Functional Safety
RS3A07A0BLC Capacity: 75 A | Main input: 200 VAC | Interface: Analog/pulse, PNP output | Resistor: No built-in regen, with DB | Safety: STO (no delay) + Functional Safety
RS3A10A0BLC Capacity: 100 A | Main input: 200 VAC | Interface: Analog/pulse, PNP output | Resistor: No built-in regen, with DB | Safety: STO (no delay) + Functional Safety
RS3A15A0BLC Capacity: 150 A | Main input: 200 VAC | Interface: Analog/pulse, PNP output | Resistor: No built-in regen, with DB | Safety: STO (no delay) + Functional Safety
RS3A30A0BLC Capacity: 300 A | Main input: 200 VAC | Interface: Analog/pulse, PNP output | Resistor: No built-in regen, with DB | Safety: STO (no delay) + Functional Safety
RS3W60A0BMC Capacity: 600 A | Main input: 280 VDC (with RS3PAA27000) | Interface: Analog/pulse, PNP output | Resistor: No regen, no DB resistor | Safety: STO (no delay) + Functional Safety
AL-00718251-01 Legacy code (not in current catalogue) | Category: Servo amplifier connector
AL-00880402-01 Legacy code (not in current catalogue) | Category: Servo amplifier connector
AL-00731792-01 Legacy code (not in current catalogue) | Category: Servo amplifier connector
Servo AmplifiersSanyo Denki
135 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki SANMOTION R 3E Servo Amplifier Analog/Pulse (10-600 A)

Brand Sanyo Denki·Servo Amplifiers

Available part numbers (135)

RS3E01A0AA0, RS3E02A0AA0, RS3E03A0AA0, RS3E01A0AL0, RS3E02A0AL0, RS3E03A0AL0, RS3E01A0AA2, RS3E02A0AA2, RS3E03A0AA2, RS3E01A0AL2 + 125 more — see full table ↓

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
RS3E01A0AA0Capacity: 10 A | Main input: 100 VAC | Interface: Analog/pulse, NPN output | Resistor: Built-in regen + DB resistor | Safety: None
RS3E02A0AA0Capacity: 20 A | Main input: 100 VAC | Interface: Analog/pulse, NPN output | Resistor: Built-in regen + DB resistor | Safety: None
RS3E03A0AA0Capacity: 30 A | Main input: 100 VAC | Interface: Analog/pulse, NPN output | Resistor: Built-in regen + DB resistor | Safety: None
RS3E01A0AL0Capacity: 10 A | Main input: 100 VAC | Interface: Analog/pulse, NPN output | Resistor: No built-in regen, with DB | Safety: None
RS3E02A0AL0Capacity: 20 A | Main input: 100 VAC | Interface: Analog/pulse, NPN output | Resistor: No built-in regen, with DB | Safety: None
RS3E03A0AL0Capacity: 30 A | Main input: 100 VAC | Interface: Analog/pulse, NPN output | Resistor: No built-in regen, with DB | Safety: None
RS3E01A0AA2Capacity: 10 A | Main input: 100 VAC | Interface: Analog/pulse, NPN output | Resistor: Built-in regen + DB resistor | Safety: STO (without delay circuit)
RS3E02A0AA2Capacity: 20 A | Main input: 100 VAC | Interface: Analog/pulse, NPN output | Resistor: Built-in regen + DB resistor | Safety: STO (without delay circuit)
RS3E03A0AA2Capacity: 30 A | Main input: 100 VAC | Interface: Analog/pulse, NPN output | Resistor: Built-in regen + DB resistor | Safety: STO (without delay circuit)
RS3E01A0AL2Capacity: 10 A | Main input: 100 VAC | Interface: Analog/pulse, NPN output | Resistor: No built-in regen, with DB | Safety: STO (without delay circuit)
RS3E02A0AL2Capacity: 20 A | Main input: 100 VAC | Interface: Analog/pulse, NPN output | Resistor: No built-in regen, with DB | Safety: STO (without delay circuit)
RS3E03A0AL2Capacity: 30 A | Main input: 100 VAC | Interface: Analog/pulse, NPN output | Resistor: No built-in regen, with DB | Safety: STO (without delay circuit)
RS3E01A0AACCapacity: 10 A | Main input: 100 VAC | Interface: Analog/pulse, NPN output | Resistor: Built-in regen + DB resistor | Safety: STO (no delay) + Functional Safety
RS3E02A0AACCapacity: 20 A | Main input: 100 VAC | Interface: Analog/pulse, NPN output | Resistor: Built-in regen + DB resistor | Safety: STO (no delay) + Functional Safety
RS3E03A0AACCapacity: 30 A | Main input: 100 VAC | Interface: Analog/pulse, NPN output | Resistor: Built-in regen + DB resistor | Safety: STO (no delay) + Functional Safety
RS3E01A0ALCCapacity: 10 A | Main input: 100 VAC | Interface: Analog/pulse, NPN output | Resistor: No built-in regen, with DB | Safety: STO (no delay) + Functional Safety
RS3E02A0ALCCapacity: 20 A | Main input: 100 VAC | Interface: Analog/pulse, NPN output | Resistor: No built-in regen, with DB | Safety: STO (no delay) + Functional Safety
RS3E03A0ALCCapacity: 30 A | Main input: 100 VAC | Interface: Analog/pulse, NPN output | Resistor: No built-in regen, with DB | Safety: STO (no delay) + Functional Safety
RS3E01A0BA0Capacity: 10 A | Main input: 100 VAC | Interface: Analog/pulse, PNP output | Resistor: Built-in regen + DB resistor | Safety: None
RS3E02A0BA0Capacity: 20 A | Main input: 100 VAC | Interface: Analog/pulse, PNP output | Resistor: Built-in regen + DB resistor | Safety: None
RS3E03A0BA0Capacity: 30 A | Main input: 100 VAC | Interface: Analog/pulse, PNP output | Resistor: Built-in regen + DB resistor | Safety: None
RS3E01A0BL0Capacity: 10 A | Main input: 100 VAC | Interface: Analog/pulse, PNP output | Resistor: No built-in regen, with DB | Safety: None
RS3E02A0BL0Capacity: 20 A | Main input: 100 VAC | Interface: Analog/pulse, PNP output | Resistor: No built-in regen, with DB | Safety: None
RS3E03A0BL0Capacity: 30 A | Main input: 100 VAC | Interface: Analog/pulse, PNP output | Resistor: No built-in regen, with DB | Safety: None
RS3E01A0BA2Capacity: 10 A | Main input: 100 VAC | Interface: Analog/pulse, PNP output | Resistor: Built-in regen + DB resistor | Safety: STO (without delay circuit)
RS3E02A0BA2Capacity: 20 A | Main input: 100 VAC | Interface: Analog/pulse, PNP output | Resistor: Built-in regen + DB resistor | Safety: STO (without delay circuit)
RS3E03A0BA2Capacity: 30 A | Main input: 100 VAC | Interface: Analog/pulse, PNP output | Resistor: Built-in regen + DB resistor | Safety: STO (without delay circuit)
RS3E01A0BL2Capacity: 10 A | Main input: 100 VAC | Interface: Analog/pulse, PNP output | Resistor: No built-in regen, with DB | Safety: STO (without delay circuit)
RS3E02A0BL2Capacity: 20 A | Main input: 100 VAC | Interface: Analog/pulse, PNP output | Resistor: No built-in regen, with DB | Safety: STO (without delay circuit)
RS3E03A0BL2Capacity: 30 A | Main input: 100 VAC | Interface: Analog/pulse, PNP output | Resistor: No built-in regen, with DB | Safety: STO (without delay circuit)
RS3E01A0BACCapacity: 10 A | Main input: 100 VAC | Interface: Analog/pulse, PNP output | Resistor: Built-in regen + DB resistor | Safety: STO (no delay) + Functional Safety
RS3E02A0BACCapacity: 20 A | Main input: 100 VAC | Interface: Analog/pulse, PNP output | Resistor: Built-in regen + DB resistor | Safety: STO (no delay) + Functional Safety
RS3E03A0BACCapacity: 30 A | Main input: 100 VAC | Interface: Analog/pulse, PNP output | Resistor: Built-in regen + DB resistor | Safety: STO (no delay) + Functional Safety
RS3E01A0BLCCapacity: 10 A | Main input: 100 VAC | Interface: Analog/pulse, PNP output | Resistor: No built-in regen, with DB | Safety: STO (no delay) + Functional Safety
RS3E02A0BLCCapacity: 20 A | Main input: 100 VAC | Interface: Analog/pulse, PNP output | Resistor: No built-in regen, with DB | Safety: STO (no delay) + Functional Safety
RS3E03A0BLCCapacity: 30 A | Main input: 100 VAC | Interface: Analog/pulse, PNP output | Resistor: No built-in regen, with DB | Safety: STO (no delay) + Functional Safety
RS3A01A0AA0Capacity: 10 A | Main input: 200 VAC | Interface: Analog/pulse, NPN output | Resistor: Built-in regen + DB resistor | Safety: None
RS3A02A0AA0Capacity: 20 A | Main input: 200 VAC | Interface: Analog/pulse, NPN output | Resistor: Built-in regen + DB resistor | Safety: None
RS3A03A0AA0Capacity: 30 A | Main input: 200 VAC | Interface: Analog/pulse, NPN output | Resistor: Built-in regen + DB resistor | Safety: None
RS3A05A0AA0Capacity: 50 A | Main input: 200 VAC | Interface: Analog/pulse, NPN output | Resistor: Built-in regen + DB resistor | Safety: None
RS3A07A0AA0Capacity: 75 A | Main input: 200 VAC | Interface: Analog/pulse, NPN output | Resistor: Built-in regen + DB resistor | Safety: None
RS3A10A0AA0Capacity: 100 A | Main input: 200 VAC | Interface: Analog/pulse, NPN output | Resistor: Built-in regen + DB resistor | Safety: None
RS3A15A0AA0Capacity: 150 A | Main input: 200 VAC | Interface: Analog/pulse, NPN output | Resistor: Built-in regen + DB resistor | Safety: None
RS3A01A0AL0Capacity: 10 A | Main input: 200 VAC | Interface: Analog/pulse, NPN output | Resistor: No built-in regen, with DB | Safety: None
RS3A02A0AL0Capacity: 20 A | Main input: 200 VAC | Interface: Analog/pulse, NPN output | Resistor: No built-in regen, with DB | Safety: None
RS3A03A0AL0Capacity: 30 A | Main input: 200 VAC | Interface: Analog/pulse, NPN output | Resistor: No built-in regen, with DB | Safety: None
RS3A05A0AL0Capacity: 50 A | Main input: 200 VAC | Interface: Analog/pulse, NPN output | Resistor: No built-in regen, with DB | Safety: None
RS3A07A0AL0Capacity: 75 A | Main input: 200 VAC | Interface: Analog/pulse, NPN output | Resistor: No built-in regen, with DB | Safety: None
RS3A10A0AL0Capacity: 100 A | Main input: 200 VAC | Interface: Analog/pulse, NPN output | Resistor: No built-in regen, with DB | Safety: None
RS3A15A0AL0Capacity: 150 A | Main input: 200 VAC | Interface: Analog/pulse, NPN output | Resistor: No built-in regen, with DB | Safety: None
RS3A30A0AL0Capacity: 300 A | Main input: 200 VAC | Interface: Analog/pulse, NPN output | Resistor: No built-in regen, with DB | Safety: None
RS3W60A0AM0Capacity: 600 A | Main input: 280 VDC (with RS3PAA27000) | Interface: Analog/pulse, NPN output | Resistor: No regen, no DB resistor | Safety: None
RS3A01A0AA2Capacity: 10 A | Main input: 200 VAC | Interface: Analog/pulse, NPN output | Resistor: Built-in regen + DB resistor | Safety: STO (without delay circuit)
RS3A02A0AA2Capacity: 20 A | Main input: 200 VAC | Interface: Analog/pulse, NPN output | Resistor: Built-in regen + DB resistor | Safety: STO (without delay circuit)
RS3A03A0AA2Capacity: 30 A | Main input: 200 VAC | Interface: Analog/pulse, NPN output | Resistor: Built-in regen + DB resistor | Safety: STO (without delay circuit)
RS3A05A0AA2Capacity: 50 A | Main input: 200 VAC | Interface: Analog/pulse, NPN output | Resistor: Built-in regen + DB resistor | Safety: STO (without delay circuit)
RS3A07A0AA2Capacity: 75 A | Main input: 200 VAC | Interface: Analog/pulse, NPN output | Resistor: Built-in regen + DB resistor | Safety: STO (without delay circuit)
RS3A10A0AA2Capacity: 100 A | Main input: 200 VAC | Interface: Analog/pulse, NPN output | Resistor: Built-in regen + DB resistor | Safety: STO (without delay circuit)
RS3A15A0AA2Capacity: 150 A | Main input: 200 VAC | Interface: Analog/pulse, NPN output | Resistor: Built-in regen + DB resistor | Safety: STO (without delay circuit)
RS3A01A0AL2Capacity: 10 A | Main input: 200 VAC | Interface: Analog/pulse, NPN output | Resistor: No built-in regen, with DB | Safety: STO (without delay circuit)
RS3A02A0AL2Capacity: 20 A | Main input: 200 VAC | Interface: Analog/pulse, NPN output | Resistor: No built-in regen, with DB | Safety: STO (without delay circuit)
RS3A03A0AL2Capacity: 30 A | Main input: 200 VAC | Interface: Analog/pulse, NPN output | Resistor: No built-in regen, with DB | Safety: STO (without delay circuit)
RS3A05A0AL2Capacity: 50 A | Main input: 200 VAC | Interface: Analog/pulse, NPN output | Resistor: No built-in regen, with DB | Safety: STO (without delay circuit)
RS3A07A0AL2Capacity: 75 A | Main input: 200 VAC | Interface: Analog/pulse, NPN output | Resistor: No built-in regen, with DB | Safety: STO (without delay circuit)
RS3A10A0AL2Capacity: 100 A | Main input: 200 VAC | Interface: Analog/pulse, NPN output | Resistor: No built-in regen, with DB | Safety: STO (without delay circuit)
RS3A15A0AL2Capacity: 150 A | Main input: 200 VAC | Interface: Analog/pulse, NPN output | Resistor: No built-in regen, with DB | Safety: STO (without delay circuit)
RS3A30A0AL2Capacity: 300 A | Main input: 200 VAC | Interface: Analog/pulse, NPN output | Resistor: No built-in regen, with DB | Safety: STO (without delay circuit)
RS3W60A0AM2Capacity: 600 A | Main input: 280 VDC (with RS3PAA27000) | Interface: Analog/pulse, NPN output | Resistor: No regen, no DB resistor | Safety: STO (without delay circuit)
RS3A01A0AACCapacity: 10 A | Main input: 200 VAC | Interface: Analog/pulse, NPN output | Resistor: Built-in regen + DB resistor | Safety: STO (no delay) + Functional Safety
RS3A02A0AACCapacity: 20 A | Main input: 200 VAC | Interface: Analog/pulse, NPN output | Resistor: Built-in regen + DB resistor | Safety: STO (no delay) + Functional Safety
RS3A03A0AACCapacity: 30 A | Main input: 200 VAC | Interface: Analog/pulse, NPN output | Resistor: Built-in regen + DB resistor | Safety: STO (no delay) + Functional Safety
RS3A05A0AACCapacity: 50 A | Main input: 200 VAC | Interface: Analog/pulse, NPN output | Resistor: Built-in regen + DB resistor | Safety: STO (no delay) + Functional Safety
RS3A07A0AACCapacity: 75 A | Main input: 200 VAC | Interface: Analog/pulse, NPN output | Resistor: Built-in regen + DB resistor | Safety: STO (no delay) + Functional Safety
RS3A10A0AACCapacity: 100 A | Main input: 200 VAC | Interface: Analog/pulse, NPN output | Resistor: Built-in regen + DB resistor | Safety: STO (no delay) + Functional Safety
RS3A15A0AACCapacity: 150 A | Main input: 200 VAC | Interface: Analog/pulse, NPN output | Resistor: Built-in regen + DB resistor | Safety: STO (no delay) + Functional Safety
RS3A01A0ALCCapacity: 10 A | Main input: 200 VAC | Interface: Analog/pulse, NPN output | Resistor: No built-in regen, with DB | Safety: STO (no delay) + Functional Safety
RS3A02A0ALCCapacity: 20 A | Main input: 200 VAC | Interface: Analog/pulse, NPN output | Resistor: No built-in regen, with DB | Safety: STO (no delay) + Functional Safety
RS3A03A0ALCCapacity: 30 A | Main input: 200 VAC | Interface: Analog/pulse, NPN output | Resistor: No built-in regen, with DB | Safety: STO (no delay) + Functional Safety
RS3A05A0ALCCapacity: 50 A | Main input: 200 VAC | Interface: Analog/pulse, NPN output | Resistor: No built-in regen, with DB | Safety: STO (no delay) + Functional Safety
RS3A07A0ALCCapacity: 75 A | Main input: 200 VAC | Interface: Analog/pulse, NPN output | Resistor: No built-in regen, with DB | Safety: STO (no delay) + Functional Safety
RS3A10A0ALCCapacity: 100 A | Main input: 200 VAC | Interface: Analog/pulse, NPN output | Resistor: No built-in regen, with DB | Safety: STO (no delay) + Functional Safety
RS3A15A0ALCCapacity: 150 A | Main input: 200 VAC | Interface: Analog/pulse, NPN output | Resistor: No built-in regen, with DB | Safety: STO (no delay) + Functional Safety
RS3A30A0ALCCapacity: 300 A | Main input: 200 VAC | Interface: Analog/pulse, NPN output | Resistor: No built-in regen, with DB | Safety: STO (no delay) + Functional Safety
RS3W60A0AMCCapacity: 600 A | Main input: 280 VDC (with RS3PAA27000) | Interface: Analog/pulse, NPN output | Resistor: No regen, no DB resistor | Safety: STO (no delay) + Functional Safety
RS3A01A0BA0Capacity: 10 A | Main input: 200 VAC | Interface: Analog/pulse, PNP output | Resistor: Built-in regen + DB resistor | Safety: None
RS3A02A0BA0Capacity: 20 A | Main input: 200 VAC | Interface: Analog/pulse, PNP output | Resistor: Built-in regen + DB resistor | Safety: None
RS3A03A0BA0Capacity: 30 A | Main input: 200 VAC | Interface: Analog/pulse, PNP output | Resistor: Built-in regen + DB resistor | Safety: None
RS3A05A0BA0Capacity: 50 A | Main input: 200 VAC | Interface: Analog/pulse, PNP output | Resistor: Built-in regen + DB resistor | Safety: None
RS3A07A0BA0Capacity: 75 A | Main input: 200 VAC | Interface: Analog/pulse, PNP output | Resistor: Built-in regen + DB resistor | Safety: None
RS3A10A0BA0Capacity: 100 A | Main input: 200 VAC | Interface: Analog/pulse, PNP output | Resistor: Built-in regen + DB resistor | Safety: None
RS3A15A0BA0Capacity: 150 A | Main input: 200 VAC | Interface: Analog/pulse, PNP output | Resistor: Built-in regen + DB resistor | Safety: None
RS3A01A0BL0Capacity: 10 A | Main input: 200 VAC | Interface: Analog/pulse, PNP output | Resistor: No built-in regen, with DB | Safety: None
RS3A02A0BL0Capacity: 20 A | Main input: 200 VAC | Interface: Analog/pulse, PNP output | Resistor: No built-in regen, with DB | Safety: None
RS3A03A0BL0Capacity: 30 A | Main input: 200 VAC | Interface: Analog/pulse, PNP output | Resistor: No built-in regen, with DB | Safety: None
RS3A05A0BL0Capacity: 50 A | Main input: 200 VAC | Interface: Analog/pulse, PNP output | Resistor: No built-in regen, with DB | Safety: None
RS3A07A0BL0Capacity: 75 A | Main input: 200 VAC | Interface: Analog/pulse, PNP output | Resistor: No built-in regen, with DB | Safety: None
RS3A10A0BL0Capacity: 100 A | Main input: 200 VAC | Interface: Analog/pulse, PNP output | Resistor: No built-in regen, with DB | Safety: None
RS3A15A0BL0Capacity: 150 A | Main input: 200 VAC | Interface: Analog/pulse, PNP output | Resistor: No built-in regen, with DB | Safety: None
RS3A30A0BL0Capacity: 300 A | Main input: 200 VAC | Interface: Analog/pulse, PNP output | Resistor: No built-in regen, with DB | Safety: None
RS3W60A0BM0Capacity: 600 A | Main input: 280 VDC (with RS3PAA27000) | Interface: Analog/pulse, PNP output | Resistor: No regen, no DB resistor | Safety: None
RS3A01A0BA2Capacity: 10 A | Main input: 200 VAC | Interface: Analog/pulse, PNP output | Resistor: Built-in regen + DB resistor | Safety: STO (without delay circuit)
RS3A02A0BA2Capacity: 20 A | Main input: 200 VAC | Interface: Analog/pulse, PNP output | Resistor: Built-in regen + DB resistor | Safety: STO (without delay circuit)
RS3A03A0BA2Capacity: 30 A | Main input: 200 VAC | Interface: Analog/pulse, PNP output | Resistor: Built-in regen + DB resistor | Safety: STO (without delay circuit)
RS3A05A0BA2Capacity: 50 A | Main input: 200 VAC | Interface: Analog/pulse, PNP output | Resistor: Built-in regen + DB resistor | Safety: STO (without delay circuit)
RS3A07A0BA2Capacity: 75 A | Main input: 200 VAC | Interface: Analog/pulse, PNP output | Resistor: Built-in regen + DB resistor | Safety: STO (without delay circuit)
RS3A10A0BA2Capacity: 100 A | Main input: 200 VAC | Interface: Analog/pulse, PNP output | Resistor: Built-in regen + DB resistor | Safety: STO (without delay circuit)
RS3A15A0BA2Capacity: 150 A | Main input: 200 VAC | Interface: Analog/pulse, PNP output | Resistor: Built-in regen + DB resistor | Safety: STO (without delay circuit)
RS3A01A0BL2Capacity: 10 A | Main input: 200 VAC | Interface: Analog/pulse, PNP output | Resistor: No built-in regen, with DB | Safety: STO (without delay circuit)
RS3A02A0BL2Capacity: 20 A | Main input: 200 VAC | Interface: Analog/pulse, PNP output | Resistor: No built-in regen, with DB | Safety: STO (without delay circuit)
RS3A03A0BL2Capacity: 30 A | Main input: 200 VAC | Interface: Analog/pulse, PNP output | Resistor: No built-in regen, with DB | Safety: STO (without delay circuit)
RS3A05A0BL2Capacity: 50 A | Main input: 200 VAC | Interface: Analog/pulse, PNP output | Resistor: No built-in regen, with DB | Safety: STO (without delay circuit)
RS3A07A0BL2Capacity: 75 A | Main input: 200 VAC | Interface: Analog/pulse, PNP output | Resistor: No built-in regen, with DB | Safety: STO (without delay circuit)
RS3A10A0BL2Capacity: 100 A | Main input: 200 VAC | Interface: Analog/pulse, PNP output | Resistor: No built-in regen, with DB | Safety: STO (without delay circuit)
RS3A15A0BL2Capacity: 150 A | Main input: 200 VAC | Interface: Analog/pulse, PNP output | Resistor: No built-in regen, with DB | Safety: STO (without delay circuit)
RS3A30A0BL2Capacity: 300 A | Main input: 200 VAC | Interface: Analog/pulse, PNP output | Resistor: No built-in regen, with DB | Safety: STO (without delay circuit)
RS3W60A0BM2Capacity: 600 A | Main input: 280 VDC (with RS3PAA27000) | Interface: Analog/pulse, PNP output | Resistor: No regen, no DB resistor | Safety: STO (without delay circuit)
RS3A01A0BACCapacity: 10 A | Main input: 200 VAC | Interface: Analog/pulse, PNP output | Resistor: Built-in regen + DB resistor | Safety: STO (no delay) + Functional Safety
RS3A02A0BACCapacity: 20 A | Main input: 200 VAC | Interface: Analog/pulse, PNP output | Resistor: Built-in regen + DB resistor | Safety: STO (no delay) + Functional Safety
RS3A03A0BACCapacity: 30 A | Main input: 200 VAC | Interface: Analog/pulse, PNP output | Resistor: Built-in regen + DB resistor | Safety: STO (no delay) + Functional Safety
RS3A05A0BACCapacity: 50 A | Main input: 200 VAC | Interface: Analog/pulse, PNP output | Resistor: Built-in regen + DB resistor | Safety: STO (no delay) + Functional Safety
RS3A07A0BACCapacity: 75 A | Main input: 200 VAC | Interface: Analog/pulse, PNP output | Resistor: Built-in regen + DB resistor | Safety: STO (no delay) + Functional Safety
RS3A10A0BACCapacity: 100 A | Main input: 200 VAC | Interface: Analog/pulse, PNP output | Resistor: Built-in regen + DB resistor | Safety: STO (no delay) + Functional Safety
RS3A15A0BACCapacity: 150 A | Main input: 200 VAC | Interface: Analog/pulse, PNP output | Resistor: Built-in regen + DB resistor | Safety: STO (no delay) + Functional Safety
RS3A01A0BLCCapacity: 10 A | Main input: 200 VAC | Interface: Analog/pulse, PNP output | Resistor: No built-in regen, with DB | Safety: STO (no delay) + Functional Safety
RS3A02A0BLCCapacity: 20 A | Main input: 200 VAC | Interface: Analog/pulse, PNP output | Resistor: No built-in regen, with DB | Safety: STO (no delay) + Functional Safety
RS3A03A0BLCCapacity: 30 A | Main input: 200 VAC | Interface: Analog/pulse, PNP output | Resistor: No built-in regen, with DB | Safety: STO (no delay) + Functional Safety
RS3A05A0BLCCapacity: 50 A | Main input: 200 VAC | Interface: Analog/pulse, PNP output | Resistor: No built-in regen, with DB | Safety: STO (no delay) + Functional Safety
RS3A07A0BLCCapacity: 75 A | Main input: 200 VAC | Interface: Analog/pulse, PNP output | Resistor: No built-in regen, with DB | Safety: STO (no delay) + Functional Safety
RS3A10A0BLCCapacity: 100 A | Main input: 200 VAC | Interface: Analog/pulse, PNP output | Resistor: No built-in regen, with DB | Safety: STO (no delay) + Functional Safety
RS3A15A0BLCCapacity: 150 A | Main input: 200 VAC | Interface: Analog/pulse, PNP output | Resistor: No built-in regen, with DB | Safety: STO (no delay) + Functional Safety
RS3A30A0BLCCapacity: 300 A | Main input: 200 VAC | Interface: Analog/pulse, PNP output | Resistor: No built-in regen, with DB | Safety: STO (no delay) + Functional Safety
RS3W60A0BMCCapacity: 600 A | Main input: 280 VDC (with RS3PAA27000) | Interface: Analog/pulse, PNP output | Resistor: No regen, no DB resistor | Safety: STO (no delay) + Functional Safety
AL-00718251-01Legacy code (not in current catalogue) | Category: Servo amplifier connector
AL-00880402-01Legacy code (not in current catalogue) | Category: Servo amplifier connector
AL-00731792-01Legacy code (not in current catalogue) | Category: Servo amplifier connector

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Inverters & Drives →
