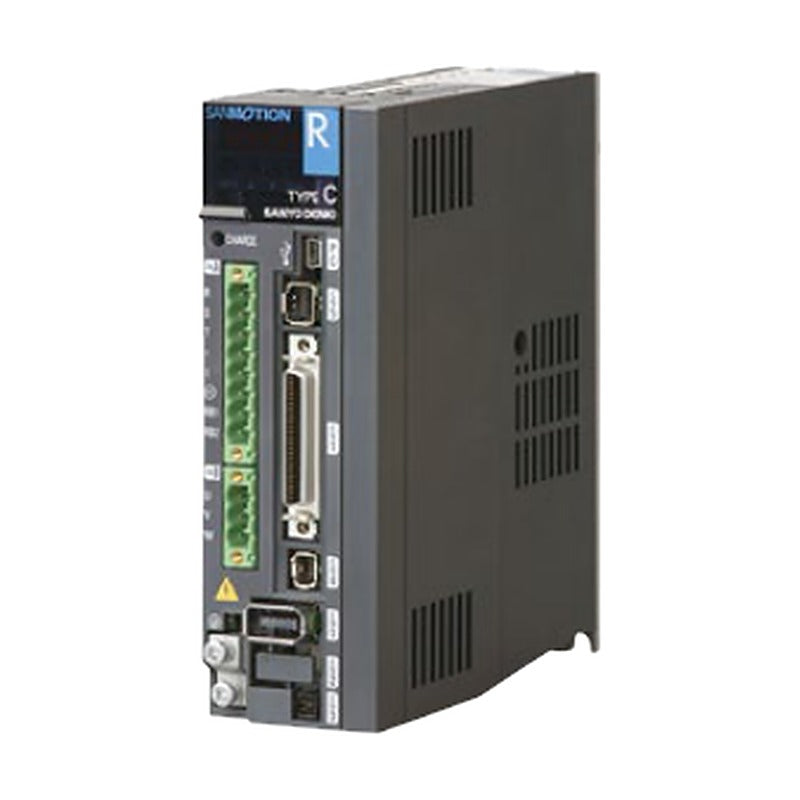

Sanyo Denki SANMOTION R 3E Servo Amplifier Built-in Positioning

Sanyo Denki SANMOTION R 3E Servo Amplifier Built-in Positioning

SANMOTION R 3E Model servo amplifiers with built-in positioning function (parallel or RS-485 serial interface), 10 to 600 A, 100 and 200 VAC.

Key features

  • Built-in positioning: no separate positioning controller, fewer wires
  • Up to 254 registered points; homing, JOG, 1-step and point-specified moves
  • Parallel interface (NPN/PNP) or serial RS-485 interface versions
  • Safe Torque Off (STO) and Functional Safety (SS1, SS2, SOS, SLS, SBC, SSM) versions
  • Suited to conveying applications

Specifications

Series SANMOTION R 3E Model
Interface Parallel I/O or RS-485 serial
Control mode Position (254 points)
Control system IGBT PWM, sinusoidal drive
Main circuit (200 V) 3-ph 200-240 VAC (1-ph to 50 A)
Main circuit (100 V) 1-ph 100-120 VAC
Encoder Absolute (standard models)
Ambient temperature 0 to +55 °C
Approvals UL, c-UL, EN, KC
Source Sanyo Denki SANMOTION R AC Servo Systems 100/200 VAC catalogue Ver.5.3, pp. 17-89
RS3E01A0CA4 Capacity: 10 A | Main input: 100 VAC | Interface: Positioning, parallel I/O | Resistor: Built-in regen + DB resistor | Safety: STO (with delay circuit)
RS3E02A0CA4 Capacity: 20 A | Main input: 100 VAC | Interface: Positioning, parallel I/O | Resistor: Built-in regen + DB resistor | Safety: STO (with delay circuit)
RS3E03A0CA4 Capacity: 30 A | Main input: 100 VAC | Interface: Positioning, parallel I/O | Resistor: Built-in regen + DB resistor | Safety: STO (with delay circuit)
RS3E01A0CL4 Capacity: 10 A | Main input: 100 VAC | Interface: Positioning, parallel I/O | Resistor: No built-in regen, with DB | Safety: STO (with delay circuit)
RS3E02A0CL4 Capacity: 20 A | Main input: 100 VAC | Interface: Positioning, parallel I/O | Resistor: No built-in regen, with DB | Safety: STO (with delay circuit)
RS3E03A0CL4 Capacity: 30 A | Main input: 100 VAC | Interface: Positioning, parallel I/O | Resistor: No built-in regen, with DB | Safety: STO (with delay circuit)
RS3E01A0CAE Capacity: 10 A | Main input: 100 VAC | Interface: Positioning, parallel I/O | Resistor: Built-in regen + DB resistor | Safety: STO (delay) + Functional Safety
RS3E02A0CAE Capacity: 20 A | Main input: 100 VAC | Interface: Positioning, parallel I/O | Resistor: Built-in regen + DB resistor | Safety: STO (delay) + Functional Safety
RS3E03A0CAE Capacity: 30 A | Main input: 100 VAC | Interface: Positioning, parallel I/O | Resistor: Built-in regen + DB resistor | Safety: STO (delay) + Functional Safety
RS3E01A0CLE Capacity: 10 A | Main input: 100 VAC | Interface: Positioning, parallel I/O | Resistor: No built-in regen, with DB | Safety: STO (delay) + Functional Safety
RS3E02A0CLE Capacity: 20 A | Main input: 100 VAC | Interface: Positioning, parallel I/O | Resistor: No built-in regen, with DB | Safety: STO (delay) + Functional Safety
RS3E03A0CLE Capacity: 30 A | Main input: 100 VAC | Interface: Positioning, parallel I/O | Resistor: No built-in regen, with DB | Safety: STO (delay) + Functional Safety
RS3E01A0FA4 Capacity: 10 A | Main input: 100 VAC | Interface: Positioning, serial RS-485 | Resistor: Built-in regen + DB resistor | Safety: STO (with delay circuit)
RS3E02A0FA4 Capacity: 20 A | Main input: 100 VAC | Interface: Positioning, serial RS-485 | Resistor: Built-in regen + DB resistor | Safety: STO (with delay circuit)
RS3E03A0FA4 Capacity: 30 A | Main input: 100 VAC | Interface: Positioning, serial RS-485 | Resistor: Built-in regen + DB resistor | Safety: STO (with delay circuit)
RS3E01A0FL4 Capacity: 10 A | Main input: 100 VAC | Interface: Positioning, serial RS-485 | Resistor: No built-in regen, with DB | Safety: STO (with delay circuit)
RS3E02A0FL4 Capacity: 20 A | Main input: 100 VAC | Interface: Positioning, serial RS-485 | Resistor: No built-in regen, with DB | Safety: STO (with delay circuit)
RS3E03A0FL4 Capacity: 30 A | Main input: 100 VAC | Interface: Positioning, serial RS-485 | Resistor: No built-in regen, with DB | Safety: STO (with delay circuit)
RS3E01A0FAE Capacity: 10 A | Main input: 100 VAC | Interface: Positioning, serial RS-485 | Resistor: Built-in regen + DB resistor | Safety: STO (delay) + Functional Safety
RS3E02A0FAE Capacity: 20 A | Main input: 100 VAC | Interface: Positioning, serial RS-485 | Resistor: Built-in regen + DB resistor | Safety: STO (delay) + Functional Safety
RS3E03A0FAE Capacity: 30 A | Main input: 100 VAC | Interface: Positioning, serial RS-485 | Resistor: Built-in regen + DB resistor | Safety: STO (delay) + Functional Safety
RS3E01A0FLE Capacity: 10 A | Main input: 100 VAC | Interface: Positioning, serial RS-485 | Resistor: No built-in regen, with DB | Safety: STO (delay) + Functional Safety
RS3E02A0FLE Capacity: 20 A | Main input: 100 VAC | Interface: Positioning, serial RS-485 | Resistor: No built-in regen, with DB | Safety: STO (delay) + Functional Safety
RS3E03A0FLE Capacity: 30 A | Main input: 100 VAC | Interface: Positioning, serial RS-485 | Resistor: No built-in regen, with DB | Safety: STO (delay) + Functional Safety
RS3A01A0CA4 Capacity: 10 A | Main input: 200 VAC | Interface: Positioning, parallel I/O | Resistor: Built-in regen + DB resistor | Safety: STO (with delay circuit)
RS3A02A0CA4 Capacity: 20 A | Main input: 200 VAC | Interface: Positioning, parallel I/O | Resistor: Built-in regen + DB resistor | Safety: STO (with delay circuit)
RS3A03A0CA4 Capacity: 30 A | Main input: 200 VAC | Interface: Positioning, parallel I/O | Resistor: Built-in regen + DB resistor | Safety: STO (with delay circuit)
RS3A05A0CA4 Capacity: 50 A | Main input: 200 VAC | Interface: Positioning, parallel I/O | Resistor: Built-in regen + DB resistor | Safety: STO (with delay circuit)
RS3A07A0CA4 Capacity: 75 A | Main input: 200 VAC | Interface: Positioning, parallel I/O | Resistor: Built-in regen + DB resistor | Safety: STO (with delay circuit)
RS3A10A0CA4 Capacity: 100 A | Main input: 200 VAC | Interface: Positioning, parallel I/O | Resistor: Built-in regen + DB resistor | Safety: STO (with delay circuit)
RS3A15A0CA4 Capacity: 150 A | Main input: 200 VAC | Interface: Positioning, parallel I/O | Resistor: Built-in regen + DB resistor | Safety: STO (with delay circuit)
RS3A01A0CL4 Capacity: 10 A | Main input: 200 VAC | Interface: Positioning, parallel I/O | Resistor: No built-in regen, with DB | Safety: STO (with delay circuit)
RS3A02A0CL4 Capacity: 20 A | Main input: 200 VAC | Interface: Positioning, parallel I/O | Resistor: No built-in regen, with DB | Safety: STO (with delay circuit)
RS3A03A0CL4 Capacity: 30 A | Main input: 200 VAC | Interface: Positioning, parallel I/O | Resistor: No built-in regen, with DB | Safety: STO (with delay circuit)
RS3A05A0CL4 Capacity: 50 A | Main input: 200 VAC | Interface: Positioning, parallel I/O | Resistor: No built-in regen, with DB | Safety: STO (with delay circuit)
RS3A07A0CL4 Capacity: 75 A | Main input: 200 VAC | Interface: Positioning, parallel I/O | Resistor: No built-in regen, with DB | Safety: STO (with delay circuit)
RS3A10A0CL4 Capacity: 100 A | Main input: 200 VAC | Interface: Positioning, parallel I/O | Resistor: No built-in regen, with DB | Safety: STO (with delay circuit)
RS3A15A0CL4 Capacity: 150 A | Main input: 200 VAC | Interface: Positioning, parallel I/O | Resistor: No built-in regen, with DB | Safety: STO (with delay circuit)
RS3A30A0CL4 Capacity: 300 A | Main input: 200 VAC | Interface: Positioning, parallel I/O | Resistor: No built-in regen, with DB | Safety: STO (with delay circuit)
RS3W60A0CM4 Capacity: 600 A | Main input: 280 VDC (with RS3PAA27000) | Interface: Positioning, parallel I/O | Resistor: No regen, no DB resistor | Safety: STO (with delay circuit)
RS3A01A0CAE Capacity: 10 A | Main input: 200 VAC | Interface: Positioning, parallel I/O | Resistor: Built-in regen + DB resistor | Safety: STO (delay) + Functional Safety
RS3A02A0CAE Capacity: 20 A | Main input: 200 VAC | Interface: Positioning, parallel I/O | Resistor: Built-in regen + DB resistor | Safety: STO (delay) + Functional Safety
RS3A03A0CAE Capacity: 30 A | Main input: 200 VAC | Interface: Positioning, parallel I/O | Resistor: Built-in regen + DB resistor | Safety: STO (delay) + Functional Safety
RS3A05A0CAE Capacity: 50 A | Main input: 200 VAC | Interface: Positioning, parallel I/O | Resistor: Built-in regen + DB resistor | Safety: STO (delay) + Functional Safety
RS3A07A0CAE Capacity: 75 A | Main input: 200 VAC | Interface: Positioning, parallel I/O | Resistor: Built-in regen + DB resistor | Safety: STO (delay) + Functional Safety
RS3A10A0CAE Capacity: 100 A | Main input: 200 VAC | Interface: Positioning, parallel I/O | Resistor: Built-in regen + DB resistor | Safety: STO (delay) + Functional Safety
RS3A15A0CAE Capacity: 150 A | Main input: 200 VAC | Interface: Positioning, parallel I/O | Resistor: Built-in regen + DB resistor | Safety: STO (delay) + Functional Safety
RS3A01A0CLE Capacity: 10 A | Main input: 200 VAC | Interface: Positioning, parallel I/O | Resistor: No built-in regen, with DB | Safety: STO (delay) + Functional Safety
RS3A02A0CLE Capacity: 20 A | Main input: 200 VAC | Interface: Positioning, parallel I/O | Resistor: No built-in regen, with DB | Safety: STO (delay) + Functional Safety
RS3A03A0CLE Capacity: 30 A | Main input: 200 VAC | Interface: Positioning, parallel I/O | Resistor: No built-in regen, with DB | Safety: STO (delay) + Functional Safety
RS3A05A0CLE Capacity: 50 A | Main input: 200 VAC | Interface: Positioning, parallel I/O | Resistor: No built-in regen, with DB | Safety: STO (delay) + Functional Safety
RS3A07A0CLE Capacity: 75 A | Main input: 200 VAC | Interface: Positioning, parallel I/O | Resistor: No built-in regen, with DB | Safety: STO (delay) + Functional Safety
RS3A10A0CLE Capacity: 100 A | Main input: 200 VAC | Interface: Positioning, parallel I/O | Resistor: No built-in regen, with DB | Safety: STO (delay) + Functional Safety
RS3A15A0CLE Capacity: 150 A | Main input: 200 VAC | Interface: Positioning, parallel I/O | Resistor: No built-in regen, with DB | Safety: STO (delay) + Functional Safety
RS3A30A0CLE Capacity: 300 A | Main input: 200 VAC | Interface: Positioning, parallel I/O | Resistor: No built-in regen, with DB | Safety: STO (delay) + Functional Safety
RS3W60A0CME Capacity: 600 A | Main input: 280 VDC (with RS3PAA27000) | Interface: Positioning, parallel I/O | Resistor: No regen, no DB resistor | Safety: STO (delay) + Functional Safety
RS3A01A0FA4 Capacity: 10 A | Main input: 200 VAC | Interface: Positioning, serial RS-485 | Resistor: Built-in regen + DB resistor | Safety: STO (with delay circuit)
RS3A02A0FA4 Capacity: 20 A | Main input: 200 VAC | Interface: Positioning, serial RS-485 | Resistor: Built-in regen + DB resistor | Safety: STO (with delay circuit)
RS3A03A0FA4 Capacity: 30 A | Main input: 200 VAC | Interface: Positioning, serial RS-485 | Resistor: Built-in regen + DB resistor | Safety: STO (with delay circuit)
RS3A05A0FA4 Capacity: 50 A | Main input: 200 VAC | Interface: Positioning, serial RS-485 | Resistor: Built-in regen + DB resistor | Safety: STO (with delay circuit)
RS3A07A0FA4 Capacity: 75 A | Main input: 200 VAC | Interface: Positioning, serial RS-485 | Resistor: Built-in regen + DB resistor | Safety: STO (with delay circuit)
RS3A10A0FA4 Capacity: 100 A | Main input: 200 VAC | Interface: Positioning, serial RS-485 | Resistor: Built-in regen + DB resistor | Safety: STO (with delay circuit)
RS3A15A0FA4 Capacity: 150 A | Main input: 200 VAC | Interface: Positioning, serial RS-485 | Resistor: Built-in regen + DB resistor | Safety: STO (with delay circuit)
RS3A01A0FL4 Capacity: 10 A | Main input: 200 VAC | Interface: Positioning, serial RS-485 | Resistor: No built-in regen, with DB | Safety: STO (with delay circuit)
RS3A02A0FL4 Capacity: 20 A | Main input: 200 VAC | Interface: Positioning, serial RS-485 | Resistor: No built-in regen, with DB | Safety: STO (with delay circuit)
RS3A03A0FL4 Capacity: 30 A | Main input: 200 VAC | Interface: Positioning, serial RS-485 | Resistor: No built-in regen, with DB | Safety: STO (with delay circuit)
RS3A05A0FL4 Capacity: 50 A | Main input: 200 VAC | Interface: Positioning, serial RS-485 | Resistor: No built-in regen, with DB | Safety: STO (with delay circuit)
RS3A07A0FL4 Capacity: 75 A | Main input: 200 VAC | Interface: Positioning, serial RS-485 | Resistor: No built-in regen, with DB | Safety: STO (with delay circuit)
RS3A10A0FL4 Capacity: 100 A | Main input: 200 VAC | Interface: Positioning, serial RS-485 | Resistor: No built-in regen, with DB | Safety: STO (with delay circuit)
RS3A15A0FL4 Capacity: 150 A | Main input: 200 VAC | Interface: Positioning, serial RS-485 | Resistor: No built-in regen, with DB | Safety: STO (with delay circuit)
RS3A30A0FL4 Capacity: 300 A | Main input: 200 VAC | Interface: Positioning, serial RS-485 | Resistor: No built-in regen, with DB | Safety: STO (with delay circuit)
RS3W60A0FM4 Capacity: 600 A | Main input: 280 VDC (with RS3PAA27000) | Interface: Positioning, serial RS-485 | Resistor: No regen, no DB resistor | Safety: STO (with delay circuit)
RS3A01A0FAE Capacity: 10 A | Main input: 200 VAC | Interface: Positioning, serial RS-485 | Resistor: Built-in regen + DB resistor | Safety: STO (delay) + Functional Safety
RS3A02A0FAE Capacity: 20 A | Main input: 200 VAC | Interface: Positioning, serial RS-485 | Resistor: Built-in regen + DB resistor | Safety: STO (delay) + Functional Safety
RS3A03A0FAE Capacity: 30 A | Main input: 200 VAC | Interface: Positioning, serial RS-485 | Resistor: Built-in regen + DB resistor | Safety: STO (delay) + Functional Safety
RS3A05A0FAE Capacity: 50 A | Main input: 200 VAC | Interface: Positioning, serial RS-485 | Resistor: Built-in regen + DB resistor | Safety: STO (delay) + Functional Safety
RS3A07A0FAE Capacity: 75 A | Main input: 200 VAC | Interface: Positioning, serial RS-485 | Resistor: Built-in regen + DB resistor | Safety: STO (delay) + Functional Safety
RS3A10A0FAE Capacity: 100 A | Main input: 200 VAC | Interface: Positioning, serial RS-485 | Resistor: Built-in regen + DB resistor | Safety: STO (delay) + Functional Safety
RS3A15A0FAE Capacity: 150 A | Main input: 200 VAC | Interface: Positioning, serial RS-485 | Resistor: Built-in regen + DB resistor | Safety: STO (delay) + Functional Safety
RS3A01A0FLE Capacity: 10 A | Main input: 200 VAC | Interface: Positioning, serial RS-485 | Resistor: No built-in regen, with DB | Safety: STO (delay) + Functional Safety
RS3A02A0FLE Capacity: 20 A | Main input: 200 VAC | Interface: Positioning, serial RS-485 | Resistor: No built-in regen, with DB | Safety: STO (delay) + Functional Safety
RS3A03A0FLE Capacity: 30 A | Main input: 200 VAC | Interface: Positioning, serial RS-485 | Resistor: No built-in regen, with DB | Safety: STO (delay) + Functional Safety
RS3A05A0FLE Capacity: 50 A | Main input: 200 VAC | Interface: Positioning, serial RS-485 | Resistor: No built-in regen, with DB | Safety: STO (delay) + Functional Safety
RS3A07A0FLE Capacity: 75 A | Main input: 200 VAC | Interface: Positioning, serial RS-485 | Resistor: No built-in regen, with DB | Safety: STO (delay) + Functional Safety
RS3A10A0FLE Capacity: 100 A | Main input: 200 VAC | Interface: Positioning, serial RS-485 | Resistor: No built-in regen, with DB | Safety: STO (delay) + Functional Safety
RS3A15A0FLE Capacity: 150 A | Main input: 200 VAC | Interface: Positioning, serial RS-485 | Resistor: No built-in regen, with DB | Safety: STO (delay) + Functional Safety
RS3A30A0FLE Capacity: 300 A | Main input: 200 VAC | Interface: Positioning, serial RS-485 | Resistor: No built-in regen, with DB | Safety: STO (delay) + Functional Safety
RS3W60A0FME Capacity: 600 A | Main input: 280 VDC (with RS3PAA27000) | Interface: Positioning, serial RS-485 | Resistor: No regen, no DB resistor | Safety: STO (delay) + Functional Safety
Servo AmplifiersSanyo Denki
88 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki SANMOTION R 3E Servo Amplifier Built-in Positioning

Brand Sanyo Denki·Servo Amplifiers

Available part numbers (88)

RS3E01A0CA4, RS3E02A0CA4, RS3E03A0CA4, RS3E01A0CL4, RS3E02A0CL4, RS3E03A0CL4, RS3E01A0CAE, RS3E02A0CAE, RS3E03A0CAE, RS3E01A0CLE + 78 more — see full table ↓

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
