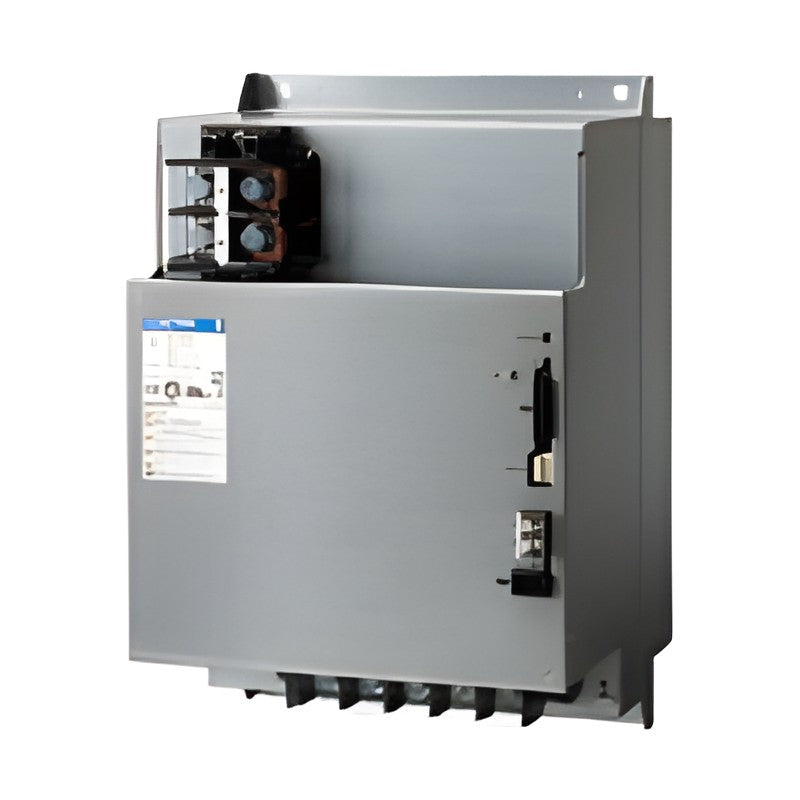

• Sanyo Denki SANMOTION R 400 VAC Multi-Axis Amplifier Unit (25-600 A)
1 1

Sanyo Denki SANMOTION R 400 VAC Multi-Axis Amplifier Unit (25-600 A)

Sanyo Denki SANMOTION R 400 VAC Multi-Axis Amplifier Unit (25-600 A)

DC-bus-fed amplifier units for SANMOTION R 400 VAC multi-axis servo systems, driving motors from 0.55 kW to 37 kW.

Key features

  • Amplifier capacity 25, 50, 75, 150, 300 and 600 A
  • 457 to 747 VDC main circuit input from the power supply unit
  • 24 VDC control circuit power supply
  • Battery-less absolute encoder compatible
  • Open frame (25-150 A) or enclosure (300-600 A)

Specifications

Brand Sanyo Denki
Series SANMOTION R multi-axis
Main circuit 457 to 747 VDC
Encoder Battery-less absolute
Height 380 mm
Source Sanyo Denki SANMOTION R 400 VAC leaflet S1045B004 '22.3, p. 1-2
RM3DCA025 Capacity: 25 A | Motor: 0.55 to 2 kW | Frame: Open frame | Control: 24 VDC 1.3 A
RM3DCA050 Capacity: 50 A | Motor: 1 to 3.5 kW | Frame: Open frame | Control: 24 VDC 1.3 A
RM3DCA075 Capacity: 75 A | Motor: 3.5 to 5.5 kW | Frame: Open frame | Control: 24 VDC 1.3 A
RM3DCA150 Capacity: 150 A | Motor: 5.5 to 15 kW | Frame: Open frame | Control: 24 VDC 1.3 A
RM3DCB300 Capacity: 300 A | Motor: 20 to 30 kW | Frame: Enclosure | Control: 24 VDC 2.2 A
RM3DCB600 Capacity: 600 A | Motor: 37 kW | Frame: Enclosure | Control: 24 VDC 2.6 A
Servo AmplifiersSanyo Denki
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki SANMOTION R 400 VAC Multi-Axis Amplifier Unit (25-600 A)

Brand Sanyo Denki·Servo Amplifiers

Available part numbers (6)

RM3DCA025, RM3DCA050, RM3DCA075, RM3DCA150, RM3DCB300, RM3DCB600

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
RM3DCA025Capacity: 25 A | Motor: 0.55 to 2 kW | Frame: Open frame | Control: 24 VDC 1.3 A
RM3DCA050Capacity: 50 A | Motor: 1 to 3.5 kW | Frame: Open frame | Control: 24 VDC 1.3 A
RM3DCA075Capacity: 75 A | Motor: 3.5 to 5.5 kW | Frame: Open frame | Control: 24 VDC 1.3 A
RM3DCA150Capacity: 150 A | Motor: 5.5 to 15 kW | Frame: Open frame | Control: 24 VDC 1.3 A
RM3DCB300Capacity: 300 A | Motor: 20 to 30 kW | Frame: Enclosure | Control: 24 VDC 2.2 A
RM3DCB600Capacity: 600 A | Motor: 37 kW | Frame: Enclosure | Control: 24 VDC 2.6 A
