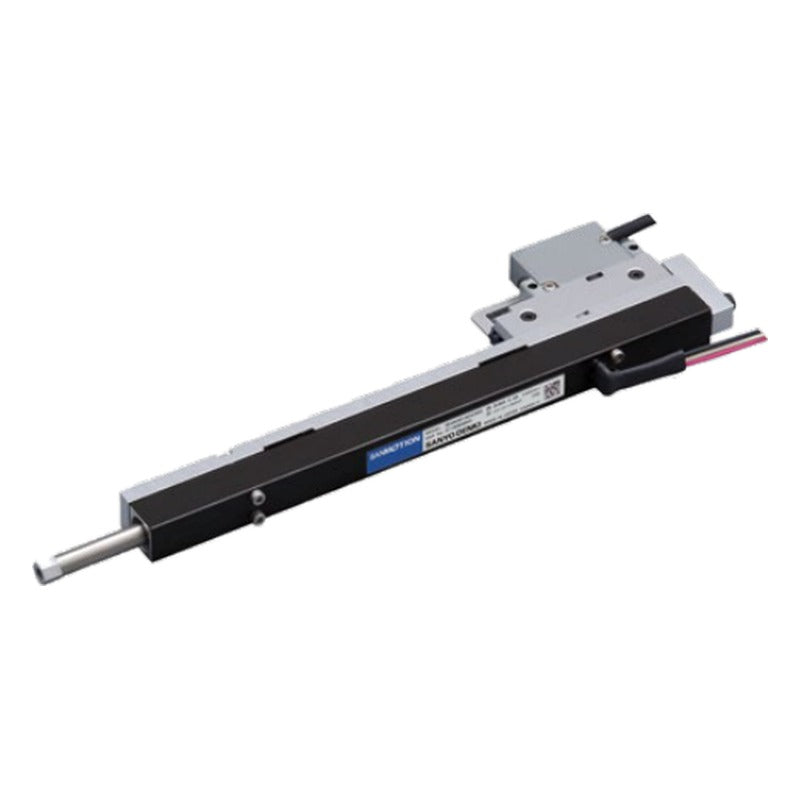

Sanyo Denki SANMOTION R 48 VDC Cylinder Linear Servo Motor (12/20 mm)

Sanyo Denki SANMOTION R 48 VDC Cylinder Linear Servo Motor (12/20 mm)

Compact high-thrust cylinder linear servo motors with built-in linear encoder and linear guide, ideal for chip mounter heads.

Key features

  • Motor widths 12 mm and 20 mm; rated thrust 3.0 to 15 N
  • Built-in incremental linear encoder, 1 µm resolution (x4)
  • Built-in linear guide simplifies system design
  • Multiple axes can be placed side by side for compact multi-axis heads
  • Driven by RF2G21L8A10, RS2K04AAHA5 or RF2J24A8HL5 amplifiers

Specifications

Drive method Sinusoidal, permanent magnet
Power supply 48 VDC
Linear encoder Incremental, 1 µm (x4)
Encoder connector 9-pin D-sub
Compatible amplifiers RF2G21L8A10 / RS2K04AAHA5 / RF2J24A8HL5
Applications Chip mounters, semiconductor equipment
Source Sanyo Denki SANMOTION R 48 VDC catalog S0941B014 '25.7, p. 34-35
DE0AC0A1A03CX00 Width: 12 mm | Rated thrust: 3.0 N | Max. thrust: 8.5 N | Max. speed: 1.8 m/s | Motor mass: 152 g
DE0AC001A03CX00 Width: 12 mm | Rated thrust: 5.1 N | Max. thrust: 16.5 N | Max. speed: 2.0 m/s | Motor mass: 192 g
DE0BC005A05CX00 Width: 20 mm | Rated thrust: 15 N | Max. thrust: 50 N | Max. speed: 1.4 m/s | Motor mass: 450 g
Linear Servo MotorsSanyo Denki
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki SANMOTION R 48 VDC Cylinder Linear Servo Motor (12/20 mm)

Brand Sanyo Denki·Linear Servo Motors

Available part numbers (3)

DE0AC0A1A03CX00, DE0AC001A03CX00, DE0BC005A05CX00

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
DE0AC0A1A03CX00Width: 12 mm | Rated thrust: 3.0 N | Max. thrust: 8.5 N | Max. speed: 1.8 m/s | Motor mass: 152 g
DE0AC001A03CX00Width: 12 mm | Rated thrust: 5.1 N | Max. thrust: 16.5 N | Max. speed: 2.0 m/s | Motor mass: 192 g
DE0BC005A05CX00Width: 20 mm | Rated thrust: 15 N | Max. thrust: 50 N | Max. speed: 1.4 m/s | Motor mass: 450 g
