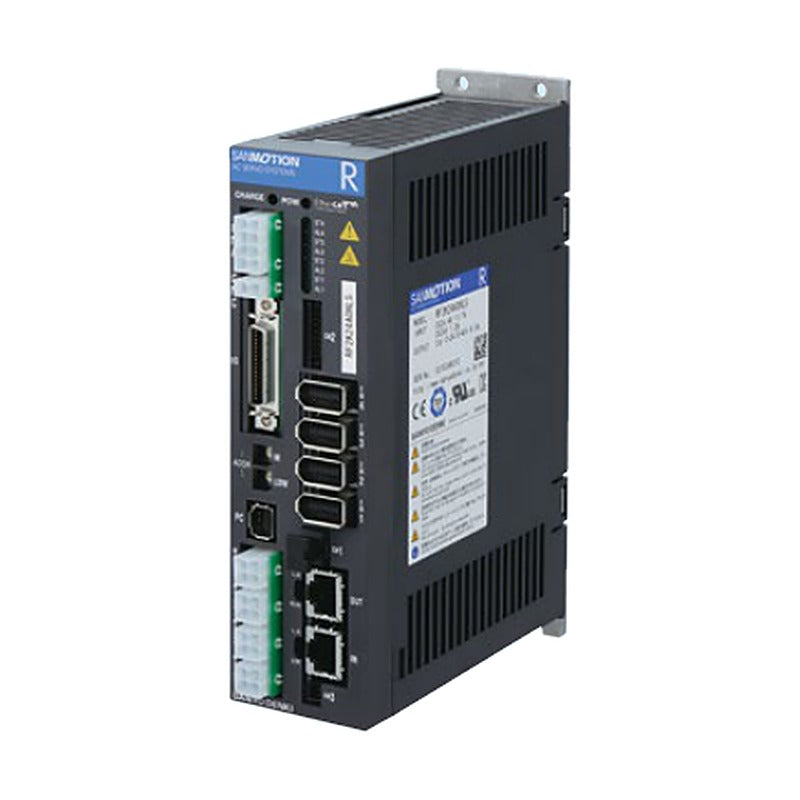

Sanyo Denki SANMOTION R 48 VDC Servo Amplifier (EtherCAT, 4-Axis)

Sanyo Denki SANMOTION R 48 VDC Servo Amplifier (EtherCAT, 4-Axis)

ADVANCED MODEL EtherCAT servo amplifiers that control up to four 48 VDC SANMOTION R servo motors from one unit.

Key features

  • Controls four axes with one unit for compact, space-saving systems
  • Regenerative energy shared between axes for energy savings
  • STO function (with delay circuit): IEC 61508 SIL3, PL e
  • No built-in regenerative resistor or DB; external resistor via CNC connector
  • 48 VDC main circuit, 24 VDC control circuit

Specifications

Series SANMOTION R ADVANCED MODEL
Interface EtherCAT
Axes 4
Main circuit 48 VDC ±10%
Control circuit 24 VDC ±10%
Functional safety STO (with delay circuit)
Dimensions 50 x 200 x 130 mm
Source Sanyo Denki SANMOTION R 48 VDC catalog S0941B014 '25.7, p. 7-8, 14-17, 35
RF2J14A0HL5 Capacity: 25 A/axis | Motor: Rotary (R2GAD102R only) | Encoder: Absolute | Total output: -
RF2J24A0HL5 Capacity: 40 A/axis | Motor: Rotary | Encoder: Absolute | Total output: Up to 120 W
RF2K24A0HL5 Capacity: 40 A/axis | Motor: Rotary | Encoder: Absolute | Total output: Up to 300 W
RF2J24A8HL5 Capacity: 40 A/axis | Motor: Cylinder linear | Encoder: Incremental | Total output: -
Servo AmplifiersSanyo Denki
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki SANMOTION R 48 VDC Servo Amplifier (EtherCAT, 4-Axis)

Brand Sanyo Denki·Servo Amplifiers

Available part numbers (4)

RF2J14A0HL5, RF2J24A0HL5, RF2K24A0HL5, RF2J24A8HL5

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
RF2J14A0HL5Capacity: 25 A/axis | Motor: Rotary (R2GAD102R only) | Encoder: Absolute | Total output: -
RF2J24A0HL5Capacity: 40 A/axis | Motor: Rotary | Encoder: Absolute | Total output: Up to 120 W
RF2K24A0HL5Capacity: 40 A/axis | Motor: Rotary | Encoder: Absolute | Total output: Up to 300 W
RF2J24A8HL5Capacity: 40 A/axis | Motor: Cylinder linear | Encoder: Incremental | Total output: -
