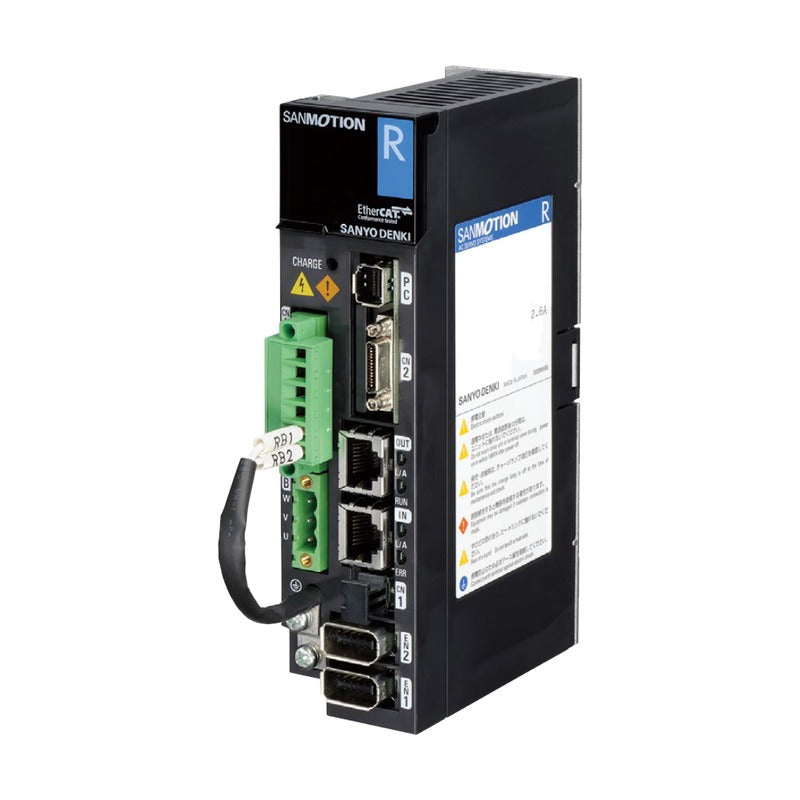

Sanyo Denki SANMOTION R 48 VDC Servo Amplifier (EtherCAT, 1-Axis)

Sanyo Denki SANMOTION R 48 VDC Servo Amplifier (EtherCAT, 1-Axis)

ADVANCED MODEL single-axis EtherCAT servo amplifiers for 48 VDC SANMOTION R rotary and cylinder linear servo motors.

Key features

  • EtherCAT interface with 0.125 ms communication cycle
  • Position, speed and torque control switched by parameters
  • STO function (with delay circuit): IEC 61508 SIL2, PL d
  • Built-in dynamic brake; models with or without built-in regenerative resistor
  • 48 VDC main circuit, 24 VDC control circuit

Specifications

Series SANMOTION R ADVANCED MODEL
Interface EtherCAT
Axes 1
Main circuit 48 VDC ±10%
Control circuit 24 VDC ±10%
Frequency response 800 Hz
Functional safety STO (with delay circuit)
Source Sanyo Denki SANMOTION R 48 VDC catalog S0941B014 '25.7, p. 8, 12-18, 35
RS2K02A2HA5 Capacity: 25 A | Motor: Rotary (R2GAD102R only) | Encoder: Absolute | Regen resistor: Built-in
RS2K04A2HA5 Capacity: 40 A | Motor: Rotary | Encoder: Absolute | Regen resistor: Built-in
RS2K04A2HL5 Capacity: 40 A | Motor: Rotary | Encoder: Absolute | Regen resistor: External option
RS2K04AAHA5 Capacity: 40 A | Motor: Cylinder linear | Encoder: Incremental | Regen resistor: Built-in
Servo AmplifiersSanyo Denki
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki SANMOTION R 48 VDC Servo Amplifier (EtherCAT, 1-Axis)

Brand Sanyo Denki·Servo Amplifiers

Available part numbers (4)

RS2K02A2HA5, RS2K04A2HA5, RS2K04A2HL5, RS2K04AAHA5

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
RS2K02A2HA5Capacity: 25 A | Motor: Rotary (R2GAD102R only) | Encoder: Absolute | Regen resistor: Built-in
RS2K04A2HA5Capacity: 40 A | Motor: Rotary | Encoder: Absolute | Regen resistor: Built-in
RS2K04A2HL5Capacity: 40 A | Motor: Rotary | Encoder: Absolute | Regen resistor: External option
RS2K04AAHA5Capacity: 40 A | Motor: Cylinder linear | Encoder: Incremental | Regen resistor: Built-in
