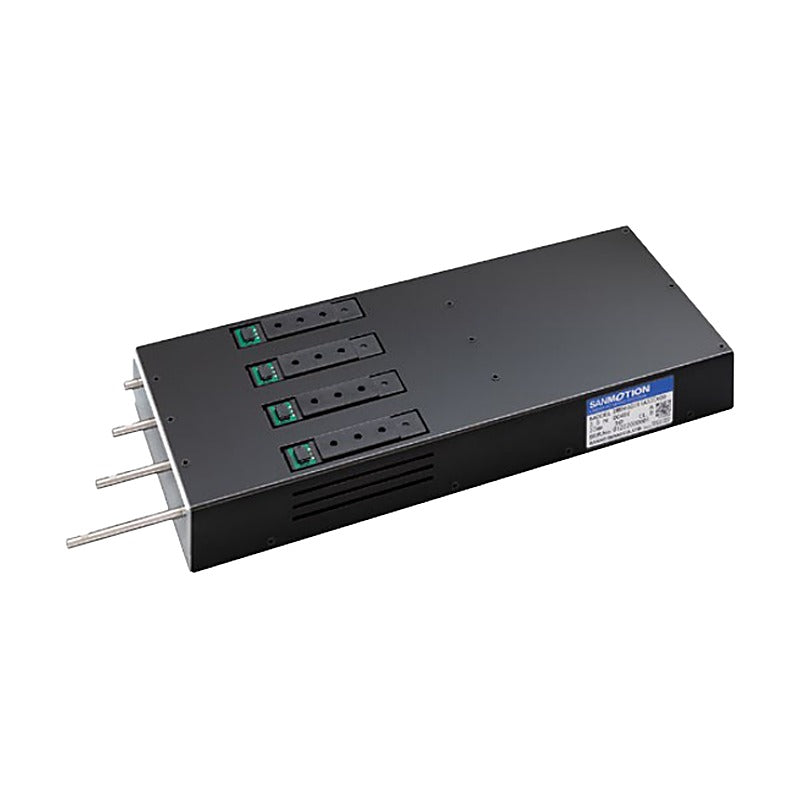

Sanyo Denki SANMOTION R Multi-Axis Linear Servo Motor Unit (4-Axis)

Pre-assembled unit integrating four 16 mm cylinder linear servo motors for PCB surface mounter heads and similar multi-axis applications.

Key features

Four cylinder linear servo motors integrated as one pre-assembled unit
Maximum thrust 11 N per axis from a compact 16 mm motor size
24 mm distance between axes; customizable up to 8 axes
Incremental linear encoder, 1.0 µm resolution (x4)
Driven by RF2G21L8A10, RS2K04AAHA5 or RF2J24A8HL5 amplifiers

Specifications

Drive method	Sinusoidal, permanent magnet
Power supply	48 VDC
Rated thrust	3.5 N
Maximum thrust	11 N
Max. speed	1.0 m/s
Distance between axes	24 mm
Motor mass	1300 g
Source	Sanyo Denki SANMOTION R 48 VDC catalog S0941B014 '25.7, p. 36

DM04GG011A37CX00

Axes: 4 | Rated thrust: 3.5 N | Max. thrust: 11 N | Mover mass: 37 g

Linear Servo MotorsSanyo Denki

1 product code available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki SANMOTION R Multi-Axis Linear Servo Motor Unit (4-Axis)

Brand Sanyo Denki·Linear Servo Motors

Available part numbers (1)

DM04GG011A37CX00

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
