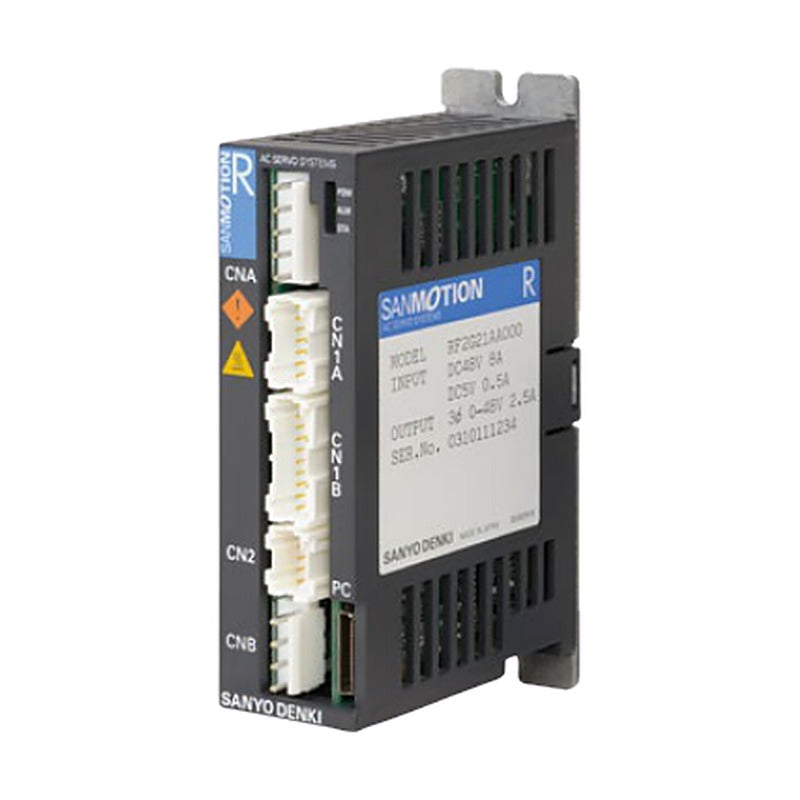

Sanyo Denki SANMOTION R 48 VDC Servo Amplifier (Pulse Input, 1-Axis)

Sanyo Denki SANMOTION R 48 VDC Servo Amplifier (Pulse Input, 1-Axis)

ADVANCED MODEL single-axis pulse-input servo amplifiers for 48 VDC SANMOTION R rotary and cylinder linear servo motors.

Key features

  • 48 VDC main circuit and 5 VDC control circuit power supply
  • Position control by pulse command, sinking (NPN) general-purpose outputs
  • About 0.30 times the volume and 0.31 times the weight of RS2A01A
  • Built-in dynamic brake; external regenerative resistor as option
  • Tray type, 0.25 kg; UL, cUL, CE, UKCA and KC conformance

Specifications

Series SANMOTION R ADVANCED MODEL
Interface Pulse input
Axes 1
Main circuit 48 VDC ±10%
Control circuit 5 VDC ±5%
Frequency response 1200 Hz
Dimensions 30 x 116 x 70 mm
Source Sanyo Denki SANMOTION R 48 VDC catalog S0941B014 '25.7, p. 8-11, 35
RF2G11A0A00 Capacity: 25 A | Motor: Rotary (R2GAD102R only) | Encoder: Absolute
RF2G21A0A00 Capacity: 40 A | Motor: Rotary | Encoder: Absolute
RF2G21L8A10 Capacity: 40 A | Motor: Cylinder linear | Encoder: Incremental
Servo AmplifiersSanyo Denki
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki SANMOTION R 48 VDC Servo Amplifier (Pulse Input, 1-Axis)

Brand Sanyo Denki·Servo Amplifiers

Available part numbers (3)

RF2G11A0A00, RF2G21A0A00, RF2G21L8A10

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
RF2G11A0A00Capacity: 25 A | Motor: Rotary (R2GAD102R only) | Encoder: Absolute
RF2G21A0A00Capacity: 40 A | Motor: Rotary | Encoder: Absolute
RF2G21L8A10Capacity: 40 A | Motor: Cylinder linear | Encoder: Incremental
