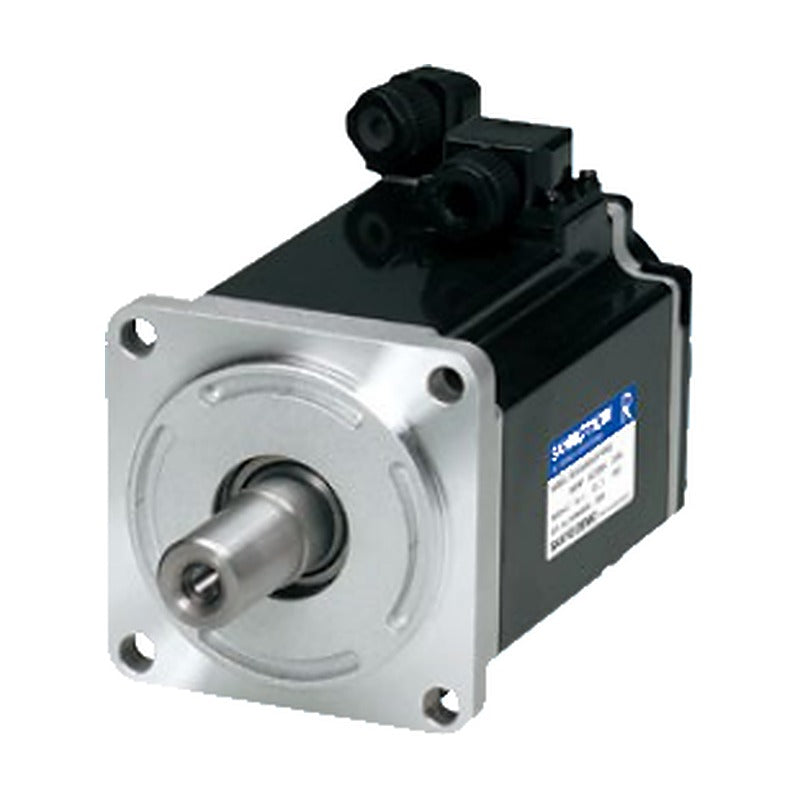

Sanyo Denki SANMOTION R 48 VDC R1 Servo Motor (40/60 mm sq., 50-200 W)

Sanyo Denki SANMOTION R 48 VDC R1 Servo Motor (40/60 mm sq., 50-200 W)

Small-capacity, low-inertia, high-power-rate SANMOTION R1 servo motors for 48 VDC servo systems in 40 and 60 mm flange sizes.

Key features

  • Rated output 50, 100 W (40 mm sq.) and 200 W (60 mm sq.)
  • Battery-less absolute encoder (GAER) or single-turn absolute encoder (PA035S)
  • Available without brake or with 24 VDC holding brake
  • IP65 protection; CE, UKCA and UL conformance
  • Compatible with RF2G21A0A00, RS2K04A2H*5 and RF2K24A0HL5 amplifiers

Specifications

Series SANMOTION R1 (low inertia)
Power supply 48 VDC
Protection IP65
Rated speed 3000 min-1
Output shaft Straight, no oil seal
Connection Cable (no connector)
Standards CE, UKCA, UL
Source Sanyo Denki SANMOTION R 48 VDC catalog S0941B014 '25.7, p. 8, 19, 22, 24
R1GA04005FXR03M Flange: 40 mm sq. | Rated output: 50 W | Rated torque: 0.159 N·m | Encoder: Battery-less abs. (GAER) | Brake: None
R1GA04005FXH03M Flange: 40 mm sq. | Rated output: 50 W | Rated torque: 0.159 N·m | Encoder: Single-turn abs. (PA035S) | Brake: None
R1GA04005FCR03M Flange: 40 mm sq. | Rated output: 50 W | Rated torque: 0.159 N·m | Encoder: Battery-less abs. (GAER) | Brake: 24 VDC
R1GA04005FCH03M Flange: 40 mm sq. | Rated output: 50 W | Rated torque: 0.159 N·m | Encoder: Single-turn abs. (PA035S) | Brake: 24 VDC
R1GA04010FXR03M Flange: 40 mm sq. | Rated output: 100 W | Rated torque: 0.318 N·m | Encoder: Battery-less abs. (GAER) | Brake: None
R1GA04010FXH03M Flange: 40 mm sq. | Rated output: 100 W | Rated torque: 0.318 N·m | Encoder: Single-turn abs. (PA035S) | Brake: None
R1GA04010FCR03M Flange: 40 mm sq. | Rated output: 100 W | Rated torque: 0.318 N·m | Encoder: Battery-less abs. (GAER) | Brake: 24 VDC
R1GA04010FCH03M Flange: 40 mm sq. | Rated output: 100 W | Rated torque: 0.318 N·m | Encoder: Single-turn abs. (PA035S) | Brake: 24 VDC
R1GA06020DXR03M Flange: 60 mm sq. | Rated output: 200 W | Rated torque: 0.637 N·m | Encoder: Battery-less abs. (GAER) | Brake: None
R1GA06020DXH03M Flange: 60 mm sq. | Rated output: 200 W | Rated torque: 0.637 N·m | Encoder: Single-turn abs. (PA035S) | Brake: None
R1GA06020DCR03M Flange: 60 mm sq. | Rated output: 200 W | Rated torque: 0.637 N·m | Encoder: Battery-less abs. (GAER) | Brake: 24 VDC
R1GA06020DCH03M Flange: 60 mm sq. | Rated output: 200 W | Rated torque: 0.637 N·m | Encoder: Single-turn abs. (PA035S) | Brake: 24 VDC
Servo MotorsSanyo Denki
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki SANMOTION R 48 VDC R1 Servo Motor (40/60 mm sq., 50-200 W)

Brand Sanyo Denki·Servo Motors

Available part numbers (12)

R1GA04005FXR03M, R1GA04005FXH03M, R1GA04005FCR03M, R1GA04005FCH03M, R1GA04010FXR03M, R1GA04010FXH03M, R1GA04010FCR03M, R1GA04010FCH03M, R1GA06020DXR03M, R1GA06020DXH03M + 2 more — see full table ↓

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
R1GA04005FXR03MFlange: 40 mm sq. | Rated output: 50 W | Rated torque: 0.159 N·m | Encoder: Battery-less abs. (GAER) | Brake: None
R1GA04005FXH03MFlange: 40 mm sq. | Rated output: 50 W | Rated torque: 0.159 N·m | Encoder: Single-turn abs. (PA035S) | Brake: None
R1GA04005FCR03MFlange: 40 mm sq. | Rated output: 50 W | Rated torque: 0.159 N·m | Encoder: Battery-less abs. (GAER) | Brake: 24 VDC
R1GA04005FCH03MFlange: 40 mm sq. | Rated output: 50 W | Rated torque: 0.159 N·m | Encoder: Single-turn abs. (PA035S) | Brake: 24 VDC
R1GA04010FXR03MFlange: 40 mm sq. | Rated output: 100 W | Rated torque: 0.318 N·m | Encoder: Battery-less abs. (GAER) | Brake: None
R1GA04010FXH03MFlange: 40 mm sq. | Rated output: 100 W | Rated torque: 0.318 N·m | Encoder: Single-turn abs. (PA035S) | Brake: None
R1GA04010FCR03MFlange: 40 mm sq. | Rated output: 100 W | Rated torque: 0.318 N·m | Encoder: Battery-less abs. (GAER) | Brake: 24 VDC
R1GA04010FCH03MFlange: 40 mm sq. | Rated output: 100 W | Rated torque: 0.318 N·m | Encoder: Single-turn abs. (PA035S) | Brake: 24 VDC
R1GA06020DXR03MFlange: 60 mm sq. | Rated output: 200 W | Rated torque: 0.637 N·m | Encoder: Battery-less abs. (GAER) | Brake: None
R1GA06020DXH03MFlange: 60 mm sq. | Rated output: 200 W | Rated torque: 0.637 N·m | Encoder: Single-turn abs. (PA035S) | Brake: None
R1GA06020DCR03MFlange: 60 mm sq. | Rated output: 200 W | Rated torque: 0.637 N·m | Encoder: Battery-less abs. (GAER) | Brake: 24 VDC
R1GA06020DCH03MFlange: 60 mm sq. | Rated output: 200 W | Rated torque: 0.637 N·m | Encoder: Single-turn abs. (PA035S) | Brake: 24 VDC
