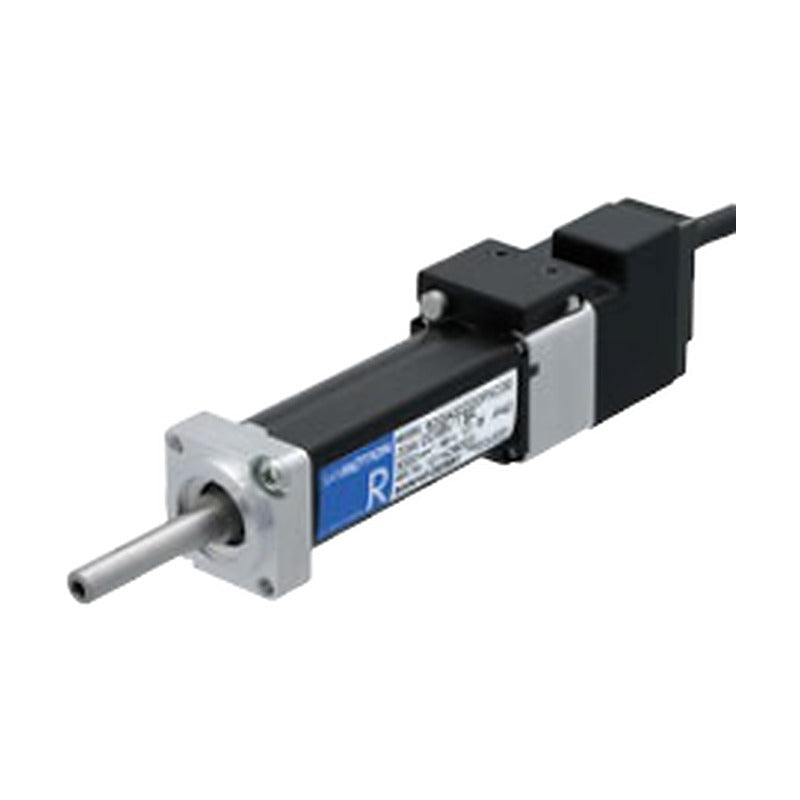

Sanyo Denki SANMOTION R 48 VDC R2 Servo Motor (14/20 mm sq., 2.4-30 W)

Sanyo Denki SANMOTION R 48 VDC R2 Servo Motor (14/20 mm sq., 2.4-30 W)

Compact, small-capacity, medium-inertia SANMOTION R2 servo motors for 48 VDC low-voltage servo systems in 14 and 20 mm flange sizes.

Key features

  • Rated output 2.4 W (14 mm sq.) and 20 W / 30 W (20 mm sq.)
  • Single-turn absolute encoder as standard
  • Straight shaft, no oil seal, fixed cable lead wires (no connector)
  • IP40 protection rating
  • Driven by ADVANCED MODEL 48 VDC pulse input and EtherCAT servo amplifiers

Specifications

Series SANMOTION R2 (medium inertia)
Power supply 48 VDC
Protection IP40
Holding brake None
Output shaft Straight, no oil seal
Connection Cable (no connector)
Compatible amplifiers RF2G11A0A00 / RF2G21A0A00 / RS2K0... / RF2J...
Source Sanyo Denki SANMOTION R 48 VDC catalog S0941B014 '25.7, p. 7-8, 19-20, 23
R2GAD102RMXH50 Flange: 14 mm sq. | Rated output: 2.4 W | Rated speed: 1000 min-1 | Rated torque: 0.023 N·m | Encoder: Single-turn abs. (PA035S)
R2GA02D20FXC00 Flange: 20 mm sq. | Rated output: 20 W | Rated speed: 3000 min-1 | Rated torque: 0.064 N·m | Encoder: Single-turn abs. (MA018)
R2GA02D30FXC00 Flange: 20 mm sq. | Rated output: 30 W | Rated speed: 3000 min-1 | Rated torque: 0.095 N·m | Encoder: Single-turn abs. (MA018)
Servo MotorsSanyo Denki
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki SANMOTION R 48 VDC R2 Servo Motor (14/20 mm sq., 2.4-30 W)

Brand Sanyo Denki·Servo Motors

Available part numbers (3)

R2GAD102RMXH50, R2GA02D20FXC00, R2GA02D30FXC00

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
R2GAD102RMXH50Flange: 14 mm sq. | Rated output: 2.4 W | Rated speed: 1000 min-1 | Rated torque: 0.023 N·m | Encoder: Single-turn abs. (PA035S)
R2GA02D20FXC00Flange: 20 mm sq. | Rated output: 20 W | Rated speed: 3000 min-1 | Rated torque: 0.064 N·m | Encoder: Single-turn abs. (MA018)
R2GA02D30FXC00Flange: 20 mm sq. | Rated output: 30 W | Rated speed: 3000 min-1 | Rated torque: 0.095 N·m | Encoder: Single-turn abs. (MA018)
