Sanyo Denki SANMOTION R Linear Servo Motor Flat Type

Sanyo Denki SANMOTION R Linear Servo Motor Flat Type

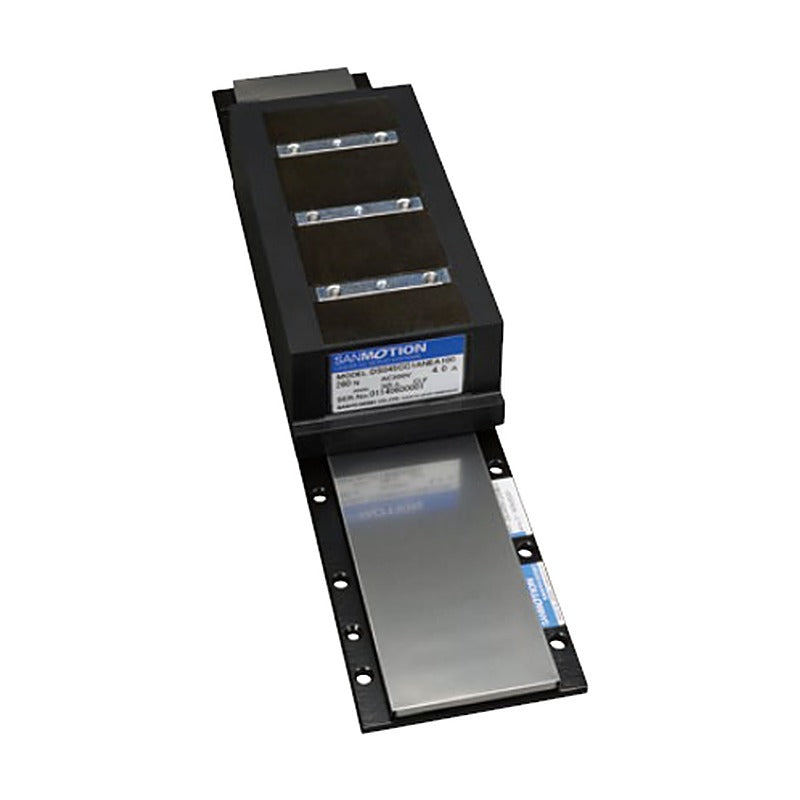

Flat type (with core) linear servo motor coils DS025 to DS065 and DS050, with DS-MC/MD magnet rails, 140 to 340 N rated thrust.

Key features

  • Low-profile flat construction for compact axes
  • Direct-drive linear motion without ball screws
  • Compact coil with large thrust and low cogging
  • Optional hall sensor; 300 or 600 mm coil cable
  • Magnet rails in 64/128/256/512 mm lengths, with or without magnet cover
  • Driven by SANMOTION R 3E Model analog/pulse or EtherCAT amplifiers

Specifications

Series SANMOTION R linear servo motors
Construction With core
Power supply 200 VAC
Type Flat (DS)
Max. speed 2.6 to 3.2 m/s
Coil mass 1.1 to 2.5 kg
Source Sanyo Denki SANMOTION R AC Servo Systems 100/200 VAC catalogue Ver.5.3, p. 163, 170-172
DS025CC1ANAA100 Part: Coil | Rated/max thrust: 140/270 N | Amplifier: RS3A02 | Hall sensor: Without | Cable: 300 mm
DS025CC1ANAA200 Part: Coil | Rated/max thrust: 140/270 N | Amplifier: RS3A02 | Hall sensor: Without | Cable: 600 mm
DS025CC1ANEA100 Part: Coil | Rated/max thrust: 140/270 N | Amplifier: RS3A02 | Hall sensor: With | Cable: 300 mm
DS025CC1ANEA200 Part: Coil | Rated/max thrust: 140/270 N | Amplifier: RS3A02 | Hall sensor: With | Cable: 600 mm
DS035CC1ANAA100 Part: Coil | Rated/max thrust: 200/390 N | Amplifier: RS3A03 | Hall sensor: Without | Cable: 300 mm
DS035CC1ANAA200 Part: Coil | Rated/max thrust: 200/390 N | Amplifier: RS3A03 | Hall sensor: Without | Cable: 600 mm
DS035CC1ANEA100 Part: Coil | Rated/max thrust: 200/390 N | Amplifier: RS3A03 | Hall sensor: With | Cable: 300 mm
DS035CC1ANEA200 Part: Coil | Rated/max thrust: 200/390 N | Amplifier: RS3A03 | Hall sensor: With | Cable: 600 mm
DS045CC1ANAA100 Part: Coil | Rated/max thrust: 260/500 N | Amplifier: RS3A03 | Hall sensor: Without | Cable: 300 mm
DS045CC1ANAA200 Part: Coil | Rated/max thrust: 260/500 N | Amplifier: RS3A03 | Hall sensor: Without | Cable: 600 mm
DS045CC1ANEA100 Part: Coil | Rated/max thrust: 260/500 N | Amplifier: RS3A03 | Hall sensor: With | Cable: 300 mm
DS045CC1ANEA200 Part: Coil | Rated/max thrust: 260/500 N | Amplifier: RS3A03 | Hall sensor: With | Cable: 600 mm
DS055CC1ANAA100 Part: Coil | Rated/max thrust: 310/600 N | Amplifier: RS3A03 | Hall sensor: Without | Cable: 300 mm
DS055CC1ANAA200 Part: Coil | Rated/max thrust: 310/600 N | Amplifier: RS3A03 | Hall sensor: Without | Cable: 600 mm
DS055CC1ANEA100 Part: Coil | Rated/max thrust: 310/600 N | Amplifier: RS3A03 | Hall sensor: With | Cable: 300 mm
DS055CC1ANEA200 Part: Coil | Rated/max thrust: 310/600 N | Amplifier: RS3A03 | Hall sensor: With | Cable: 600 mm
DS065CC1ANAA100 Part: Coil | Rated/max thrust: 340/700 N | Amplifier: RS3A05 | Hall sensor: Without | Cable: 300 mm
DS065CC1ANAA200 Part: Coil | Rated/max thrust: 340/700 N | Amplifier: RS3A05 | Hall sensor: Without | Cable: 600 mm
DS065CC1ANEA100 Part: Coil | Rated/max thrust: 340/700 N | Amplifier: RS3A05 | Hall sensor: With | Cable: 300 mm
DS065CC1ANEA200 Part: Coil | Rated/max thrust: 340/700 N | Amplifier: RS3A05 | Hall sensor: With | Cable: 600 mm
DS050CD1ANAA100 Part: Coil | Rated/max thrust: 340/630 N | Amplifier: RS3A03 | Hall sensor: Without | Cable: 300 mm
DS050CD1ANAA200 Part: Coil | Rated/max thrust: 340/630 N | Amplifier: RS3A03 | Hall sensor: Without | Cable: 600 mm
DS050CD1ANEA100 Part: Coil | Rated/max thrust: 340/630 N | Amplifier: RS3A03 | Hall sensor: With | Cable: 300 mm
DS050CD1ANEA200 Part: Coil | Rated/max thrust: 340/630 N | Amplifier: RS3A03 | Hall sensor: With | Cable: 600 mm
DS025MC064A00 Part: Magnet rail | Length: 64 mm | Mass: 0.1 kg | Magnet cover: Without
DS025MC064B00 Part: Magnet rail | Length: 64 mm | Mass: 0.1 kg | Magnet cover: With
DS025MC128A00 Part: Magnet rail | Length: 128 mm | Mass: 0.3 kg | Magnet cover: Without
DS025MC128B00 Part: Magnet rail | Length: 128 mm | Mass: 0.3 kg | Magnet cover: With
DS025MC256A00 Part: Magnet rail | Length: 256 mm | Mass: 0.5 kg | Magnet cover: Without
DS025MC256B00 Part: Magnet rail | Length: 256 mm | Mass: 0.5 kg | Magnet cover: With
DS025MC512A00 Part: Magnet rail | Length: 512 mm | Mass: 1.0 kg | Magnet cover: Without
DS025MC512B00 Part: Magnet rail | Length: 512 mm | Mass: 1.0 kg | Magnet cover: With
DS035MC064A00 Part: Magnet rail | Length: 64 mm | Mass: 0.2 kg | Magnet cover: Without
DS035MC064B00 Part: Magnet rail | Length: 64 mm | Mass: 0.2 kg | Magnet cover: With
DS035MC128A00 Part: Magnet rail | Length: 128 mm | Mass: 0.3 kg | Magnet cover: Without
DS035MC128B00 Part: Magnet rail | Length: 128 mm | Mass: 0.3 kg | Magnet cover: With
DS035MC256A00 Part: Magnet rail | Length: 256 mm | Mass: 0.7 kg | Magnet cover: Without
DS035MC256B00 Part: Magnet rail | Length: 256 mm | Mass: 0.7 kg | Magnet cover: With
DS035MC512A00 Part: Magnet rail | Length: 512 mm | Mass: 1.3 kg | Magnet cover: Without
DS035MC512B00 Part: Magnet rail | Length: 512 mm | Mass: 1.3 kg | Magnet cover: With
DS045MC064A00 Part: Magnet rail | Length: 64 mm | Mass: 0.2 kg | Magnet cover: Without
DS045MC064B00 Part: Magnet rail | Length: 64 mm | Mass: 0.2 kg | Magnet cover: With
DS045MC128A00 Part: Magnet rail | Length: 128 mm | Mass: 0.4 kg | Magnet cover: Without
DS045MC128B00 Part: Magnet rail | Length: 128 mm | Mass: 0.4 kg | Magnet cover: With
DS045MC256A00 Part: Magnet rail | Length: 256 mm | Mass: 0.8 kg | Magnet cover: Without
DS045MC256B00 Part: Magnet rail | Length: 256 mm | Mass: 0.8 kg | Magnet cover: With
DS045MC512A00 Part: Magnet rail | Length: 512 mm | Mass: 1.5 kg | Magnet cover: Without
DS045MC512B00 Part: Magnet rail | Length: 512 mm | Mass: 1.5 kg | Magnet cover: With
DS055MC064A00 Part: Magnet rail | Length: 64 mm | Mass: 0.3 kg | Magnet cover: Without
DS055MC064B00 Part: Magnet rail | Length: 64 mm | Mass: 0.3 kg | Magnet cover: With
DS055MC128A00 Part: Magnet rail | Length: 128 mm | Mass: 0.6 kg | Magnet cover: Without
DS055MC128B00 Part: Magnet rail | Length: 128 mm | Mass: 0.6 kg | Magnet cover: With
DS055MC256A00 Part: Magnet rail | Length: 256 mm | Mass: 1.2 kg | Magnet cover: Without
DS055MC256B00 Part: Magnet rail | Length: 256 mm | Mass: 1.2 kg | Magnet cover: With
DS055MC512A00 Part: Magnet rail | Length: 512 mm | Mass: 2.4 kg | Magnet cover: Without
DS055MC512B00 Part: Magnet rail | Length: 512 mm | Mass: 2.4 kg | Magnet cover: With
DS065MC064A00 Part: Magnet rail | Length: 64 mm | Mass: 0.4 kg | Magnet cover: Without
DS065MC064B00 Part: Magnet rail | Length: 64 mm | Mass: 0.4 kg | Magnet cover: With
DS065MC128A00 Part: Magnet rail | Length: 128 mm | Mass: 0.7 kg | Magnet cover: Without
DS065MC128B00 Part: Magnet rail | Length: 128 mm | Mass: 0.7 kg | Magnet cover: With
DS065MC256A00 Part: Magnet rail | Length: 256 mm | Mass: 1.4 kg | Magnet cover: Without
DS065MC256B00 Part: Magnet rail | Length: 256 mm | Mass: 1.4 kg | Magnet cover: With
DS065MC512A00 Part: Magnet rail | Length: 512 mm | Mass: 2.8 kg | Magnet cover: Without
DS065MC512B00 Part: Magnet rail | Length: 512 mm | Mass: 2.8 kg | Magnet cover: With
DS050MD064A00 Part: Magnet rail | Length: 64 mm | Mass: 0.2 kg | Magnet cover: Without
DS050MD064B00 Part: Magnet rail | Length: 64 mm | Mass: 0.2 kg | Magnet cover: With
DS050MD128A00 Part: Magnet rail | Length: 128 mm | Mass: 0.5 kg | Magnet cover: Without
DS050MD128B00 Part: Magnet rail | Length: 128 mm | Mass: 0.5 kg | Magnet cover: With
DS050MD256A00 Part: Magnet rail | Length: 256 mm | Mass: 0.9 kg | Magnet cover: Without
DS050MD256B00 Part: Magnet rail | Length: 256 mm | Mass: 0.9 kg | Magnet cover: With
DS050MD512A00 Part: Magnet rail | Length: 512 mm | Mass: 1.8 kg | Magnet cover: Without
DS050MD512B00 Part: Magnet rail | Length: 512 mm | Mass: 1.8 kg | Magnet cover: With
