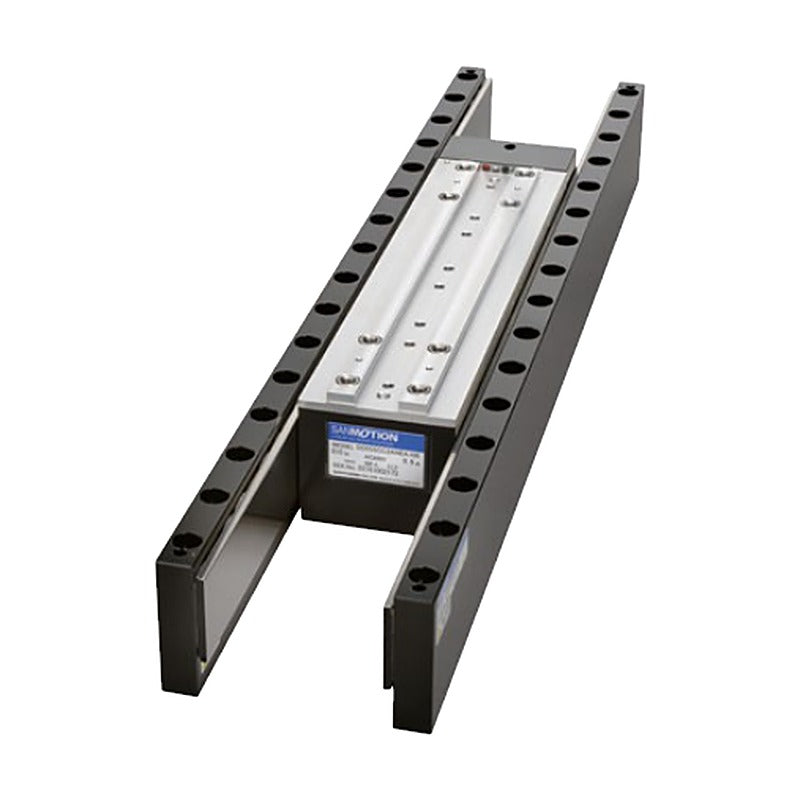

Sanyo Denki SANMOTION R Linear Servo Motor Twin Magnet Type

Sanyo Denki SANMOTION R Linear Servo Motor Twin Magnet Type

Twin-magnet type (with core) linear servo motor coils DD035/DD045 and matching DD-MB magnet rails, 610 to 800 N rated thrust.

Key features

  • Direct-drive linear motion without ball screws
  • Compact coil with large thrust and low cogging
  • Twin magnet rails cancel magnetic attraction on the guide
  • Optional hall sensor; 300 or 600 mm coil cable
  • Magnet rails in 64/128/256/512 mm lengths, with or without magnet cover

Specifications

Series SANMOTION R linear servo motors
Construction With core
Power supply 200 VAC
Type Twin magnet (DD)
DD035 coil 2.0/3.0 m/s rated/max, 5.0 kg
DD045 coil 1.9/3.0 m/s rated/max, 8.6 kg
Amplifier RS3A07L
Source Sanyo Denki SANMOTION R AC Servo Systems 100/200 VAC catalogue Ver.5.3, p. 163, 168-169
DD035CC2ANAA100 Part: Coil | Rated/max thrust: 610/1400 N | Hall sensor: Without | Cable: 300 mm
DD035CC2ANAA200 Part: Coil | Rated/max thrust: 610/1400 N | Hall sensor: Without | Cable: 600 mm
DD035CC2ANEA100 Part: Coil | Rated/max thrust: 610/1400 N | Hall sensor: With | Cable: 300 mm
DD035CC2ANEA200 Part: Coil | Rated/max thrust: 610/1400 N | Hall sensor: With | Cable: 600 mm
DD045CB4ANAA100 Part: Coil | Rated/max thrust: 800/2200 N | Hall sensor: Without | Cable: 300 mm
DD045CB4ANAA200 Part: Coil | Rated/max thrust: 800/2200 N | Hall sensor: Without | Cable: 600 mm
DD045CB4ANEA100 Part: Coil | Rated/max thrust: 800/2200 N | Hall sensor: With | Cable: 300 mm
DD045CB4ANEA200 Part: Coil | Rated/max thrust: 800/2200 N | Hall sensor: With | Cable: 600 mm
DD035MB064A00 Part: Magnet rail DD035 | Length: 64 mm | Mass: 0.9 kg | Magnet cover: Without
DD035MB064B00 Part: Magnet rail DD035 | Length: 64 mm | Mass: 0.9 kg | Magnet cover: With
DD035MB128A00 Part: Magnet rail DD035 | Length: 128 mm | Mass: 1.9 kg | Magnet cover: Without
DD035MB128B00 Part: Magnet rail DD035 | Length: 128 mm | Mass: 1.9 kg | Magnet cover: With
DD035MB256A00 Part: Magnet rail DD035 | Length: 256 mm | Mass: 3.7 kg | Magnet cover: Without
DD035MB256B00 Part: Magnet rail DD035 | Length: 256 mm | Mass: 3.7 kg | Magnet cover: With
DD035MB512A00 Part: Magnet rail DD035 | Length: 512 mm | Mass: 7.5 kg | Magnet cover: Without
DD035MB512B00 Part: Magnet rail DD035 | Length: 512 mm | Mass: 7.5 kg | Magnet cover: With
DD045MB064A00 Part: Magnet rail DD045 | Length: 64 mm | Mass: 1.4 kg | Magnet cover: Without
DD045MB064B00 Part: Magnet rail DD045 | Length: 64 mm | Mass: 1.4 kg | Magnet cover: With
DD045MB128A00 Part: Magnet rail DD045 | Length: 128 mm | Mass: 2.8 kg | Magnet cover: Without
DD045MB128B00 Part: Magnet rail DD045 | Length: 128 mm | Mass: 2.8 kg | Magnet cover: With
DD045MB256A00 Part: Magnet rail DD045 | Length: 256 mm | Mass: 5.5 kg | Magnet cover: Without
DD045MB256B00 Part: Magnet rail DD045 | Length: 256 mm | Mass: 5.5 kg | Magnet cover: With
DD045MB512A00 Part: Magnet rail DD045 | Length: 512 mm | Mass: 11.1 kg | Magnet cover: Without
DD045MB512B00 Part: Magnet rail DD045 | Length: 512 mm | Mass: 11.1 kg | Magnet cover: With
Linear Servo MotorsSanyo Denki
24 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki SANMOTION R Linear Servo Motor Twin Magnet Type

Brand Sanyo Denki·Linear Servo Motors

Available part numbers (24)

DD035CC2ANAA100, DD035CC2ANAA200, DD035CC2ANEA100, DD035CC2ANEA200, DD045CB4ANAA100, DD045CB4ANAA200, DD045CB4ANEA100, DD045CB4ANEA200, DD035MB064A00, DD035MB064B00 + 14 more — see full table ↓

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
DD035CC2ANAA100Part: Coil | Rated/max thrust: 610/1400 N | Hall sensor: Without | Cable: 300 mm
DD035CC2ANAA200Part: Coil | Rated/max thrust: 610/1400 N | Hall sensor: Without | Cable: 600 mm
DD035CC2ANEA100Part: Coil | Rated/max thrust: 610/1400 N | Hall sensor: With | Cable: 300 mm
DD035CC2ANEA200Part: Coil | Rated/max thrust: 610/1400 N | Hall sensor: With | Cable: 600 mm
DD045CB4ANAA100Part: Coil | Rated/max thrust: 800/2200 N | Hall sensor: Without | Cable: 300 mm
DD045CB4ANAA200Part: Coil | Rated/max thrust: 800/2200 N | Hall sensor: Without | Cable: 600 mm
DD045CB4ANEA100Part: Coil | Rated/max thrust: 800/2200 N | Hall sensor: With | Cable: 300 mm
DD045CB4ANEA200Part: Coil | Rated/max thrust: 800/2200 N | Hall sensor: With | Cable: 600 mm
DD035MB064A00Part: Magnet rail DD035 | Length: 64 mm | Mass: 0.9 kg | Magnet cover: Without
DD035MB064B00Part: Magnet rail DD035 | Length: 64 mm | Mass: 0.9 kg | Magnet cover: With
DD035MB128A00Part: Magnet rail DD035 | Length: 128 mm | Mass: 1.9 kg | Magnet cover: Without
DD035MB128B00Part: Magnet rail DD035 | Length: 128 mm | Mass: 1.9 kg | Magnet cover: With
DD035MB256A00Part: Magnet rail DD035 | Length: 256 mm | Mass: 3.7 kg | Magnet cover: Without
DD035MB256B00Part: Magnet rail DD035 | Length: 256 mm | Mass: 3.7 kg | Magnet cover: With
DD035MB512A00Part: Magnet rail DD035 | Length: 512 mm | Mass: 7.5 kg | Magnet cover: Without
DD035MB512B00Part: Magnet rail DD035 | Length: 512 mm | Mass: 7.5 kg | Magnet cover: With
DD045MB064A00Part: Magnet rail DD045 | Length: 64 mm | Mass: 1.4 kg | Magnet cover: Without
DD045MB064B00Part: Magnet rail DD045 | Length: 64 mm | Mass: 1.4 kg | Magnet cover: With
DD045MB128A00Part: Magnet rail DD045 | Length: 128 mm | Mass: 2.8 kg | Magnet cover: Without
DD045MB128B00Part: Magnet rail DD045 | Length: 128 mm | Mass: 2.8 kg | Magnet cover: With
DD045MB256A00Part: Magnet rail DD045 | Length: 256 mm | Mass: 5.5 kg | Magnet cover: Without
DD045MB256B00Part: Magnet rail DD045 | Length: 256 mm | Mass: 5.5 kg | Magnet cover: With
DD045MB512A00Part: Magnet rail DD045 | Length: 512 mm | Mass: 11.1 kg | Magnet cover: Without
DD045MB512B00Part: Magnet rail DD045 | Length: 512 mm | Mass: 11.1 kg | Magnet cover: With
