• Sanyo Denki SANMOTION R Multi-Axis Servo Amplifier Control Unit
1 1

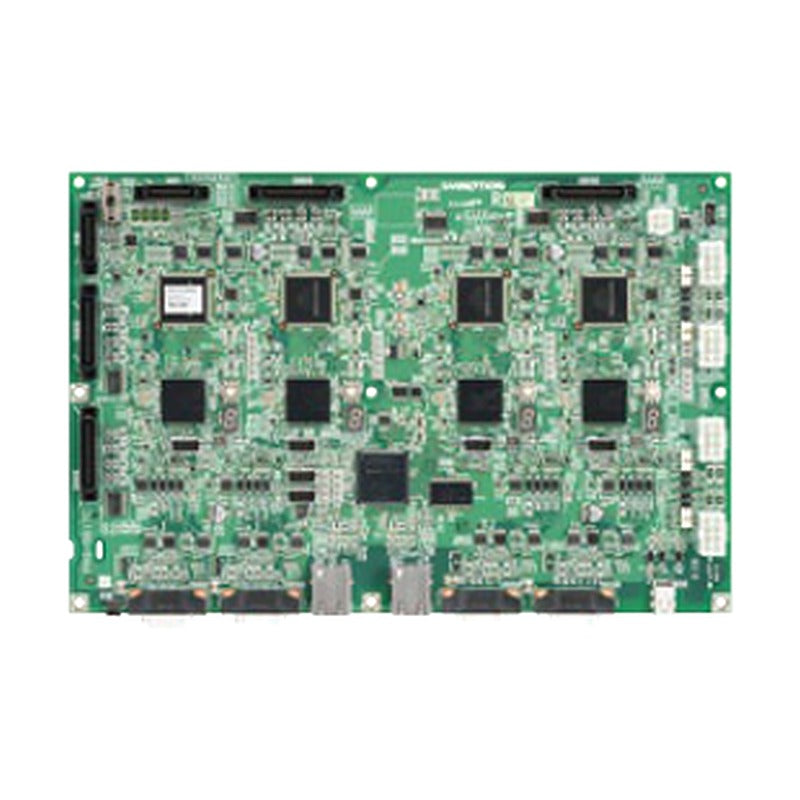

Sanyo Denki SANMOTION R Multi-Axis Servo Amplifier Control Unit

Sanyo Denki SANMOTION R Multi-Axis Servo Amplifier Control Unit

Control units for SANMOTION R 200 VAC and 400 VAC multi-axis servo amplifier systems built from separate control, power supply and amplifier units.

Key features

  • EtherCAT single-axis, EtherCAT 4-axis and analog single-axis types
  • RM3C1H4: 2.2 kHz speed response and 62.5 µs minimum EtherCAT cycle
  • Brake wear, regenerative power and communication quality monitoring
  • STO (Safe Torque Off) functional safety
  • Up to 5 EtherCAT axes or 6 analog axes per system

Specifications

Brand Sanyo Denki
Max. axes (analog) 6
Max. axes (EtherCAT) 5
Series SANMOTION R multi-axis
System voltage 200 VAC / 400 VAC
Applications Injection molding, presses, robots
Source Sanyo Denki SANMOTION R 200 VAC multi-axis leaflet S1012B006 '23.11, p. 1-2; Sanyo Denki SANMOTION R 400 VAC leaflet S1045B004 '22.3, p. 1-2
RM3C1H4 Interface: EtherCAT | Axes: 1 | Dimensions: 90 x 180 x 21 mm
RM2C4H4 Interface: EtherCAT | Axes: Up to 4 | Dimensions: 285 x 190 x 18 mm
RM2C1A0 Interface: Analog | Axes: 1 | Dimensions: 90 x 180 x 17 mm
Servo AmplifiersSanyo Denki
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki SANMOTION R Multi-Axis Servo Amplifier Control Unit

Brand Sanyo Denki·Servo Amplifiers

Available part numbers (3)

RM3C1H4, RM2C4H4, RM2C1A0

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
RM3C1H4Interface: EtherCAT | Axes: 1 | Dimensions: 90 x 180 x 21 mm
RM2C4H4Interface: EtherCAT | Axes: Up to 4 | Dimensions: 285 x 190 x 18 mm
RM2C1A0Interface: Analog | Axes: 1 | Dimensions: 90 x 180 x 17 mm
