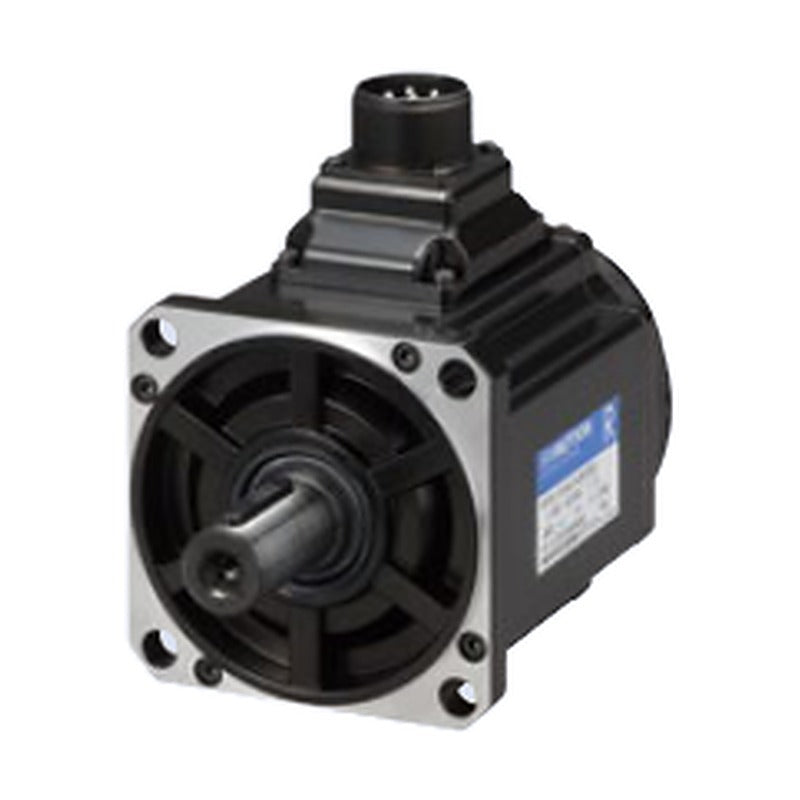

Sanyo Denki SANMOTION R1 AC Servo Motor 200 VAC (50 W-21 kW)

Sanyo Denki SANMOTION R1 AC Servo Motor 200 VAC (50 W-21 kW)

Low-inertia, high-power-rate SANMOTION R1 rotary servo motors for 200 VAC systems, 40 to 220 mm flange, 50 W to 21 kW.

Key features

  • Low inertia and high power rate: high acceleration and high torque at high speed
  • Battery-less absolute encoder (17-bit single-turn, 16-bit multi-turn) or single-turn absolute encoder versions
  • Available without brake or with 24 VDC holding brake
  • IP65 protection (IP67 available on request for small motors)
  • Small capacity (to 750 W): straight shaft, cable; medium capacity: keyed shaft, oil seal, cannon plug (21 kW: terminal block)
  • Combines with SANMOTION R 3E Model 200 VAC servo amplifiers (RS3A 10 A to RS3W 600 A)

Specifications

Series SANMOTION R1 (low inertia)
Supply voltage 200 VAC
Flange sizes 40 to 220 mm sq.
Output range 50 W to 21 kW
Protection IP65 (5.5 kW+: except cooling fan)
Approvals CE, UKCA, UL
Compatible amplifier RS3A 10 A to RS3W 600 A
Source Sanyo Denki SANMOTION R AC Servo Systems 100/200 VAC catalogue Ver.5.3, pp. 26-27, 118-125
R1AA04005FXR03M Flange: 40 mm sq. | Rated output: 50 W | Speed rated/max: 3000/6000 min-1 | Rated torque: 0.159 N·m | Brake: None | Encoder: Battery-less absolute
R1AA04005FXH03M Flange: 40 mm sq. | Rated output: 50 W | Speed rated/max: 3000/6000 min-1 | Rated torque: 0.159 N·m | Brake: None | Encoder: Single-turn absolute
R1AA04005FCR03M Flange: 40 mm sq. | Rated output: 50 W | Speed rated/max: 3000/6000 min-1 | Rated torque: 0.159 N·m | Brake: 24 VDC holding brake | Encoder: Battery-less absolute
R1AA04005FCH03M Flange: 40 mm sq. | Rated output: 50 W | Speed rated/max: 3000/6000 min-1 | Rated torque: 0.159 N·m | Brake: 24 VDC holding brake | Encoder: Single-turn absolute
R1AA04010FXR03M Flange: 40 mm sq. | Rated output: 100 W | Speed rated/max: 3000/6000 min-1 | Rated torque: 0.318 N·m | Brake: None | Encoder: Battery-less absolute
R1AA04010FXH03M Flange: 40 mm sq. | Rated output: 100 W | Speed rated/max: 3000/6000 min-1 | Rated torque: 0.318 N·m | Brake: None | Encoder: Single-turn absolute
R1AA04010FCR03M Flange: 40 mm sq. | Rated output: 100 W | Speed rated/max: 3000/6000 min-1 | Rated torque: 0.318 N·m | Brake: 24 VDC holding brake | Encoder: Battery-less absolute
R1AA04010FCH03M Flange: 40 mm sq. | Rated output: 100 W | Speed rated/max: 3000/6000 min-1 | Rated torque: 0.318 N·m | Brake: 24 VDC holding brake | Encoder: Single-turn absolute
R1AA06020FXR03M Flange: 60 mm sq. | Rated output: 200 W | Speed rated/max: 3000/6000 min-1 | Rated torque: 0.637 N·m | Brake: None | Encoder: Battery-less absolute
R1AA06020FXH03M Flange: 60 mm sq. | Rated output: 200 W | Speed rated/max: 3000/6000 min-1 | Rated torque: 0.637 N·m | Brake: None | Encoder: Single-turn absolute
R1AA06020FCR03M Flange: 60 mm sq. | Rated output: 200 W | Speed rated/max: 3000/6000 min-1 | Rated torque: 0.637 N·m | Brake: 24 VDC holding brake | Encoder: Battery-less absolute
R1AA06020FCH03M Flange: 60 mm sq. | Rated output: 200 W | Speed rated/max: 3000/6000 min-1 | Rated torque: 0.637 N·m | Brake: 24 VDC holding brake | Encoder: Single-turn absolute
R1AA06040FXR03M Flange: 60 mm sq. | Rated output: 400 W | Speed rated/max: 3000/6000 min-1 | Rated torque: 1.27 N·m | Brake: None | Encoder: Battery-less absolute
R1AA06040FXH03M Flange: 60 mm sq. | Rated output: 400 W | Speed rated/max: 3000/6000 min-1 | Rated torque: 1.27 N·m | Brake: None | Encoder: Single-turn absolute
R1AA06040FCR03M Flange: 60 mm sq. | Rated output: 400 W | Speed rated/max: 3000/6000 min-1 | Rated torque: 1.27 N·m | Brake: 24 VDC holding brake | Encoder: Battery-less absolute
R1AA06040FCH03M Flange: 60 mm sq. | Rated output: 400 W | Speed rated/max: 3000/6000 min-1 | Rated torque: 1.27 N·m | Brake: 24 VDC holding brake | Encoder: Single-turn absolute
R1AA08075VXR03M Flange: 80 mm sq. | Rated output: 750 W | Speed rated/max: 3000/6000 min-1 | Rated torque: 2.39 N·m | Brake: None | Encoder: Battery-less absolute
R1AA08075VXH03M Flange: 80 mm sq. | Rated output: 750 W | Speed rated/max: 3000/6000 min-1 | Rated torque: 2.39 N·m | Brake: None | Encoder: Single-turn absolute
R1AA08075VCR03M Flange: 80 mm sq. | Rated output: 750 W | Speed rated/max: 3000/6000 min-1 | Rated torque: 2.39 N·m | Brake: 24 VDC holding brake | Encoder: Battery-less absolute
R1AA08075VCH03M Flange: 80 mm sq. | Rated output: 750 W | Speed rated/max: 3000/6000 min-1 | Rated torque: 2.39 N·m | Brake: 24 VDC holding brake | Encoder: Single-turn absolute
R1AA08075FXR03M Flange: 80 mm sq. | Rated output: 750 W | Speed rated/max: 3000/6000 min-1 | Rated torque: 2.39 N·m | Brake: None | Encoder: Battery-less absolute
R1AA08075FXH03M Flange: 80 mm sq. | Rated output: 750 W | Speed rated/max: 3000/6000 min-1 | Rated torque: 2.39 N·m | Brake: None | Encoder: Single-turn absolute
R1AA08075FCR03M Flange: 80 mm sq. | Rated output: 750 W | Speed rated/max: 3000/6000 min-1 | Rated torque: 2.39 N·m | Brake: 24 VDC holding brake | Encoder: Battery-less absolute
R1AA08075FCH03M Flange: 80 mm sq. | Rated output: 750 W | Speed rated/max: 3000/6000 min-1 | Rated torque: 2.39 N·m | Brake: 24 VDC holding brake | Encoder: Single-turn absolute
R1AA10100FXR00M Flange: 100 mm sq. | Rated output: 1 kW | Speed rated/max: 3000/6000 min-1 | Rated torque: 3.2 N·m | Brake: None | Encoder: Battery-less absolute
R1AA10100FXH00M Flange: 100 mm sq. | Rated output: 1 kW | Speed rated/max: 3000/6000 min-1 | Rated torque: 3.2 N·m | Brake: None | Encoder: Single-turn absolute
R1AA10100FCR00M Flange: 100 mm sq. | Rated output: 1 kW | Speed rated/max: 3000/6000 min-1 | Rated torque: 3.2 N·m | Brake: 24 VDC holding brake | Encoder: Battery-less absolute
R1AA10100FCH00M Flange: 100 mm sq. | Rated output: 1 kW | Speed rated/max: 3000/6000 min-1 | Rated torque: 3.2 N·m | Brake: 24 VDC holding brake | Encoder: Single-turn absolute
R1AA10100HXR00M Flange: 100 mm sq. | Rated output: 1 kW | Speed rated/max: 3000/3000 min-1 | Rated torque: 3.2 N·m | Brake: None | Encoder: Battery-less absolute
R1AA10100HXH00M Flange: 100 mm sq. | Rated output: 1 kW | Speed rated/max: 3000/3000 min-1 | Rated torque: 3.2 N·m | Brake: None | Encoder: Single-turn absolute
R1AA10100HCR00M Flange: 100 mm sq. | Rated output: 1 kW | Speed rated/max: 3000/3000 min-1 | Rated torque: 3.2 N·m | Brake: 24 VDC holding brake | Encoder: Battery-less absolute
R1AA10100HCH00M Flange: 100 mm sq. | Rated output: 1 kW | Speed rated/max: 3000/3000 min-1 | Rated torque: 3.2 N·m | Brake: 24 VDC holding brake | Encoder: Single-turn absolute
R1AA10150FXR00M Flange: 100 mm sq. | Rated output: 1.5 kW | Speed rated/max: 3000/6000 min-1 | Rated torque: 4.8 N·m | Brake: None | Encoder: Battery-less absolute
R1AA10150FXH00M Flange: 100 mm sq. | Rated output: 1.5 kW | Speed rated/max: 3000/6000 min-1 | Rated torque: 4.8 N·m | Brake: None | Encoder: Single-turn absolute
R1AA10150FCR00M Flange: 100 mm sq. | Rated output: 1.5 kW | Speed rated/max: 3000/6000 min-1 | Rated torque: 4.8 N·m | Brake: 24 VDC holding brake | Encoder: Battery-less absolute
R1AA10150FCH00M Flange: 100 mm sq. | Rated output: 1.5 kW | Speed rated/max: 3000/6000 min-1 | Rated torque: 4.8 N·m | Brake: 24 VDC holding brake | Encoder: Single-turn absolute
R1AA10150HXR00M Flange: 100 mm sq. | Rated output: 1.5 kW | Speed rated/max: 3000/3000 min-1 | Rated torque: 4.8 N·m | Brake: None | Encoder: Battery-less absolute
R1AA10150HXH00M Flange: 100 mm sq. | Rated output: 1.5 kW | Speed rated/max: 3000/3000 min-1 | Rated torque: 4.8 N·m | Brake: None | Encoder: Single-turn absolute
R1AA10150HCR00M Flange: 100 mm sq. | Rated output: 1.5 kW | Speed rated/max: 3000/3000 min-1 | Rated torque: 4.8 N·m | Brake: 24 VDC holding brake | Encoder: Battery-less absolute
R1AA10150HCH00M Flange: 100 mm sq. | Rated output: 1.5 kW | Speed rated/max: 3000/3000 min-1 | Rated torque: 4.8 N·m | Brake: 24 VDC holding brake | Encoder: Single-turn absolute
R1AA10200FXR00M Flange: 100 mm sq. | Rated output: 2 kW | Speed rated/max: 3000/6000 min-1 | Rated torque: 6.37 N·m | Brake: None | Encoder: Battery-less absolute
R1AA10200FXH00M Flange: 100 mm sq. | Rated output: 2 kW | Speed rated/max: 3000/6000 min-1 | Rated torque: 6.37 N·m | Brake: None | Encoder: Single-turn absolute
R1AA10200FCR00M Flange: 100 mm sq. | Rated output: 2 kW | Speed rated/max: 3000/6000 min-1 | Rated torque: 6.37 N·m | Brake: 24 VDC holding brake | Encoder: Battery-less absolute
R1AA10200FCH00M Flange: 100 mm sq. | Rated output: 2 kW | Speed rated/max: 3000/6000 min-1 | Rated torque: 6.37 N·m | Brake: 24 VDC holding brake | Encoder: Single-turn absolute
R1AA10200HXR00M Flange: 100 mm sq. | Rated output: 2 kW | Speed rated/max: 3000/3000 min-1 | Rated torque: 6.37 N·m | Brake: None | Encoder: Battery-less absolute
R1AA10200HXH00M Flange: 100 mm sq. | Rated output: 2 kW | Speed rated/max: 3000/3000 min-1 | Rated torque: 6.37 N·m | Brake: None | Encoder: Single-turn absolute
R1AA10200HCR00M Flange: 100 mm sq. | Rated output: 2 kW | Speed rated/max: 3000/3000 min-1 | Rated torque: 6.37 N·m | Brake: 24 VDC holding brake | Encoder: Battery-less absolute
R1AA10200HCH00M Flange: 100 mm sq. | Rated output: 2 kW | Speed rated/max: 3000/3000 min-1 | Rated torque: 6.37 N·m | Brake: 24 VDC holding brake | Encoder: Single-turn absolute
R1AA10250FXR00M Flange: 100 mm sq. | Rated output: 2.5 kW | Speed rated/max: 3000/6000 min-1 | Rated torque: 7.97 N·m | Brake: None | Encoder: Battery-less absolute
R1AA10250FXH00M Flange: 100 mm sq. | Rated output: 2.5 kW | Speed rated/max: 3000/6000 min-1 | Rated torque: 7.97 N·m | Brake: None | Encoder: Single-turn absolute
R1AA10250FCR00M Flange: 100 mm sq. | Rated output: 2.5 kW | Speed rated/max: 3000/6000 min-1 | Rated torque: 7.97 N·m | Brake: 24 VDC holding brake | Encoder: Battery-less absolute
R1AA10250FCH00M Flange: 100 mm sq. | Rated output: 2.5 kW | Speed rated/max: 3000/6000 min-1 | Rated torque: 7.97 N·m | Brake: 24 VDC holding brake | Encoder: Single-turn absolute
R1AA10250HXR00M Flange: 100 mm sq. | Rated output: 2.5 kW | Speed rated/max: 3000/3000 min-1 | Rated torque: 7.97 N·m | Brake: None | Encoder: Battery-less absolute
R1AA10250HXH00M Flange: 100 mm sq. | Rated output: 2.5 kW | Speed rated/max: 3000/3000 min-1 | Rated torque: 7.97 N·m | Brake: None | Encoder: Single-turn absolute
R1AA10250HCR00M Flange: 100 mm sq. | Rated output: 2.5 kW | Speed rated/max: 3000/3000 min-1 | Rated torque: 7.97 N·m | Brake: 24 VDC holding brake | Encoder: Battery-less absolute
R1AA10250HCH00M Flange: 100 mm sq. | Rated output: 2.5 kW | Speed rated/max: 3000/3000 min-1 | Rated torque: 7.97 N·m | Brake: 24 VDC holding brake | Encoder: Single-turn absolute
R1AA13300FXR00M Flange: 130 mm sq. | Rated output: 3 kW | Speed rated/max: 3000/6000 min-1 | Rated torque: 9.7 N·m | Brake: None | Encoder: Battery-less absolute
R1AA13300FXH00M Flange: 130 mm sq. | Rated output: 3 kW | Speed rated/max: 3000/6000 min-1 | Rated torque: 9.7 N·m | Brake: None | Encoder: Single-turn absolute
R1AA13300FCR00M Flange: 130 mm sq. | Rated output: 3 kW | Speed rated/max: 3000/6000 min-1 | Rated torque: 9.7 N·m | Brake: 24 VDC holding brake | Encoder: Battery-less absolute
R1AA13300FCH00M Flange: 130 mm sq. | Rated output: 3 kW | Speed rated/max: 3000/6000 min-1 | Rated torque: 9.7 N·m | Brake: 24 VDC holding brake | Encoder: Single-turn absolute
R1AA13300HXR00M Flange: 130 mm sq. | Rated output: 3 kW | Speed rated/max: 3000/3000 min-1 | Rated torque: 9.7 N·m | Brake: None | Encoder: Battery-less absolute
R1AA13300HXH00M Flange: 130 mm sq. | Rated output: 3 kW | Speed rated/max: 3000/3000 min-1 | Rated torque: 9.7 N·m | Brake: None | Encoder: Single-turn absolute
R1AA13300HCR00M Flange: 130 mm sq. | Rated output: 3 kW | Speed rated/max: 3000/3000 min-1 | Rated torque: 9.7 N·m | Brake: 24 VDC holding brake | Encoder: Battery-less absolute
R1AA13300HCH00M Flange: 130 mm sq. | Rated output: 3 kW | Speed rated/max: 3000/3000 min-1 | Rated torque: 9.7 N·m | Brake: 24 VDC holding brake | Encoder: Single-turn absolute
R1AA13400FXR00M Flange: 130 mm sq. | Rated output: 4 kW | Speed rated/max: 3000/6000 min-1 | Rated torque: 12.8 N·m | Brake: None | Encoder: Battery-less absolute
R1AA13400FXH00M Flange: 130 mm sq. | Rated output: 4 kW | Speed rated/max: 3000/6000 min-1 | Rated torque: 12.8 N·m | Brake: None | Encoder: Single-turn absolute
R1AA13400FCR00M Flange: 130 mm sq. | Rated output: 4 kW | Speed rated/max: 3000/6000 min-1 | Rated torque: 12.8 N·m | Brake: 24 VDC holding brake | Encoder: Battery-less absolute
R1AA13400FCH00M Flange: 130 mm sq. | Rated output: 4 kW | Speed rated/max: 3000/6000 min-1 | Rated torque: 12.8 N·m | Brake: 24 VDC holding brake | Encoder: Single-turn absolute
R1AA13400HXR00M Flange: 130 mm sq. | Rated output: 4 kW | Speed rated/max: 3000/3000 min-1 | Rated torque: 12.8 N·m | Brake: None | Encoder: Battery-less absolute
R1AA13400HXH00M Flange: 130 mm sq. | Rated output: 4 kW | Speed rated/max: 3000/3000 min-1 | Rated torque: 12.8 N·m | Brake: None | Encoder: Single-turn absolute
R1AA13400HCR00M Flange: 130 mm sq. | Rated output: 4 kW | Speed rated/max: 3000/3000 min-1 | Rated torque: 12.8 N·m | Brake: 24 VDC holding brake | Encoder: Battery-less absolute
R1AA13400HCH00M Flange: 130 mm sq. | Rated output: 4 kW | Speed rated/max: 3000/3000 min-1 | Rated torque: 12.8 N·m | Brake: 24 VDC holding brake | Encoder: Single-turn absolute
R1AA13500FXR00M Flange: 130 mm sq. | Rated output: 5 kW | Speed rated/max: 3000/6000 min-1 | Rated torque: 16.0 N·m | Brake: None | Encoder: Battery-less absolute
R1AA13500FXH00M Flange: 130 mm sq. | Rated output: 5 kW | Speed rated/max: 3000/6000 min-1 | Rated torque: 16.0 N·m | Brake: None | Encoder: Single-turn absolute
R1AA13500FCR00M Flange: 130 mm sq. | Rated output: 5 kW | Speed rated/max: 3000/6000 min-1 | Rated torque: 16.0 N·m | Brake: 24 VDC holding brake | Encoder: Battery-less absolute
R1AA13500FCH00M Flange: 130 mm sq. | Rated output: 5 kW | Speed rated/max: 3000/6000 min-1 | Rated torque: 16.0 N·m | Brake: 24 VDC holding brake | Encoder: Single-turn absolute
R1AA13500HXR00M Flange: 130 mm sq. | Rated output: 5 kW | Speed rated/max: 3000/3000 min-1 | Rated torque: 16.0 N·m | Brake: None | Encoder: Battery-less absolute
R1AA13500HXH00M Flange: 130 mm sq. | Rated output: 5 kW | Speed rated/max: 3000/3000 min-1 | Rated torque: 16.0 N·m | Brake: None | Encoder: Single-turn absolute
R1AA13500HCR00M Flange: 130 mm sq. | Rated output: 5 kW | Speed rated/max: 3000/3000 min-1 | Rated torque: 16.0 N·m | Brake: 24 VDC holding brake | Encoder: Battery-less absolute
R1AA13500HCH00M Flange: 130 mm sq. | Rated output: 5 kW | Speed rated/max: 3000/3000 min-1 | Rated torque: 16.0 N·m | Brake: 24 VDC holding brake | Encoder: Single-turn absolute
R1AA18550HXR00M Flange: 180 mm sq. | Rated output: 5.5 kW | Speed rated/max: 1500/3000 min-1 | Rated torque: 35 N·m | Brake: None | Encoder: Battery-less absolute
R1AA18550HXH00M Flange: 180 mm sq. | Rated output: 5.5 kW | Speed rated/max: 1500/3000 min-1 | Rated torque: 35 N·m | Brake: None | Encoder: Single-turn absolute
R1AA18550HCR00M Flange: 180 mm sq. | Rated output: 5.5 kW | Speed rated/max: 1500/3000 min-1 | Rated torque: 35 N·m | Brake: 24 VDC holding brake | Encoder: Battery-less absolute
R1AA18550HCH00M Flange: 180 mm sq. | Rated output: 5.5 kW | Speed rated/max: 1500/3000 min-1 | Rated torque: 35 N·m | Brake: 24 VDC holding brake | Encoder: Single-turn absolute
R1AA18750LXR00M Flange: 180 mm sq. | Rated output: 7.5 kW | Speed rated/max: 1500/3000 min-1 | Rated torque: 48 N·m | Brake: None | Encoder: Battery-less absolute
R1AA18750LXH00M Flange: 180 mm sq. | Rated output: 7.5 kW | Speed rated/max: 1500/3000 min-1 | Rated torque: 48 N·m | Brake: None | Encoder: Single-turn absolute
R1AA18750LCR00M Flange: 180 mm sq. | Rated output: 7.5 kW | Speed rated/max: 1500/3000 min-1 | Rated torque: 48 N·m | Brake: 24 VDC holding brake | Encoder: Battery-less absolute
R1AA18750LCH00M Flange: 180 mm sq. | Rated output: 7.5 kW | Speed rated/max: 1500/3000 min-1 | Rated torque: 48 N·m | Brake: 24 VDC holding brake | Encoder: Single-turn absolute
R1AA1811KRXR00M Flange: 180 mm sq. | Rated output: 11 kW | Speed rated/max: 1500/2500 min-1 | Rated torque: 70 N·m | Brake: None | Encoder: Battery-less absolute
R1AA1811KRXH00M Flange: 180 mm sq. | Rated output: 11 kW | Speed rated/max: 1500/2500 min-1 | Rated torque: 70 N·m | Brake: None | Encoder: Single-turn absolute
R1AA1811KRCR00M Flange: 180 mm sq. | Rated output: 11 kW | Speed rated/max: 1500/2500 min-1 | Rated torque: 70 N·m | Brake: 24 VDC holding brake | Encoder: Battery-less absolute
R1AA1811KRCH00M Flange: 180 mm sq. | Rated output: 11 kW | Speed rated/max: 1500/2500 min-1 | Rated torque: 70 N·m | Brake: 24 VDC holding brake | Encoder: Single-turn absolute
R1AA1815KBXR00M Flange: 180 mm sq. | Rated output: 15 kW | Speed rated/max: 1500/2000 min-1 | Rated torque: 95.5 N·m | Brake: None | Encoder: Battery-less absolute
R1AA1815KBXH00M Flange: 180 mm sq. | Rated output: 15 kW | Speed rated/max: 1500/2000 min-1 | Rated torque: 95.5 N·m | Brake: None | Encoder: Single-turn absolute
R1AA1815KBCR00M Flange: 180 mm sq. | Rated output: 15 kW | Speed rated/max: 1500/2000 min-1 | Rated torque: 95.5 N·m | Brake: 24 VDC holding brake | Encoder: Battery-less absolute
R1AA1815KBCH00M Flange: 180 mm sq. | Rated output: 15 kW | Speed rated/max: 1500/2000 min-1 | Rated torque: 95.5 N·m | Brake: 24 VDC holding brake | Encoder: Single-turn absolute
R1AA2220KVXR00M Flange: 220 mm sq. | Rated output: 21 kW | Speed rated/max: 1500/2000 min-1 | Rated torque: 135 N·m | Brake: None | Encoder: Battery-less absolute
R1AA2220KVXH00M Flange: 220 mm sq. | Rated output: 21 kW | Speed rated/max: 1500/2000 min-1 | Rated torque: 135 N·m | Brake: None | Encoder: Single-turn absolute
Servo MotorsSanyo Denki
98 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki SANMOTION R1 AC Servo Motor 200 VAC (50 W-21 kW)

Brand Sanyo Denki·Servo Motors

Available part numbers (98)

R1AA04005FXR03M, R1AA04005FXH03M, R1AA04005FCR03M, R1AA04005FCH03M, R1AA04010FXR03M, R1AA04010FXH03M, R1AA04010FCR03M, R1AA04010FCH03M, R1AA06020FXR03M, R1AA06020FXH03M + 88 more — see full table ↓

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
