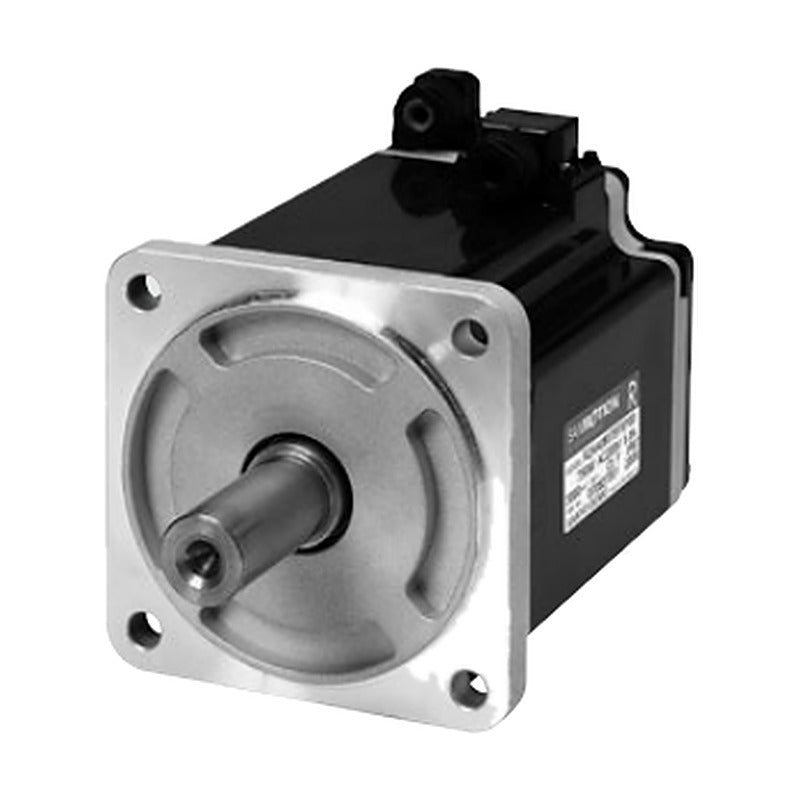

Sanyo Denki SANMOTION R2 AC Servo Motor 100 VAC (30-200 W)

Sanyo Denki SANMOTION R2 AC Servo Motor 100 VAC (30-200 W)

Medium-inertia, low-ripple SANMOTION R2 rotary servo motors for 100 VAC systems, 40 and 60 mm flange, 30 to 200 W.

Key features

  • Medium inertia and low cogging/ripple for smooth motion
  • Battery-less absolute encoder (17-bit single-turn, 16-bit multi-turn) or single-turn absolute encoder versions
  • Available without brake or with 24 VDC holding brake
  • IP65 protection (IP67 available on request for small motors)
  • CE, UKCA and UL approved standard models
  • Combines with SANMOTION R 3E Model 100 VAC servo amplifiers (RS3E, 10-30 A)

Specifications

Series SANMOTION R2 (medium inertia)
Supply voltage 100 VAC
Flange sizes 40, 60 mm sq.
Output range 30 to 200 W
Protection IP65
Output shaft Straight, no oil seal
Connection Cable (no connector)
Compatible amplifier RS3E 10 A to 30 A
Source Sanyo Denki SANMOTION R AC Servo Systems 100/200 VAC catalogue Ver.5.3, pp. 18-18, 104-105
R2EA04003FXR03M Flange: 40 mm sq. | Rated output: 30 W | Speed rated/max: 3000/6000 min-1 | Rated torque: 0.098 N·m | Brake: None | Encoder: Battery-less absolute
R2EA04003FXH03M Flange: 40 mm sq. | Rated output: 30 W | Speed rated/max: 3000/6000 min-1 | Rated torque: 0.098 N·m | Brake: None | Encoder: Single-turn absolute
R2EA04003FCR03M Flange: 40 mm sq. | Rated output: 30 W | Speed rated/max: 3000/6000 min-1 | Rated torque: 0.098 N·m | Brake: 24 VDC holding brake | Encoder: Battery-less absolute
R2EA04003FCH03M Flange: 40 mm sq. | Rated output: 30 W | Speed rated/max: 3000/6000 min-1 | Rated torque: 0.098 N·m | Brake: 24 VDC holding brake | Encoder: Single-turn absolute
R2EA04005FXR03M Flange: 40 mm sq. | Rated output: 50 W | Speed rated/max: 3000/6000 min-1 | Rated torque: 0.159 N·m | Brake: None | Encoder: Battery-less absolute
R2EA04005FXH03M Flange: 40 mm sq. | Rated output: 50 W | Speed rated/max: 3000/6000 min-1 | Rated torque: 0.159 N·m | Brake: None | Encoder: Single-turn absolute
R2EA04005FCR03M Flange: 40 mm sq. | Rated output: 50 W | Speed rated/max: 3000/6000 min-1 | Rated torque: 0.159 N·m | Brake: 24 VDC holding brake | Encoder: Battery-less absolute
R2EA04005FCH03M Flange: 40 mm sq. | Rated output: 50 W | Speed rated/max: 3000/6000 min-1 | Rated torque: 0.159 N·m | Brake: 24 VDC holding brake | Encoder: Single-turn absolute
R2EA04008FXR03M Flange: 40 mm sq. | Rated output: 80 W | Speed rated/max: 3000/6000 min-1 | Rated torque: 0.255 N·m | Brake: None | Encoder: Battery-less absolute
R2EA04008FXH03M Flange: 40 mm sq. | Rated output: 80 W | Speed rated/max: 3000/6000 min-1 | Rated torque: 0.255 N·m | Brake: None | Encoder: Single-turn absolute
R2EA04008FCR03M Flange: 40 mm sq. | Rated output: 80 W | Speed rated/max: 3000/6000 min-1 | Rated torque: 0.255 N·m | Brake: 24 VDC holding brake | Encoder: Battery-less absolute
R2EA04008FCH03M Flange: 40 mm sq. | Rated output: 80 W | Speed rated/max: 3000/6000 min-1 | Rated torque: 0.255 N·m | Brake: 24 VDC holding brake | Encoder: Single-turn absolute
R2EA06010FXR03M Flange: 60 mm sq. | Rated output: 100 W | Speed rated/max: 3000/6000 min-1 | Rated torque: 0.318 N·m | Brake: None | Encoder: Battery-less absolute
R2EA06010FXH03M Flange: 60 mm sq. | Rated output: 100 W | Speed rated/max: 3000/6000 min-1 | Rated torque: 0.318 N·m | Brake: None | Encoder: Single-turn absolute
R2EA06010FCR03M Flange: 60 mm sq. | Rated output: 100 W | Speed rated/max: 3000/6000 min-1 | Rated torque: 0.318 N·m | Brake: 24 VDC holding brake | Encoder: Battery-less absolute
R2EA06010FCH03M Flange: 60 mm sq. | Rated output: 100 W | Speed rated/max: 3000/6000 min-1 | Rated torque: 0.318 N·m | Brake: 24 VDC holding brake | Encoder: Single-turn absolute
R2EA06020FXR03M Flange: 60 mm sq. | Rated output: 200 W | Speed rated/max: 3000/6000 min-1 | Rated torque: 0.637 N·m | Brake: None | Encoder: Battery-less absolute
R2EA06020FXH03M Flange: 60 mm sq. | Rated output: 200 W | Speed rated/max: 3000/6000 min-1 | Rated torque: 0.637 N·m | Brake: None | Encoder: Single-turn absolute
R2EA06020FCR03M Flange: 60 mm sq. | Rated output: 200 W | Speed rated/max: 3000/6000 min-1 | Rated torque: 0.637 N·m | Brake: 24 VDC holding brake | Encoder: Battery-less absolute
R2EA06020FCH03M Flange: 60 mm sq. | Rated output: 200 W | Speed rated/max: 3000/6000 min-1 | Rated torque: 0.637 N·m | Brake: 24 VDC holding brake | Encoder: Single-turn absolute
Servo MotorsSanyo Denki
20 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki SANMOTION R2 AC Servo Motor 100 VAC (30-200 W)

Brand Sanyo Denki·Servo Motors

Available part numbers (20)

R2EA04003FXR03M, R2EA04003FXH03M, R2EA04003FCR03M, R2EA04003FCH03M, R2EA04005FXR03M, R2EA04005FXH03M, R2EA04005FCR03M, R2EA04005FCH03M, R2EA04008FXR03M, R2EA04008FXH03M + 10 more — see full table ↓
