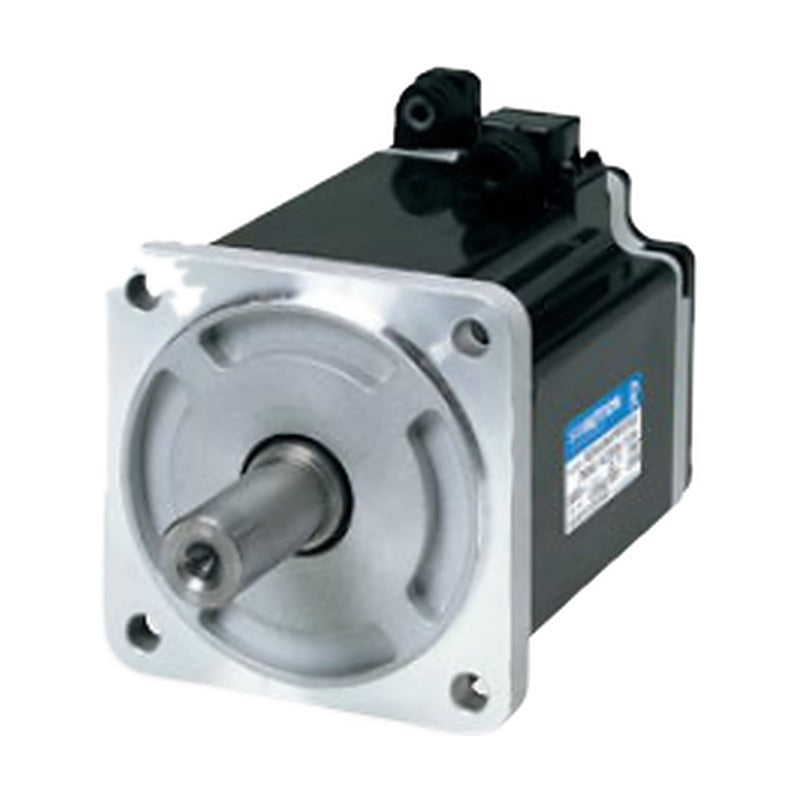

Sanyo Denki SANMOTION R R2 Servo Motor with Ext. Cable Connectors

Sanyo Denki SANMOTION R R2 Servo Motor with Ext. Cable Connectors

R2 200 VAC servo motors (30 to 750 W) supplied with 200 mm lead cables and connectors for Sanyo Denki extension cables.

Key features

  • Short 200 +/-30 mm leads with power, brake and encoder connectors
  • Mates with RS-CM4 / RS-CB3 / RS-CA extension cables
  • Battery-less absolute encoder
  • IP67 protection (except shaft through-hole and cable ends)
  • With or without 24 VDC holding brake; CE/UKCA/UL approved

Specifications

Series SANMOTION R R2 (medium inertia)
Input voltage 200 VAC
Protection IP67
Output shaft Straight
Oil seal None
Connection Connectors on 200 mm leads
Compatible amplifiers RS3A01, RS3A02
Max. speed 6000 min-1
Encoder Battery-less absolute
Source Sanyo Denki SANMOTION R AC Servo Systems 100/200 VAC catalogue Ver.5.3, p. 162 (specs pp. 108-110, list p. 29)
R2AA04003FXRA0M Flange: 40 mm sq. | Rated output: 30 W | Rated torque: 0.098 N.m | Brake: None
R2AA04003FCRA0M Flange: 40 mm sq. | Rated output: 30 W | Rated torque: 0.098 N.m | Brake: 24 VDC
R2AA04005FXRA0M Flange: 40 mm sq. | Rated output: 50 W | Rated torque: 0.159 N.m | Brake: None
R2AA04005FCRA0M Flange: 40 mm sq. | Rated output: 50 W | Rated torque: 0.159 N.m | Brake: 24 VDC
R2AA04010FCRA0M6 Flange: 40 mm sq. | Rated output: 90 W | Rated torque: 0.318 N.m | Brake: 24 VDC
R2AA04010FXRA0M Flange: 40 mm sq. | Rated output: 100 W | Rated torque: 0.318 N.m | Brake: None
R2AA06010FXRA0M Flange: 60 mm sq. | Rated output: 100 W | Rated torque: 0.318 N.m | Brake: None
R2AA06010FCRA0M Flange: 60 mm sq. | Rated output: 100 W | Rated torque: 0.318 N.m | Brake: 24 VDC
R2AA06020FXRA0M Flange: 60 mm sq. | Rated output: 200 W | Rated torque: 0.637 N.m | Brake: None
R2AA06020FCRA0M Flange: 60 mm sq. | Rated output: 200 W | Rated torque: 0.637 N.m | Brake: 24 VDC
R2AA06040FCRA0M6 Flange: 60 mm sq. | Rated output: 360 W | Rated torque: 1.27 N.m | Brake: 24 VDC
R2AA06040FXRA0M Flange: 60 mm sq. | Rated output: 400 W | Rated torque: 1.27 N.m | Brake: None
R2AA08075FXRA0M Flange: 80 mm sq. | Rated output: 750 W | Rated torque: 2.39 N.m | Brake: None
R2AA08075FCRA0M Flange: 80 mm sq. | Rated output: 750 W | Rated torque: 2.39 N.m | Brake: 24 VDC
Servo MotorsSanyo Denki
14 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki SANMOTION R R2 Servo Motor with Ext. Cable Connectors

Brand Sanyo Denki·Servo Motors

Available part numbers (14)

R2AA04003FXRA0M, R2AA04003FCRA0M, R2AA04005FXRA0M, R2AA04005FCRA0M, R2AA04010FCRA0M6, R2AA04010FXRA0M, R2AA06010FXRA0M, R2AA06010FCRA0M, R2AA06020FXRA0M, R2AA06020FCRA0M + 4 more — see full table ↓

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
R2AA04003FXRA0MFlange: 40 mm sq. | Rated output: 30 W | Rated torque: 0.098 N.m | Brake: None
R2AA04003FCRA0MFlange: 40 mm sq. | Rated output: 30 W | Rated torque: 0.098 N.m | Brake: 24 VDC
R2AA04005FXRA0MFlange: 40 mm sq. | Rated output: 50 W | Rated torque: 0.159 N.m | Brake: None
R2AA04005FCRA0MFlange: 40 mm sq. | Rated output: 50 W | Rated torque: 0.159 N.m | Brake: 24 VDC
R2AA04010FCRA0M6Flange: 40 mm sq. | Rated output: 90 W | Rated torque: 0.318 N.m | Brake: 24 VDC
R2AA04010FXRA0MFlange: 40 mm sq. | Rated output: 100 W | Rated torque: 0.318 N.m | Brake: None
R2AA06010FXRA0MFlange: 60 mm sq. | Rated output: 100 W | Rated torque: 0.318 N.m | Brake: None
R2AA06010FCRA0MFlange: 60 mm sq. | Rated output: 100 W | Rated torque: 0.318 N.m | Brake: 24 VDC
R2AA06020FXRA0MFlange: 60 mm sq. | Rated output: 200 W | Rated torque: 0.637 N.m | Brake: None
R2AA06020FCRA0MFlange: 60 mm sq. | Rated output: 200 W | Rated torque: 0.637 N.m | Brake: 24 VDC
R2AA06040FCRA0M6Flange: 60 mm sq. | Rated output: 360 W | Rated torque: 1.27 N.m | Brake: 24 VDC
R2AA06040FXRA0MFlange: 60 mm sq. | Rated output: 400 W | Rated torque: 1.27 N.m | Brake: None
R2AA08075FXRA0MFlange: 80 mm sq. | Rated output: 750 W | Rated torque: 2.39 N.m | Brake: None
R2AA08075FCRA0MFlange: 80 mm sq. | Rated output: 750 W | Rated torque: 2.39 N.m | Brake: 24 VDC
