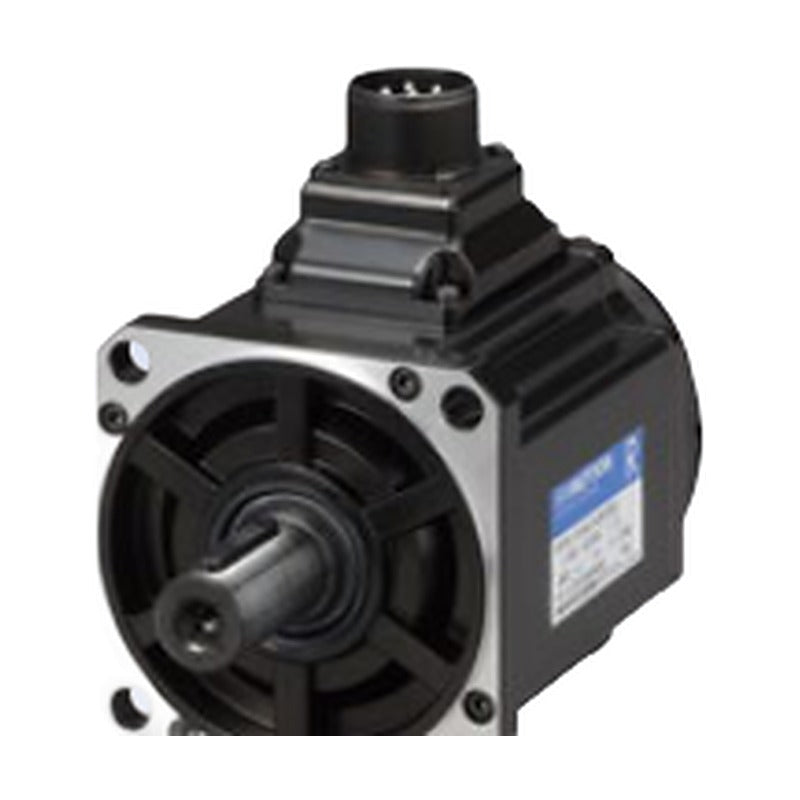

Sanyo Denki SANMOTION R1 Servo Motor 400V 180/220 mm (5.5-21 kW)

Sanyo Denki SANMOTION R1 Servo Motor 400V 180/220 mm (5.5-21 kW)

SANMOTION R1 low-inertia rotary servo motor for 400 VAC, 180/220 mm sq. flange, for R 3E Model amplifiers.

Key features

  • Low inertia, high power rate: high torque even at high speed
  • 400 VAC class, for SANMOTION R 3E Model servo amplifiers
  • Battery-less absolute encoder (17-bit single-turn, 16-bit multi-turn) or single-turn absolute encoder
  • Optional 24 VDC holding brake (not on R1CA2220KV)
  • Protection IP65; cooling fan; terminal block for 21 kW
  • Matching amplifier: R1CA1811KR 150 A, R1CA1815KB 150 A, R1CA18550H 150 A, R1CA18750L 150 A, R1CA2220KV 300 A

Specifications

Power supply voltage 400 VAC class
Encoder resolution 131072 P/rev (17-bit) single-turn
Multi-turn resolution 65536 (16-bit), battery-less type
Encoder baud rate 2.5 Mbps
Brake rated voltage 24 VDC +/-10%
Protection IP65
Source Sanyo Denki SANMOTION R 3E Model 400 VAC catalogue Ver.4.1, p. 89-98
R1CA18550HXR00M Flange: 180 mm sq. | Output: 5.5 kW | Speed rated/max: 1500/3000 min-1 | Rated torque: 35 N.m | Brake: None | Encoder: Battery-less absolute
R1CA18550HXH00M Flange: 180 mm sq. | Output: 5.5 kW | Speed rated/max: 1500/3000 min-1 | Rated torque: 35 N.m | Brake: None | Encoder: Single-turn absolute
R1CA18550HCR00M Flange: 180 mm sq. | Output: 5.5 kW | Speed rated/max: 1500/3000 min-1 | Rated torque: 35 N.m | Brake: 24 VDC | Encoder: Battery-less absolute
R1CA18550HCH00M Flange: 180 mm sq. | Output: 5.5 kW | Speed rated/max: 1500/3000 min-1 | Rated torque: 35 N.m | Brake: 24 VDC | Encoder: Single-turn absolute
R1CA18750LXR00M Flange: 180 mm sq. | Output: 7.5 kW | Speed rated/max: 1500/3000 min-1 | Rated torque: 48 N.m | Brake: None | Encoder: Battery-less absolute
R1CA18750LXH00M Flange: 180 mm sq. | Output: 7.5 kW | Speed rated/max: 1500/3000 min-1 | Rated torque: 48 N.m | Brake: None | Encoder: Single-turn absolute
R1CA18750LCR00M Flange: 180 mm sq. | Output: 7.5 kW | Speed rated/max: 1500/3000 min-1 | Rated torque: 48 N.m | Brake: 24 VDC | Encoder: Battery-less absolute
R1CA18750LCH00M Flange: 180 mm sq. | Output: 7.5 kW | Speed rated/max: 1500/3000 min-1 | Rated torque: 48 N.m | Brake: 24 VDC | Encoder: Single-turn absolute
R1CA1811KRXR00M Flange: 180 mm sq. | Output: 11 kW | Speed rated/max: 1500/2500 min-1 | Rated torque: 70 N.m | Brake: None | Encoder: Battery-less absolute
R1CA1811KRXH00M Flange: 180 mm sq. | Output: 11 kW | Speed rated/max: 1500/2500 min-1 | Rated torque: 70 N.m | Brake: None | Encoder: Single-turn absolute
R1CA1811KRCR00M Flange: 180 mm sq. | Output: 11 kW | Speed rated/max: 1500/2500 min-1 | Rated torque: 70 N.m | Brake: 24 VDC | Encoder: Battery-less absolute
R1CA1811KRCH00M Flange: 180 mm sq. | Output: 11 kW | Speed rated/max: 1500/2500 min-1 | Rated torque: 70 N.m | Brake: 24 VDC | Encoder: Single-turn absolute
R1CA1815KBXR00M Flange: 180 mm sq. | Output: 15 kW | Speed rated/max: 1500/2000 min-1 | Rated torque: 95.5 N.m | Brake: None | Encoder: Battery-less absolute
R1CA1815KBXH00M Flange: 180 mm sq. | Output: 15 kW | Speed rated/max: 1500/2000 min-1 | Rated torque: 95.5 N.m | Brake: None | Encoder: Single-turn absolute
R1CA1815KBCR00M Flange: 180 mm sq. | Output: 15 kW | Speed rated/max: 1500/2000 min-1 | Rated torque: 95.5 N.m | Brake: 24 VDC | Encoder: Battery-less absolute
R1CA1815KBCH00M Flange: 180 mm sq. | Output: 15 kW | Speed rated/max: 1500/2000 min-1 | Rated torque: 95.5 N.m | Brake: 24 VDC | Encoder: Single-turn absolute
R1CA2220KVXR00M Flange: 220 mm sq. | Output: 21 kW | Speed rated/max: 1500/2000 min-1 | Rated torque: 135 N.m | Brake: None | Encoder: Battery-less absolute
R1CA2220KVXH00M Flange: 220 mm sq. | Output: 21 kW | Speed rated/max: 1500/2000 min-1 | Rated torque: 135 N.m | Brake: None | Encoder: Single-turn absolute
Servo MotorsSanyo Denki
18 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki SANMOTION R1 Servo Motor 400V 180/220 mm (5.5-21 kW)

Brand Sanyo Denki·Servo Motors

Available part numbers (18)

R1CA18550HXR00M, R1CA18550HXH00M, R1CA18550HCR00M, R1CA18550HCH00M, R1CA18750LXR00M, R1CA18750LXH00M, R1CA18750LCR00M, R1CA18750LCH00M, R1CA1811KRXR00M, R1CA1811KRXH00M + 8 more — see full table ↓

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
R1CA18550HXR00MFlange: 180 mm sq. | Output: 5.5 kW | Speed rated/max: 1500/3000 min-1 | Rated torque: 35 N.m | Brake: None | Encoder: Battery-less absolute
R1CA18550HXH00MFlange: 180 mm sq. | Output: 5.5 kW | Speed rated/max: 1500/3000 min-1 | Rated torque: 35 N.m | Brake: None | Encoder: Single-turn absolute
R1CA18550HCR00MFlange: 180 mm sq. | Output: 5.5 kW | Speed rated/max: 1500/3000 min-1 | Rated torque: 35 N.m | Brake: 24 VDC | Encoder: Battery-less absolute
R1CA18550HCH00MFlange: 180 mm sq. | Output: 5.5 kW | Speed rated/max: 1500/3000 min-1 | Rated torque: 35 N.m | Brake: 24 VDC | Encoder: Single-turn absolute
R1CA18750LXR00MFlange: 180 mm sq. | Output: 7.5 kW | Speed rated/max: 1500/3000 min-1 | Rated torque: 48 N.m | Brake: None | Encoder: Battery-less absolute
R1CA18750LXH00MFlange: 180 mm sq. | Output: 7.5 kW | Speed rated/max: 1500/3000 min-1 | Rated torque: 48 N.m | Brake: None | Encoder: Single-turn absolute
R1CA18750LCR00MFlange: 180 mm sq. | Output: 7.5 kW | Speed rated/max: 1500/3000 min-1 | Rated torque: 48 N.m | Brake: 24 VDC | Encoder: Battery-less absolute
R1CA18750LCH00MFlange: 180 mm sq. | Output: 7.5 kW | Speed rated/max: 1500/3000 min-1 | Rated torque: 48 N.m | Brake: 24 VDC | Encoder: Single-turn absolute
R1CA1811KRXR00MFlange: 180 mm sq. | Output: 11 kW | Speed rated/max: 1500/2500 min-1 | Rated torque: 70 N.m | Brake: None | Encoder: Battery-less absolute
R1CA1811KRXH00MFlange: 180 mm sq. | Output: 11 kW | Speed rated/max: 1500/2500 min-1 | Rated torque: 70 N.m | Brake: None | Encoder: Single-turn absolute
R1CA1811KRCR00MFlange: 180 mm sq. | Output: 11 kW | Speed rated/max: 1500/2500 min-1 | Rated torque: 70 N.m | Brake: 24 VDC | Encoder: Battery-less absolute
R1CA1811KRCH00MFlange: 180 mm sq. | Output: 11 kW | Speed rated/max: 1500/2500 min-1 | Rated torque: 70 N.m | Brake: 24 VDC | Encoder: Single-turn absolute
R1CA1815KBXR00MFlange: 180 mm sq. | Output: 15 kW | Speed rated/max: 1500/2000 min-1 | Rated torque: 95.5 N.m | Brake: None | Encoder: Battery-less absolute
R1CA1815KBXH00MFlange: 180 mm sq. | Output: 15 kW | Speed rated/max: 1500/2000 min-1 | Rated torque: 95.5 N.m | Brake: None | Encoder: Single-turn absolute
R1CA1815KBCR00MFlange: 180 mm sq. | Output: 15 kW | Speed rated/max: 1500/2000 min-1 | Rated torque: 95.5 N.m | Brake: 24 VDC | Encoder: Battery-less absolute
R1CA1815KBCH00MFlange: 180 mm sq. | Output: 15 kW | Speed rated/max: 1500/2000 min-1 | Rated torque: 95.5 N.m | Brake: 24 VDC | Encoder: Single-turn absolute
R1CA2220KVXR00MFlange: 220 mm sq. | Output: 21 kW | Speed rated/max: 1500/2000 min-1 | Rated torque: 135 N.m | Brake: None | Encoder: Battery-less absolute
R1CA2220KVXH00MFlange: 220 mm sq. | Output: 21 kW | Speed rated/max: 1500/2000 min-1 | Rated torque: 135 N.m | Brake: None | Encoder: Single-turn absolute
