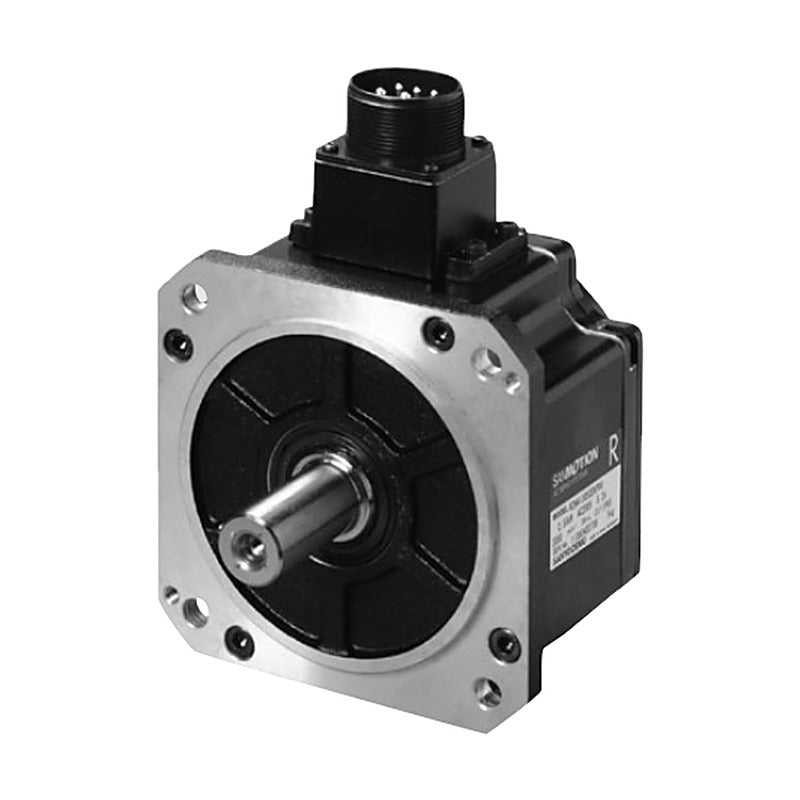

Sanyo Denki SANMOTION R2 Servo Motor 400V 100/130 mm (0.55-2 kW)

Sanyo Denki SANMOTION R2 Servo Motor 400V 100/130 mm (0.55-2 kW)

SANMOTION R2 medium-inertia rotary servo motor for 400 VAC, 100/130 mm sq. flange, for R 3E Model amplifiers.

Key features

  • Medium inertia, low ripple and low cogging torque
  • 400 VAC class, for SANMOTION R 3E Model servo amplifiers
  • Battery-less absolute encoder (17-bit single-turn, 16-bit multi-turn) or single-turn absolute encoder
  • Optional 24 VDC holding brake (not on R2CA3255KB)
  • Protection IP65; 100 mm sq. models: straight shaft, no oil seal; 130 mm: keyed shaft with oil seal
  • Matching amplifier: R2CA10075F 25 A, R2CA10100F 50 A, R2CA13050D 25 A, R2CA13120F 50 A, R2CA13120R 25 A, R2CA13180D 50 A, R2CA13180H 25 A, R2CA13200H 50 A, R2CA13200L 25 A

Specifications

Power supply voltage 400 VAC class
Encoder resolution 131072 P/rev (17-bit) single-turn
Multi-turn resolution 65536 (16-bit), battery-less type
Encoder baud rate 2.5 Mbps
Brake rated voltage 24 VDC +/-10%
Protection IP65
Source Sanyo Denki SANMOTION R 3E Model 400 VAC catalogue Ver.4.1, p. 82-93
R2CA10075FXR03M Flange: 100 mm sq. | Output: 0.75 kW | Speed rated/max: 3000/6000 min-1 | Rated torque: 2.39 N.m | Brake: None | Encoder: Battery-less absolute
R2CA10075FXH03M Flange: 100 mm sq. | Output: 0.75 kW | Speed rated/max: 3000/6000 min-1 | Rated torque: 2.39 N.m | Brake: None | Encoder: Single-turn absolute
R2CA10075FCR03M Flange: 100 mm sq. | Output: 0.75 kW | Speed rated/max: 3000/6000 min-1 | Rated torque: 2.39 N.m | Brake: 24 VDC | Encoder: Battery-less absolute
R2CA10075FCH03M Flange: 100 mm sq. | Output: 0.75 kW | Speed rated/max: 3000/6000 min-1 | Rated torque: 2.39 N.m | Brake: 24 VDC | Encoder: Single-turn absolute
R2CA10100FXR03M Flange: 100 mm sq. | Output: 1.0 kW | Speed rated/max: 3000/6000 min-1 | Rated torque: 3.18 N.m | Brake: None | Encoder: Battery-less absolute
R2CA10100FXH03M Flange: 100 mm sq. | Output: 1.0 kW | Speed rated/max: 3000/6000 min-1 | Rated torque: 3.18 N.m | Brake: None | Encoder: Single-turn absolute
R2CA10100FCR03M Flange: 100 mm sq. | Output: 1.0 kW | Speed rated/max: 3000/6000 min-1 | Rated torque: 3.18 N.m | Brake: 24 VDC | Encoder: Battery-less absolute
R2CA10100FCH03M Flange: 100 mm sq. | Output: 1.0 kW | Speed rated/max: 3000/6000 min-1 | Rated torque: 3.18 N.m | Brake: 24 VDC | Encoder: Single-turn absolute
R2CA13050DXR00M Flange: 130 mm sq. | Output: 0.55 kW | Speed rated/max: 2000/5000 min-1 | Rated torque: 2.6 N.m | Brake: None | Encoder: Battery-less absolute
R2CA13050DXH00M Flange: 130 mm sq. | Output: 0.55 kW | Speed rated/max: 2000/5000 min-1 | Rated torque: 2.6 N.m | Brake: None | Encoder: Single-turn absolute
R2CA13050DCR00M Flange: 130 mm sq. | Output: 0.55 kW | Speed rated/max: 2000/5000 min-1 | Rated torque: 2.6 N.m | Brake: 24 VDC | Encoder: Battery-less absolute
R2CA13050DCH00M Flange: 130 mm sq. | Output: 0.55 kW | Speed rated/max: 2000/5000 min-1 | Rated torque: 2.6 N.m | Brake: 24 VDC | Encoder: Single-turn absolute
R2CA13120RXR00M Flange: 130 mm sq. | Output: 1.2 kW | Speed rated/max: 2000/3000 min-1 | Rated torque: 5.7 N.m | Brake: None | Encoder: Battery-less absolute
R2CA13120RXH00M Flange: 130 mm sq. | Output: 1.2 kW | Speed rated/max: 2000/3000 min-1 | Rated torque: 5.7 N.m | Brake: None | Encoder: Single-turn absolute
R2CA13120RCR00M Flange: 130 mm sq. | Output: 1.2 kW | Speed rated/max: 2000/3000 min-1 | Rated torque: 5.7 N.m | Brake: 24 VDC | Encoder: Battery-less absolute
R2CA13120RCH00M Flange: 130 mm sq. | Output: 1.2 kW | Speed rated/max: 2000/3000 min-1 | Rated torque: 5.7 N.m | Brake: 24 VDC | Encoder: Single-turn absolute
R2CA13120FXR00M Flange: 130 mm sq. | Output: 1.2 kW | Speed rated/max: 2000/5000 min-1 | Rated torque: 5.7 N.m | Brake: None | Encoder: Battery-less absolute
R2CA13120FXH00M Flange: 130 mm sq. | Output: 1.2 kW | Speed rated/max: 2000/5000 min-1 | Rated torque: 5.7 N.m | Brake: None | Encoder: Single-turn absolute
R2CA13120FCR00M Flange: 130 mm sq. | Output: 1.2 kW | Speed rated/max: 2000/5000 min-1 | Rated torque: 5.7 N.m | Brake: 24 VDC | Encoder: Battery-less absolute
R2CA13120FCH00M Flange: 130 mm sq. | Output: 1.2 kW | Speed rated/max: 2000/5000 min-1 | Rated torque: 5.7 N.m | Brake: 24 VDC | Encoder: Single-turn absolute
R2CA13180HXR00M Flange: 130 mm sq. | Output: 1.8 kW | Speed rated/max: 2000/3500 min-1 | Rated torque: 8.6 N.m | Brake: None | Encoder: Battery-less absolute
R2CA13180HXH00M Flange: 130 mm sq. | Output: 1.8 kW | Speed rated/max: 2000/3500 min-1 | Rated torque: 8.6 N.m | Brake: None | Encoder: Single-turn absolute
R2CA13180HCR00M Flange: 130 mm sq. | Output: 1.8 kW | Speed rated/max: 2000/3500 min-1 | Rated torque: 8.6 N.m | Brake: 24 VDC | Encoder: Battery-less absolute
R2CA13180HCH00M Flange: 130 mm sq. | Output: 1.8 kW | Speed rated/max: 2000/3500 min-1 | Rated torque: 8.6 N.m | Brake: 24 VDC | Encoder: Single-turn absolute
R2CA13180DXR00M Flange: 130 mm sq. | Output: 1.8 kW | Speed rated/max: 2000/5000 min-1 | Rated torque: 8.6 N.m | Brake: None | Encoder: Battery-less absolute
R2CA13180DXH00M Flange: 130 mm sq. | Output: 1.8 kW | Speed rated/max: 2000/5000 min-1 | Rated torque: 8.6 N.m | Brake: None | Encoder: Single-turn absolute
R2CA13180DCR00M Flange: 130 mm sq. | Output: 1.8 kW | Speed rated/max: 2000/5000 min-1 | Rated torque: 8.6 N.m | Brake: 24 VDC | Encoder: Battery-less absolute
R2CA13180DCH00M Flange: 130 mm sq. | Output: 1.8 kW | Speed rated/max: 2000/5000 min-1 | Rated torque: 8.6 N.m | Brake: 24 VDC | Encoder: Single-turn absolute
R2CA13200LXR00M Flange: 130 mm sq. | Output: 2.0 kW | Speed rated/max: 2000/3000 min-1 | Rated torque: 9.5 N.m | Brake: None | Encoder: Battery-less absolute
R2CA13200LXH00M Flange: 130 mm sq. | Output: 2.0 kW | Speed rated/max: 2000/3000 min-1 | Rated torque: 9.5 N.m | Brake: None | Encoder: Single-turn absolute
R2CA13200LCR00M Flange: 130 mm sq. | Output: 2.0 kW | Speed rated/max: 2000/3000 min-1 | Rated torque: 9.5 N.m | Brake: 24 VDC | Encoder: Battery-less absolute
R2CA13200LCH00M Flange: 130 mm sq. | Output: 2.0 kW | Speed rated/max: 2000/3000 min-1 | Rated torque: 9.5 N.m | Brake: 24 VDC | Encoder: Single-turn absolute
R2CA13200HXR00M Flange: 130 mm sq. | Output: 2.0 kW | Speed rated/max: 2000/5000 min-1 | Rated torque: 9.5 N.m | Brake: None | Encoder: Battery-less absolute
R2CA13200HXH00M Flange: 130 mm sq. | Output: 2.0 kW | Speed rated/max: 2000/5000 min-1 | Rated torque: 9.5 N.m | Brake: None | Encoder: Single-turn absolute
R2CA13200HCR00M Flange: 130 mm sq. | Output: 2.0 kW | Speed rated/max: 2000/5000 min-1 | Rated torque: 9.5 N.m | Brake: 24 VDC | Encoder: Battery-less absolute
R2CA13200HCH00M Flange: 130 mm sq. | Output: 2.0 kW | Speed rated/max: 2000/5000 min-1 | Rated torque: 9.5 N.m | Brake: 24 VDC | Encoder: Single-turn absolute
Servo MotorsSanyo Denki
36 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki SANMOTION R2 Servo Motor 400V 100/130 mm (0.55-2 kW)

Brand Sanyo Denki·Servo Motors

Available part numbers (36)

R2CA10075FXR03M, R2CA10075FXH03M, R2CA10075FCR03M, R2CA10075FCH03M, R2CA10100FXR03M, R2CA10100FXH03M, R2CA10100FCR03M, R2CA10100FCH03M, R2CA13050DXR00M, R2CA13050DXH00M + 26 more — see full table ↓
