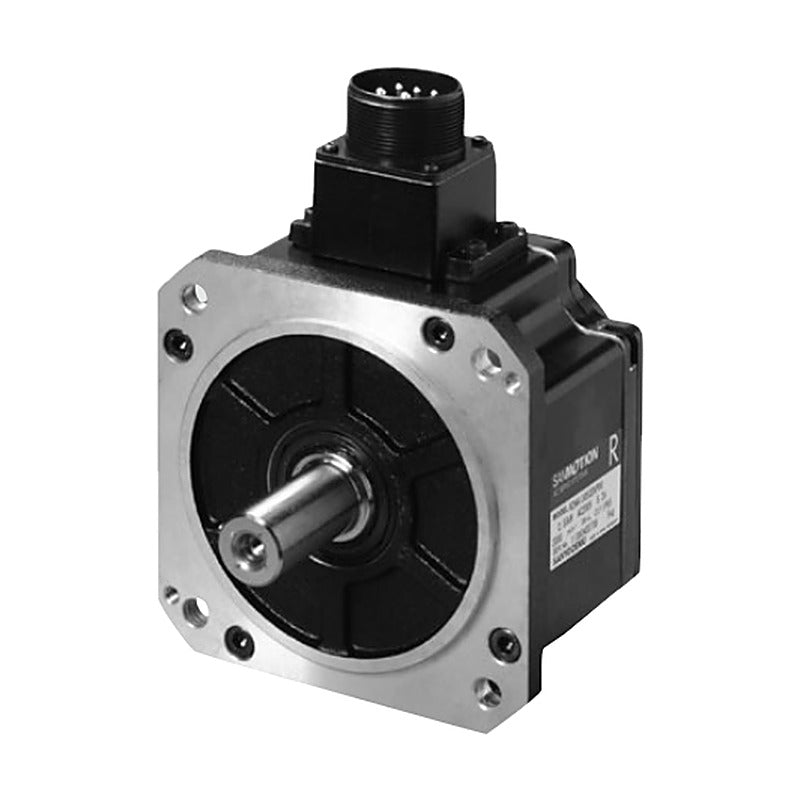

Sanyo Denki SANMOTION R2 Servo Motor 400V 180 mm (3.5-7.5 kW)

Sanyo Denki SANMOTION R2 Servo Motor 400V 180 mm (3.5-7.5 kW)

SANMOTION R2 medium-inertia rotary servo motor for 400 VAC, 180 mm sq. flange, for R 3E Model amplifiers.

Key features

  • Medium inertia, low ripple and low cogging torque
  • 400 VAC class, for SANMOTION R 3E Model servo amplifiers
  • Battery-less absolute encoder (17-bit single-turn, 16-bit multi-turn) or single-turn absolute encoder
  • Optional 24 VDC holding brake (not on R2CA3255KB)
  • Protection IP65; keyed shaft with oil seal, cannon plug connection
  • Matching amplifier: R2CA18350D 100 A, R2CA18350L 50 A, R2CA18450H 100 A, R2CA18550H 150 A, R2CA18550R 100 A, R2CA18750H 150 A

Specifications

Power supply voltage 400 VAC class
Encoder resolution 131072 P/rev (17-bit) single-turn
Multi-turn resolution 65536 (16-bit), battery-less type
Encoder baud rate 2.5 Mbps
Brake rated voltage 24 VDC +/-10%
Protection IP65
Flange 180 mm sq.
Source Sanyo Denki SANMOTION R 3E Model 400 VAC catalogue Ver.4.1, p. 84-94
R2CA18350LXR00M Output: 3.5 kW | Speed rated/max: 2000/3000 min-1 | Rated torque: 17.0 N.m | Brake: None | Encoder: Battery-less absolute
R2CA18350LXH00M Output: 3.5 kW | Speed rated/max: 2000/3000 min-1 | Rated torque: 17.0 N.m | Brake: None | Encoder: Single-turn absolute
R2CA18350LCR00M Output: 3.5 kW | Speed rated/max: 2000/3000 min-1 | Rated torque: 17.0 N.m | Brake: 24 VDC | Encoder: Battery-less absolute
R2CA18350LCH00M Output: 3.5 kW | Speed rated/max: 2000/3000 min-1 | Rated torque: 17.0 N.m | Brake: 24 VDC | Encoder: Single-turn absolute
R2CA18350DXR00M Output: 3.5 kW | Speed rated/max: 2000/4000 min-1 | Rated torque: 17.0 N.m | Brake: None | Encoder: Battery-less absolute
R2CA18350DXH00M Output: 3.5 kW | Speed rated/max: 2000/4000 min-1 | Rated torque: 17.0 N.m | Brake: None | Encoder: Single-turn absolute
R2CA18350DCR00M Output: 3.5 kW | Speed rated/max: 2000/4000 min-1 | Rated torque: 17.0 N.m | Brake: 24 VDC | Encoder: Battery-less absolute
R2CA18350DCH00M Output: 3.5 kW | Speed rated/max: 2000/4000 min-1 | Rated torque: 17.0 N.m | Brake: 24 VDC | Encoder: Single-turn absolute
R2CA18450HXR00M Output: 4.5 kW | Speed rated/max: 2000/3500 min-1 | Rated torque: 21.5 N.m | Brake: None | Encoder: Battery-less absolute
R2CA18450HXH00M Output: 4.5 kW | Speed rated/max: 2000/3500 min-1 | Rated torque: 21.5 N.m | Brake: None | Encoder: Single-turn absolute
R2CA18450HCR00M Output: 4.5 kW | Speed rated/max: 2000/3500 min-1 | Rated torque: 21.5 N.m | Brake: 24 VDC | Encoder: Battery-less absolute
R2CA18450HCH00M Output: 4.5 kW | Speed rated/max: 2000/3500 min-1 | Rated torque: 21.5 N.m | Brake: 24 VDC | Encoder: Single-turn absolute
R2CA18550RXR00M Output: 5.5 kW | Speed rated/max: 1500/3000 min-1 | Rated torque: 35.0 N.m | Brake: None | Encoder: Battery-less absolute
R2CA18550RXH00M Output: 5.5 kW | Speed rated/max: 1500/3000 min-1 | Rated torque: 35.0 N.m | Brake: None | Encoder: Single-turn absolute
R2CA18550RCR00M Output: 5.5 kW | Speed rated/max: 1500/3000 min-1 | Rated torque: 35.0 N.m | Brake: 24 VDC | Encoder: Battery-less absolute
R2CA18550RCH00M Output: 5.5 kW | Speed rated/max: 1500/3000 min-1 | Rated torque: 35.0 N.m | Brake: 24 VDC | Encoder: Single-turn absolute
R2CA18550HXR00M Output: 5.5 kW | Speed rated/max: 1500/3000 min-1 | Rated torque: 35 N.m | Brake: None | Encoder: Battery-less absolute
R2CA18550HXH00M Output: 5.5 kW | Speed rated/max: 1500/3000 min-1 | Rated torque: 35 N.m | Brake: None | Encoder: Single-turn absolute
R2CA18550HCR00M Output: 5.5 kW | Speed rated/max: 1500/3000 min-1 | Rated torque: 35 N.m | Brake: 24 VDC | Encoder: Battery-less absolute
R2CA18550HCH00M Output: 5.5 kW | Speed rated/max: 1500/3000 min-1 | Rated torque: 35 N.m | Brake: 24 VDC | Encoder: Single-turn absolute
R2CA18750HXR00M Output: 7.5 kW | Speed rated/max: 1500/3000 min-1 | Rated torque: 48 N.m | Brake: None | Encoder: Battery-less absolute
R2CA18750HXH00M Output: 7.5 kW | Speed rated/max: 1500/3000 min-1 | Rated torque: 48 N.m | Brake: None | Encoder: Single-turn absolute
R2CA18750HCR00M Output: 7.5 kW | Speed rated/max: 1500/3000 min-1 | Rated torque: 48 N.m | Brake: 24 VDC | Encoder: Battery-less absolute
R2CA18750HCH00M Output: 7.5 kW | Speed rated/max: 1500/3000 min-1 | Rated torque: 48 N.m | Brake: 24 VDC | Encoder: Single-turn absolute
Servo MotorsSanyo Denki
24 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki SANMOTION R2 Servo Motor 400V 180 mm (3.5-7.5 kW)

Brand Sanyo Denki·Servo Motors

Available part numbers (24)

R2CA18350LXR00M, R2CA18350LXH00M, R2CA18350LCR00M, R2CA18350LCH00M, R2CA18350DXR00M, R2CA18350DXH00M, R2CA18350DCR00M, R2CA18350DCH00M, R2CA18450HXR00M, R2CA18450HXH00M + 14 more — see full table ↓

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
R2CA18350LXR00MOutput: 3.5 kW | Speed rated/max: 2000/3000 min-1 | Rated torque: 17.0 N.m | Brake: None | Encoder: Battery-less absolute
R2CA18350LXH00MOutput: 3.5 kW | Speed rated/max: 2000/3000 min-1 | Rated torque: 17.0 N.m | Brake: None | Encoder: Single-turn absolute
R2CA18350LCR00MOutput: 3.5 kW | Speed rated/max: 2000/3000 min-1 | Rated torque: 17.0 N.m | Brake: 24 VDC | Encoder: Battery-less absolute
R2CA18350LCH00MOutput: 3.5 kW | Speed rated/max: 2000/3000 min-1 | Rated torque: 17.0 N.m | Brake: 24 VDC | Encoder: Single-turn absolute
R2CA18350DXR00MOutput: 3.5 kW | Speed rated/max: 2000/4000 min-1 | Rated torque: 17.0 N.m | Brake: None | Encoder: Battery-less absolute
R2CA18350DXH00MOutput: 3.5 kW | Speed rated/max: 2000/4000 min-1 | Rated torque: 17.0 N.m | Brake: None | Encoder: Single-turn absolute
R2CA18350DCR00MOutput: 3.5 kW | Speed rated/max: 2000/4000 min-1 | Rated torque: 17.0 N.m | Brake: 24 VDC | Encoder: Battery-less absolute
R2CA18350DCH00MOutput: 3.5 kW | Speed rated/max: 2000/4000 min-1 | Rated torque: 17.0 N.m | Brake: 24 VDC | Encoder: Single-turn absolute
R2CA18450HXR00MOutput: 4.5 kW | Speed rated/max: 2000/3500 min-1 | Rated torque: 21.5 N.m | Brake: None | Encoder: Battery-less absolute
R2CA18450HXH00MOutput: 4.5 kW | Speed rated/max: 2000/3500 min-1 | Rated torque: 21.5 N.m | Brake: None | Encoder: Single-turn absolute
R2CA18450HCR00MOutput: 4.5 kW | Speed rated/max: 2000/3500 min-1 | Rated torque: 21.5 N.m | Brake: 24 VDC | Encoder: Battery-less absolute
R2CA18450HCH00MOutput: 4.5 kW | Speed rated/max: 2000/3500 min-1 | Rated torque: 21.5 N.m | Brake: 24 VDC | Encoder: Single-turn absolute
R2CA18550RXR00MOutput: 5.5 kW | Speed rated/max: 1500/3000 min-1 | Rated torque: 35.0 N.m | Brake: None | Encoder: Battery-less absolute
R2CA18550RXH00MOutput: 5.5 kW | Speed rated/max: 1500/3000 min-1 | Rated torque: 35.0 N.m | Brake: None | Encoder: Single-turn absolute
R2CA18550RCR00MOutput: 5.5 kW | Speed rated/max: 1500/3000 min-1 | Rated torque: 35.0 N.m | Brake: 24 VDC | Encoder: Battery-less absolute
R2CA18550RCH00MOutput: 5.5 kW | Speed rated/max: 1500/3000 min-1 | Rated torque: 35.0 N.m | Brake: 24 VDC | Encoder: Single-turn absolute
R2CA18550HXR00MOutput: 5.5 kW | Speed rated/max: 1500/3000 min-1 | Rated torque: 35 N.m | Brake: None | Encoder: Battery-less absolute
R2CA18550HXH00MOutput: 5.5 kW | Speed rated/max: 1500/3000 min-1 | Rated torque: 35 N.m | Brake: None | Encoder: Single-turn absolute
R2CA18550HCR00MOutput: 5.5 kW | Speed rated/max: 1500/3000 min-1 | Rated torque: 35 N.m | Brake: 24 VDC | Encoder: Battery-less absolute
R2CA18550HCH00MOutput: 5.5 kW | Speed rated/max: 1500/3000 min-1 | Rated torque: 35 N.m | Brake: 24 VDC | Encoder: Single-turn absolute
R2CA18750HXR00MOutput: 7.5 kW | Speed rated/max: 1500/3000 min-1 | Rated torque: 48 N.m | Brake: None | Encoder: Battery-less absolute
R2CA18750HXH00MOutput: 7.5 kW | Speed rated/max: 1500/3000 min-1 | Rated torque: 48 N.m | Brake: None | Encoder: Single-turn absolute
R2CA18750HCR00MOutput: 7.5 kW | Speed rated/max: 1500/3000 min-1 | Rated torque: 48 N.m | Brake: 24 VDC | Encoder: Battery-less absolute
R2CA18750HCH00MOutput: 7.5 kW | Speed rated/max: 1500/3000 min-1 | Rated torque: 48 N.m | Brake: 24 VDC | Encoder: Single-turn absolute
