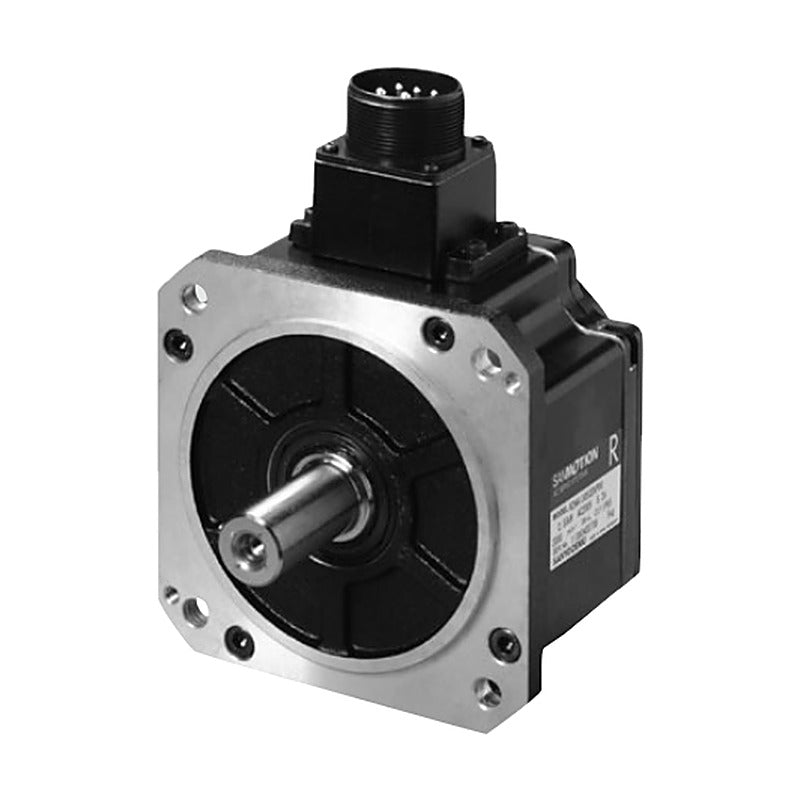

Sanyo Denki SANMOTION R2 Servo Motor 400V 220-320 mm (11-55 kW)

Sanyo Denki SANMOTION R2 Servo Motor 400V 220-320 mm (11-55 kW)

SANMOTION R2 medium-inertia rotary servo motor for 400 VAC, 220/275/320 mm sq. flange, for R 3E Model amplifiers.

Key features

  • Medium inertia, low ripple and low cogging torque
  • 400 VAC class, for SANMOTION R 3E Model servo amplifiers
  • Battery-less absolute encoder (17-bit single-turn, 16-bit multi-turn) or single-turn absolute encoder
  • Optional 24 VDC holding brake (not on R2CA3255KB)
  • Protection IP65 (55 kW: IP55); terminal block from 20 kW
  • Matching amplifier: R2CA2211KB 150 A, R2CA2215KV 150 A, R2CA2220KV 300 A, R2CA2830KV 300 A, R2CA3255KB 800 A

Specifications

Power supply voltage 400 VAC class
Encoder resolution 131072 P/rev (17-bit) single-turn
Multi-turn resolution 65536 (16-bit), battery-less type
Encoder baud rate 2.5 Mbps
Brake rated voltage 24 VDC +/-10%
Protection IP65 (55 kW: IP55)
Source Sanyo Denki SANMOTION R 3E Model 400 VAC catalogue Ver.4.1, p. 86-96
R2CA2211KBXR00M Flange: 220 mm sq. | Output: 11 kW | Speed rated/max: 1500/2500 min-1 | Rated torque: 70 N.m | Brake: None | Encoder: Battery-less absolute
R2CA2211KBXH00M Flange: 220 mm sq. | Output: 11 kW | Speed rated/max: 1500/2500 min-1 | Rated torque: 70 N.m | Brake: None | Encoder: Single-turn absolute
R2CA2211KBCR00M Flange: 220 mm sq. | Output: 11 kW | Speed rated/max: 1500/2500 min-1 | Rated torque: 70 N.m | Brake: 24 VDC | Encoder: Battery-less absolute
R2CA2211KBCH00M Flange: 220 mm sq. | Output: 11 kW | Speed rated/max: 1500/2500 min-1 | Rated torque: 70 N.m | Brake: 24 VDC | Encoder: Single-turn absolute
R2CA2215KVXR00M Flange: 220 mm sq. | Output: 15 kW | Speed rated/max: 1500/2000 min-1 | Rated torque: 95 N.m | Brake: None | Encoder: Battery-less absolute
R2CA2215KVXH00M Flange: 220 mm sq. | Output: 15 kW | Speed rated/max: 1500/2000 min-1 | Rated torque: 95 N.m | Brake: None | Encoder: Single-turn absolute
R2CA2215KVCR00M Flange: 220 mm sq. | Output: 15 kW | Speed rated/max: 1500/2000 min-1 | Rated torque: 95 N.m | Brake: 24 VDC | Encoder: Battery-less absolute
R2CA2215KVCH00M Flange: 220 mm sq. | Output: 15 kW | Speed rated/max: 1500/2000 min-1 | Rated torque: 95 N.m | Brake: 24 VDC | Encoder: Single-turn absolute
R2CA2220KVXR00M Flange: 220 mm sq. | Output: 20 kW | Speed rated/max: 1500/2300 min-1 | Rated torque: 125 N.m | Brake: None | Encoder: Battery-less absolute
R2CA2220KVXH00M Flange: 220 mm sq. | Output: 20 kW | Speed rated/max: 1500/2300 min-1 | Rated torque: 125 N.m | Brake: None | Encoder: Single-turn absolute
R2CA2220KVCR00M Flange: 220 mm sq. | Output: 20 kW | Speed rated/max: 1500/2300 min-1 | Rated torque: 125 N.m | Brake: 24 VDC | Encoder: Battery-less absolute
R2CA2220KVCH00M Flange: 220 mm sq. | Output: 20 kW | Speed rated/max: 1500/2300 min-1 | Rated torque: 125 N.m | Brake: 24 VDC | Encoder: Single-turn absolute
R2CA2830KVXR00M Flange: 275 mm sq. | Output: 30 kW | Speed rated/max: 1500/2000 min-1 | Rated torque: 191.1 N.m | Brake: None | Encoder: Battery-less absolute
R2CA2830KVXH00M Flange: 275 mm sq. | Output: 30 kW | Speed rated/max: 1500/2000 min-1 | Rated torque: 191.1 N.m | Brake: None | Encoder: Single-turn absolute
R2CA2830KVCR00M Flange: 275 mm sq. | Output: 30 kW | Speed rated/max: 1500/2000 min-1 | Rated torque: 191.1 N.m | Brake: 24 VDC | Encoder: Battery-less absolute
R2CA2830KVCH00M Flange: 275 mm sq. | Output: 30 kW | Speed rated/max: 1500/2000 min-1 | Rated torque: 191.1 N.m | Brake: 24 VDC | Encoder: Single-turn absolute
R2CA3255KBXR00 Flange: 320 mm sq. | Output: 55 kW | Speed rated/max: 1500/2000 min-1 | Rated torque: 350 N.m | Brake: None | Encoder: Battery-less absolute
R2CA3255KBXH00 Flange: 320 mm sq. | Output: 55 kW | Speed rated/max: 1500/2000 min-1 | Rated torque: 350 N.m | Brake: None | Encoder: Single-turn absolute
Servo MotorsSanyo Denki
18 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki SANMOTION R2 Servo Motor 400V 220-320 mm (11-55 kW)

Brand Sanyo Denki·Servo Motors

Available part numbers (18)

R2CA2211KBXR00M, R2CA2211KBXH00M, R2CA2211KBCR00M, R2CA2211KBCH00M, R2CA2215KVXR00M, R2CA2215KVXH00M, R2CA2215KVCR00M, R2CA2215KVCH00M, R2CA2220KVXR00M, R2CA2220KVXH00M + 8 more — see full table ↓

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
R2CA2211KBXR00MFlange: 220 mm sq. | Output: 11 kW | Speed rated/max: 1500/2500 min-1 | Rated torque: 70 N.m | Brake: None | Encoder: Battery-less absolute
R2CA2211KBXH00MFlange: 220 mm sq. | Output: 11 kW | Speed rated/max: 1500/2500 min-1 | Rated torque: 70 N.m | Brake: None | Encoder: Single-turn absolute
R2CA2211KBCR00MFlange: 220 mm sq. | Output: 11 kW | Speed rated/max: 1500/2500 min-1 | Rated torque: 70 N.m | Brake: 24 VDC | Encoder: Battery-less absolute
R2CA2211KBCH00MFlange: 220 mm sq. | Output: 11 kW | Speed rated/max: 1500/2500 min-1 | Rated torque: 70 N.m | Brake: 24 VDC | Encoder: Single-turn absolute
R2CA2215KVXR00MFlange: 220 mm sq. | Output: 15 kW | Speed rated/max: 1500/2000 min-1 | Rated torque: 95 N.m | Brake: None | Encoder: Battery-less absolute
R2CA2215KVXH00MFlange: 220 mm sq. | Output: 15 kW | Speed rated/max: 1500/2000 min-1 | Rated torque: 95 N.m | Brake: None | Encoder: Single-turn absolute
R2CA2215KVCR00MFlange: 220 mm sq. | Output: 15 kW | Speed rated/max: 1500/2000 min-1 | Rated torque: 95 N.m | Brake: 24 VDC | Encoder: Battery-less absolute
R2CA2215KVCH00MFlange: 220 mm sq. | Output: 15 kW | Speed rated/max: 1500/2000 min-1 | Rated torque: 95 N.m | Brake: 24 VDC | Encoder: Single-turn absolute
R2CA2220KVXR00MFlange: 220 mm sq. | Output: 20 kW | Speed rated/max: 1500/2300 min-1 | Rated torque: 125 N.m | Brake: None | Encoder: Battery-less absolute
R2CA2220KVXH00MFlange: 220 mm sq. | Output: 20 kW | Speed rated/max: 1500/2300 min-1 | Rated torque: 125 N.m | Brake: None | Encoder: Single-turn absolute
R2CA2220KVCR00MFlange: 220 mm sq. | Output: 20 kW | Speed rated/max: 1500/2300 min-1 | Rated torque: 125 N.m | Brake: 24 VDC | Encoder: Battery-less absolute
R2CA2220KVCH00MFlange: 220 mm sq. | Output: 20 kW | Speed rated/max: 1500/2300 min-1 | Rated torque: 125 N.m | Brake: 24 VDC | Encoder: Single-turn absolute
R2CA2830KVXR00MFlange: 275 mm sq. | Output: 30 kW | Speed rated/max: 1500/2000 min-1 | Rated torque: 191.1 N.m | Brake: None | Encoder: Battery-less absolute
R2CA2830KVXH00MFlange: 275 mm sq. | Output: 30 kW | Speed rated/max: 1500/2000 min-1 | Rated torque: 191.1 N.m | Brake: None | Encoder: Single-turn absolute
R2CA2830KVCR00MFlange: 275 mm sq. | Output: 30 kW | Speed rated/max: 1500/2000 min-1 | Rated torque: 191.1 N.m | Brake: 24 VDC | Encoder: Battery-less absolute
R2CA2830KVCH00MFlange: 275 mm sq. | Output: 30 kW | Speed rated/max: 1500/2000 min-1 | Rated torque: 191.1 N.m | Brake: 24 VDC | Encoder: Single-turn absolute
R2CA3255KBXR00Flange: 320 mm sq. | Output: 55 kW | Speed rated/max: 1500/2000 min-1 | Rated torque: 350 N.m | Brake: None | Encoder: Battery-less absolute
R2CA3255KBXH00Flange: 320 mm sq. | Output: 55 kW | Speed rated/max: 1500/2000 min-1 | Rated torque: 350 N.m | Brake: None | Encoder: Single-turn absolute
