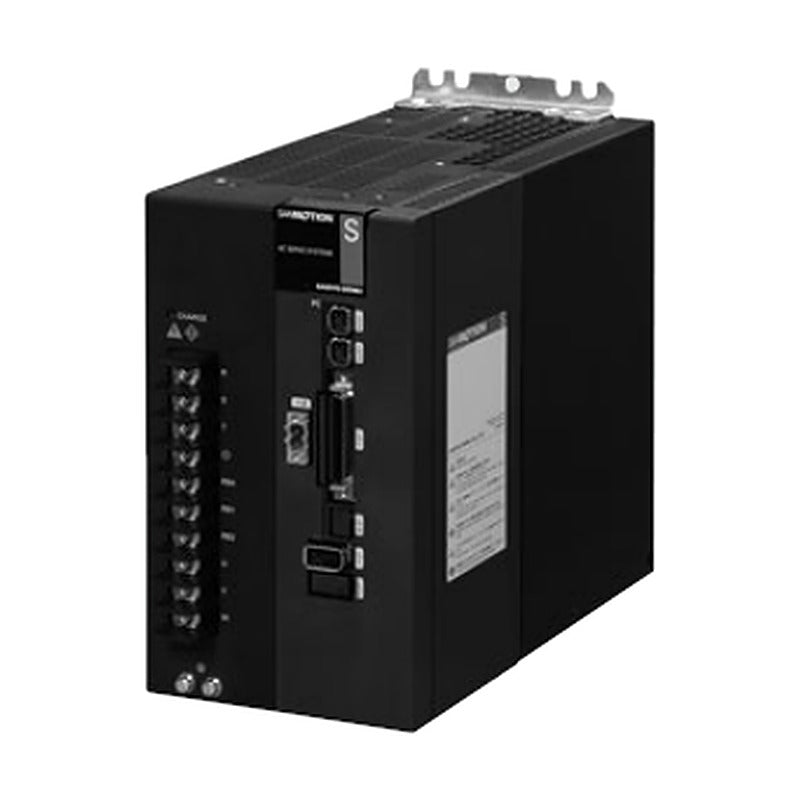

Sanyo Denki SANMOTION S Spindle Servo Amplifier SS1A15 (150 A)

Sanyo Denki SANMOTION S Spindle Servo Amplifier SS1A15 (150 A)

SANMOTION S 150 A servo amplifiers for S30V spindle motors, in analog/pulse and EtherCAT interface versions.

Key features

  • Position, speed, torque and orientation control
  • Sinusoidal PWM control, 1:5000 speed control range, 200 Hz response
  • Regenerative circuit built in (resistor mounted externally)
  • Drives 3.2 kW and 4.5 kW S30V spindle motors
  • UL, CE, UKCA and RoHS compliant

Specifications

Series SANMOTION S
Amplifier capacity 150 A
Main power 3-phase 200-230 VAC, 50/60 Hz
Control power 1-phase 200-230 VAC
Encoder 4096 P/R (A, B, Z phase)
Ambient temperature 0 to 55 C
Mass 4.9 kg
Source Sanyo Denki SANMOTION R AC Servo Systems 100/200 VAC catalogue Ver.5.3, p. 175, 177-178
SS1A15M8AM0 Interface: Analog/pulse input | Sequence I/O: 8 in / 8 out | Speed/torque cmd input: Available
SS1A15M8HM1 Interface: EtherCAT | Sequence I/O: 6 in / 2 out | Speed/torque cmd input: None
Servo AmplifiersSanyo Denki
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki SANMOTION S Spindle Servo Amplifier SS1A15 (150 A)

Brand Sanyo Denki·Servo Amplifiers

Available part numbers (2)

SS1A15M8AM0, SS1A15M8HM1

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SS1A15M8AM0Interface: Analog/pulse input | Sequence I/O: 8 in / 8 out | Speed/torque cmd input: Available
SS1A15M8HM1Interface: EtherCAT | Sequence I/O: 6 in / 2 out | Speed/torque cmd input: None
