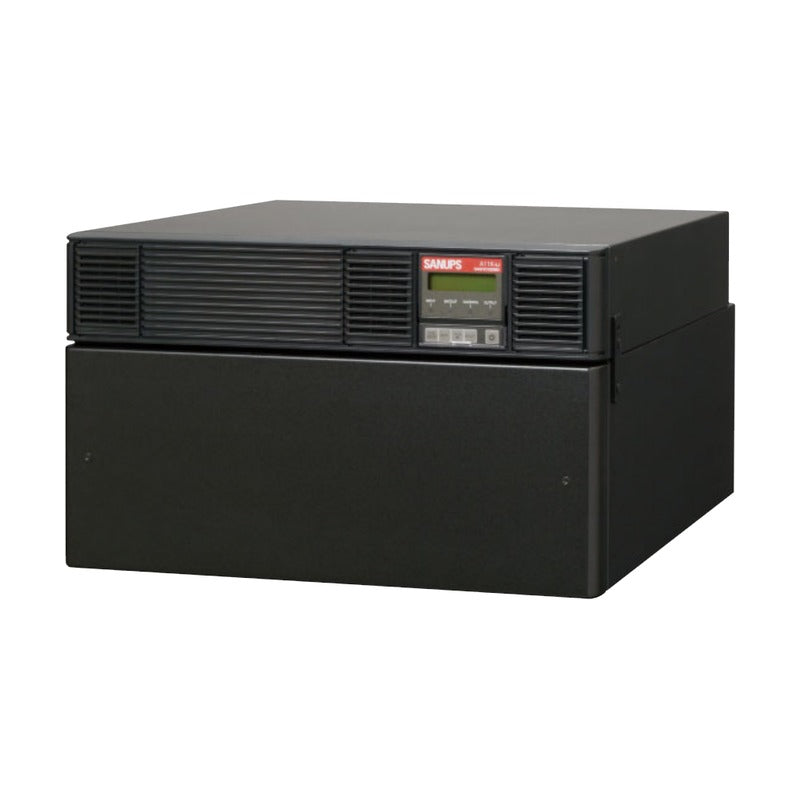

Sanyo Denki SANUPS A11K-Li Online UPS (1-5 kVA, 100 V, Lithium-Ion)

Sanyo Denki SANUPS A11K-Li Online UPS (1-5 kVA, 100 V, Lithium-Ion)

The SANUPS A11K-Li is a 100 V double-conversion online UPS with lithium-ion batteries, from 1 to 5 kVA and from 8 up to 600 minutes backup.

Key features

  • Double conversion online with high power factor converter; 0.8 output power factor
  • Wide operating temperature range of -20 to +55 C
  • Lithium-ion batteries with no replacement needed for about 10 years (at 30 C)
  • Long-backup sets (30-600 min) combine a UPS unit with battery units; free-standing or rack type (RM)
  • Sequential start/stop via Output Line Control (outlet box option for 2-3 kVA)
  • UL-listed 1 kVA and 1.5 kVA models (S-A11KL102C0013UJ, S-A11KL152C0008UJ)

Specifications

Topology Double conversion online
Voltage 100/110/120 V single-phase 2-wire
Battery Lithium-ion battery
Operating temperature -20 to +55 C
Brand SANUPS
Source SANUPS A11K-Li catalog P1023B009, p. 2-21
S-A11KL102B0013SSN00 Capacity: 1 kVA / 0.8 kW | Backup (PF 0.8): 13 min | Output: Outlet | Mounting: Vertical / rack convertible | Certification: Standard
S-A11KL102C0013UJ Capacity: 1 kVA / 0.8 kW | Backup (PF 0.8): 13 min | Output: Outlet | Mounting: Vertical / rack convertible | Certification: UL listed
S-A11KL152B0008SSN00 Capacity: 1.5 kVA / 1.2 kW | Backup (PF 0.8): 8 min | Output: Outlet | Mounting: Vertical / rack convertible | Certification: Standard
S-A11KL152B0019SSN00 Capacity: 1.5 kVA / 1.2 kW | Backup (PF 0.8): 19 min | Output: Outlet | Mounting: Vertical / rack convertible | Certification: Standard
S-A11KL152B0100TSN00 Capacity: 1.5 kVA / 1.2 kW | Backup (PF 0.8): 100 min | Output: Outlet | Mounting: Vertical / rack convertible | Certification: Standard
S-A11KL152B0200TSN00 Capacity: 1.5 kVA / 1.2 kW | Backup (PF 0.8): 200 min | Output: Outlet | Mounting: Free-standing | Certification: Standard
S-A11KL152B0200TSN00RM Capacity: 1.5 kVA / 1.2 kW | Backup (PF 0.8): 200 min | Output: Outlet | Mounting: Rack mount | Certification: Standard
S-A11KL152B0300TSN00 Capacity: 1.5 kVA / 1.2 kW | Backup (PF 0.8): 300 min | Output: Outlet | Mounting: Free-standing | Certification: Standard
S-A11KL152B0300TSN00RM Capacity: 1.5 kVA / 1.2 kW | Backup (PF 0.8): 300 min | Output: Outlet | Mounting: Rack mount | Certification: Standard
S-A11KL152B0400TSN00 Capacity: 1.5 kVA / 1.2 kW | Backup (PF 0.8): 400 min | Output: Outlet | Mounting: Free-standing | Certification: Standard
S-A11KL152B0400TSN00RM Capacity: 1.5 kVA / 1.2 kW | Backup (PF 0.8): 400 min | Output: Outlet | Mounting: Rack mount | Certification: Standard
S-A11KL152B0500TSN00 Capacity: 1.5 kVA / 1.2 kW | Backup (PF 0.8): 500 min | Output: Outlet | Mounting: Free-standing | Certification: Standard
S-A11KL152B0600TSN00 Capacity: 1.5 kVA / 1.2 kW | Backup (PF 0.8): 600 min | Output: Outlet | Mounting: Free-standing | Certification: Standard
S-A11KL152C0008UJ Capacity: 1.5 kVA / 1.2 kW | Backup (PF 0.8): 8 min | Output: Outlet | Mounting: Vertical / rack convertible | Certification: UL listed
S-A11KL202B0015SSN00 Capacity: 2 kVA / 1.6 kW | Backup (PF 0.8): 15 min | Output: Outlet | Mounting: Vertical / rack convertible | Certification: Standard
S-A11KL202B0015SST00 Capacity: 2 kVA / 1.6 kW | Backup (PF 0.8): 15 min | Output: Terminal block | Mounting: Vertical / rack convertible | Certification: Standard
S-A11KL302B0009SSN00 Capacity: 3 kVA / 2.4 kW | Backup (PF 0.8): 9 min | Output: Outlet | Mounting: Vertical / rack convertible | Certification: Standard
S-A11KL302B0009SST00 Capacity: 3 kVA / 2.4 kW | Backup (PF 0.8): 9 min | Output: Terminal block | Mounting: Vertical / rack convertible | Certification: Standard
S-A11KL302B0019SSN00 Capacity: 3 kVA / 2.4 kW | Backup (PF 0.8): 19 min | Output: Outlet | Mounting: Vertical / rack convertible | Certification: Standard
S-A11KL302B0019SST00 Capacity: 3 kVA / 2.4 kW | Backup (PF 0.8): 19 min | Output: Terminal block | Mounting: Vertical / rack convertible | Certification: Standard
S-A11KL302B0050TSN00 Capacity: 3 kVA / 2.4 kW | Backup (PF 0.8): 50 min | Output: Outlet | Mounting: Vertical / rack convertible | Certification: Standard
S-A11KL302B0050TST00 Capacity: 3 kVA / 2.4 kW | Backup (PF 0.8): 50 min | Output: Terminal block | Mounting: Vertical / rack convertible | Certification: Standard
S-A11KL302B0100TSN00 Capacity: 3 kVA / 2.4 kW | Backup (PF 0.8): 100 min | Output: Outlet | Mounting: Free-standing | Certification: Standard
S-A11KL302B0100TSN00RM Capacity: 3 kVA / 2.4 kW | Backup (PF 0.8): 100 min | Output: Outlet | Mounting: Rack mount | Certification: Standard
S-A11KL302B0100TST00 Capacity: 3 kVA / 2.4 kW | Backup (PF 0.8): 100 min | Output: Terminal block | Mounting: Free-standing | Certification: Standard
S-A11KL302B0100TST00RM Capacity: 3 kVA / 2.4 kW | Backup (PF 0.8): 100 min | Output: Terminal block | Mounting: Rack mount | Certification: Standard
S-A11KL302B0150TSN00 Capacity: 3 kVA / 2.4 kW | Backup (PF 0.8): 150 min | Output: Outlet | Mounting: Free-standing | Certification: Standard
S-A11KL302B0150TSN00RM Capacity: 3 kVA / 2.4 kW | Backup (PF 0.8): 150 min | Output: Outlet | Mounting: Rack mount | Certification: Standard
S-A11KL302B0150TST00 Capacity: 3 kVA / 2.4 kW | Backup (PF 0.8): 150 min | Output: Terminal block | Mounting: Free-standing | Certification: Standard
S-A11KL302B0150TST00RM Capacity: 3 kVA / 2.4 kW | Backup (PF 0.8): 150 min | Output: Terminal block | Mounting: Rack mount | Certification: Standard
S-A11KL302B0200TSN00 Capacity: 3 kVA / 2.4 kW | Backup (PF 0.8): 200 min | Output: Outlet | Mounting: Free-standing | Certification: Standard
S-A11KL302B0200TSN00RM Capacity: 3 kVA / 2.4 kW | Backup (PF 0.8): 200 min | Output: Outlet | Mounting: Rack mount | Certification: Standard
S-A11KL302B0200TST00 Capacity: 3 kVA / 2.4 kW | Backup (PF 0.8): 200 min | Output: Terminal block | Mounting: Free-standing | Certification: Standard
S-A11KL302B0200TST00RM Capacity: 3 kVA / 2.4 kW | Backup (PF 0.8): 200 min | Output: Terminal block | Mounting: Rack mount | Certification: Standard
S-A11KL302B0250TSN00 Capacity: 3 kVA / 2.4 kW | Backup (PF 0.8): 250 min | Output: Outlet | Mounting: Free-standing | Certification: Standard
S-A11KL302B0250TST00 Capacity: 3 kVA / 2.4 kW | Backup (PF 0.8): 250 min | Output: Terminal block | Mounting: Free-standing | Certification: Standard
S-A11KL302B0300TSN00 Capacity: 3 kVA / 2.4 kW | Backup (PF 0.8): 300 min | Output: Outlet | Mounting: Free-standing | Certification: Standard
S-A11KL302B0300TST00 Capacity: 3 kVA / 2.4 kW | Backup (PF 0.8): 300 min | Output: Terminal block | Mounting: Free-standing | Certification: Standard
S-A11KL502B0011SST00 Capacity: 5 kVA / 4 kW | Backup (PF 0.8): 11 min | Output: Terminal block | Mounting: Vertical / rack convertible | Certification: Standard
S-A11KL502B0030TST00 Capacity: 5 kVA / 4 kW | Backup (PF 0.8): 30 min | Output: Terminal block | Mounting: Vertical / rack convertible | Certification: Standard
S-A11KL502B0060TST00 Capacity: 5 kVA / 4 kW | Backup (PF 0.8): 60 min | Output: Terminal block | Mounting: Free-standing | Certification: Standard
S-A11KL502B0060TST00RM Capacity: 5 kVA / 4 kW | Backup (PF 0.8): 60 min | Output: Terminal block | Mounting: Rack mount | Certification: Standard
S-A11KL502B0090TST00 Capacity: 5 kVA / 4 kW | Backup (PF 0.8): 90 min | Output: Terminal block | Mounting: Free-standing | Certification: Standard
S-A11KL502B0090TST00RM Capacity: 5 kVA / 4 kW | Backup (PF 0.8): 90 min | Output: Terminal block | Mounting: Rack mount | Certification: Standard
S-A11KL502B0120TST00 Capacity: 5 kVA / 4 kW | Backup (PF 0.8): 120 min | Output: Terminal block | Mounting: Free-standing | Certification: Standard
S-A11KL502B0120TST00RM Capacity: 5 kVA / 4 kW | Backup (PF 0.8): 120 min | Output: Terminal block | Mounting: Rack mount | Certification: Standard
S-A11KL502B0150TST00 Capacity: 5 kVA / 4 kW | Backup (PF 0.8): 150 min | Output: Terminal block | Mounting: Free-standing | Certification: Standard
S-A11KL502B0180TST00 Capacity: 5 kVA / 4 kW | Backup (PF 0.8): 180 min | Output: Terminal block | Mounting: Free-standing | Certification: Standard
A11KL102U001J Capacity: 1 kVA / 0.8 kW | Backup (PF 0.8): 13 min | Output: Outlet | Mounting: Vertical / rack convertible | Certification: UL no. of S-A11KL102C0013UJ
A11KL152U001J Capacity: 1.5 kVA / 1.2 kW | Backup (PF 0.8): 8 min | Output: Outlet | Mounting: Vertical / rack convertible | Certification: UL no. of S-A11KL152C0008UJ
