Sanyo Denki SANUPS A11M-Li Online UPS (1-8 kVA, Lithium-Ion)

Sanyo Denki SANUPS A11M-Li Online UPS (1-8 kVA, Lithium-Ion)

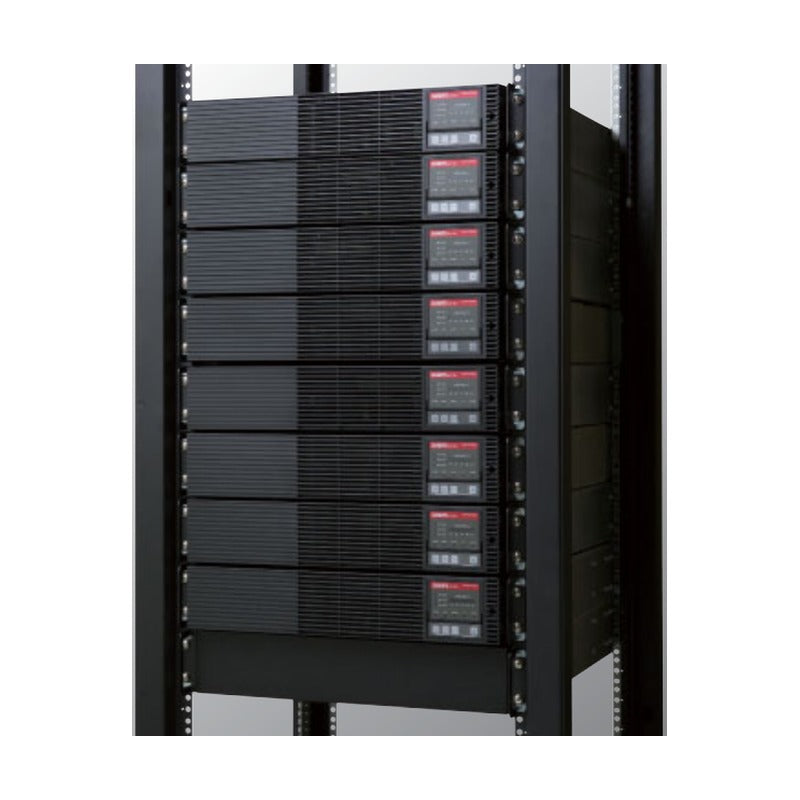

The SANUPS A11M-Li is a parallel-redundant online UPS with lithium-ion batteries, built from 1 kVA 2U units and a PDU for 2 to 8 kVA systems.

Key features

  • Up to 8 UPS units combined with one power distribution unit (PDU)
  • Parallel redundant operation: 1.0 to 7.0 kVA in N+1 configuration
  • Lithium-ion batteries, approx. 10-year expected life; 4 min backup
  • Operating temperature range -10 to +55 C
  • Conforms to UL and EN safety standards, CE marking
  • Options: dry contact cards PRCONIF007/008, LAN card PRLANIF022A/024A, rack rails RM030

Specifications

Topology Double conversion online
Unit capacity 1 kVA / 0.8 kW per UPS unit
System capacity (N) 2.0 to 8.0 kVA / 1.6 to 6.4 kW
Battery Lithium-ion, 4 min backup
Unit size 2U, 435 x 480 mm, 12 kg
Source SANUPS A11M-Li catalog P1051B001, p. 1-2
A11ML102A001PD8UJ Item: First UPS unit + PDU set | Voltage: 100 V model | Designation: Model no.
A11ML102A002PD8UJ Item: First UPS unit + PDU set | Voltage: 200 V model | Designation: Model no.
PDA11M802A01 Item: Power distribution unit (PDU) | Voltage: 100 V model | Designation: Model no.
PDA11M802A02 Item: Power distribution unit (PDU) | Voltage: 200 V model | Designation: Model no.
A11ML102A0018UJ Item: Additional UPS unit | Voltage: 100 V model | Designation: Model no.
A11ML102A0028UJ Item: Additional UPS unit | Voltage: 200 V model | Designation: Model no.
A11ML102U001PDJ Item: First UPS unit (incl. PDU) | Voltage: 100 V model | Designation: UL-registered no.
A11ML102U002PDJ Item: First UPS unit (incl. PDU) | Voltage: 200 V model | Designation: UL-registered no.
A11ML102U001J Item: Additional UPS unit | Voltage: 100 V model | Designation: UL-registered no.
A11ML102U002J Item: Additional UPS unit | Voltage: 200 V model | Designation: UL-registered no.
UPS SystemsSanyo Denki
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki SANUPS A11M-Li Online UPS (1-8 kVA, Lithium-Ion)

Brand Sanyo Denki·UPS Systems

Available part numbers (10)

A11ML102A001PD8UJ, A11ML102A002PD8UJ, PDA11M802A01, PDA11M802A02, A11ML102A0018UJ, A11ML102A0028UJ, A11ML102U001PDJ, A11ML102U002PDJ, A11ML102U001J, A11ML102U002J

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
A11ML102A001PD8UJItem: First UPS unit + PDU set | Voltage: 100 V model | Designation: Model no.
A11ML102A002PD8UJItem: First UPS unit + PDU set | Voltage: 200 V model | Designation: Model no.
PDA11M802A01Item: Power distribution unit (PDU) | Voltage: 100 V model | Designation: Model no.
PDA11M802A02Item: Power distribution unit (PDU) | Voltage: 200 V model | Designation: Model no.
A11ML102A0018UJItem: Additional UPS unit | Voltage: 100 V model | Designation: Model no.
A11ML102A0028UJItem: Additional UPS unit | Voltage: 200 V model | Designation: Model no.
A11ML102U001PDJItem: First UPS unit (incl. PDU) | Voltage: 100 V model | Designation: UL-registered no.
A11ML102U002PDJItem: First UPS unit (incl. PDU) | Voltage: 200 V model | Designation: UL-registered no.
A11ML102U001JItem: Additional UPS unit | Voltage: 100 V model | Designation: UL-registered no.
A11ML102U002JItem: Additional UPS unit | Voltage: 200 V model | Designation: UL-registered no.
