Sanyo Denki SANUPS A11M Online UPS (1-8 kVA, 200 V Model)

Sanyo Denki SANUPS A11M Online UPS (1-8 kVA, 200 V Model)

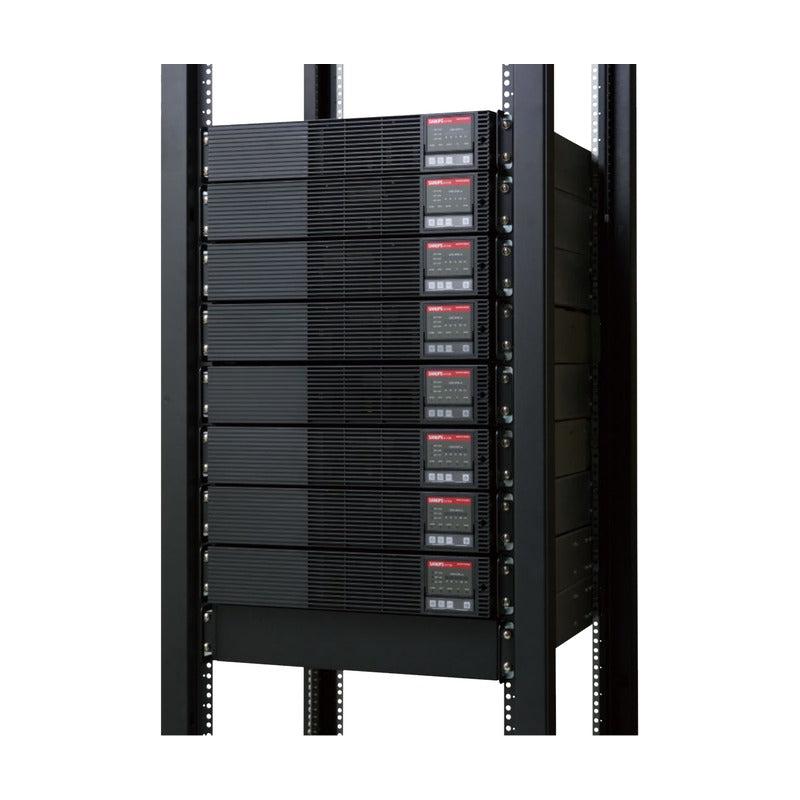

The SANUPS A11M 200 V model is a parallel-redundant double-conversion online UPS built from 1 kVA rack modules for 1 to 8 kVA systems.

Key features

  • Parallel redundant configuration: one module can serve as spare (N+1)
  • Built from 2U rack-mount UPS modules combined with a power distribution unit (PDU)
  • Double conversion online topology, 0.8 output power factor
  • 3 min backup at 0.8 load power factor (5 min at 0.7)
  • UL/CE certified (UJ) versions available for each capacity
  • Options: rack support rails RM039 and air filter kit FL011

Specifications

Topology Double conversion online
Voltage 200/208/220/230/240 V single-phase 2-wire
Backup time 3 min (5 min at PF 0.7)
I/O connection Terminal block
Battery Small VRLA lead-acid battery
Source SANUPS A11M catalog P1042B004, p. 2, 6-7, 10-12
S-A11M102A2 Capacity (N): 1 kVA / 0.8 kW | Capacity (N+1): - | UPS modules: 1 | Certification: Standard
S-A11M102A2UJ Capacity (N): 1 kVA / 0.8 kW | Capacity (N+1): - | UPS modules: 1 | Certification: UL/CE certified
S-A11M202A2 Capacity (N): 2 kVA / 1.6 kW | Capacity (N+1): 1 kVA / 0.8 kW | UPS modules: 2 | Certification: Standard
S-A11M202A2UJ Capacity (N): 2 kVA / 1.6 kW | Capacity (N+1): 1 kVA / 0.8 kW | UPS modules: 2 | Certification: UL/CE certified
S-A11M302A2 Capacity (N): 3 kVA / 2.4 kW | Capacity (N+1): 2 kVA / 1.6 kW | UPS modules: 3 | Certification: Standard
S-A11M302A2UJ Capacity (N): 3 kVA / 2.4 kW | Capacity (N+1): 2 kVA / 1.6 kW | UPS modules: 3 | Certification: UL/CE certified
S-A11M402A2 Capacity (N): 4 kVA / 3.2 kW | Capacity (N+1): 3 kVA / 2.4 kW | UPS modules: 4 | Certification: Standard
S-A11M402A2UJ Capacity (N): 4 kVA / 3.2 kW | Capacity (N+1): 3 kVA / 2.4 kW | UPS modules: 4 | Certification: UL/CE certified
S-A11M502A2 Capacity (N): 5 kVA / 4.0 kW | Capacity (N+1): 4 kVA / 3.2 kW | UPS modules: 5 | Certification: Standard
S-A11M502A2UJ Capacity (N): 5 kVA / 4.0 kW | Capacity (N+1): 4 kVA / 3.2 kW | UPS modules: 5 | Certification: UL/CE certified
S-A11M602A2 Capacity (N): 6 kVA / 4.8 kW | Capacity (N+1): 5 kVA / 4.0 kW | UPS modules: 6 | Certification: Standard
S-A11M602A2UJ Capacity (N): 6 kVA / 4.8 kW | Capacity (N+1): 5 kVA / 4.0 kW | UPS modules: 6 | Certification: UL/CE certified
S-A11M702A2 Capacity (N): 7 kVA / 5.6 kW | Capacity (N+1): 6 kVA / 4.8 kW | UPS modules: 7 | Certification: Standard
S-A11M702A2UJ Capacity (N): 7 kVA / 5.6 kW | Capacity (N+1): 6 kVA / 4.8 kW | UPS modules: 7 | Certification: UL/CE certified
S-A11M802A2 Capacity (N): 8 kVA / 6.4 kW | Capacity (N+1): 7 kVA / 5.6 kW | UPS modules: 8 | Certification: Standard
S-A11M802A2UJ Capacity (N): 8 kVA / 6.4 kW | Capacity (N+1): 7 kVA / 5.6 kW | UPS modules: 8 | Certification: UL/CE certified
UPS SystemsSanyo Denki
16 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki SANUPS A11M Online UPS (1-8 kVA, 200 V Model)

Brand Sanyo Denki·UPS Systems

Available part numbers (16)

S-A11M102A2, S-A11M102A2UJ, S-A11M202A2, S-A11M202A2UJ, S-A11M302A2, S-A11M302A2UJ, S-A11M402A2, S-A11M402A2UJ, S-A11M502A2, S-A11M502A2UJ + 6 more — see full table ↓

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
S-A11M102A2Capacity (N): 1 kVA / 0.8 kW | Capacity (N+1): - | UPS modules: 1 | Certification: Standard
S-A11M102A2UJCapacity (N): 1 kVA / 0.8 kW | Capacity (N+1): - | UPS modules: 1 | Certification: UL/CE certified
S-A11M202A2Capacity (N): 2 kVA / 1.6 kW | Capacity (N+1): 1 kVA / 0.8 kW | UPS modules: 2 | Certification: Standard
S-A11M202A2UJCapacity (N): 2 kVA / 1.6 kW | Capacity (N+1): 1 kVA / 0.8 kW | UPS modules: 2 | Certification: UL/CE certified
S-A11M302A2Capacity (N): 3 kVA / 2.4 kW | Capacity (N+1): 2 kVA / 1.6 kW | UPS modules: 3 | Certification: Standard
S-A11M302A2UJCapacity (N): 3 kVA / 2.4 kW | Capacity (N+1): 2 kVA / 1.6 kW | UPS modules: 3 | Certification: UL/CE certified
S-A11M402A2Capacity (N): 4 kVA / 3.2 kW | Capacity (N+1): 3 kVA / 2.4 kW | UPS modules: 4 | Certification: Standard
S-A11M402A2UJCapacity (N): 4 kVA / 3.2 kW | Capacity (N+1): 3 kVA / 2.4 kW | UPS modules: 4 | Certification: UL/CE certified
S-A11M502A2Capacity (N): 5 kVA / 4.0 kW | Capacity (N+1): 4 kVA / 3.2 kW | UPS modules: 5 | Certification: Standard
S-A11M502A2UJCapacity (N): 5 kVA / 4.0 kW | Capacity (N+1): 4 kVA / 3.2 kW | UPS modules: 5 | Certification: UL/CE certified
S-A11M602A2Capacity (N): 6 kVA / 4.8 kW | Capacity (N+1): 5 kVA / 4.0 kW | UPS modules: 6 | Certification: Standard
S-A11M602A2UJCapacity (N): 6 kVA / 4.8 kW | Capacity (N+1): 5 kVA / 4.0 kW | UPS modules: 6 | Certification: UL/CE certified
S-A11M702A2Capacity (N): 7 kVA / 5.6 kW | Capacity (N+1): 6 kVA / 4.8 kW | UPS modules: 7 | Certification: Standard
S-A11M702A2UJCapacity (N): 7 kVA / 5.6 kW | Capacity (N+1): 6 kVA / 4.8 kW | UPS modules: 7 | Certification: UL/CE certified
S-A11M802A2Capacity (N): 8 kVA / 6.4 kW | Capacity (N+1): 7 kVA / 5.6 kW | UPS modules: 8 | Certification: Standard
S-A11M802A2UJCapacity (N): 8 kVA / 6.4 kW | Capacity (N+1): 7 kVA / 5.6 kW | UPS modules: 8 | Certification: UL/CE certified
