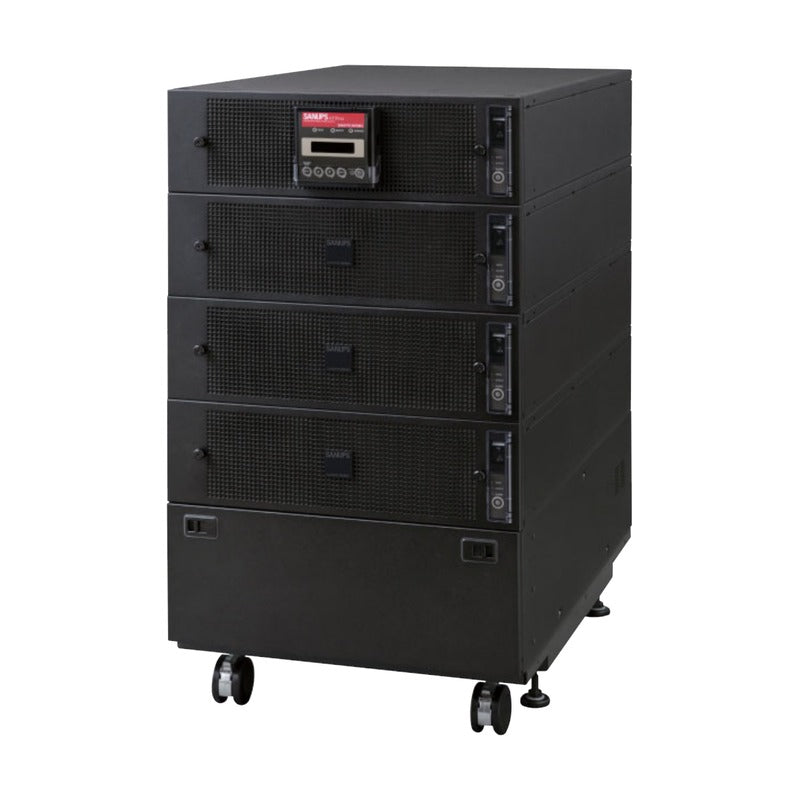

Sanyo Denki SANUPS A11N-Li Online UPS (5-20 kVA, Lithium-Ion)

Sanyo Denki SANUPS A11N-Li Online UPS (5-20 kVA, Lithium-Ion)

The SANUPS A11N-Li is the lithium-ion battery version of the A11N double-conversion online UPS, covering 5 to 20 kVA single-phase loads with 10-minute backup.

Key features

  • Double conversion online topology with lithium-ion batteries for 10-minute backup
  • Scalable S2/Z types: up to four 5 kVA units combined (max. 20 kVA)
  • 200 V single-phase 2-wire and 100/200 V single-phase 3-wire output types
  • Free-standing and 19-inch rack-mount (RM) versions
  • UL/CE certified 5 and 10 kVA models with N+1 parallel redundant operation
  • Optional LAN interface card PRLANIF031 for network monitoring and shutdown

Specifications

Topology Double conversion online
Input Single-phase 2-wire
Battery Lithium-ion battery
Output frequency 50/60 Hz
Backup 10 min
Source SANUPS A11N-Li catalog P1057B002, p. 4-10; SANUPS A11N-Li 200V single catalog P1063B001, p. 2-3
S-A11NL103A010S2 Capacity: 10 kVA / 9 kW | Voltage: 200 V in / 200 V out | Connection: Terminal in; terminal + outlet out | Configuration: Scalable, free-standing
S-A11NL103A010S2RM Capacity: 10 kVA / 9 kW | Voltage: 200 V in / 200 V out | Connection: Terminal in; terminal + outlet out | Configuration: Scalable, rack mount
S-A11NL103A010T Capacity: 10 kVA / 9 kW | Voltage: 200 V in / 200 V out | Connection: Terminal in; terminal + outlet out | Configuration: Single unit, free-standing / rack mount
S-A11NL103A010W1 Capacity: 10 kVA / 9 kW | Voltage: 100 or 200 V in / 100 or 100/200 V out | Connection: Terminal in; terminal out | Configuration: Single unit, free-standing
S-A11NL103A010W2 Capacity: 10 kVA / 9 kW | Voltage: 200 V in / 100 or 100/200 V out | Connection: Terminal in; terminal out | Configuration: Single unit, free-standing
S-A11NL103A010Z Capacity: 10 kVA / 9 kW | Voltage: 200 V in / 100 or 100/200 V out | Connection: Terminal in; terminal out | Configuration: Scalable, free-standing
S-A11NL153A010S2 Capacity: 15 kVA / 13.5 kW | Voltage: 200 V in / 200 V out | Connection: Terminal in; terminal + outlet out | Configuration: Scalable, free-standing
S-A11NL153A010S2RM Capacity: 15 kVA / 13.5 kW | Voltage: 200 V in / 200 V out | Connection: Terminal in; terminal + outlet out | Configuration: Scalable, rack mount
S-A11NL153A010Z Capacity: 15 kVA / 13.5 kW | Voltage: 200 V in / 100 or 100/200 V out | Connection: Terminal in; terminal out | Configuration: Scalable, free-standing
S-A11NL203A010S2 Capacity: 20 kVA / 18 kW | Voltage: 200 V in / 200 V out | Connection: Terminal in; terminal + outlet out | Configuration: Scalable, free-standing
S-A11NL203A010S2RM Capacity: 20 kVA / 18 kW | Voltage: 200 V in / 200 V out | Connection: Terminal in; terminal + outlet out | Configuration: Scalable, rack mount
S-A11NL203A010Z Capacity: 20 kVA / 18 kW | Voltage: 200 V in / 100 or 100/200 V out | Connection: Terminal in; terminal out | Configuration: Scalable, free-standing
S-A11NL502A010N Capacity: 5 kVA / 4.5 kW | Voltage: 200 V in / 200 V out | Connection: Plug in; outlet out | Configuration: Single unit, free-standing / rack mount
S-A11NL502A010S2 Capacity: 5 kVA / 4.5 kW | Voltage: 200 V in / 200 V out | Connection: Terminal in; terminal + outlet out | Configuration: Scalable, free-standing
S-A11NL502A010S2RM Capacity: 5 kVA / 4.5 kW | Voltage: 200 V in / 200 V out | Connection: Terminal in; terminal + outlet out | Configuration: Scalable, rack mount
S-A11NL502A010T Capacity: 5 kVA / 4.5 kW | Voltage: 200 V in / 200 V out | Connection: Terminal in; terminal + outlet out | Configuration: Single unit, free-standing / rack mount
S-A11NL502A010W1 Capacity: 5 kVA / 4.5 kW | Voltage: 100 or 200 V in / 100 or 100/200 V out | Connection: Terminal in; terminal out | Configuration: Single unit, free-standing
S-A11NL502A010W2 Capacity: 5 kVA / 4.5 kW | Voltage: 200 V in / 100 or 100/200 V out | Connection: Terminal in; terminal out | Configuration: Single unit, free-standing
S-A11NL502A010Z Capacity: 5 kVA / 4.5 kW | Voltage: 200 V in / 100 or 100/200 V out | Connection: Terminal in; terminal out | Configuration: Scalable, free-standing
A11NL502U0T Capacity: 5 kVA / 4.5 kW | Voltage: 200 V in / 200 V out | Connection: Terminal in; terminal out | Configuration: UL/CE certified order no.
A11NL502U0TM Capacity: 5 kVA / 4.5 kW | Voltage: 200 V in / 200 V out | Connection: Terminal in; terminal out | Configuration: UL/CE model (dimension drawing)
A11NL103U0T Capacity: 10 kVA / 9 kW | Voltage: 200 V in / 200 V out | Connection: Terminal in; terminal out | Configuration: UL/CE certified order no.
A11NL103U0TM Capacity: 10 kVA / 9 kW | Voltage: 200 V in / 200 V out | Connection: Terminal in; terminal out | Configuration: UL/CE model (dimension drawing)
