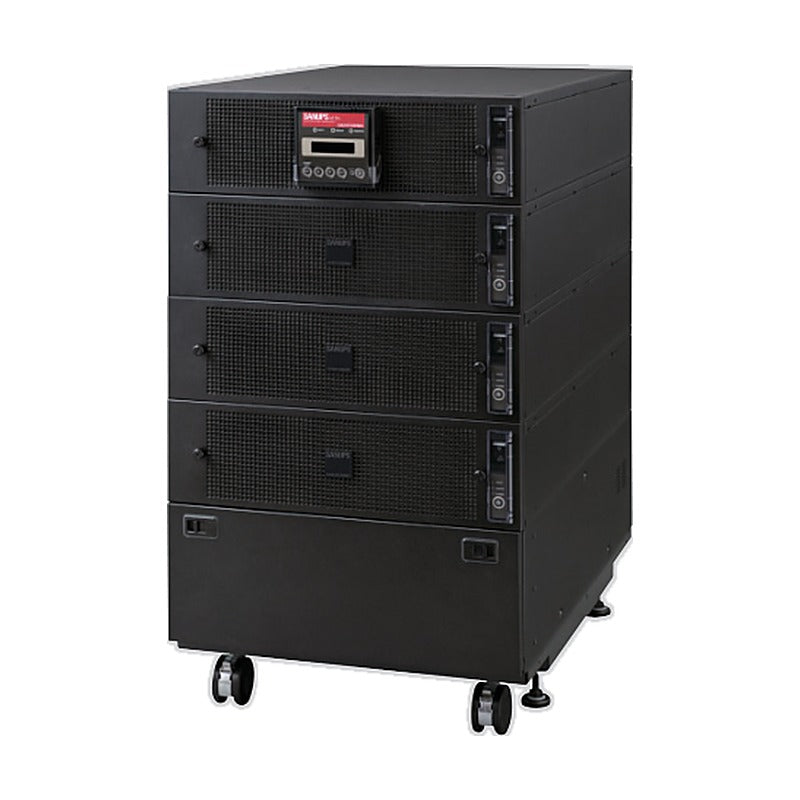

Sanyo Denki SANUPS A11N Online UPS (5-20 kVA, Lead-Acid)

Sanyo Denki SANUPS A11N Online UPS (5-20 kVA, Lead-Acid)

The SANUPS A11N is a double-conversion online UPS for single-phase loads from 5 to 20 kVA, offered with lead-acid battery sets from 5 to 180 minutes backup.

Key features

  • Double conversion online topology with high-frequency PWM inverter and forced air cooling
  • Scalable S2/Z types: up to four 5 kVA units combined (max. 20 kVA), expandable after installation
  • Free-standing and EIA 19-inch rack-mount (RM) versions; 15-45 min sets use battery panels
  • 100/200 V single-phase 3-wire output types (W1, W2, Z) alongside 200 V single-phase 2-wire types
  • UL/CE certified 5 and 10 kVA models (A11N502U0TM, A11N103U0TM) with N+1 parallel redundancy
  • Optional LAN interface card, rack rails, casterbase, floor brackets and air filter kits

Specifications

Topology Double conversion online
Input Single-phase 2-wire
Battery Small VRLA lead-acid battery
Output frequency 50/60 Hz
Expected life 10 years (UPS unit, 30 C average)
Source SANUPS A11N catalog P1054B004, p. 4-11, 28; SANUPS A11N 200V single catalog P1053B003, p. 2
S-A11N103A005S2 Capacity: 10 kVA / 9 kW | Voltage: 200 V in / 200 V out | Backup: 5 min | Connection: Terminal in; terminal + outlet out | Configuration: Scalable, free-standing
S-A11N103A005S2RM Capacity: 10 kVA / 9 kW | Voltage: 200 V in / 200 V out | Backup: 5 min | Connection: Terminal in; terminal + outlet out | Configuration: Scalable, rack mount
S-A11N103A005T Capacity: 10 kVA / 9 kW | Voltage: 200 V in / 200 V out | Backup: 5 min | Connection: Terminal in; terminal + outlet out | Configuration: Single unit, free-standing / rack mount
S-A11N103A005W1 Capacity: 10 kVA / 9 kW | Voltage: 100 or 200 V in / 100 or 100/200 V out | Backup: 5 min | Connection: Terminal in; terminal out | Configuration: Single unit, free-standing
S-A11N103A005W2 Capacity: 10 kVA / 9 kW | Voltage: 200 V in / 100 or 100/200 V out | Backup: 5 min | Connection: Terminal in; terminal out | Configuration: Single unit, free-standing
S-A11N103A005Z Capacity: 10 kVA / 9 kW | Voltage: 200 V in / 100 or 100/200 V out | Backup: 5 min | Connection: Terminal in; terminal out | Configuration: Scalable, free-standing
S-A11N103A010S2 Capacity: 10 kVA / 9 kW | Voltage: 200 V in / 200 V out | Backup: 10 min | Connection: Terminal in; terminal + outlet out | Configuration: Scalable, free-standing
S-A11N103A010S2RM Capacity: 10 kVA / 9 kW | Voltage: 200 V in / 200 V out | Backup: 10 min | Connection: Terminal in; terminal + outlet out | Configuration: Scalable, rack mount
S-A11N103A010W1 Capacity: 10 kVA / 9 kW | Voltage: 100 or 200 V in / 100 or 100/200 V out | Backup: 10 min | Connection: Terminal in; terminal out | Configuration: Single unit, free-standing
S-A11N103A010W2 Capacity: 10 kVA / 9 kW | Voltage: 200 V in / 100 or 100/200 V out | Backup: 10 min | Connection: Terminal in; terminal out | Configuration: Single unit, free-standing
S-A11N103A010Z Capacity: 10 kVA / 9 kW | Voltage: 200 V in / 100 or 100/200 V out | Backup: 10 min | Connection: Terminal in; terminal out | Configuration: Scalable, free-standing
S-A11N103A015S2RM Capacity: 10 kVA / 9 kW | Voltage: 200 V in / 200 V out | Backup: 15 min | Connection: Terminal in; terminal + outlet out | Configuration: Scalable, rack mount
S-A11N103A015T Capacity: 10 kVA / 9 kW | Voltage: 200 V in / 200 V out | Backup: 15 min | Connection: Terminal in; terminal + outlet out | Configuration: Single unit, free-standing
S-A11N103A015TRM Capacity: 10 kVA / 9 kW | Voltage: 200 V in / 200 V out | Backup: 15 min | Connection: Terminal in; terminal + outlet out | Configuration: Single unit, rack mount
S-A11N103A025S2RM Capacity: 10 kVA / 9 kW | Voltage: 200 V in / 200 V out | Backup: 25 min | Connection: Terminal in; terminal + outlet out | Configuration: Scalable, rack mount
S-A11N103A025T Capacity: 10 kVA / 9 kW | Voltage: 200 V in / 200 V out | Backup: 25 min | Connection: Terminal in; terminal + outlet out | Configuration: Single unit, free-standing
S-A11N103A025TRM Capacity: 10 kVA / 9 kW | Voltage: 200 V in / 200 V out | Backup: 25 min | Connection: Terminal in; terminal + outlet out | Configuration: Single unit, rack mount
S-A11N103A030S2 Capacity: 10 kVA / 9 kW | Voltage: 200 V in / 200 V out | Backup: 30 min | Connection: Terminal in; terminal + outlet out | Configuration: Scalable, free-standing
S-A11N103A030T Capacity: 10 kVA / 9 kW | Voltage: 200 V in / 200 V out | Backup: 30 min | Connection: Terminal in; terminal + outlet out | Configuration: Single unit, free-standing
S-A11N103A030W1 Capacity: 10 kVA / 9 kW | Voltage: 100 or 200 V in / 100 or 100/200 V out | Backup: 30 min | Connection: Terminal in; terminal out | Configuration: Single unit, free-standing
S-A11N103A030W2 Capacity: 10 kVA / 9 kW | Voltage: 200 V in / 100 or 100/200 V out | Backup: 30 min | Connection: Terminal in; terminal out | Configuration: Single unit, free-standing
S-A11N103A030Z Capacity: 10 kVA / 9 kW | Voltage: 200 V in / 100 or 100/200 V out | Backup: 30 min | Connection: Terminal in; terminal out | Configuration: Scalable, free-standing
S-A11N103A035S2RM Capacity: 10 kVA / 9 kW | Voltage: 200 V in / 200 V out | Backup: 35 min | Connection: Terminal in; terminal + outlet out | Configuration: Scalable, rack mount
S-A11N103A035T Capacity: 10 kVA / 9 kW | Voltage: 200 V in / 200 V out | Backup: 35 min | Connection: Terminal in; terminal + outlet out | Configuration: Single unit, free-standing
S-A11N103A035TRM Capacity: 10 kVA / 9 kW | Voltage: 200 V in / 200 V out | Backup: 35 min | Connection: Terminal in; terminal + outlet out | Configuration: Single unit, rack mount
S-A11N103A060S2 Capacity: 10 kVA / 9 kW | Voltage: 200 V in / 200 V out | Backup: 60 min | Connection: Terminal in; terminal + outlet out | Configuration: Scalable, free-standing
S-A11N103A060T Capacity: 10 kVA / 9 kW | Voltage: 200 V in / 200 V out | Backup: 60 min | Connection: Terminal in; terminal + outlet out | Configuration: Single unit, free-standing
S-A11N103A060W1 Capacity: 10 kVA / 9 kW | Voltage: 100 or 200 V in / 100 or 100/200 V out | Backup: 60 min | Connection: Terminal in; terminal out | Configuration: Single unit, free-standing
S-A11N103A060W2 Capacity: 10 kVA / 9 kW | Voltage: 200 V in / 100 or 100/200 V out | Backup: 60 min | Connection: Terminal in; terminal out | Configuration: Single unit, free-standing
S-A11N103A060Z Capacity: 10 kVA / 9 kW | Voltage: 200 V in / 100 or 100/200 V out | Backup: 60 min | Connection: Terminal in; terminal out | Configuration: Scalable, free-standing
S-A11N103A180S2 Capacity: 10 kVA / 9 kW | Voltage: 200 V in / 200 V out | Backup: 180 min | Connection: Terminal in; terminal + outlet out | Configuration: Scalable, free-standing
S-A11N103A180T Capacity: 10 kVA / 9 kW | Voltage: 200 V in / 200 V out | Backup: 180 min | Connection: Terminal in; terminal + outlet out | Configuration: Single unit, free-standing
S-A11N103A180W1 Capacity: 10 kVA / 9 kW | Voltage: 100 or 200 V in / 100 or 100/200 V out | Backup: 180 min | Connection: Terminal in; terminal out | Configuration: Single unit, free-standing
S-A11N103A180W2 Capacity: 10 kVA / 9 kW | Voltage: 200 V in / 100 or 100/200 V out | Backup: 180 min | Connection: Terminal in; terminal out | Configuration: Single unit, free-standing
S-A11N103A180Z Capacity: 10 kVA / 9 kW | Voltage: 200 V in / 100 or 100/200 V out | Backup: 180 min | Connection: Terminal in; terminal out | Configuration: Scalable, free-standing
S-A11N153A005S2 Capacity: 15 kVA / 13.5 kW | Voltage: 200 V in / 200 V out | Backup: 5 min | Connection: Terminal in; terminal + outlet out | Configuration: Scalable, free-standing
S-A11N153A005S2RM Capacity: 15 kVA / 13.5 kW | Voltage: 200 V in / 200 V out | Backup: 5 min | Connection: Terminal in; terminal + outlet out | Configuration: Scalable, rack mount
S-A11N153A005Z Capacity: 15 kVA / 13.5 kW | Voltage: 200 V in / 100 or 100/200 V out | Backup: 5 min | Connection: Terminal in; terminal out | Configuration: Scalable, free-standing
S-A11N153A010S2 Capacity: 15 kVA / 13.5 kW | Voltage: 200 V in / 200 V out | Backup: 10 min | Connection: Terminal in; terminal + outlet out | Configuration: Scalable, free-standing
S-A11N153A010S2RM Capacity: 15 kVA / 13.5 kW | Voltage: 200 V in / 200 V out | Backup: 10 min | Connection: Terminal in; terminal + outlet out | Configuration: Scalable, rack mount
S-A11N153A010Z Capacity: 15 kVA / 13.5 kW | Voltage: 200 V in / 100 or 100/200 V out | Backup: 10 min | Connection: Terminal in; terminal out | Configuration: Scalable, free-standing
S-A11N153A015S2RM Capacity: 15 kVA / 13.5 kW | Voltage: 200 V in / 200 V out | Backup: 15 min | Connection: Terminal in; terminal + outlet out | Configuration: Scalable, rack mount
S-A11N153A030S2 Capacity: 15 kVA / 13.5 kW | Voltage: 200 V in / 200 V out | Backup: 30 min | Connection: Terminal in; terminal + outlet out | Configuration: Scalable, free-standing
S-A11N153A030Z Capacity: 15 kVA / 13.5 kW | Voltage: 200 V in / 100 or 100/200 V out | Backup: 30 min | Connection: Terminal in; terminal out | Configuration: Scalable, free-standing
S-A11N153A060S2 Capacity: 15 kVA / 13.5 kW | Voltage: 200 V in / 200 V out | Backup: 60 min | Connection: Terminal in; terminal + outlet out | Configuration: Scalable, free-standing
S-A11N153A060Z Capacity: 15 kVA / 13.5 kW | Voltage: 200 V in / 100 or 100/200 V out | Backup: 60 min | Connection: Terminal in; terminal out | Configuration: Scalable, free-standing
S-A11N153A180S2 Capacity: 15 kVA / 13.5 kW | Voltage: 200 V in / 200 V out | Backup: 180 min | Connection: Terminal in; terminal + outlet out | Configuration: Scalable, free-standing
S-A11N153A180Z Capacity: 15 kVA / 13.5 kW | Voltage: 200 V in / 100 or 100/200 V out | Backup: 180 min | Connection: Terminal in; terminal out | Configuration: Scalable, free-standing
S-A11N203A005S2 Capacity: 20 kVA / 18 kW | Voltage: 200 V in / 200 V out | Backup: 5 min | Connection: Terminal in; terminal + outlet out | Configuration: Scalable, free-standing
S-A11N203A005S2RM Capacity: 20 kVA / 18 kW | Voltage: 200 V in / 200 V out | Backup: 5 min | Connection: Terminal in; terminal + outlet out | Configuration: Scalable, rack mount
S-A11N203A005Z Capacity: 20 kVA / 18 kW | Voltage: 200 V in / 100 or 100/200 V out | Backup: 5 min | Connection: Terminal in; terminal out | Configuration: Scalable, free-standing
S-A11N203A010S2 Capacity: 20 kVA / 18 kW | Voltage: 200 V in / 200 V out | Backup: 10 min | Connection: Terminal in; terminal + outlet out | Configuration: Scalable, free-standing
S-A11N203A010S2RM Capacity: 20 kVA / 18 kW | Voltage: 200 V in / 200 V out | Backup: 10 min | Connection: Terminal in; terminal + outlet out | Configuration: Scalable, rack mount
S-A11N203A010Z Capacity: 20 kVA / 18 kW | Voltage: 200 V in / 100 or 100/200 V out | Backup: 10 min | Connection: Terminal in; terminal out | Configuration: Scalable, free-standing
S-A11N203A015S2RM Capacity: 20 kVA / 18 kW | Voltage: 200 V in / 200 V out | Backup: 15 min | Connection: Terminal in; terminal + outlet out | Configuration: Scalable, rack mount
S-A11N203A030S2 Capacity: 20 kVA / 18 kW | Voltage: 200 V in / 200 V out | Backup: 30 min | Connection: Terminal in; terminal + outlet out | Configuration: Scalable, free-standing
S-A11N203A030Z Capacity: 20 kVA / 18 kW | Voltage: 200 V in / 100 or 100/200 V out | Backup: 30 min | Connection: Terminal in; terminal out | Configuration: Scalable, free-standing
S-A11N203A060S2 Capacity: 20 kVA / 18 kW | Voltage: 200 V in / 200 V out | Backup: 60 min | Connection: Terminal in; terminal + outlet out | Configuration: Scalable, free-standing
S-A11N203A060Z Capacity: 20 kVA / 18 kW | Voltage: 200 V in / 100 or 100/200 V out | Backup: 60 min | Connection: Terminal in; terminal out | Configuration: Scalable, free-standing
S-A11N203A180S2 Capacity: 20 kVA / 18 kW | Voltage: 200 V in / 200 V out | Backup: 180 min | Connection: Terminal in; terminal + outlet out | Configuration: Scalable, free-standing
S-A11N203A180Z Capacity: 20 kVA / 18 kW | Voltage: 200 V in / 100 or 100/200 V out | Backup: 180 min | Connection: Terminal in; terminal out | Configuration: Scalable, free-standing
S-A11N502A005N Capacity: 5 kVA / 4.5 kW | Voltage: 200 V in / 200 V out | Backup: 5 min | Connection: Plug in; outlet out | Configuration: Single unit, free-standing / rack mount
S-A11N502A005S2 Capacity: 5 kVA / 4.5 kW | Voltage: 200 V in / 200 V out | Backup: 5 min | Connection: Terminal in; terminal + outlet out | Configuration: Scalable, free-standing
S-A11N502A005S2RM Capacity: 5 kVA / 4.5 kW | Voltage: 200 V in / 200 V out | Backup: 5 min | Connection: Terminal in; terminal + outlet out | Configuration: Scalable, rack mount
S-A11N502A005T Capacity: 5 kVA / 4.5 kW | Voltage: 200 V in / 200 V out | Backup: 5 min | Connection: Terminal in; terminal + outlet out | Configuration: Single unit, free-standing / rack mount
S-A11N502A005W1 Capacity: 5 kVA / 4.5 kW | Voltage: 100 or 200 V in / 100 or 100/200 V out | Backup: 5 min | Connection: Terminal in; terminal out | Configuration: Single unit, free-standing
S-A11N502A005W2 Capacity: 5 kVA / 4.5 kW | Voltage: 200 V in / 100 or 100/200 V out | Backup: 5 min | Connection: Terminal in; terminal out | Configuration: Single unit, free-standing
S-A11N502A005Z Capacity: 5 kVA / 4.5 kW | Voltage: 200 V in / 100 or 100/200 V out | Backup: 5 min | Connection: Terminal in; terminal out | Configuration: Scalable, free-standing
S-A11N502A010N Capacity: 5 kVA / 4.5 kW | Voltage: 200 V in / 200 V out | Backup: 10 min | Connection: Plug in; outlet out | Configuration: Single unit, free-standing / rack mount
S-A11N502A010S2 Capacity: 5 kVA / 4.5 kW | Voltage: 200 V in / 200 V out | Backup: 10 min | Connection: Terminal in; terminal + outlet out | Configuration: Scalable, free-standing
S-A11N502A010S2RM Capacity: 5 kVA / 4.5 kW | Voltage: 200 V in / 200 V out | Backup: 10 min | Connection: Terminal in; terminal + outlet out | Configuration: Scalable, rack mount
S-A11N502A010T Capacity: 5 kVA / 4.5 kW | Voltage: 200 V in / 200 V out | Backup: 10 min | Connection: Terminal in; terminal + outlet out | Configuration: Single unit, free-standing / rack mount
S-A11N502A010W1 Capacity: 5 kVA / 4.5 kW | Voltage: 100 or 200 V in / 100 or 100/200 V out | Backup: 10 min | Connection: Terminal in; terminal out | Configuration: Single unit, free-standing
S-A11N502A010W2 Capacity: 5 kVA / 4.5 kW | Voltage: 200 V in / 100 or 100/200 V out | Backup: 10 min | Connection: Terminal in; terminal out | Configuration: Single unit, free-standing
S-A11N502A010Z Capacity: 5 kVA / 4.5 kW | Voltage: 200 V in / 100 or 100/200 V out | Backup: 10 min | Connection: Terminal in; terminal out | Configuration: Scalable, free-standing
S-A11N502A015N Capacity: 5 kVA / 4.5 kW | Voltage: 200 V in / 200 V out | Backup: 15 min | Connection: Plug in; outlet out | Configuration: Single unit, free-standing
S-A11N502A015NRM Capacity: 5 kVA / 4.5 kW | Voltage: 200 V in / 200 V out | Backup: 15 min | Connection: Plug in; outlet out | Configuration: Single unit, rack mount
S-A11N502A015S2RM Capacity: 5 kVA / 4.5 kW | Voltage: 200 V in / 200 V out | Backup: 15 min | Connection: Terminal in; terminal + outlet out | Configuration: Scalable, rack mount
S-A11N502A015T Capacity: 5 kVA / 4.5 kW | Voltage: 200 V in / 200 V out | Backup: 15 min | Connection: Terminal in; terminal + outlet out | Configuration: Single unit, free-standing
S-A11N502A015TRM Capacity: 5 kVA / 4.5 kW | Voltage: 200 V in / 200 V out | Backup: 15 min | Connection: Terminal in; terminal + outlet out | Configuration: Single unit, rack mount
S-A11N502A025N Capacity: 5 kVA / 4.5 kW | Voltage: 200 V in / 200 V out | Backup: 25 min | Connection: Plug in; outlet out | Configuration: Single unit, free-standing
S-A11N502A025NRM Capacity: 5 kVA / 4.5 kW | Voltage: 200 V in / 200 V out | Backup: 25 min | Connection: Plug in; outlet out | Configuration: Single unit, rack mount
S-A11N502A025S2RM Capacity: 5 kVA / 4.5 kW | Voltage: 200 V in / 200 V out | Backup: 25 min | Connection: Terminal in; terminal + outlet out | Configuration: Scalable, rack mount
S-A11N502A025T Capacity: 5 kVA / 4.5 kW | Voltage: 200 V in / 200 V out | Backup: 25 min | Connection: Terminal in; terminal + outlet out | Configuration: Single unit, free-standing
S-A11N502A025TRM Capacity: 5 kVA / 4.5 kW | Voltage: 200 V in / 200 V out | Backup: 25 min | Connection: Terminal in; terminal + outlet out | Configuration: Single unit, rack mount
S-A11N502A030N Capacity: 5 kVA / 4.5 kW | Voltage: 200 V in / 200 V out | Backup: 30 min | Connection: Plug in; outlet out | Configuration: Single unit, free-standing
S-A11N502A030S2 Capacity: 5 kVA / 4.5 kW | Voltage: 200 V in / 200 V out | Backup: 30 min | Connection: Terminal in; terminal + outlet out | Configuration: Scalable, free-standing
S-A11N502A030T Capacity: 5 kVA / 4.5 kW | Voltage: 200 V in / 200 V out | Backup: 30 min | Connection: Terminal in; terminal + outlet out | Configuration: Single unit, free-standing
S-A11N502A030W1 Capacity: 5 kVA / 4.5 kW | Voltage: 100 or 200 V in / 100 or 100/200 V out | Backup: 30 min | Connection: Terminal in; terminal out | Configuration: Single unit, free-standing
S-A11N502A030W2 Capacity: 5 kVA / 4.5 kW | Voltage: 200 V in / 100 or 100/200 V out | Backup: 30 min | Connection: Terminal in; terminal out | Configuration: Single unit, free-standing
S-A11N502A030Z Capacity: 5 kVA / 4.5 kW | Voltage: 200 V in / 100 or 100/200 V out | Backup: 30 min | Connection: Terminal in; terminal out | Configuration: Scalable, free-standing
S-A11N502A035N Capacity: 5 kVA / 4.5 kW | Voltage: 200 V in / 200 V out | Backup: 35 min | Connection: Plug in; outlet out | Configuration: Single unit, free-standing
S-A11N502A035NRM Capacity: 5 kVA / 4.5 kW | Voltage: 200 V in / 200 V out | Backup: 35 min | Connection: Plug in; outlet out | Configuration: Single unit, rack mount
S-A11N502A035S2RM Capacity: 5 kVA / 4.5 kW | Voltage: 200 V in / 200 V out | Backup: 35 min | Connection: Terminal in; terminal + outlet out | Configuration: Scalable, rack mount
S-A11N502A035T Capacity: 5 kVA / 4.5 kW | Voltage: 200 V in / 200 V out | Backup: 35 min | Connection: Terminal in; terminal + outlet out | Configuration: Single unit, free-standing
S-A11N502A035TRM Capacity: 5 kVA / 4.5 kW | Voltage: 200 V in / 200 V out | Backup: 35 min | Connection: Terminal in; terminal + outlet out | Configuration: Single unit, rack mount
S-A11N502A045N Capacity: 5 kVA / 4.5 kW | Voltage: 200 V in / 200 V out | Backup: 45 min | Connection: Plug in; outlet out | Configuration: Single unit, free-standing
S-A11N502A045NRM Capacity: 5 kVA / 4.5 kW | Voltage: 200 V in / 200 V out | Backup: 45 min | Connection: Plug in; outlet out | Configuration: Single unit, rack mount
S-A11N502A045S2RM Capacity: 5 kVA / 4.5 kW | Voltage: 200 V in / 200 V out | Backup: 45 min | Connection: Terminal in; terminal + outlet out | Configuration: Scalable, rack mount
S-A11N502A045T Capacity: 5 kVA / 4.5 kW | Voltage: 200 V in / 200 V out | Backup: 45 min | Connection: Terminal in; terminal + outlet out | Configuration: Single unit, free-standing
S-A11N502A045TRM Capacity: 5 kVA / 4.5 kW | Voltage: 200 V in / 200 V out | Backup: 45 min | Connection: Terminal in; terminal + outlet out | Configuration: Single unit, rack mount
S-A11N502A060N Capacity: 5 kVA / 4.5 kW | Voltage: 200 V in / 200 V out | Backup: 60 min | Connection: Plug in; outlet out | Configuration: Single unit, free-standing
S-A11N502A060S2 Capacity: 5 kVA / 4.5 kW | Voltage: 200 V in / 200 V out | Backup: 60 min | Connection: Terminal in; terminal + outlet out | Configuration: Scalable, free-standing
S-A11N502A060T Capacity: 5 kVA / 4.5 kW | Voltage: 200 V in / 200 V out | Backup: 60 min | Connection: Terminal in; terminal + outlet out | Configuration: Single unit, free-standing
S-A11N502A060W1 Capacity: 5 kVA / 4.5 kW | Voltage: 100 or 200 V in / 100 or 100/200 V out | Backup: 60 min | Connection: Terminal in; terminal out | Configuration: Single unit, free-standing
S-A11N502A060W2 Capacity: 5 kVA / 4.5 kW | Voltage: 200 V in / 100 or 100/200 V out | Backup: 60 min | Connection: Terminal in; terminal out | Configuration: Single unit, free-standing
S-A11N502A060Z Capacity: 5 kVA / 4.5 kW | Voltage: 200 V in / 100 or 100/200 V out | Backup: 60 min | Connection: Terminal in; terminal out | Configuration: Scalable, free-standing
S-A11N502A180N Capacity: 5 kVA / 4.5 kW | Voltage: 200 V in / 200 V out | Backup: 180 min | Connection: Plug in; outlet out | Configuration: Single unit, free-standing
S-A11N502A180S2 Capacity: 5 kVA / 4.5 kW | Voltage: 200 V in / 200 V out | Backup: 180 min | Connection: Terminal in; terminal + outlet out | Configuration: Scalable, free-standing
S-A11N502A180T Capacity: 5 kVA / 4.5 kW | Voltage: 200 V in / 200 V out | Backup: 180 min | Connection: Terminal in; terminal + outlet out | Configuration: Single unit, free-standing
S-A11N502A180W1 Capacity: 5 kVA / 4.5 kW | Voltage: 100 or 200 V in / 100 or 100/200 V out | Backup: 180 min | Connection: Terminal in; terminal out | Configuration: Single unit, free-standing
S-A11N502A180W2 Capacity: 5 kVA / 4.5 kW | Voltage: 200 V in / 100 or 100/200 V out | Backup: 180 min | Connection: Terminal in; terminal out | Configuration: Single unit, free-standing
S-A11N502A180Z Capacity: 5 kVA / 4.5 kW | Voltage: 200 V in / 100 or 100/200 V out | Backup: 180 min | Connection: Terminal in; terminal out | Configuration: Scalable, free-standing
A11N502U0TM Capacity: 5 kVA / 4.5 kW | Voltage: 200 V in / 200 V out | Backup: 5 min | Connection: Terminal in; terminal out | Configuration: UL/CE certified order no.
A11N502U0T Capacity: 5 kVA / 4.5 kW | Voltage: 200 V in / 200 V out | Backup: 5 min | Connection: Terminal in; terminal out | Configuration: UL-registered no. of A11N502U0TM
A11N103U0TM Capacity: 10 kVA / 9 kW | Voltage: 200 V in / 200 V out | Backup: 5 min | Connection: Terminal in; terminal out | Configuration: UL/CE certified order no.
A11N103U0T Capacity: 10 kVA / 9 kW | Voltage: 200 V in / 200 V out | Backup: 5 min | Connection: Terminal in; terminal out | Configuration: UL-registered no. of A11N103U0TM
