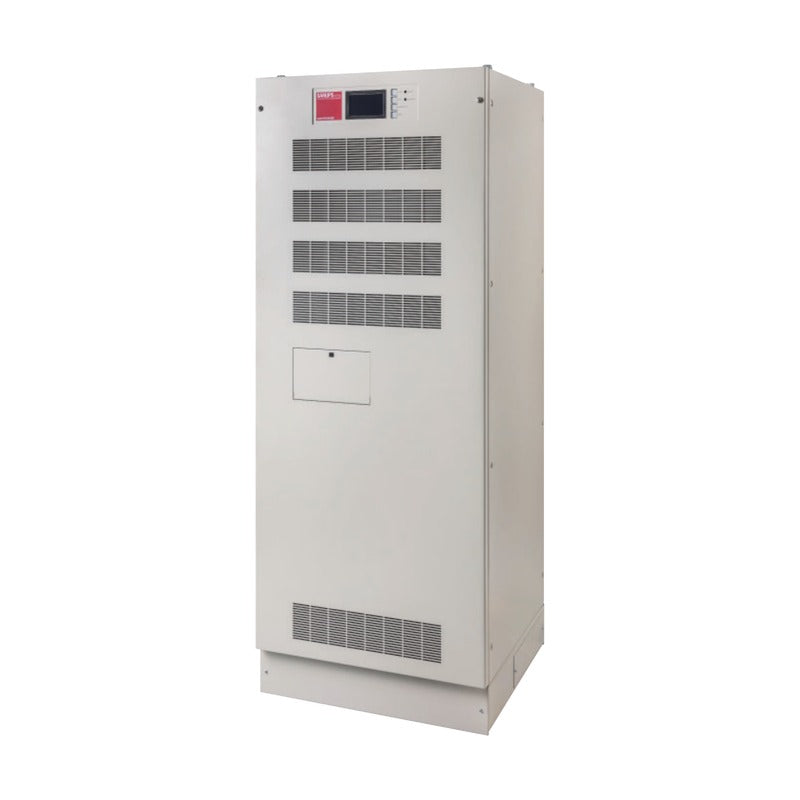

Sanyo Denki SANUPS A13A Online UPS (6.25-25 kVA, 3-Phase 200 V)

Sanyo Denki SANUPS A13A Online UPS (6.25-25 kVA, 3-Phase 200 V)

The SANUPS A13A is a 3-phase 200 V double-conversion online UPS built from 6.25 kVA UPS modules, from 6.25 to 25 kVA.

Key features

  • Combine up to four 6.25 kVA UPS modules (25 kVA, or 18.75 kVA in parallel redundant operation)
  • 92% conversion efficiency; 15-year expected service life
  • Built-in 8 min battery; 30/60 min battery panels available
  • Bypass circuit diagnostics while the load is fed by the inverter
  • Wide input voltage range (-30 to +15% at load < 80%)
  • LAN interface card PRLANIF032 option (shipped installed)

Specifications

Topology Double conversion online
Voltage 3-phase 3-wire 200/210/220 V
Backup time 8 min built-in; 30/60 min panel
Battery Small VRLA lead-acid battery
Expected life 15 years (UPS unit, 30 C average)
Source SANUPS A13A catalog P1056B003, p. 2-5
A13A622 Capacity: 6.25 kVA / 5 kW | UPS modules: 1 | Redundant (N+1): - | Panel W x D x H1: 500 x 650 x 1075 mm | Mass: 220 kg
A13A123 Capacity: 12.5 kVA / 10 kW | UPS modules: 2 | Redundant (N+1): 6.25 kVA / 5 kW | Panel W x D x H1: 500 x 650 x 1075 mm | Mass: 320 kg
A13A183 Capacity: 18.75 kVA / 15 kW | UPS modules: 3 | Redundant (N+1): 12.5 kVA / 10 kW | Panel W x D x H1: 500 x 650 x 1370 mm | Mass: 430 kg
A13A253 Capacity: 25 kVA / 20 kW | UPS modules: 4 | Redundant (N+1): 18.75 kVA / 15 kW | Panel W x D x H1: 650 x 650 x 1545 mm | Mass: 550 kg
UPS SystemsSanyo Denki
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki SANUPS A13A Online UPS (6.25-25 kVA, 3-Phase 200 V)

Brand Sanyo Denki·UPS Systems

Available part numbers (4)

A13A622, A13A123, A13A183, A13A253

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
A13A622Capacity: 6.25 kVA / 5 kW | UPS modules: 1 | Redundant (N+1): - | Panel W x D x H1: 500 x 650 x 1075 mm | Mass: 220 kg
A13A123Capacity: 12.5 kVA / 10 kW | UPS modules: 2 | Redundant (N+1): 6.25 kVA / 5 kW | Panel W x D x H1: 500 x 650 x 1075 mm | Mass: 320 kg
A13A183Capacity: 18.75 kVA / 15 kW | UPS modules: 3 | Redundant (N+1): 12.5 kVA / 10 kW | Panel W x D x H1: 500 x 650 x 1370 mm | Mass: 430 kg
A13A253Capacity: 25 kVA / 20 kW | UPS modules: 4 | Redundant (N+1): 18.75 kVA / 15 kW | Panel W x D x H1: 650 x 650 x 1545 mm | Mass: 550 kg
